Description
Voltage-Ready Dispatch — The ZDSF190 ships from stock at a confirmed 220V/50Hz, avoiding the common delay of rewiring or transformer sourcing once the crate arrives at your workshop.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF190 |
| Product Type | Automatic Edge Banding Machine |
| Function | Automatic plate feeding, belt breaking, double-sided gluing, upper/lower trimming, polishing, curved/straight edge banding |
| Edge Type | Both curved and straight lines |
| Voltage & Frequency | 220V 50Hz |
| Rated Power | 4 kW |
| Feed Speed | 0-14 m/min |
| Sheet Thickness Range | 10-50 mm |
| Strip Thickness Range | 0.5-2.5 mm |
| Glue Pot Capacity | 1000 ml |
| Trimming Stations | Upper and lower trimming with 4-edge arc-shaped alloy cutter head |
| Conveyer System | Steel rod slide rails with double-row rubber pressure wheels |

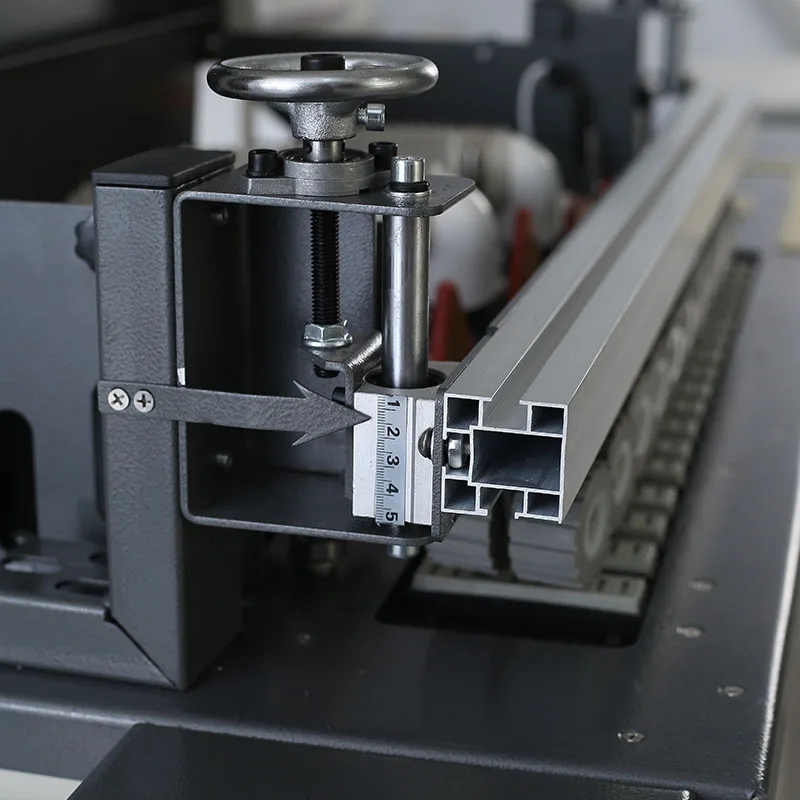

| Pressure Beam | Adjustable aluminum alloy |
| Suction Power | 1200 W |
| Heating Power | 800 W |

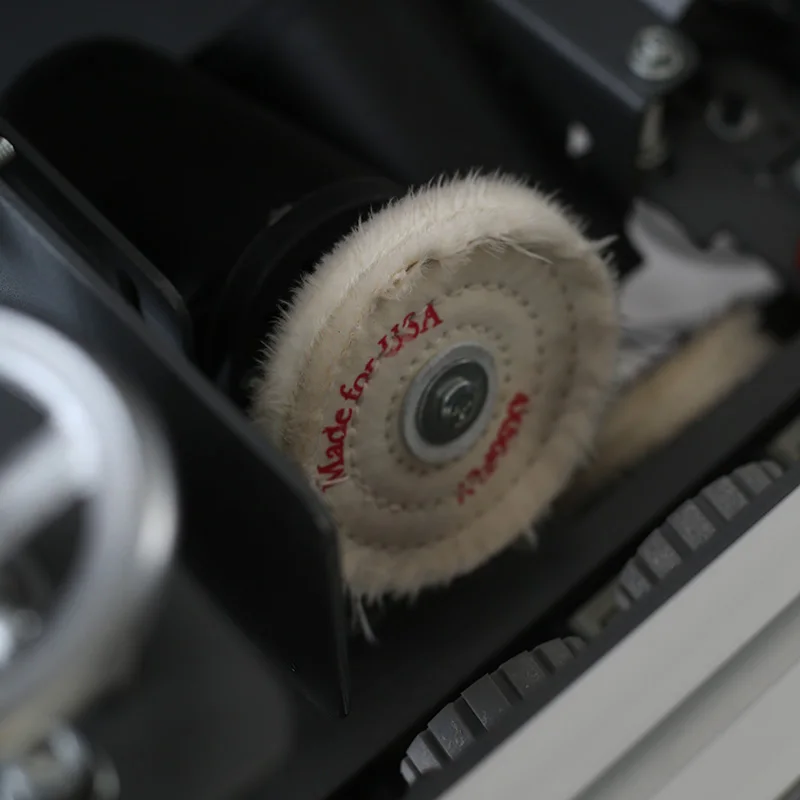

| Polishing Power | 180 W × 2 |
| Trimming Power | 800 W × 2 |
| Belt Power | 25 W |
| Transmission Power | 120 W |
| Rated Air Pressure | 0.4-0.6 MPa |
| Dust Extraction Port | Large diameter surrounding vacuum |
| Control Panel | Multi-function button operation |
| Overall Dimensions (L×W×H) | 1900 × 560 × 1300 mm |
| Net Weight | 120 kg |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Small cabinet shop production | Particleboard and MDF panels with PVC edge banding |
| Custom joinery with curved profiles | Plywood and solid wood panels with veneer or PVC strips |
| Supplemental edge banding for furniture factories | Standard sheet stock up to 50 mm thickness |
| Startup workshop transitioning from manual banding | Mixed panel materials on both straight and curved edges |
Why the Voltage Question Should Come Before the Machine Price
Confirming your local supply matches 220V 50Hz before ordering eliminates the most frequent commissioning stall we see in export shipments.
I have watched small workshops lose a full week of production because a machine arrived wired for a voltage that the local grid simply does not provide. The electrician spends days sourcing a step-down transformer, the operator stands idle, and the first panels do not run until the entire wiring is verified under load. With an Automatic Edge Banding Machine in stock fast delivery, the unit is already configured and tested at the stated voltage before it leaves the factory floor. [NEED_CITE: voltage and frequency standards by export market]
The control panel labeling also needs to match what your operator reads. A machine with buttons in a language the floor staff cannot parse turns a simple glue temperature adjustment into a guessing exercise.
Stock Availability and Single-Unit Ordering
This Automatic Edge Banding Machine in stock fast delivery is held in finished form, meaning a single-unit order does not wait for a batch production run to complete. For a joinery workshop that just landed a contract and needs edge banding capacity within weeks rather than months, the difference between a stocked machine and a made-to-order one is measured in lost revenue. The ZDSF190 sits at a footprint that fits through a standard workshop door and onto a flat concrete floor without special rigging.
Dispatch Timeline Without Production Delays
Because the ZDSF190 is built and tested ahead of the order, the lead time compresses to packing, documentation preparation, and freight booking. There is no waiting for a production slot on the assembly line or for components to arrive from upstream suppliers. For buyers who have been burned by quoted delivery dates that slip by weeks once an order is placed, a ready-stock model removes the largest variable from the timeline. [NEED_CITE: typical lead time variability in woodworking machinery exports]
Reading the Specification Sheet Against Your Actual Panels
The 10-50 mm sheet thickness range and 0.5-2.5 mm strip thickness cover the bulk of particleboard, MDF, and plywood stock that a small furniture shop processes daily. The feed speed of 0-14 m/min is adjustable, which matters when you switch from a standard 18 mm particleboard to a thinner 10 mm MDF panel that requires a slower pass to let the glue set properly against the edge. The 4 kW rated power keeps the machine within the capacity of a standard single-phase workshop supply, avoiding the need for a three-phase installation.

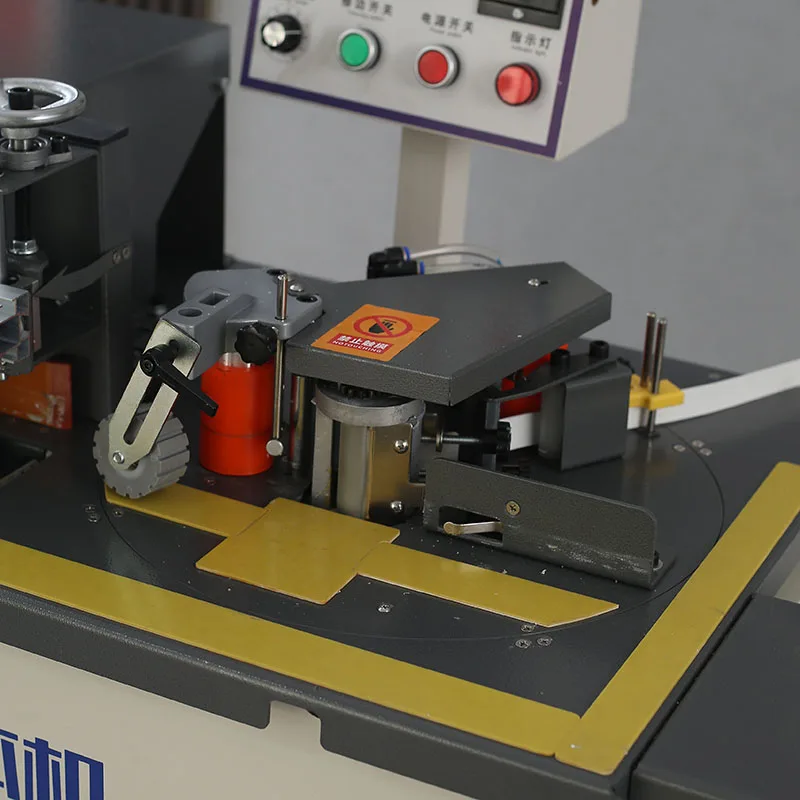

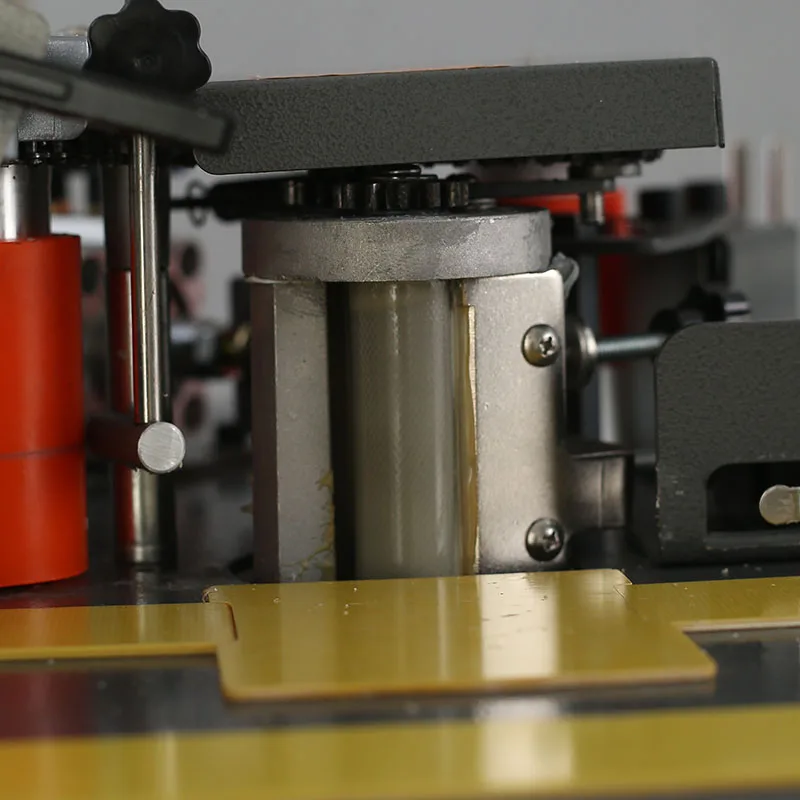

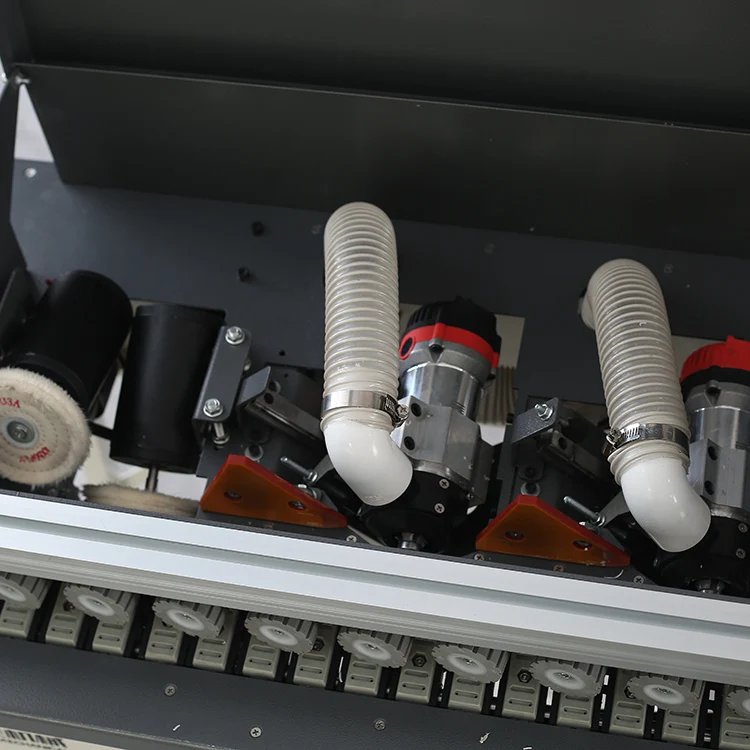

The double-sided gluing system applies adhesive to both the panel edge and the strip simultaneously, which improves bond consistency on porous substrates like particleboard where single-sided gluing can starve the joint. The upper and lower trimming stations use 4-edge arc-shaped alloy cutter heads that rotate to present a fresh cutting edge, extending the interval between blade changes. The large diameter surrounding vacuum port connects to your existing dust extraction system and captures trim waste at the source rather than letting it accumulate on the conveyor rails.
The Cost of Skipping the Material Test Run
A machine that runs perfectly on the supplier’s test panel can behave differently on the recycled-content board you actually buy locally. Glue temperature, feed speed, and pressure wheel tension all shift when the substrate density changes. I recall a shipment where the buyer tested on standard particleboard at the factory, then ran recycled material at home and spent a week adjusting parameters remotely. [NEED_CITE: substrate density variation and edge banding adhesion performance] Running a sample of your actual panel stock through the machine before dispatch catches this mismatch while adjustments are still simple.
Why Procure This Model Through This Channel
The ZDSF190 carries a confirmed 220V/50Hz configuration, so you receive a machine wired and tested for your stated supply rather than a generic unit that requires on-site electrical work. Pre-shipment testing is documented with a factory test record that covers your specified panel thickness range, giving you a baseline to reference during commissioning. The operation and maintenance manual is provided in your agreed language, which means your operator can follow the setup procedure without translation delays. Spare parts are listed and available for reorder, and the one-year warranty covers manufacturing defects from the date of delivery.
Documentation & Verification
- CE declaration of conformity for the ZDSF190 edge banding machine
- Factory test record run on your specified panel thickness and edge strip material
- Electrical schematic confirming 220V 50Hz wiring and component ratings
- Operation and maintenance manual in your agreed language with illustrated troubleshooting
- Spare parts list with part numbers for trimming cutters, pressure wheels, and glue pot components
- Packing photographs showing crate condition and machine securing before dispatch
Installation, Commissioning & Support
- Requires a level concrete floor with 1900 × 560 mm clear footprint and overhead clearance above 1300 mm
- Dedicated 220V single-phase circuit rated for at least 4 kW with proper grounding
- Arrives as a single 120 kg unit movable by pallet jack, no crane or forklift required for placement
- First run includes glue pot heating to operating temperature and feed speed calibration across your panel range
- Air supply connection at 0.4-0.6 MPa for pressure beam and pneumatic functions
- Multi-function button panel walkthrough covering curved and straight mode switching
Before You Send an Inquiry
To match the ZDSF190 to your workshop, share the panel materials you process most often, the edge strip types and thicknesses you use, and your local voltage and frequency so we confirm compatibility before quoting. If you run both curved and straight profiles, let us know the typical panel dimensions so we can verify the feed path and pressure wheel coverage. Mention your preferred language for the control panel and documentation so the manual and labeling arrive ready for your operators.
Frequently Asked Questions
Q: What is the dispatch lead time for this ready-stock model?
A: The ZDSF190 is held in finished stock, so dispatch begins once documentation, packing, and freight booking are confirmed. There is no production queue to wait for. Typical preparation takes a matter of days from order confirmation, with shipping time depending on your destination and chosen freight method.
Q: Is 220V 50Hz compatible with my local power supply, or can other voltages be sourced?
A: This stocked unit is configured at 220V 50Hz and tested accordingly. If your local supply differs, let us know your exact voltage and frequency before ordering so we can confirm whether this unit matches or if an alternative configuration is needed from available inventory.
Q: How do I switch between curved and straight edge banding on this machine?
A: The ZDSF190 handles both curved and straight edges on a single machine. Switching between modes involves adjusting the feed path and pressure wheel setup as detailed in the operation manual. The multi-function control panel provides the necessary settings for each mode.
Q: What spare parts are included, and how are replacements ordered?
A: A spare parts list is provided with your machine, identifying wear items such as trimming cutters, pressure wheels, and glue pot seals. Replacement parts can be ordered through the same channel you used for the machine, with part numbers referenced in the documentation for accurate fulfillment.
Q: What is covered under the one-year warranty?
A: The one-year warranty covers manufacturing defects in materials and workmanship from the delivery date. It includes guidance on troubleshooting and remote support for faults that arise during normal operation. Consumable items and damage from misuse or unauthorized modification are excluded.
