Description
Fast Dispatch Guarantee — XZF450 units ship from ready stock with confirmed voltage and plug configuration, eliminating production delays caused by electrical incompatibility.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | XZF-450 |

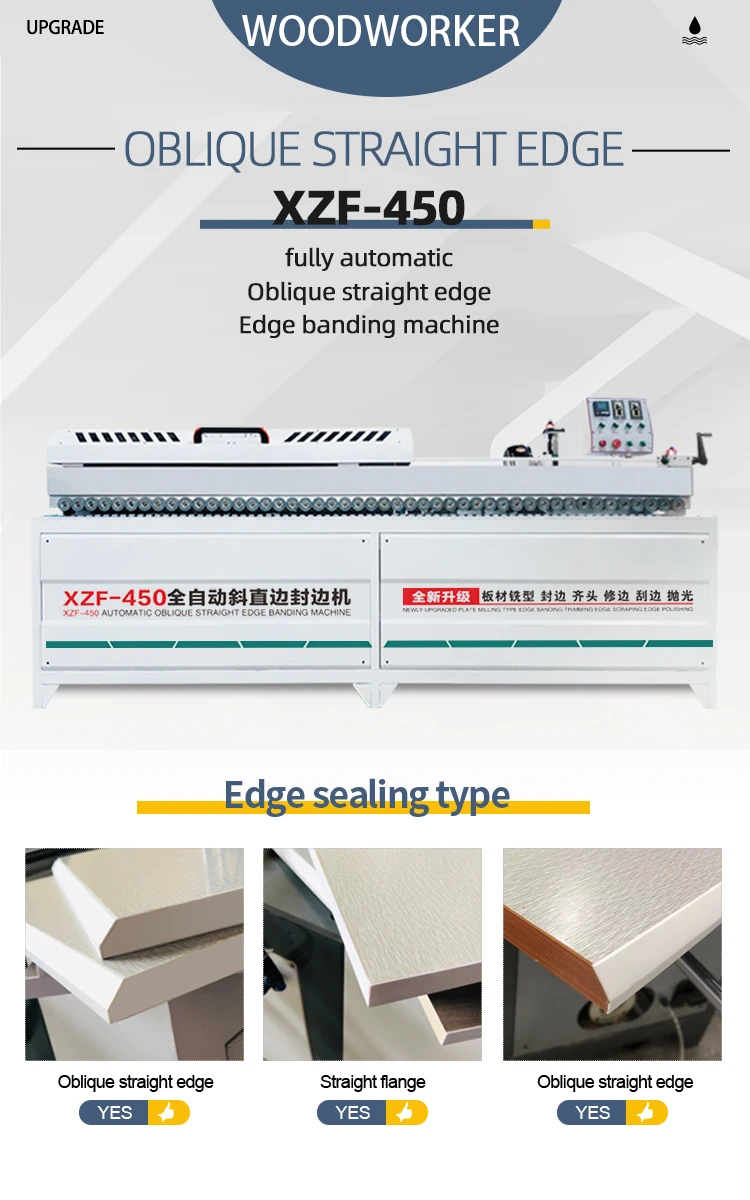

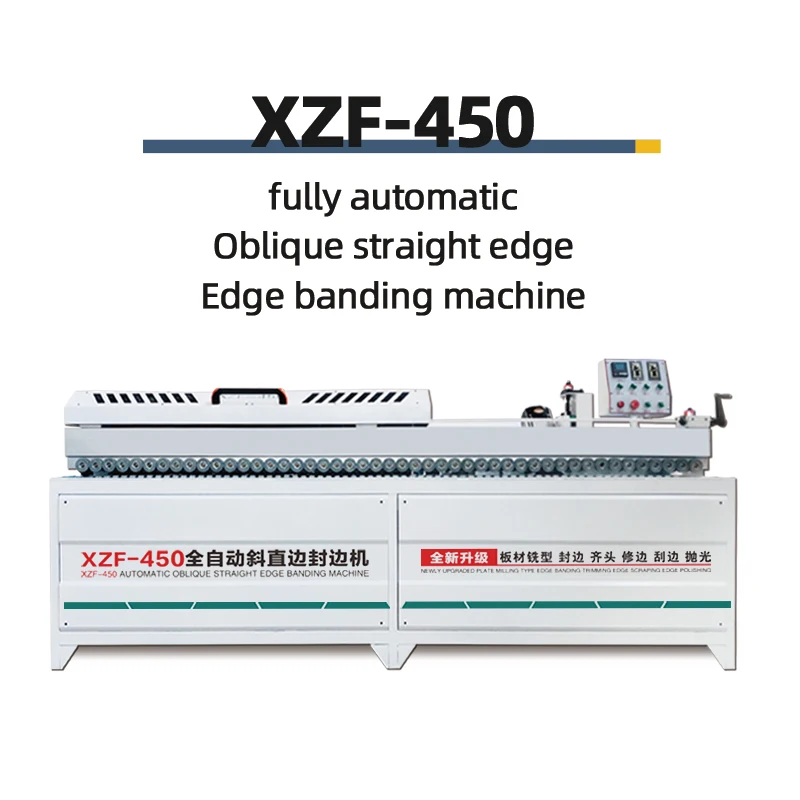

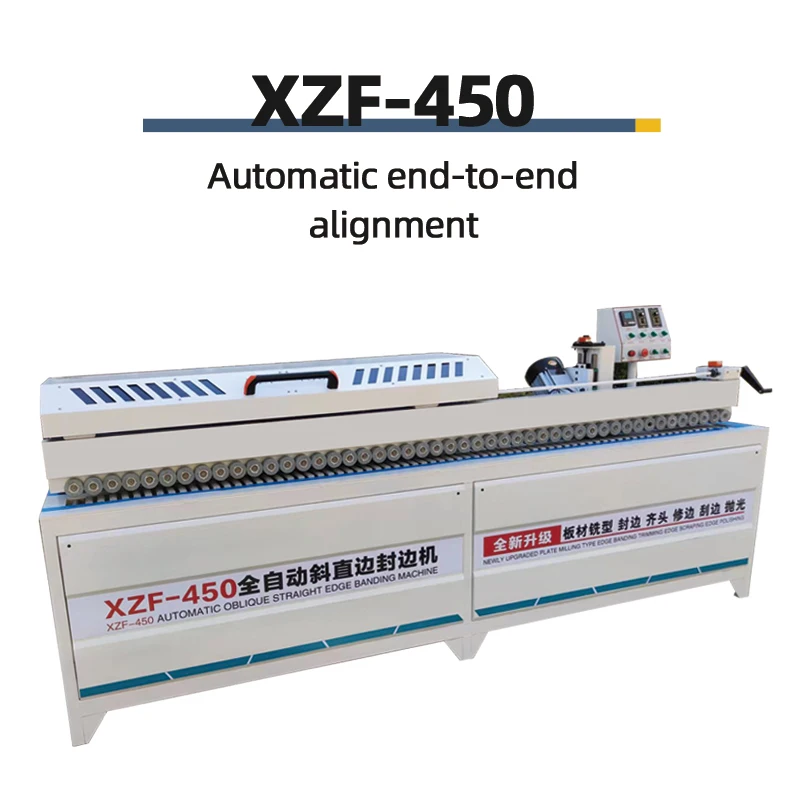

| Product Type | Automatic Oblique Straight Edge Banding Machine |
| Total Power | 9.5KW |
| Pre-milled Motor | 4KW |
| Edge Power/Speed | 0.16KW / 0-12M/min |
| Transmission Power/Speed | 180W / 0-12M/min |
| Trimming Power/Speed | 2.2KW*2 |
| Polishing Power/Speed | 0.4KW*2 |
| Vacuum Power | 550W |
| Voltage | 380V/415V |
| Feed Speed | 0-12M/min |
| Edge Banding Height | 0-50MM |
| Edge Banding Thickness | 0.3-3MM |
| Minimum Length of Sheet | 30CM |
| Minimum Width of Sheet | 15CM |
| Glue Pot Capacity | 4000ml |
| Air Source Pressure | 0.5-0.7Mpa |
| Standard Features | Plate milling, 30/45/60 degree edge banding, trimming, scraping, polishing, high-power vacuuming |
| Product Size | 30065135CM |
| Product Weight | 430KG |
| Assembly State | Fully assembled |
| Language Options | Chinese, English, Spanish, French (customizable) |
| Plug Options | EU, USA, AU, UK |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door edge finishing | MDF, melamine board, plywood |
| Custom furniture panel processing | Particleboard, blockboard, solid wood board |
| Polymer door manufacturing | Polymer composite panels |
| Medium-scale production runs | 0.3-3MM PVC and veneer edge banding |
Why Voltage Verification Must Precede Your Order
Confirming local voltage compatibility before purchase prevents weeks of downtime caused by electrical system mismatches.
I’ve seen workshop managers discover their new Automatic Edge Banding Machine in stock requires 380V three-phase power when their facility only has 220V single-phase available. The resulting electrical upgrade or transformer installation can delay production by multiple weeks while facility modifications are completed. This scenario repeats regularly across export markets where industrial voltage standards vary significantly [NEED_CITE: voltage and frequency standards by export market]. The cost isn’t just the hardware—it’s the idle labor, missed delivery deadlines, and customer relationships strained by delayed orders.
Immediate Availability Eliminates Procurement Bottlenecks
When production schedules compress or unexpected orders arrive, waiting weeks for custom manufacturing creates real operational friction. The XZF450 Automatic Edge Banding Machine in stock configuration means your equipment can ship within days rather than the typical multi-week lead times associated with made-to-order machinery. This matters especially for furniture manufacturers facing seasonal demand spikes or cabinet makers who’ve committed to project timelines they cannot extend.
Configuration Lock-In Before Shipment
Ready stock doesn’t mean generic configuration. Each unit ships with your specified voltage (380V or 415V), plug type (EU/USA/AU/UK), and control panel language (English/Spanish/French/Chinese) confirmed before dispatch. The 4000ml glue pot capacity reduces refill frequency during continuous operation, while the 0-12M/min variable feed speed accommodates different material thicknesses and edge profiles. These parameters are verified against your facility specifications, not assumed from regional defaults [NEED_CITE: CE machinery directive requirements for industrial equipment].
Understanding the Specification Implications
The 0.3-3MM edge banding thickness range covers standard PVC, ABS, and thin wood veneer materials without requiring tooling changes between jobs. The dual 2.2KW trimming motors provide sufficient power for clean cuts on both straight and 45-degree bevel edges, which directly affects downstream assembly fit and finish quality. The 4KW pre-milling station removes surface irregularities before edge application, addressing a common cause of visible glue lines on particleboard and MDF substrates. Air source pressure requirements of 0.5-0.7Mpa mean most standard workshop compressors can support operation without dedicated pneumatic upgrades. The 30CM minimum sheet length and 15CM minimum width accommodate small drawer fronts and narrow cabinet components that larger machines cannot process efficiently.
The Hidden Cost of Incompatible Configurations
Purchasing equipment without verifying electrical specifications, control language, or plug compatibility creates cascading problems. Operators cannot read error messages on control panels set to unfamiliar languages, stalling commissioning. Incorrect plug types require on-site electrical work that voids warranty coverage. Voltage mismatches can damage motors and control boards, turning a productivity investment into a repair project [NEED_CITE: industrial equipment warranty terms for electrical modifications]. These issues compound when multiple machines are purchased piecemeal without considering how feed heights, throughput rates, and material handling requirements must align across the production line.
Why Procurement Through This Channel Works
Every XZF450 unit undergoes four-stage quality verification covering incoming materials, in-process assembly, finished product testing, and pre-shipment inspection before dispatch. Factory test records document actual performance on your specified panel thickness range, not theoretical capabilities. Voltage and plug configurations are confirmed against your facility documentation, not regional assumptions. Spare parts lists accompany each shipment, identifying wear components and recommended replacement intervals. Installation guidance addresses the 430KG weight and 300CM footprint, ensuring your facility can accommodate the machine before it arrives [NEED_CITE: industrial equipment installation requirements for edge banders].
Documentation & Verification
- CE conformity declaration for European market compliance
- Factory test record on your specified panel thickness and edge material
- Electrical schematic confirming voltage, amperage, and circuit requirements
- Operation manual in your selected language with maintenance schedules
- Spare parts list with part numbers and recommended stock quantities
- Packing photographs showing machine condition before crating
Installation, Commissioning & Support
- Requires dedicated 380V/415V three-phase circuit with appropriate breaker sizing for 9.5KW total load
- Fully assembled delivery means no on-site mechanical assembly, only electrical and pneumatic connections
- 300CM length requires minimum 350CM clear floor space for operator access on both sides
- First-run calibration includes feed speed adjustment, glue temperature setting, and trimming depth verification
- Control panel language configured to your specification before shipment, with symbol-based backup navigation
- Air compressor connection requires 0.5-0.7Mpa stable supply with moisture filtration
- Recommended spare parts include trimming blades, scraper blades, and glue pot heating elements
Moving Forward With Your Requirement
To proceed, provide your facility voltage and frequency, preferred control panel language, and the specific panel materials and edge banding types you process most frequently. Confirm available floor space dimensions and whether your existing compressed air system meets the 0.5-0.7Mpa requirement. If you’re integrating this machine into an existing line, share the upstream and downstream equipment specifications so feed heights and throughput can be coordinated. For urgent requirements, specify your target delivery date so shipping options can be evaluated against current stock availability.
Frequently Asked Questions
Q: What is the fastest possible delivery timeline for the XZF450?
A: Ready stock units can ship within days of order confirmation, subject to configuration verification. The process includes confirming your voltage requirements, plug type, and control panel language, then completing pre-shipment testing. Actual delivery time to your facility depends on shipping method selected and destination port distance. Sea freight typically requires multiple weeks transit, while air freight reduces this substantially at higher cost.
Q: How do I verify the machine will work with my facility’s electrical system?
A: Provide your facility voltage, phase configuration, and frequency before ordering. The XZF450 supports 380V and 415V three-phase power. If your facility has different specifications, electrical modifications may be required at your site. We confirm compatibility before shipment and provide electrical schematics showing exact requirements so your electrician can prepare the dedicated circuit in advance.
Q: Can I specify the control panel language when ordering?
A: Yes, the XZF450 control panel supports Chinese, English, Spanish, and French as standard options, with additional languages available upon request. Specify your preference during the order confirmation process. The panel uses both text and universal symbols for navigation, providing backup operation capability even if operators are unfamiliar with the primary language selected.
Q: Is single-unit purchase supported, or are there minimum order requirements?
A: Single-unit orders are standard for ready stock purchases. Shipping costs depend on destination and method selected. The 430KG weight and 30065135CM dimensions require appropriate freight handling. We provide packing dimensions and weight documentation so your freight forwarder can calculate accurate shipping costs and arrange suitable transport from port to your facility.
Q: What support is available after the machine arrives at my facility?
A: Installation guidance covers electrical connections, pneumatic setup, and initial calibration procedures. The operation manual includes maintenance schedules, troubleshooting procedures, and spare parts information. Remote technical support addresses configuration questions and operational issues. For complex problems, on-site service can be arranged depending on your location and service agreement terms.
