Description
Ready Stock Dispatch — Every DW-3600GF leaves the floor with confirmed voltage, plug type, and language, because a fast ship date means nothing if the machine cannot run on arrival.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW-3600GF |
| Product Type | Automatic Edge Banding Machine |
| Voltage & Frequency | 380V Three-Phase Four-Wire |
| Total Power | 4.9kW |
| Overall Dimensions (L×W×H) | 2200×650×1250mm |
| Net Weight | 320KG |
| Edge Banding Type | Straight Edge Banding |
| Edge Band Height Range | 0-50mm |
| Edge Band Thickness Range | 0.3-3mm |
| Minimum Plate Length | 200mm |
| Feed Speed | 0-14m/min |
| Edge Banding Motor Power | 160W |
| Transmission Motor Power | 180W |
| Trimming Motor Power | 800W×2 at 24000r/min |
| Polishing Motor Power | 400W×2 |
| Air Pressure Requirement | 0.4-0.6MPa |
| Standard Functions | Gluing, Trimming, Front and Rear Trimming, Scraping, Polishing, Vacuuming |
| Language Options | Chinese and English (customizable to Spanish or other languages) |
| Plug Options | EU, USA, AU, UK |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edging | MDF and particleboard with PVC banding |
| Joinery workshop panel finishing | Plywood panels with veneer edge banding |
| Small-batch furniture production | Solid wood panels up to 50mm edge height |
| Prototype and sample board runs | Mixed substrates requiring frequent band thickness changes |
Why the Voltage Question Must Come Before the Price Quote
A machine sitting in ready stock is useless if it trips the breaker the moment you plug it in.
I have watched entire production lines stall because an edge bander was shipped to a workshop running on a different frequency standard. The crew stood around for weeks waiting for a step-down transformer while delivery deadlines slipped past [NEED_CITE: voltage and frequency standards by export market]. When you order an Edge Banding Machine in stock for fast delivery, the conversation should start with your local electrical supply, not the unit price. The DW-3600GF is configured at the warehouse stage — 380V three-phase four-wire is standard, but if your facility runs a different supply, that must be flagged and resolved before the crate is sealed.
Dispatch Timing Without the Guesswork
Stock availability only matters if the lead time is real. The DW-3600GF sits on the warehouse floor as a complete, tested unit — not a partially assembled frame waiting for components to arrive. When you request a quote, you get a confirmed ship date based on current inventory, not a production slot estimate. Single-unit orders are fulfilled directly from this Edge Banding Machine in stock pool, which means your crate can move to freight forwarding within days rather than waiting for a batch run to complete.
Confirming What Actually Ships
Every DW-3600GF going out the door gets photographed with its voltage badge, plug type, and control panel language visible. This is not optional. I have seen what happens when these checks get skipped on a rush order — the machine arrives, the operator powers it on, and nothing happens. The plug does not match the wall socket, or the frequency is wrong and the motors overheat within the first hour [NEED_CITE: CE machinery directive requirements for industrial equipment]. Before dispatch, you receive packing photographs showing your specific configuration confirmed.
What the Numbers Mean on the Workshop Floor
The feed speed range of 0-14m/min covers the gap between careful prototype work and small-batch production runs. At lower speeds, you can watch the glue application and trimming quality in real time, adjusting band tension on thicker PVC stock. The trimming motors run at 24000r/min, which keeps the cut clean on both melamine-faced chipboard and raw MDF without tear-out. Edge band thickness from 0.3mm to 3mm means you are not restricted to one material type — thin veneer for fine furniture and thicker PVC for kitchen cabinetry both run through without hardware changes. The 2200×650mm footprint fits into a workshop corner without requiring a dedicated zone, which matters when floor space is already committed to panel saws and drilling stations.
The Cost of Skipping Pre-Shipment Verification

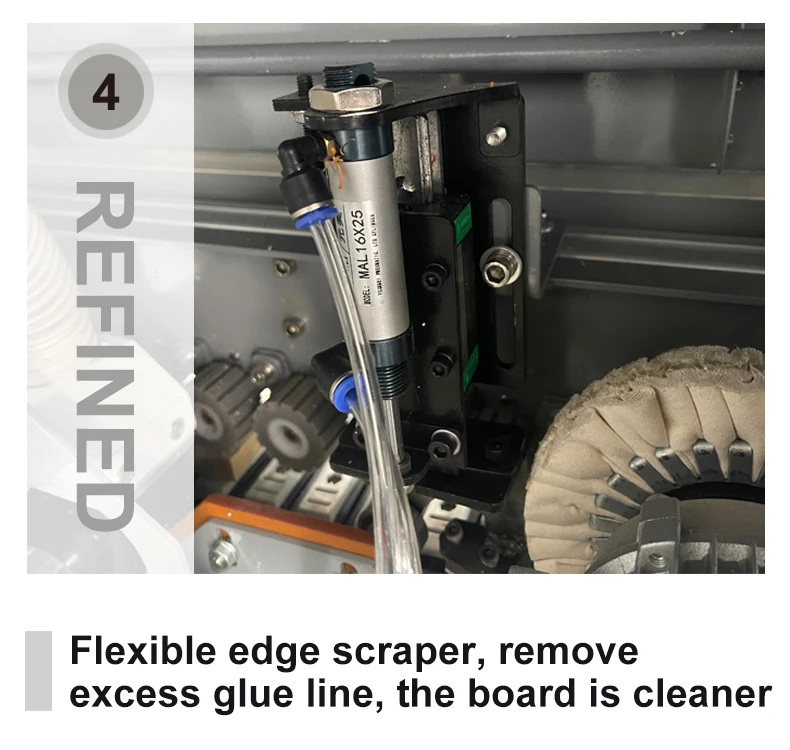

When a workshop orders an edge bander purely on price and skips the voltage and language confirmation step, the problems show up on day one. The control panel displays text the operator cannot read, so settings are guessed rather than set. Glue temperature drifts because the parameters were never calibrated for the local band material. Scraping and polishing stations run at default speeds that leave visible marks on softer substrates [NEED_CITE: edge banding adhesion standards for wood panel substrates]. None of these are machine defects — they are configuration failures that a proper pre-dispatch checklist prevents entirely.
What Sets This Order Process Apart
The DW-3600GF ships as a complete working unit with every station assembled and tested — gluing, double trimming, scraping, polishing, and vacuuming are all verified before crating. Voltage, plug type, and panel language are confirmed in writing before the machine moves, so nothing arrives as a surprise. Single-unit orders from stock are treated with the same verification steps as larger production batches. Factory test records are generated on actual panel material at your specified thickness, not a generic sample. The quotation arrives with a confirmed dispatch window, not a range that shifts depending on component supply.
Documentation & Verification
- CE declaration of conformity covering the DW-3600GF edge banding machine
- Factory test record on your specified panel thickness and edge band material
- Electrical schematic with confirmed voltage and frequency for your facility
- Operation and maintenance manual in your agreed language at delivery
- Spare parts list with part numbers for trimming blades and polishing wheels
- Packing photographs showing voltage badge and plug type before crating
Installation, Commissioning & Support
- 380V three-phase dedicated circuit required; confirm breaker rating matches 4.9kW total draw
- 2200×650mm footprint requires level concrete floor with 0.4-0.6MPa air supply nearby
- Machine arrives fully assembled; connect power and air, then run calibration panels
- Feed speed and trimming motor parameters set during first commissioning session
- Spare trimming blades and polishing pads included in the initial shipment
- Monthly inspection schedule covers belt tension, glue pot cleaning, and motor bearings
Before You Request a Quote
To get an accurate dispatch date and configuration confirmation, share your panel material types and the edge band thickness range you work with most often. Let us know your facility voltage and frequency, preferred plug type, and the control panel language your operators need. If you are replacing an existing machine or adding to a line, mention the upstream panel saw model and downstream drilling setup so we can flag any feed height or throughput mismatches early.
Frequently Asked Questions
Q: What is the current lead time from order to dispatch for the DW-3600GF?
A: The DW-3600GF is held as an Edge Banding Machine in stock, so dispatch typically follows within days of order confirmation rather than weeks. The exact date depends on completing the voltage, plug, and language verification steps before crating. Once those are signed off and packing photographs are shared, the crate moves to your chosen freight forwarder without further delay.
Q: Can I order a single unit, or is there a minimum order quantity?
A: Single-unit orders are standard for the DW-3600GF. There is no minimum batch requirement. Each machine goes through the same pre-shipment testing and documentation process whether you are ordering one unit or several. Stock is allocated on a first-confirmed basis, so early communication on configuration details helps secure your preferred dispatch window.
Q: How do I confirm voltage and plug type for my country before ordering?
A: During the quotation stage, you provide your local supply voltage, frequency, and preferred plug standard from the available options — EU, USA, AU, or UK. We confirm the configuration in writing and include an electrical schematic with your order documentation. The voltage badge on the machine is photographed before dispatch so you can verify it matches your facility supply before the crate ships.
Q: What shipping options are available and how is the machine packed for transit?
A: The DW-3600GF at 320KG ships as a single crate via sea freight or air freight depending on urgency. The machine is secured in a wooden crate with internal bracing to protect the trimming and polishing stations during transit. Packing photographs are shared before dispatch so you can confirm the packing condition and configuration details before the crate leaves the warehouse.
Q: Is installation guidance included when the machine arrives?
A: Yes. The DW-3600GF arrives fully assembled, requiring only power and air connections. The included operation manual covers first startup, parameter setting for your edge band material, and calibration steps for the trimming and polishing stations. Remote guidance is available during commissioning to walk your operator through initial runs and confirm feed speed and glue temperature settings.
