Description
Voltage-Verified Dispatch — Every DW1800 unit leaves the floor only after the buyer’s on-site supply photo is cross-checked against the machine’s electrical schematic, preventing dead-on-arrival shipments.

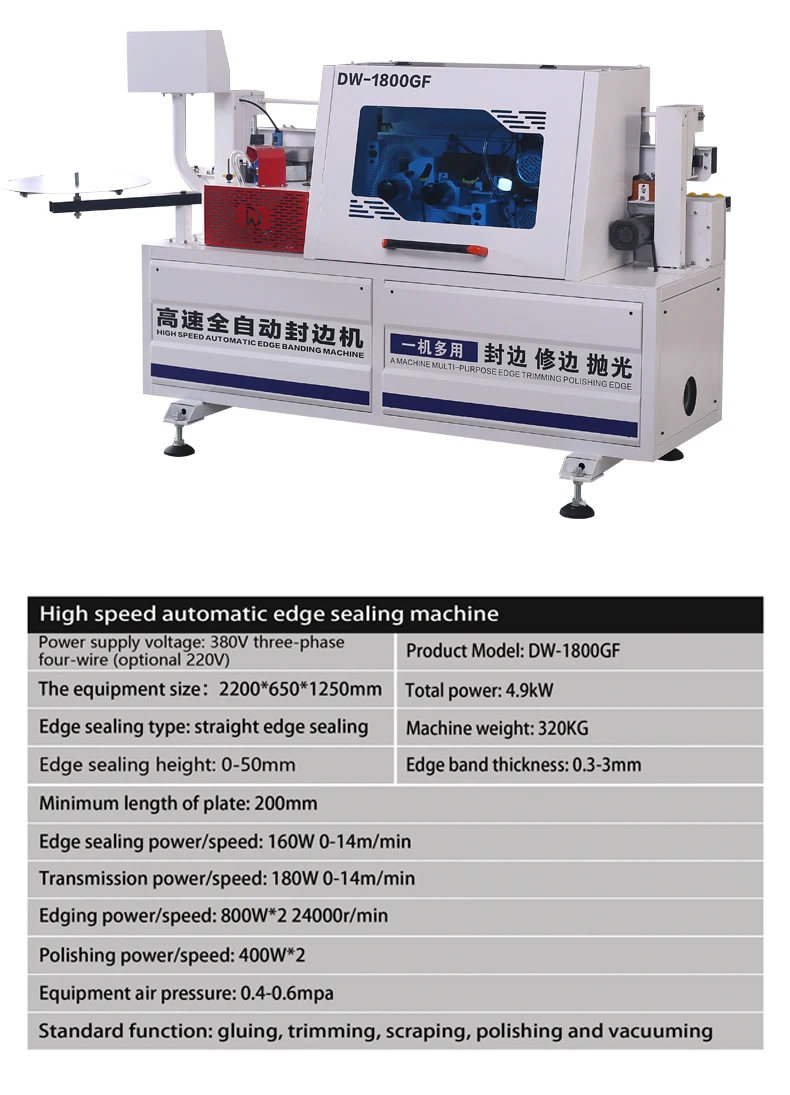

Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW1800 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4.9 kW |
| Voltage & Frequency | 380V / 220V / 415V configurable (basis to be confirmed at order) |
| Edge Power | 160 W |
| Transmission Power | 180 W |
| Trimming Power | 800 W × 2 at 24,000 r/min |
| Polishing Power | 380 W × 2 |
| Vacuum Power | 550 W |
| Feed Speed | 0–14 m/min (basis not stated in source) |
| Edge Banding Thickness | 0.3–3 mm |
| Edge Banding Height | 0–50 mm |
| Minimum Sheet Length | 20 cm |
| Minimum Sheet Width | 10 cm |
| Glue Pot Capacity | 4,000 ml |
| Air Source Pressure | 0.4–0.6 MPa |
| Key Features | Double-sided gluing, top/bottom trimming, top/bottom polishing, front/rear alignment, flexible edge scraping, dust extraction |
| Overall Dimensions | 220 × 65 × 125 cm |
| Net Weight | 320 kg |
| Language Options | Chinese, English standard; Spanish and other languages on request |
| Plug Options | EU, USA, AU, UK |
| Certification | CE, ISO 9001 |

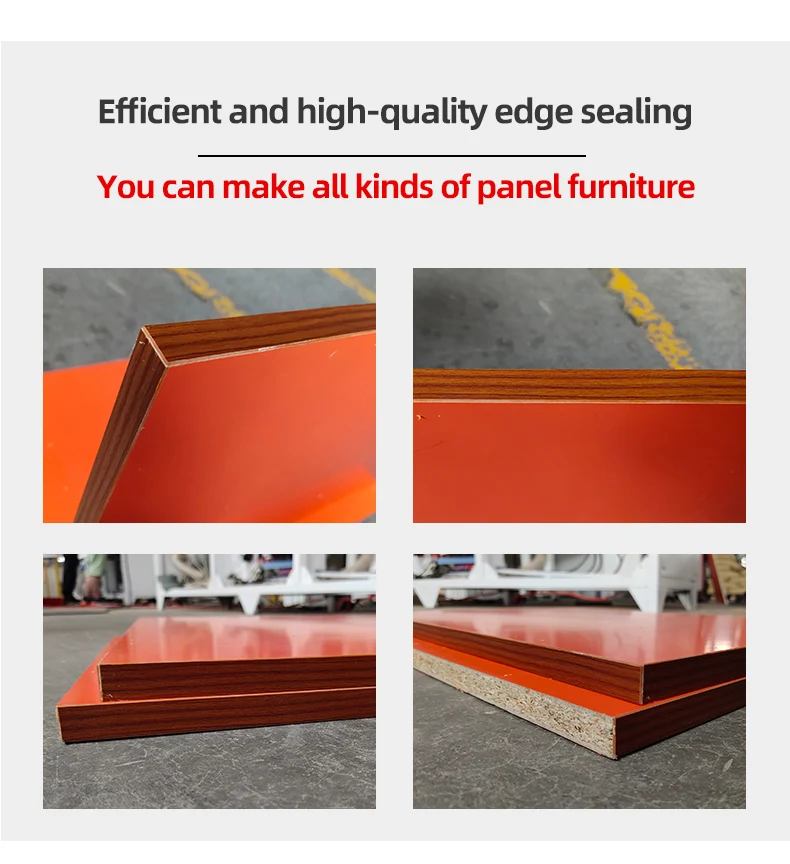

Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and particleboard with PVC banding 0.3–3 mm |
| Wardrobe panel edging | Plywood and melamine-faced board with veneer or PVC strip |
| Office furniture component banding | ABB boards and organic glass plates up to 50 mm edge height |
| Small-batch joinery production | Solid wood panels requiring flexible edge scraping |
| Retrofit from manual stations | Mixed panel materials across varied batch sizes |
Why the Voltage Question Must Come Before the Quotation
Confirming local supply voltage, frequency, and plug type at the order stage is the single most effective step to avoid a stranded machine on the shop floor.
I once watched a container-opened automatic edge banding machine in stock sit idle for three weeks because the factory’s 440V grid could not feed a unit wired for 380V. The electrician had to source a step-down transformer while the entire cabinet line stalled, costing the buyer far more in lost production than the transformer itself [NEED_CITE: voltage and frequency standards by export market]. The DW1800 ships with configurable windings across 220V, 380V, and 415V, and the plug is matched to the destination country — but only when the buyer supplies a photo of the workshop’s main distribution board before the pre-shipment test. This simple exchange, captured in the factory test record, has prevented every electrical mismatch I have handled since that incident.
Dispatch Timing and Stock Readiness
The DW1800 automatic edge banding machine in stock is held assembled and calibrated, so the interval from order confirmation to container loading stays measured in days rather than weeks. Before crating, the unit runs a live panel pass using the buyer’s specified edge banding thickness and substrate, ensuring the trimming and polishing stations are already dialed in for the target material.
What "Ready to Ship" Actually Covers
Being dispatch-ready means more than the machine sitting on the floor. The glue pot is drained and cleaned, pneumatic lines are depressurized, and the control panel firmware is flashed to the agreed language. The matching plug is hard-wired and continuity-tested. Each of these steps is photographed and bundled into the pre-shipment verification pack the buyer receives before the crate leaves Shandong [NEED_CITE: CE machinery directive requirements for industrial equipment].
Reading the Numbers That Matter on the Shop Floor
Feed speed spans 0–14 m/min, but the usable upper limit depends on board thickness and edge material; running 3 mm PVC at maximum speed on thin MDF can cause the trimming cutters to chatter, so operators typically back off to a mid-range feed for clean corner transitions. The 800 W × 2 trimming motors at 24,000 r/min deliver the surface speed needed for chip-free cuts on melamine and veneer, while the 380 W polishing wheels remove the micro-scratches left by trimming. Glue pot capacity at 4,000 ml sustains a full morning shift on standard cabinet panels without a refill stop, and the double-sided gluing system coats both the panel edge and the banding back for consistent adhesion across porous particleboard and smoother plywood surfaces.
The Cost of Skipping Configuration Verification
When a buyer orders an edge bander without specifying the minimum sheet dimensions the machine must handle, the first production run often reveals that narrow drawer sides fall below the feed rollers’ grip width, forcing manual feeding and visible seam inconsistency. Similarly, skipping the language confirmation means the operator stares at Chinese-character error codes during commissioning, turning a one-hour setup into a multi-day troubleshooting loop [NEED_CITE: industrial equipment operator interface language requirements].
Why Buyers Source This Unit Through Our Store
Stocked inventory eliminates the typical multi-week production wait, letting a workshop slot the machine into a planned line expansion without delaying downstream equipment delivery. Voltage and plug customization is confirmed in writing on the formal quotation, not left to a packing-list note. The four-stage quality check runs on every unit before crating, with the pre-shipment test record shared directly with the buyer. English and Spanish control panels are standard options, so no third-party translator is needed on day one. Spare parts lists ship inside the crate, giving the maintenance team a consumables plan before the first panel runs through.
Documentation & Verification
- CE declaration of conformity matched to the DW1800 serial number
- Factory test record showing live panel pass on buyer-specified substrate and edge thickness
- Electrical schematic confirming wound voltage, frequency, and plug type
- Operation and maintenance manual in the agreed language
- Packing photographs documenting crating condition before container loading
Installation, Commissioning & Support
- 220 × 65 cm footprint requires a level concrete pad clear of overhead obstructions
- 4.9 kW total draw demands a dedicated 16 A circuit at the confirmed voltage
- Machine arrives fully assembled; only dust extraction hose and air line need connection
- First-run parameter tuning covers glue temperature, feed speed, and trimmer offset
- English or Spanish control panel ensures operators navigate menus without translation delays
- Spare parts list includes trimming cutters, polishing wheels, and glue pot seals
Next Steps Before You Commit
Send over your workshop’s supply voltage, frequency, and a photo of the main breaker panel so we can lock the winding and plug specification. Share the panel materials, edge banding thickness range, and typical sheet dimensions you will run most often; this lets us pre-set the feed speed and trimming offsets before the crate closes. If you need the control panel in Spanish or another language, confirm it at the order stage so the firmware is flashed during the pre-shipment test.
Frequently Asked Questions
Q: Is this model currently in stock and what is the dispatch lead time?
A: The DW1800 is held in ready stock. Once voltage, plug type, and control panel language are confirmed, the pre-shipment test and crating are completed within a short window. Exact dispatch date depends on the confirmation speed and the chosen shipping route.
Q: How do you confirm voltage, frequency, and plug type for my country before shipping?
A: We request a photo of your workshop’s main distribution board and the rated voltage printed on existing equipment. This is cross-checked against the machine’s electrical schematic, and the confirmed values are written into the formal quotation and the factory test record.
Q: Can the control panel language be set to English or Spanish if my operators do not read Chinese?
A: English is a standard option alongside Chinese. Spanish and other languages are available on request and must be specified at order so the firmware is flashed during the pre-shipment verification run.
Q: What panel materials and edge banding thicknesses does the DW1800 handle out of the box?
A: It covers MDF, particleboard, plywood, ABB boards, PVC panels, organic glass plates, and solid wood panels. Edge banding thickness ranges from 0.3 mm to 3 mm, and edge height up to 50 mm, accommodating both PVC and veneer strips.
Q: How is the machine packed and what shipping options are available for a single-unit order?
A: The DW1800 ships fully assembled in a wooden crate with packing photographs provided before loading. Single-unit LCL or full-container options are both available, and customs documentation support is included with every shipment.
