Description
Fast dispatch readiness — Every unit undergoes voltage confirmation and pre-shipment testing before leaving the facility, eliminating the arrival-stage electrical failures that stall workshop commissioning.
Technical Specifications
| Parameter | Value |
|---|---|

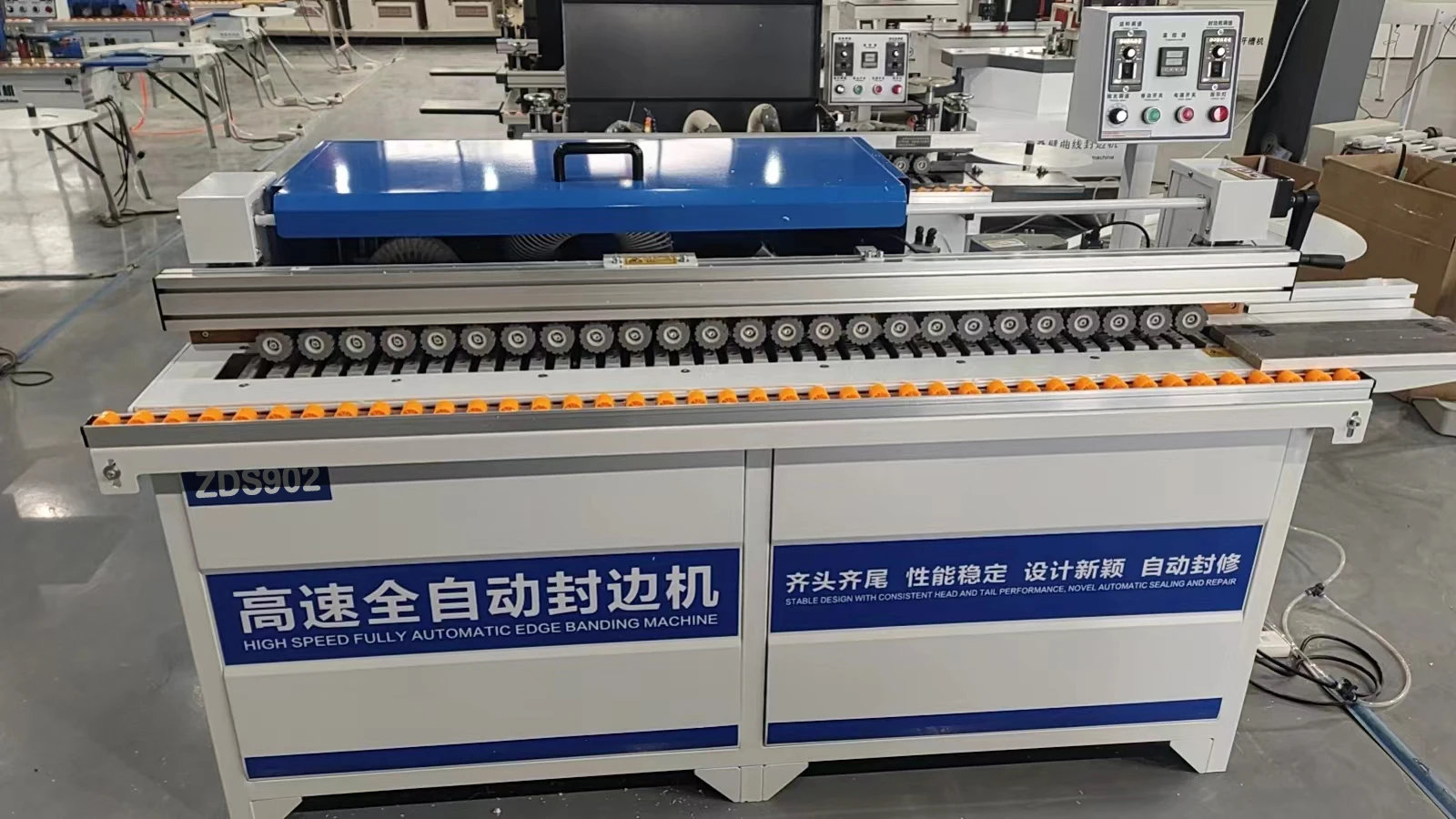

| Product Type | Automatic Edge Banding Machine |
| Voltage | 220V |
| Total Power | 4200W |

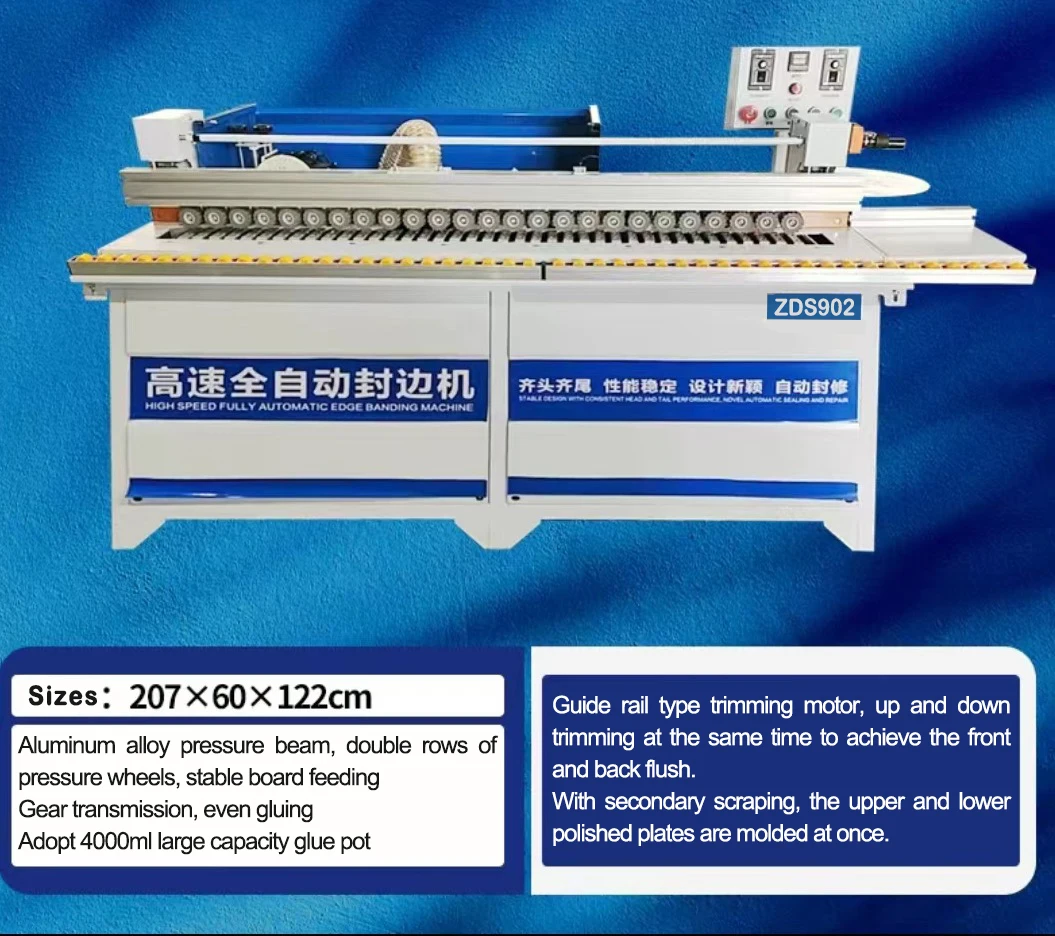

| Equipment Size | 207 × 60 × 122 cm |
| Weight | 245 kg |
| Edge Band Height Range | 0 – 35 mm |
| Edge Band Thickness Range | 0.5 – 2.5 mm |
| Glue Pot Capacity | 4000 ml |
| Edge Banding Type | Linear Edge Banding Machine |
| Pressure Beam | Integrated, adjustable handle for board height |
| Conveyor Belt | Silicone material |
| Pressure Wheels | Double rows |

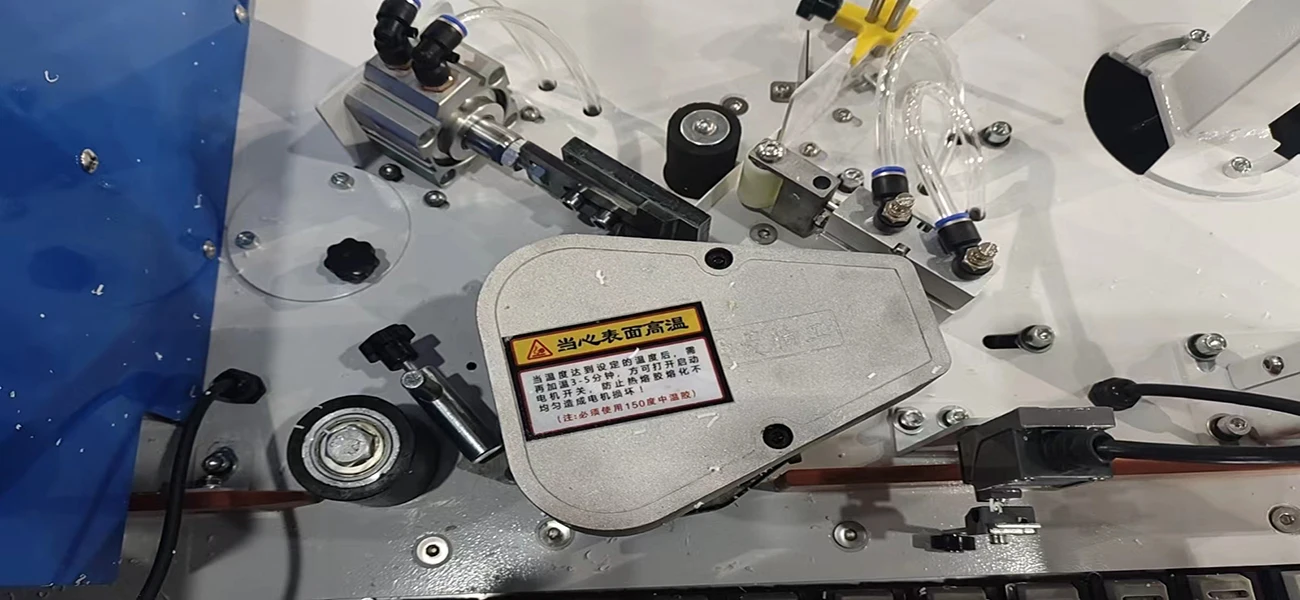

| Edge Strip Cutting Device | Pneumatically controlled |
| Polishing System | Up and down, two motors |
| Trimming System | Double high-speed trimming motors, trimming up and down |
| Gluing System | Double-sided gluing |
| Control System | Independent operating platform with intelligent temperature control |
| Standards | CE |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge banding | MDF, particleboard with PVC edge banding |
| Cabinet door and carcass finishing | Plywood panels with veneer edge banding |
| Small workshop daily panel runs | Solid wood panels with 0.5 – 2.5 mm edge strips |
| Joinery shop upgrade from manual banding | Laminated boards requiring trimmed and polished edges |
Why the Voltage Question Should Come Before the Price on Any Automatic Edge Banding Machine in Stock
Matching local power supply to machine electricals before dispatch is the single most overlooked step in cross-border equipment procurement.
I have watched workshops wait weeks for transformer modifications because the voltage question never came up during the order process. A 220V machine arriving at a site running on a different standard simply sits idle until an electrician resolves the mismatch. This automatic edge banding machine in stock ships only after the buyer’s local voltage and frequency are confirmed against the electrical schematic [NEED_CITE: voltage and frequency standards by export market]. The pre-shipment verification step catches these mismatches on the factory floor, where corrections take hours rather than the weeks required once the crate is opened overseas.
Ready for Dispatch Without the Usual Configuration Delays
Workshops scaling from manual edge banding to automated production rarely have the luxury of waiting through extended build cycles. This automatic edge banding machine in stock is held in inventory and prepared for dispatch once final specifications are locked in. The unit arrives with its 4200W electrical system confirmed against the destination grid, meaning the first power-on at the buyer’s facility is a productive one rather than a troubleshooting session.
What Stock Availability Actually Means for Your Production Timeline
Lead time is only part of the delivery equation — the machine must also be configured correctly for the receiving workshop’s conditions. The 4000 ml glue pot is filled and tested during the pre-shipment run, and the intelligent temperature control system is calibrated to the adhesive type specified by the buyer. An in-stock machine that still requires on-site adjustment defeats the purpose of buying ready-to-ship. Our process ensures the unit leaving the dock is the same unit that runs panels on day one at the destination [NEED_CITE: CE machinery directive requirements for industrial equipment].
Reading the Specifications Through a Production Lens

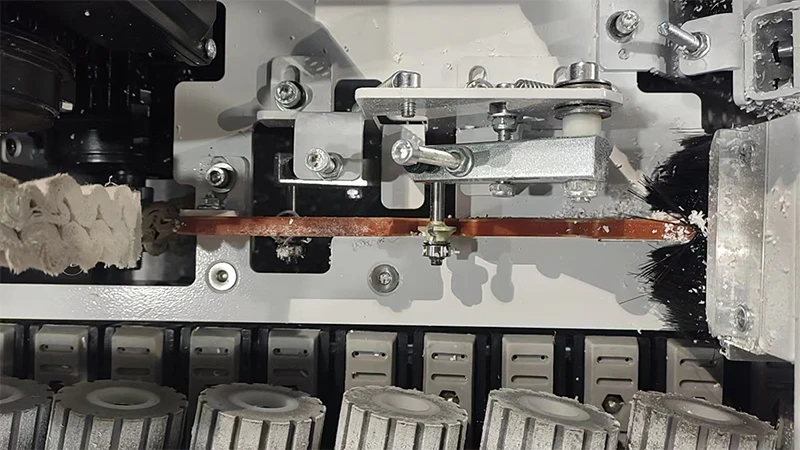

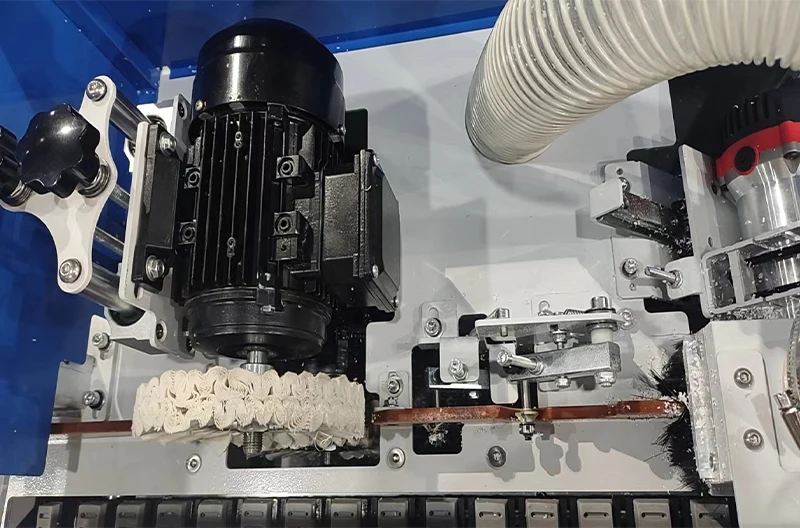

The 0 – 35 mm edge band height range and 0.5 – 2.5 mm thickness range define what this machine can physically handle on the shop floor. PVC edge banding in the 0.5 – 1.0 mm range requires precise temperature management to avoid adhesive bleed — the intelligent temperature control addresses this directly. Thicker veneer banding closer to 2.5 mm demands more from the trimming system, and the double high-speed trimming motors handle the increased load while the up-and-down polishing motors clean the residual marks. The pneumatically controlled edge strip cutting device ensures the band is severed cleanly at the panel end rather than torn or left trailing, which affects how the finished panel moves into assembly or stacking. Board thickness variations are absorbed by the integrated pressure beam with its adjustable handle, and the double rows of pressure wheels keep panels tracking straight through the 207 cm working length without lateral drift.
The Cost of Overlooking Feed Stability and Glue Capacity
A compact edge bander bought for continuous daily runs can quickly reveal its limits when the glue pot runs dry mid-shift or the pressure system allows panel drift. Workshops that specify only on price and footprint often discover that single-row pressure wheels leave visible tracking marks on lighter substrates, or that a smaller glue pot forces frequent refill stops that break production rhythm. The downstream consequence is panels with inconsistent edge adhesion that fail during assembly or customer inspection [NEED_CITE: woodworking machinery quality standards for panel edge adhesion]. These problems compound because each defective panel must be re-run, consuming both material and operator time.
Why Procurement Here Reduces Arrival-Side Risk
Voltage confirmation happens before the machine ships, not after it arrives — the electrical schematic is checked against your local grid parameters as a standard step. The 4200W system and 220V configuration are verified under load during the factory test, so the unit performs as expected on first power-up. Pre-shipment testing covers the full edge banding cycle including gluing, trimming, and polishing on your specified panel material. Spare parts are packed with the machine based on the consumable wear items identified during the test run. The operation manual is provided in the language your operators will actually read, not a generic translation that stalls the commissioning process.
Documentation & Verification
- CE declaration of conformity covering this linear edge banding configuration
- Factory test record on your specified panel thickness and edge band material before dispatch
- Electrical schematic with voltage and frequency confirmed against your local supply
- Operation and maintenance manual in your agreed language with illustrated troubleshooting
- Spare parts list matched to the consumable items in this 4000 ml glue pot system
- Pre-shipment photographs of machine, packing, and crate labeling
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated for the 4200W total power draw with appropriate breaker sizing
- Floor space of approximately 207 × 60 cm plus operator clearance on feed and discharge sides
- Delivered assembled — pneumatic connections and glue pot loading completed during on-site startup
- First-run calibration of the integrated pressure beam and double-row pressure wheels to your panel thickness
- Operator walkthrough covering the independent platform controls, temperature settings, and trim adjustments
- Consumable spare parts included: trimming blades, polishing wheels, and glue pot seals
What We Need to Confirm Before Dispatch
To ensure this machine matches your workshop conditions, we need your local voltage and frequency specification, the primary panel material and thickness range you will be running, and your preferred edge banding material type and thickness. If you have existing upstream saws or downstream boring equipment, share the panel dimensions and feed heights so we can verify compatibility through the line.
Frequently Asked Questions
Q: Is this machine in stock and what is the dispatch lead time?
A: This model is held in ready stock and prepared for dispatch once your voltage and specification requirements are confirmed. The pre-shipment testing cycle is completed before crating, which typically takes a short period depending on the customization items requested. You receive photographs of the packed unit before it leaves the facility.
Q: Can the voltage be matched to my local power supply before shipping?
A: Yes. The electrical system is confirmed against your local voltage and frequency before the machine ships. The 220V configuration and 4200W total power are verified under load during the factory test. This step prevents the common situation where equipment arrives at a workshop and cannot be powered on until transformer modifications are arranged locally.
Q: What edge banding materials and thicknesses does this model handle?
A: The machine processes edge banding from 0.5 to 2.5 mm in thickness and up to 35 mm in height. It handles PVC and veneer edge banding on MDF, particleboard, plywood, and solid wood panels. The intelligent temperature control adjusts to different adhesive requirements across these material combinations.
Q: Does the machine arrive assembled or does it require on-site setup?
A: The unit ships assembled. On-site work is limited to connecting the pneumatic supply, loading adhesive into the 4000 ml glue pot, and calibrating the pressure beam to your panel thickness. The operation manual guides your team through these steps, and remote support is available during the initial startup phase.
Q: What spare parts and consumables are included with the order?
A: A spare parts list specific to this model accompanies every shipment, including items like trimming blades, polishing wheels, and glue pot seals identified as wear components. The list is reviewed with you before dispatch so you can add any additional consumables to support your planned production volume.
