Description

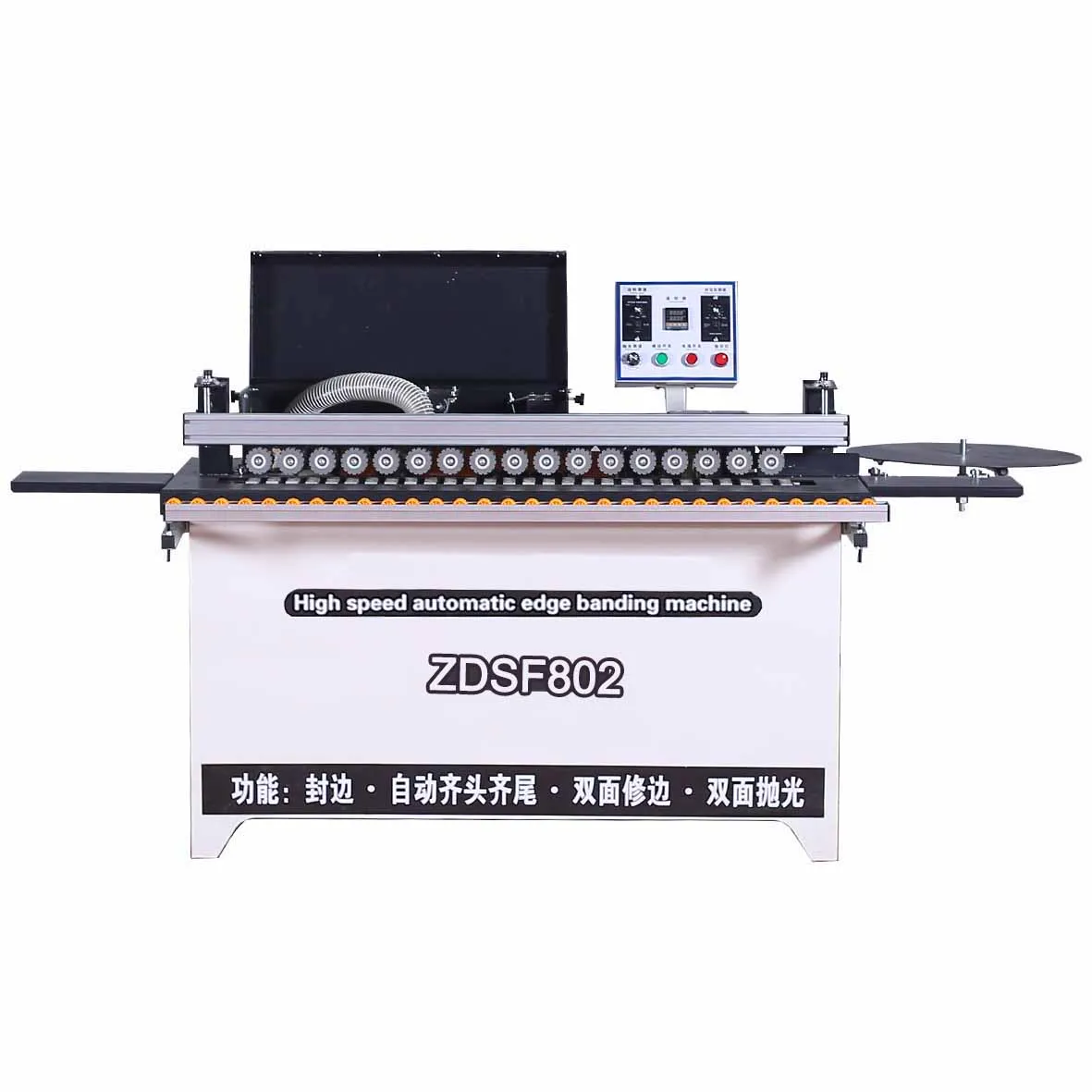

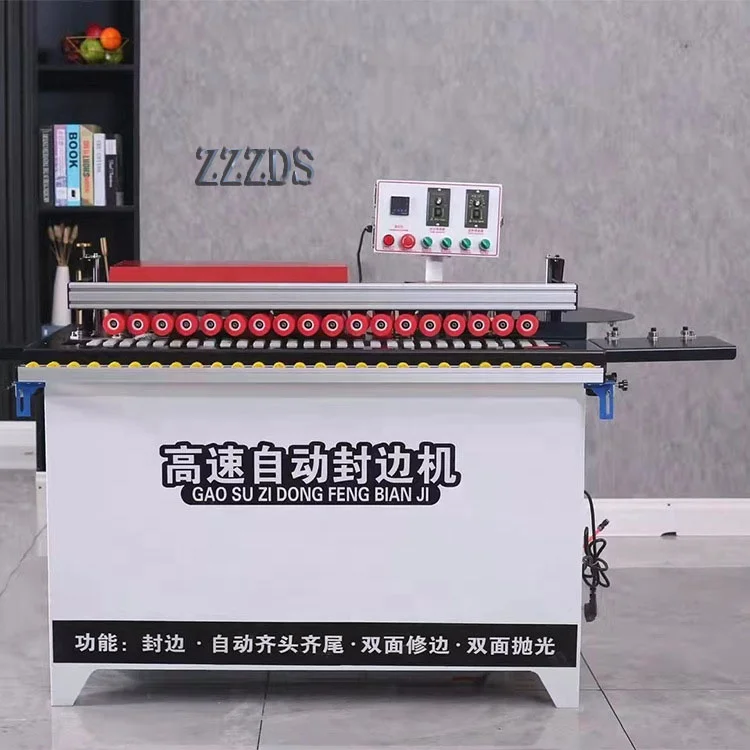

Stocked and Verified — Model 802 fully automatic edge bander units ship with confirmed voltage matching and pre-dispatch test records, avoiding dead-on-arrival scenarios.

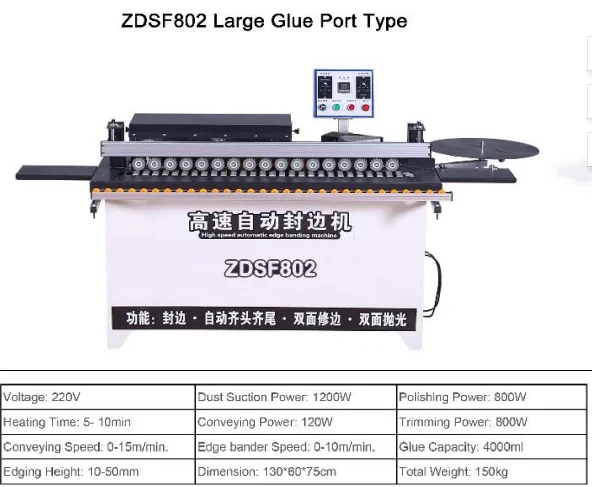

Technical Specifications
| Parameter | Value |
|---|---|
| Model | 802 |
| Product Type | Fully Automatic Edge Banding Machine |
| Edge Type | Straight line |
| Rated Voltage | 220V (frequency to be confirmed: 50Hz/60Hz) |
| Rated Power | 4 kW |
| Feed Speed | 0–10 m/min |
| Sheet Thickness Range | 10–50 mm |
| Strip Thickness Range | 0.5–2.5 mm |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Suction Power | 1200 W |
| Glue Pot Capacity | 4000 ml |
| Heating Power | 1000 W |
| Rated Air Pressure | 0.4–0.6 MPa |
| Conveyor Belt Material | Silicone |
| Pressure Beam | One-piece, double rows of pressure wheels |
| Overall Dimensions | 190 × 65 × 75 cm (verify against packing layout) |
| Machine Weight | 150 kg |

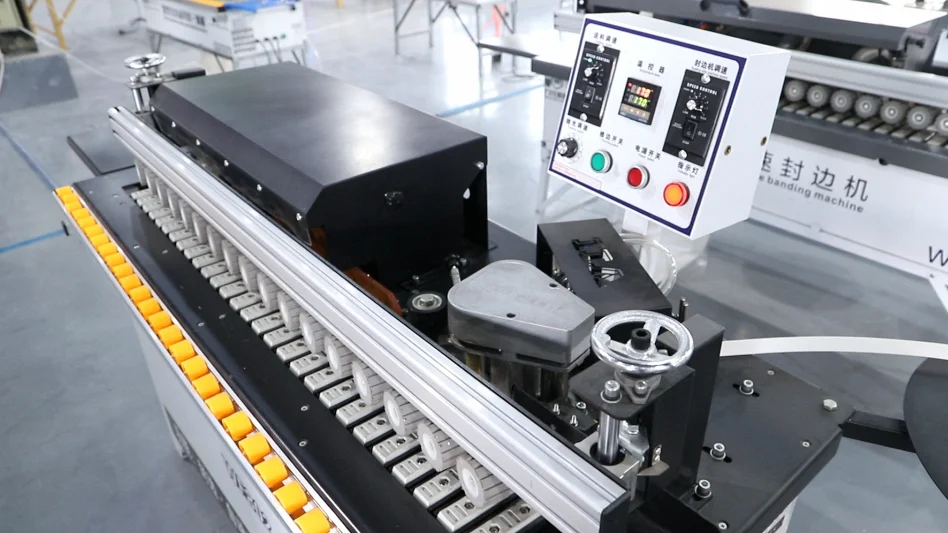

| Control Panel | Digital display of glue pot temperature, independent switch |
| Key Features | Automatic plate feeding, end cutting, head and tail trimming, upper and lower polishing, integrated dust collector |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edging | MDF and particleboard with PVC strips |
| Shelving and carcass panel finishing | Plywood panels with veneer edge banding |
| Small-batch furniture production runs | Solid wood panels up to 50 mm thickness |
| Workshop entry-level automated edging | Laminated board with 0.5–2.5 mm strip stock |
Why the Voltage Question Must Come Before Dispatch
An Automatic Edge Banding Machine in stock is only useful if it runs the moment you plug it in. Every unit ships only after your local supply voltage and frequency are verified against the machine nameplate.
I remember sending a fully automatic edge bander to a Middle East workshop years back. The local supply frequency had not been checked beforehand. The machine tripped its breaker on first power-up, and the customer waited weeks for a replacement transformer. Since then, every machine that leaves the floor gets its nameplate photographed and cross-referenced with the buyer’s site electrical data before crating. A stocked machine that sits idle because of a voltage mismatch is not fast delivery — it is a delay disguised as speed [NEED_CITE: voltage and frequency standards by export market].
Fast Dispatch Without the Guesswork
When workshops order an Automatic Edge Banding Machine in stock, the priority is getting production running within days, not weeks. The Model 802 ships as a single unit with lead times quoted at the point of order confirmation. No production-line commitment is required — one machine, one crate, one shipment. The order process is built around speed: confirm your voltage, receive a packing schedule, and track dispatch without back-and-forth on configuration details.
How Pre-Shipment Verification Works Here

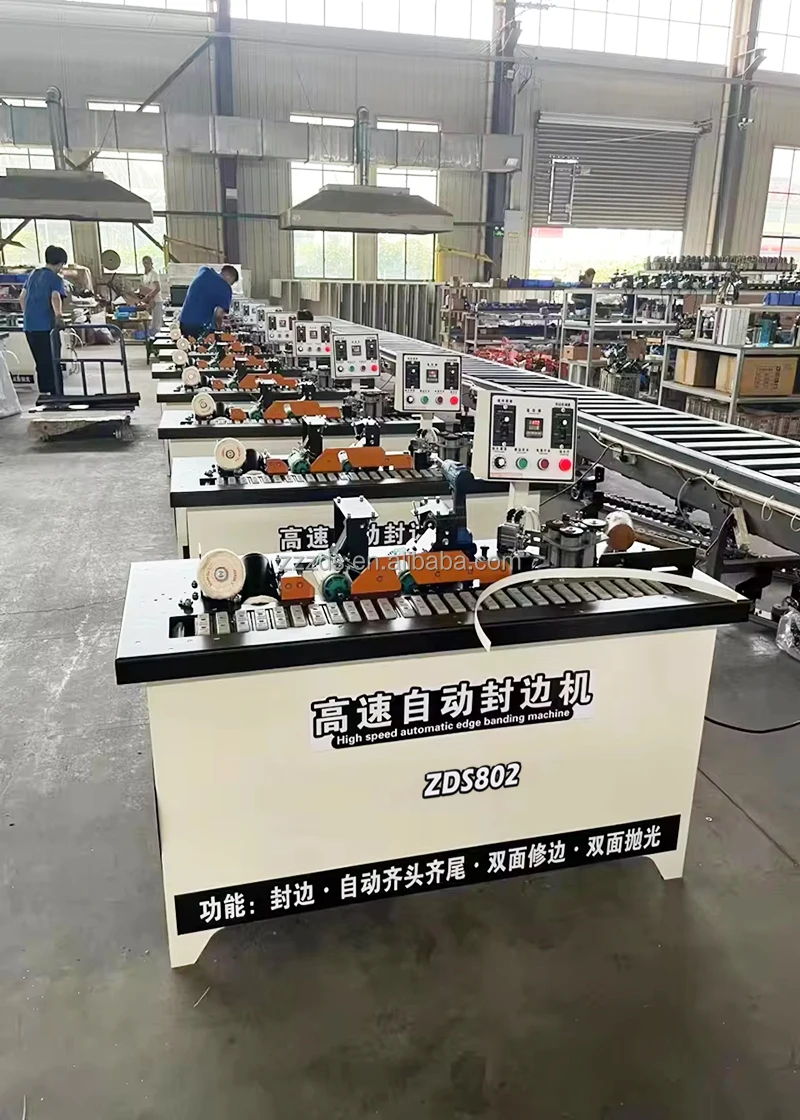

Before any unit is crated, it goes through a functional run on actual panel stock. The glue pot is brought to operating temperature, the feed belt is engaged at working speed, and trimming and polishing heads are checked under load. A test record is generated and included with your shipment documentation [NEED_CITE: pre-shipment testing standards for woodworking machinery]. Photographs of the machine on the test floor, the packed crate, and the nameplate voltage label are shared before the container is sealed. This eliminates surprises at the destination port.
What the Specifications Mean for Your Workshop
The 10–50 mm sheet thickness range covers the majority of panel work in cabinet and furniture production, from thin shelving stock to thick carcass sides. A 4000 ml glue pot capacity means fewer refill interruptions during continuous edging runs, which matters when you are pushing through a batch of cabinet doors before a deadline. The silicone conveyor belt protects finished laminate surfaces from scratching during transit through the machine — a detail that reduces reject panels on glossy or high-pressure laminate stock. The integrated 1200W dust collector means you do not need a separate extraction unit for this station, simplifying workshop layout and ductwork planning.
What Happens When the Wrong Config Reaches Your Dock
Ordering a machine without verifying feed height compatibility with your existing saws and drills creates a bottleneck at the infeed. A control panel in a language your operator cannot read stalls commissioning for days while translations are sourced. Skipping the air pressure check against your workshop compressor means pneumatic functions like end cutting and trimming operate below spec from day one, producing inconsistent edge finishes that only show up during assembly [NEED_CITE: common pneumatic faults in edge banding equipment]. These are not theoretical risks — they are repeatable patterns across misconfigured shipments.
Why Buyers Source This Model Here
Stocked units of the Model 802 are configured for immediate release, meaning the machine you see in the quotation is the machine that ships. Voltage and frequency are locked to your site data before dispatch — not left as a default that may or may not match your grid. The four-stage quality check runs through incoming components, assembly, finished product, and pre-shipment verification on every unit. An engineer reviews your workshop requirements and confirms the configuration in a formal quotation, typically within a single business day. Operation manuals and control panel labeling are provided in the language you specify at order time.
Documentation & Verification
- Factory test record showing glue pot temperature stability and trim quality on your panel type
- Electrical schematic confirming 220V wiring and circuit protection matched to your supply
- Operation manual in your chosen language covering setup, daily checks, and troubleshooting
- Spare parts list identifying wear components and reorder codes for the first year of operation
- Packing photographs documenting crate condition and machine securing before container loading
- Customs documentation package with HS code and commercial invoice prepared for your broker
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated above 4 kW with appropriate breaker protection
- One-piece pressure beam arrives assembled — no overhead rigging needed for installation
- Compressed air supply must deliver 0.4–0.6 MPa at the machine inlet for pneumatic stations
- Glue pot heat-up takes approximately 5–10 minutes before the first panel can be fed
- Silicone conveyor belt inspection and tension check recommended at end of each production week
- Digital temperature display allows operators to verify glue pot settings without external instruments
Before You Request a Quote
To move quickly from inquiry to dispatch confirmation, share your panel material types and typical thickness range, the edge strip stock you plan to run, and your workshop voltage and frequency. If you have existing upstream saws or downstream boring machines, mention their feed height so compatibility can be checked. Confirm the language you need for the operation manual and control interface. With this information, a stocked Model 802 can be matched to your line and a shipping timeline provided in the initial quotation.
Frequently Asked Questions
Q: What is the dispatch lead time for the Model 802 from stock?
A: Stocked units of the Model 802 are prepared for release once voltage confirmation and shipping terms are finalized. The exact dispatch date is quoted in your formal proposal based on current warehouse availability and your destination port. Crating and documentation preparation run in parallel to shorten the gap between order confirmation and container loading.
Q: Will the machine match my local 220V supply and plug standard?
A: The rated voltage of the Model 802 is 220V, but frequency must also match your grid. Before any machine ships, your local voltage and frequency are confirmed and the nameplate is verified. Plug type and cable termination are configured to your country standard where specified at order time.
Q: Can I order a single unit, or is there a minimum order quantity?
A: The Model 802 is available as a single-unit order with no minimum quantity requirement. This suits workshops introducing their first automated edge bander or adding capacity at one station. Shipping options for a single crate are quoted upfront alongside the machine price.
Q: Do you arrange door-to-door shipping and customs clearance?
A: Shipping arrangements are quoted based on your preferred Incoterms. Door-to-door delivery can be organized to most destinations, with customs documentation prepared to support your local broker. Crate dimensions and gross weight are provided at the quotation stage so freight costs are clear before you commit.
Q: What spare parts ship with the machine and how do I reorder consumables?
A: A spare parts list is included with every Model 802 shipment, identifying wear items such as trimming cutters, polishing pads, and conveyor belt sections. Reorder codes on the list allow direct purchasing of consumables. The list also notes recommended replacement intervals based on operating hours.
