Description
Fast Dispatch, Verified Power — Every ZDSJCX-880S unit ships only after matching your site voltage and running a shaped-edge test on your panel material.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSJCX-880S |
| Product Type | J C Shape Edge Banding Machine |
| Total Power | 47.1 kW |
| Voltage | 380V (frequency 50Hz/60Hz to be confirmed) |
| Overall Dimensions | 8.82 × 1.07 × 1.85 m |
| Total Weight | 3200 kg |
| Air Pressure Requirement | 0.6–0.8 MPa |
| Vacuum Opening Size | Ф100 × 6 |
| Panel Thickness Range | 18–22 mm |
| Edge Banding Thickness Range | 0.5–0.8 mm |
| Edge Banding Width | 58 mm |
| Minimum Sheet Width | 150 mm |
| Minimum Sheet Length | 300 mm |
| Conveying Speed | 6–8 m/min |
| Machining Shapes | J type, C type, oblique straight, left and right semi-pass, water drop, rhombus, triangle (15+ types) |
| Trimming Stations | Pre-milling, edge banding, trimming (station count to be confirmed) |
| Control System | To be confirmed (PLC / manual / CNC) |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door panels with contoured edges | MDF and particleboard with PVC edge banding |
| Small drawer front and shelf components (min. 150 × 300 mm) | Plywood panels with veneer edge banding |
| Furniture components requiring J-shape or C-shape profiles | Particleboard and MDF in 18–22 mm thickness range |
| Shaped-edge batch processing for custom joinery workshops | Solid wood panels with matching wood veneer banding |
Why the Voltage Question Comes Before the Price on a J C Shape Edge Banding Machine In Stock
A machine that cannot power on at your facility is not a bargain — it is a crate of idle steel.
When a J C shape edge banding machine in stock ships without confirming the destination site’s voltage and frequency, the result is weeks of downtime while transformers or motor rewinds are arranged. I watched this happen with a batch of contour edge banders sent overseas — the local grid ran 60Hz, but the motors were wound for 50Hz. The machines overheated within the first shift. The rewinding alone took three weeks, and the buyer lost an entire production window. That failure starts with a skipped checkbox, not a flawed machine [NEED_CITE: voltage and frequency standards by export market].
Dispatch Readiness Without the Guesswork
Stock availability only matters when the unit is configured correctly before it leaves the floor. This J C shape edge banding machine in stock undergoes a voltage lock-in step — your local power spec is confirmed and recorded before the machine is crated. The 47.1 kW total power draw means dedicated circuit planning is required on your end, and knowing the exact frequency determines whether the conveyor and trimming motors will run at rated speed or silently overheat over time.
From Order to Crate in Measurable Steps
A ready-stock unit does not mean skipping the pre-shipment run. Each ZDSJCX-880S is fed actual board stock matching your panel thickness — typically 18–22 mm MDF or particleboard — and cycled through at least one of its 15+ profile shapes. The trimming output is photographed, the edge finish is inspected under shop lighting, and only then does the machine move to packing. This is the gap between "available now" and "ready to produce on arrival" [NEED_CITE: pre-shipment inspection standards for woodworking machinery exports].
What 15+ Shape Profiles Mean for Your Daily Run

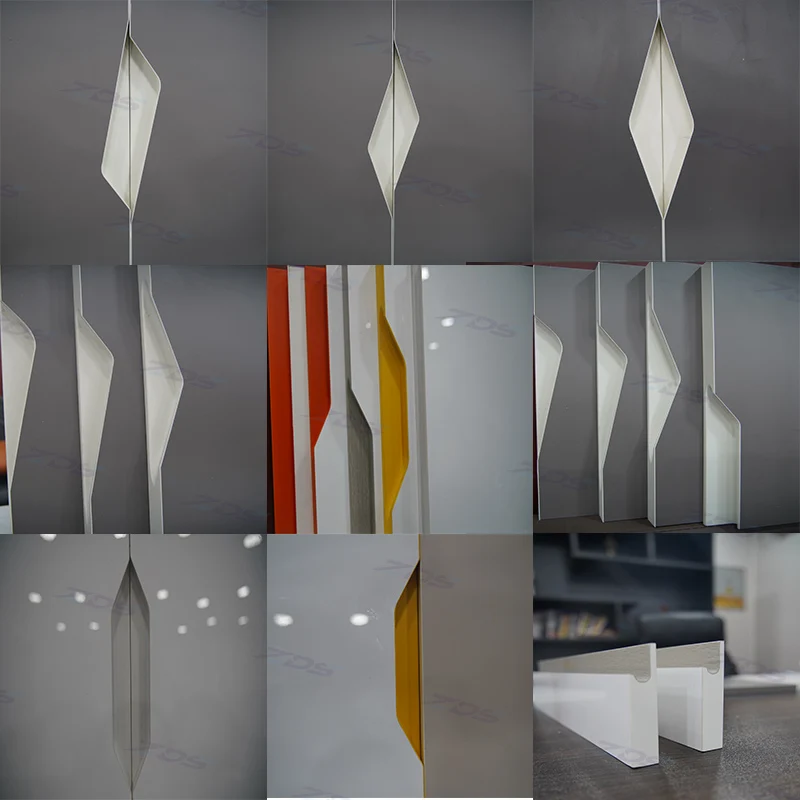

The ZDSJCX-880S handles J type, C type, oblique straight, semi-pass, water drop, rhombus, and triangle profiles within a single pass through the machine. For a cabinet shop running multiple door styles in the same week, this eliminates the need for dedicated machines per profile or manual template routing. The 6–8 m/min conveying speed keeps throughput steady across contoured edges, where feed rate consistency directly affects glue adhesion on curved sections. Minimum sheet dimensions of 150 × 300 mm mean small drawer fronts and shelf brackets can run without a secondary hand-finishing step.
Reading the Specs That Actually Affect Edge Quality
Panel thickness range of 18–22 mm places this machine squarely in the standard cabinet and furniture board category. Running boards outside this range — thinner stock in particular — risks insufficient pressure at the banding roller, leaving visible glue lines on curved profiles. The 0.6–0.8 MPa air pressure requirement feeds the pneumatic clamping and trimming actuators; running below this threshold causes inconsistent trimming depth on J and C contours. The Ф100 × 6 vacuum openings connect to your dust extraction system and are sized for the chip volume generated by pre-milling and trimming MDF or particleboard at the rated feed speed. Edge banding thickness from 0.5 to 0.8 mm with a 58 mm width covers standard PVC and thin veneer stock commonly used on contoured furniture edges.
The Cost of Skipping the Configuration Step
Buying a shaped edge bander on price alone, without locking in voltage, frequency, and control language, surfaces problems only after the machine reaches your floor. A control panel in a language the operator cannot read stalls commissioning. A feed motor wound for the wrong frequency runs hot under continuous shaped-edge loads, cutting its service life noticeably. These are not warranty claims — they are configuration failures that sit with the buyer [NEED_CITE: common commissioning failures in imported woodworking machinery].
What Ships With Every ZDSJCX-880S Order
The ZDSJCX-880S leaves the facility with a voltage confirmation record matching your stated site power, not a generic 380V label. A pre-shipment test is run on your specified panel thickness and at least one contoured profile, with photographs documenting the edge output. The operation and maintenance manual is supplied in your agreed language — not a default that your operators will need to translate. Spare parts lists identify wear items specific to the trimming and pre-milling stations so replacements can be sourced before the first one fails.
Documentation & Verification
- CE declaration of conformity matched to the ZDSJCX-880S model and configuration
- Factory test record showing shaped edge output on your 18–22 mm panel stock
- Electrical schematic with confirmed voltage and frequency for your destination site
- Operation and maintenance manual in the buyer’s agreed language
- Pre-shipment packing photographs documenting crating and component securing
Installation, Commissioning & Support
- Dedicated 47.1 kW circuit required with confirmed 380V and site-specific frequency
- 8.82 m machine length requires clear floor space plus operator access on both sides
- 0.6–0.8 MPa compressed air line with regulator installed at machine inlet before startup
- Six Ф100 vacuum ports to connect to workshop dust extraction before first production run
- First-run parameter setting on trimming stations calibrated to your 0.5–0.8 mm banding material
- Wear parts for pre-milling and trimming stations identified in the included spare parts list
What We Need to Ship Your Machine
To move this ZDSJCX-880S from stock to dispatch, provide your site voltage and frequency, the panel material and thickness you run most often, and the primary edge profile shapes you need. If your workshop has existing dust extraction or compressed air infrastructure, share the available capacity so we can confirm compatibility before the machine ships.
Frequently Asked Questions
Q: Is the ZDSJCX-880S currently in stock and what is the dispatch lead time?
A: The ZDSJCX-880S is held in ready-stock status. Dispatch timing depends on completing the voltage confirmation, pre-shipment test run on your panel material, and crating. Once your power spec and profile requirements are confirmed, the unit is tested and prepared for shipment within the quoted window.
Q: Can the voltage and frequency be confirmed for my country before shipping?
A: Yes. Your site voltage and frequency — whether 380V/50Hz, 380V/60Hz, or another standard — must be confirmed before the machine ships. The electrical configuration is locked and documented in the schematic so the ZDSJCX-880S powers on correctly upon arrival.
Q: What edge banding materials and thicknesses does this machine support?
A: The ZDSJCX-880S supports PVC and veneer edge banding from 0.5 to 0.8 mm thickness with a maximum width of 58 mm. This covers the standard banding stock used for contoured furniture edges on MDF, particleboard, and plywood panels.
Q: Do you offer door-to-door shipping with customs clearance?
A: Shipping options are quoted at the time of order based on your destination. Packing photographs and customs documentation support are included with every ZDSJCX-880S order to facilitate clearance at the port of entry.
Q: What spare parts are included, and how do I order replacements?
A: Each machine ships with a spare parts list identifying wear components for the pre-milling and trimming stations. Replacement parts can be ordered directly using the part numbers in the list, matched to your specific ZDSJCX-880S configuration.
