Description
Immediate Dispatch — XZF-450 units undergo pre-shipment testing and are held in ready-to-ship inventory so your workshop avoids typical multi-week production waits.

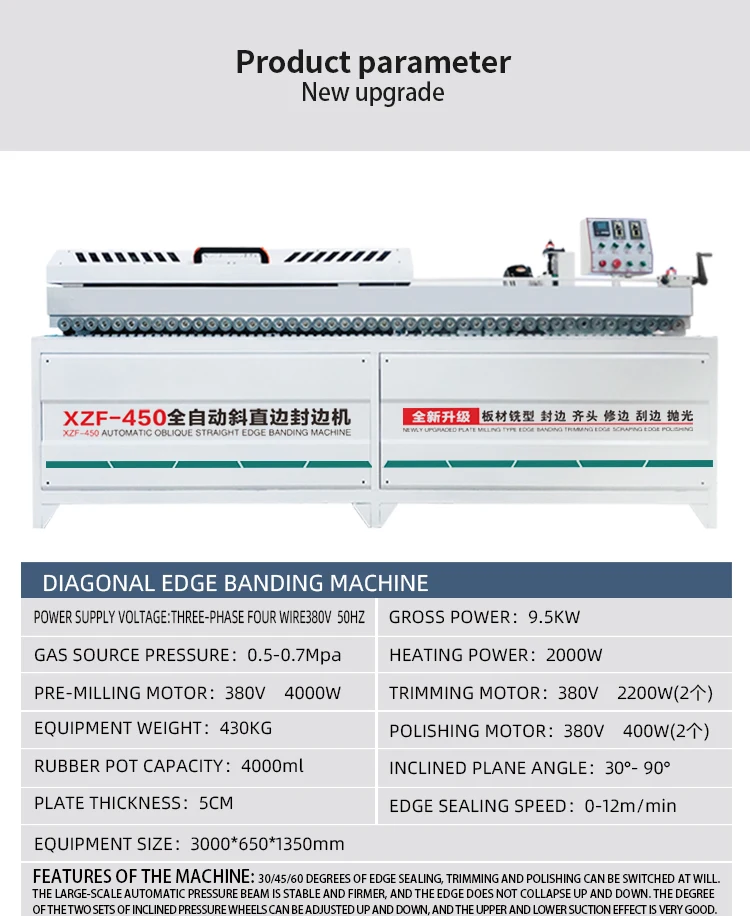

Technical Specifications
| Parameter | Value |
|---|---|

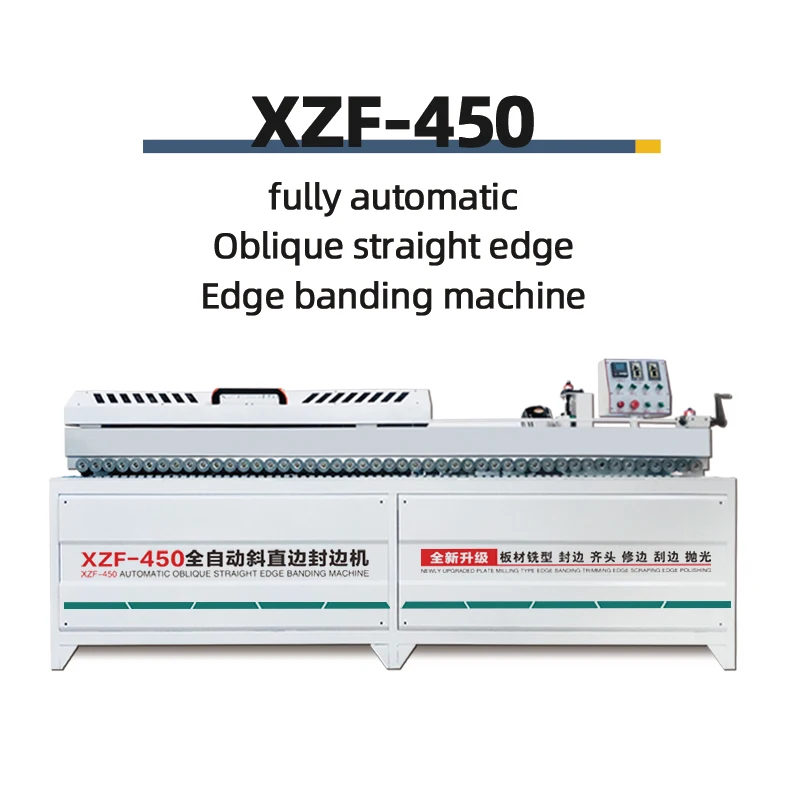

| Model | XZF-450 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 9.5 kW |
| Operating Voltage | 380V / 415V |
| Pre-milling Motor | 4 kW |
| Trimming Power | 2.2 kW × 2 |
| Polishing Power | 0.4 kW × 2 |
| Vacuum Power | 550 W |
| Transmission Power | 180 W |
| Feed Speed | 0–12 m/min |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Minimum Sheet Length | 30 cm |
| Minimum Sheet Width | 15 cm |
| Glue Pot Capacity | 4000 ml |
| Air Source Pressure | 0.5–0.7 MPa |
| Overall Dimensions (L×W×H) | 300 × 65 × 135 cm |
| Net Weight | 430 kg |
| Control Panel Language | English (configurable to Spanish or other languages) |

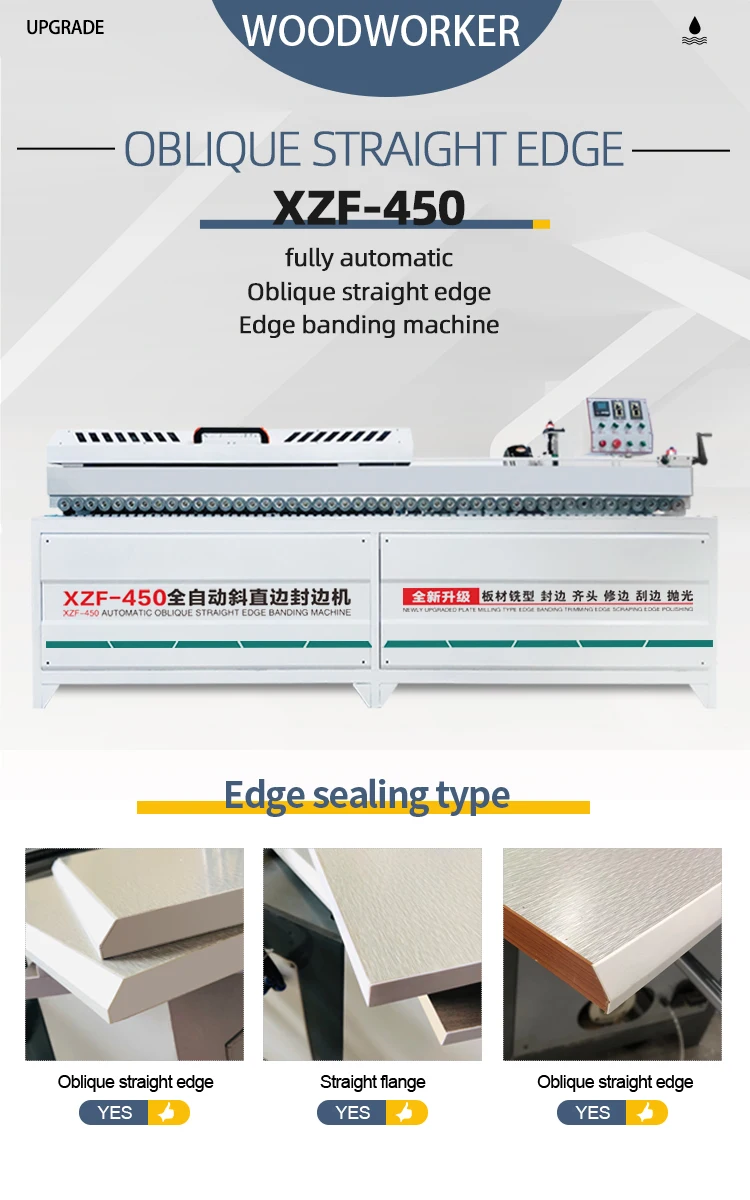

| Key Features | Pre-milling, 30°/45°/60° edge banding, trimming, scraping, polishing, high-power vacuuming |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door and carcass edge finishing | MDF, melamine-faced board, particleboard |
| Wardrobe panel processing | Plywood, blockboard |
| Custom furniture panel edging | Solid wood board, polymer door panels |
| Medium-volume workshop production runs | Laminated substrates requiring pre-milled edge preparation |
Why Voltage Confirmation Must Happen Before You Order an Edge Banding Machine in Stock
Matching your facility’s supply to the machine’s motor rating prevents costly commissioning delays once the crate arrives.
I once watched a cabinet shop lose four full production days because the edge bander they ordered was wired for a frequency their local grid could not sustain. The glue pot never reached stable temperature, the feed motor stuttered at low speed, and every test panel came off with visible seam lines. By the time we reconfigured the transformer and recalibrated the heater circuit, the delivery deadline had already passed [NEED_CITE: voltage and frequency standards by export market]. An Edge Banding Machine in Stock ships fast, but speed only matters if the electrical configuration matches what is actually on your shop floor.
Dispatch Without the Usual Waiting Period
Most automatic edge banders are built to order, which means weeks of queue time before your unit even enters assembly. The XZF-450 is held in finished inventory, tested on panel substrates, and prepared for crating so that an Edge Banding Machine in Stock reaches your loading dock while your production schedule still has room. The 0–12 m/min variable feed lets operators dial in speed based on board density and edge profile complexity without forcing a fixed throughput that compromises glue adhesion.
What Ready-to-Ship Actually Means for Your Floor

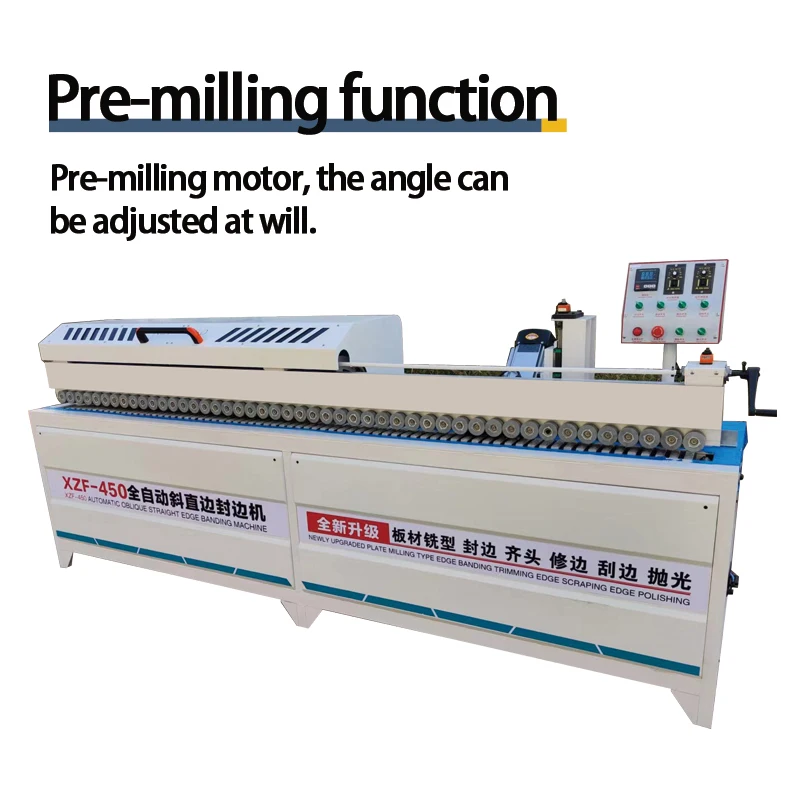

Stock availability is confirmed against live inventory before your order is finalized, so the lead time quoted reflects real dispatch capability rather than an estimate [NEED_CITE: typical lead time expectations for stocked industrial woodworking machinery]. The 4 kW pre-milling station is already integrated and calibrated, meaning you are not waiting for a custom station build. Once the XZF-450 arrives, the 4000 ml glue pot, dual trimming heads, and polishing stations are all operational after standard power-up and air-line connection.
Reading the Specs That Actually Matter on the Shop Floor
The 0–50 mm edge banding height range covers the majority of cabinet panel thicknesses in standard production, from thin 16 mm melamine shelving up to thicker 40 mm blockboard door stiles. The 0.3–3 mm banding thickness window accommodates both thin PVC for cost-sensitive runs and thicker ABS or wood veneer for premium cabinet faces. Feed speed variability from 0 to 12 m/min matters because different substrates demand different transit times through the glue zone — particleboard with high resin content often needs a slower pass to let the adhesive penetrate, while clean MDF can run at higher speed without sacrificing bond strength. The dual 2.2 kW trimming motors provide enough torque to shear excess banding cleanly on both the top and bottom edge in a single pass, reducing the scraping and polishing workload downstream [NEED_CITE: edge trimming motor sizing for hardwood veneer banding].
The Hidden Cost of Skipping Configuration Verification
Workshops that order a machine without confirming panel dimensions against the minimum sheet limits — 30 cm length and 15 cm width — discover during commissioning that their small offcut pieces cannot be fed through the conveyor. Operators then resort to manual edge banding for those pieces, defeating the purpose of the automation investment. Similarly, facilities running high-resin particleboard without confirming that the pre-milling station can handle the abrasive substrate end up with premature cutter wear and edge quality that degrades within the first production shift [NEED_CITE: abrasive wear rates on pre-milling cutters processing high-resin particleboard]. These are not machine faults; they are configuration oversights that a five-minute specification review would have caught.
Why Source This Edge Bander Through This Channel
Every stocked XZF-450 passes through a four-stage quality check covering incoming material inspection, in-process assembly verification, finished product testing, and pre-shipment running confirmation before it is released for dispatch. Voltage is confirmed against your facility specification — the standard 380V/415V can be adapted for markets running different supply standards. The control panel ships in English by default but is configurable to Spanish or other languages before the machine leaves the floor, so your operators are not staring at unfamiliar characters on day one. Patented cutting mechanisms in the trimming stations deliver tolerance that holds across long production runs without drift. Factory test records on your specific panel thickness and material are generated and included with shipment documentation so you have a baseline to match during your own commissioning.
Documentation & Verification
- CE declaration of conformity matching the XZF-450 model classification
- Pre-shipment factory test record run on panel thickness within your specified range
- Electrical schematic with confirmed voltage and frequency for your facility
- Operation and maintenance manual in your chosen control panel language
- Spare parts list with part numbers for trimming blades, scraper inserts, and glue pot seals
- Packing photographs documenting crating condition before container loading
Installation, Commissioning & Support
- The 300 × 65 × 135 cm footprint requires a level concrete floor with clearance on both feed and exit sides for panel handling
- A dedicated 380V/415V circuit rated for the 9.5 kW total draw, with appropriate breaker sizing for motor startup surge
- The 430 kg net weight allows positioning with standard workshop pallet equipment; leveling feet must be set before conveyor alignment
- Air supply at 0.5–0.7 MPa must be clean and dry to protect the pneumatic actuators in the trimming and scraping stations
- First-run calibration covers glue pot temperature, feed speed setting, and trimming depth adjustment against your actual panel stock
- Spare trimming blades and scraper inserts ship with the machine to cover initial wear-in consumption
What to Include in Your Inquiry
Tell us your primary panel material and the thickness range you run most often so we can confirm the pre-milling and trimming setup is appropriate. Share your local voltage and frequency so the electrical configuration is locked in before dispatch. Let us know your preferred control panel language and whether you need the documentation package in a language other than English. If you are adding this machine to an existing line, describe your upstream saw and downstream boring setup so we can flag any feed-height or throughput mismatches before the order is placed.
Frequently Asked Questions
Q: What is the current dispatch lead time from stock?
A: The XZF-450 is held in finished inventory and prepared for dispatch once your voltage and language configuration are confirmed. Pre-shipment testing on your specified panel material is completed before crating, and the unit is released for shipment immediately after. Exact dispatch timing depends on current stock position and your confirmation speed on configuration details.
Q: Which voltage configurations are available for immediate shipment?
A: The standard configuration is 380V/415V at 50 Hz, which covers most industrial markets. If your facility operates on a different voltage or frequency, the motor and control wiring can be adapted before dispatch. Confirm your local supply specification during inquiry so the correct configuration is verified against available stock or prepared during the pre-shipment hold period.
Q: How is the control panel language customized before delivery?
A: The XZF-450 control panel defaults to English and can be configured to Spanish or other languages before the machine ships. This language setting is applied during the pre-shipment test phase so your operators see the correct interface on first power-up. Specify your preferred language when placing the order to ensure it is applied before crating.
Q: What spare parts ship with the machine?
A: Each XZF-450 ships with a spare parts package that includes trimming blades, scraper inserts, and glue pot seals sufficient to cover the initial wear-in period. A full spare parts list with part numbers is included in the documentation package so you can order replacements directly when consumption patterns become clear during your first production weeks.
Q: Do you provide installation guidance for first-time buyers?
A: Installation guidance covers floor leveling for the 430 kg unit, electrical connection to your confirmed voltage circuit, and air-line hookup at the required 0.5–0.7 MPa. First-run calibration support walks your operator through glue temperature setting, feed speed adjustment, and trimming depth setup against your actual panel stock. The operation manual in your chosen language provides ongoing reference for daily maintenance and parameter adjustment.
