Description
Verified Dispatch Readiness — every XZF450 leaves our warehouse only after voltage, plug type, and control language are confirmed in writing, eliminating the dead-on-arrival surprises that stall production lines.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | XZF450 |

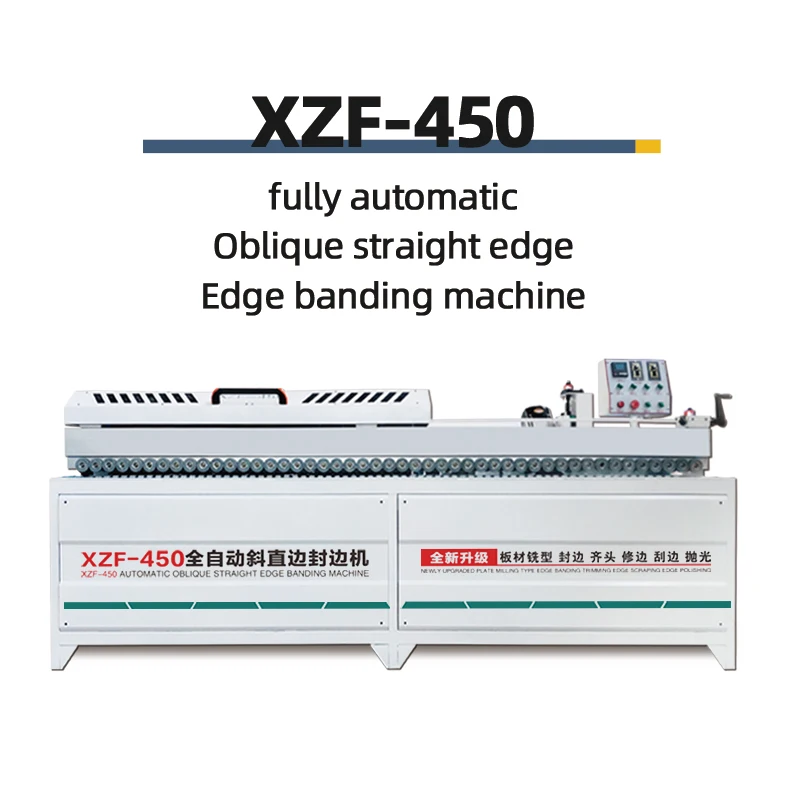

| Product Type | 45 Degree Automatic Edge Banding Machine |
| Total Power | 9.5 kW |
| Voltage | 380V / 415V (frequency basis not stated in source — confirm 50Hz/60Hz) |
| Pre-milled Motor | 4 kW |
| Trimming Power | 2.2 kW × 2 |

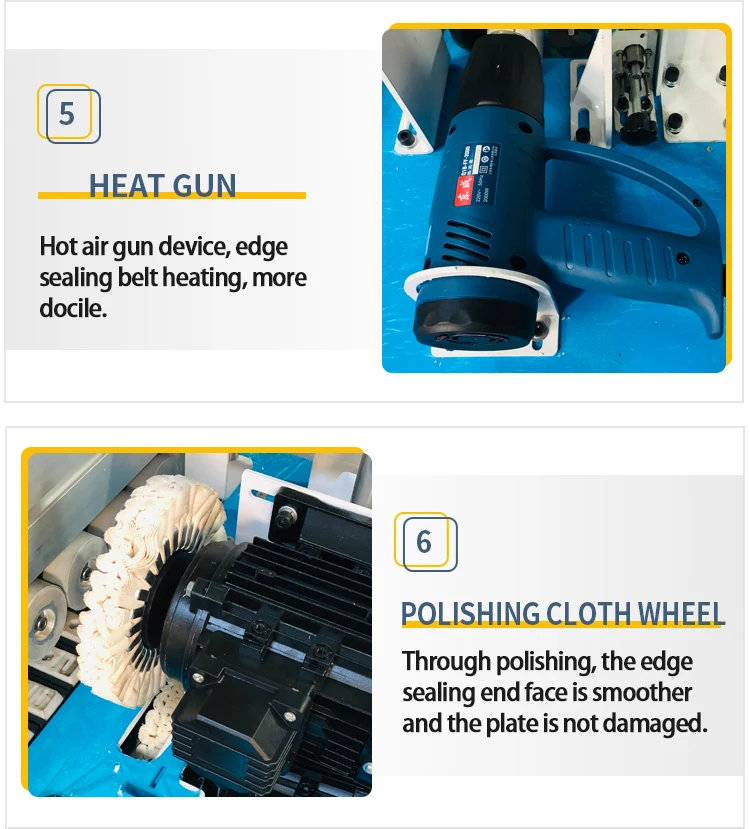

| Polishing Power | 0.4 kW × 2 |

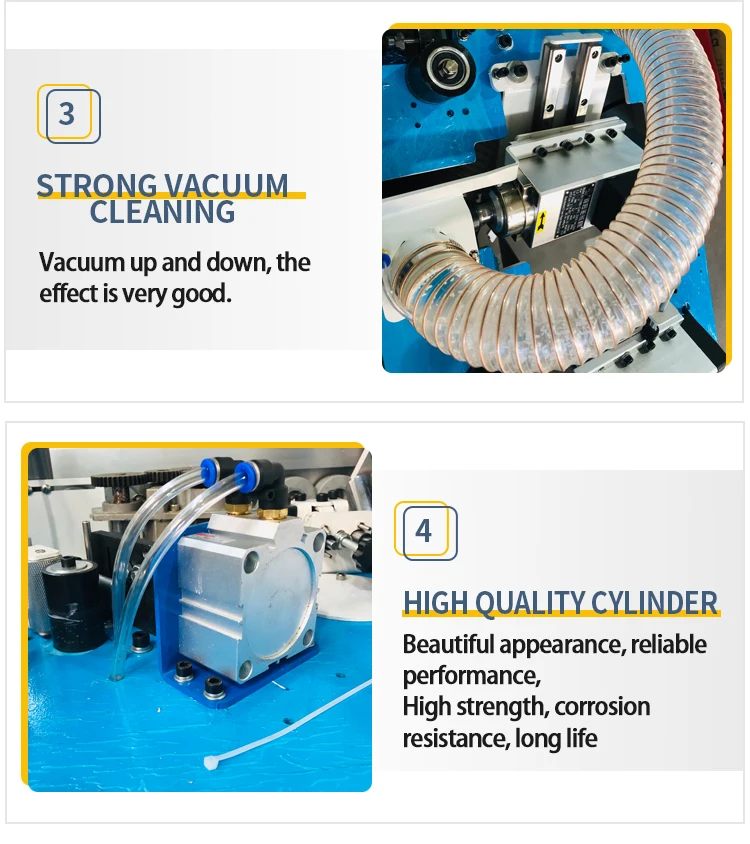

| Vacuum Power | 550 W |
| Transmission Power | 180 W |
| Feed Speed | 0–12 m/min |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Minimum Sheet Length | 30 cm |
| Minimum Sheet Width | 15 cm |
| Glue Pot Capacity | 4000 ml |
| Air Source Pressure | 0.5–0.7 MPa |
| Product Size | 300 × 65 × 135 cm |
| Product Weight | 430 kg |
| Control Panel Language | Chinese and English standard; Spanish and other languages customizable |
| Plug Options | EU, USA, AU, UK |

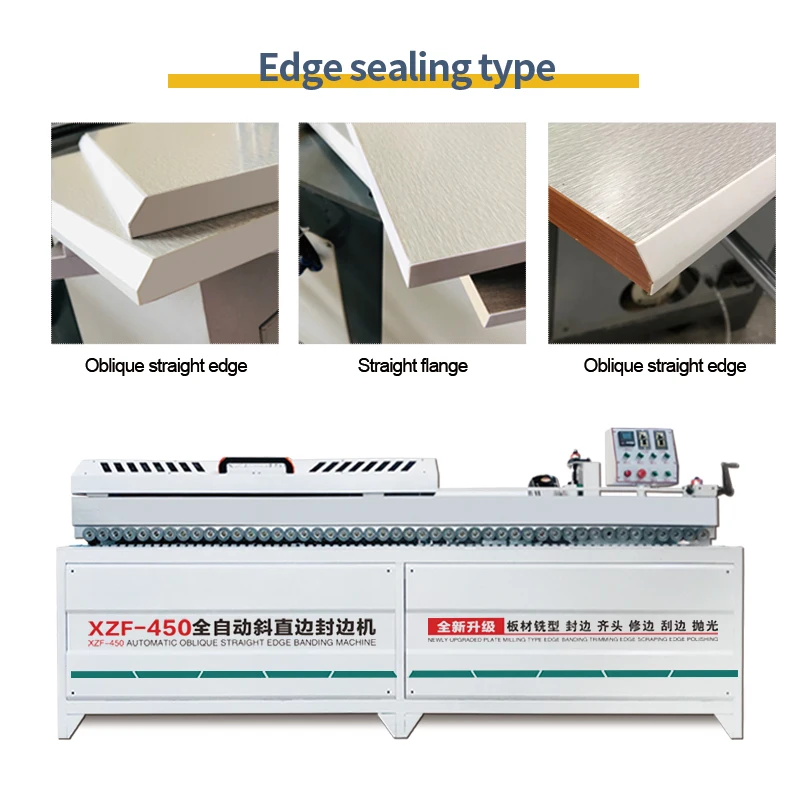

| Standard Functions | Plate milling, 30/45/60° edge banding, trimming, scraping, polishing, high-power vacuuming |
| Certification | CE, ISO 9001 |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door bevel edge finishing | MDF and melamine-faced board at 30°, 45°, and 60° profiles |
| Furniture panel edge banding | Plywood, blockboard, and particleboard with PVC or veneer strips |
| Polymer door production | Polymer composite panels requiring angled edge sealing |
| Custom joinery small-batch runs | Solid wood boards and specialty laminates for bespoke furniture |
Why the Voltage Question Must Come Before the Price
A machine that cannot be powered on arrival is not a discount — it is a three-week delay on your shop floor.
I once watched a Middle East customer wait twenty-one days for a transformer retrofit because the voltage and frequency were never locked down before shipment. The entire line sat idle while the facility’s electrical contractor reworked the supply. Since that job, I have treated every electrical schematic as the first document in the file, not an afterthought. When you source a 45 degree automatic edge banding machine in stock, confirming whether your facility runs 50 Hz or 60 Hz is as critical as confirming the feed speed [NEED_CITE: voltage and frequency standards by export market].
Stocked Configuration, Not a Catalogue Promise
The XZF450 listed here is built and sitting in our warehouse, not a render waiting for a production slot. When you place a single-unit order, we pull the specific machine, verify its electrical configuration against your facility’s supply, and swap plug heads and panel overlays before crating. This is the operational difference between a ready-stock channel and a made-to-order brochure.
Fast Turnaround Without Skipping Verification
Speed only matters if the machine actually runs when the crate opens. Our dispatch workflow for the 45 degree automatic edge banding machine in stock includes a powered run-up on your confirmed voltage, a feed test with sample board, and a language check on the operation panel. We document each step so you receive the test record with your shipping papers [NEED_CITE: CE machinery directive requirements for industrial equipment].
Reading the Specs That Actually Matter on the Floor

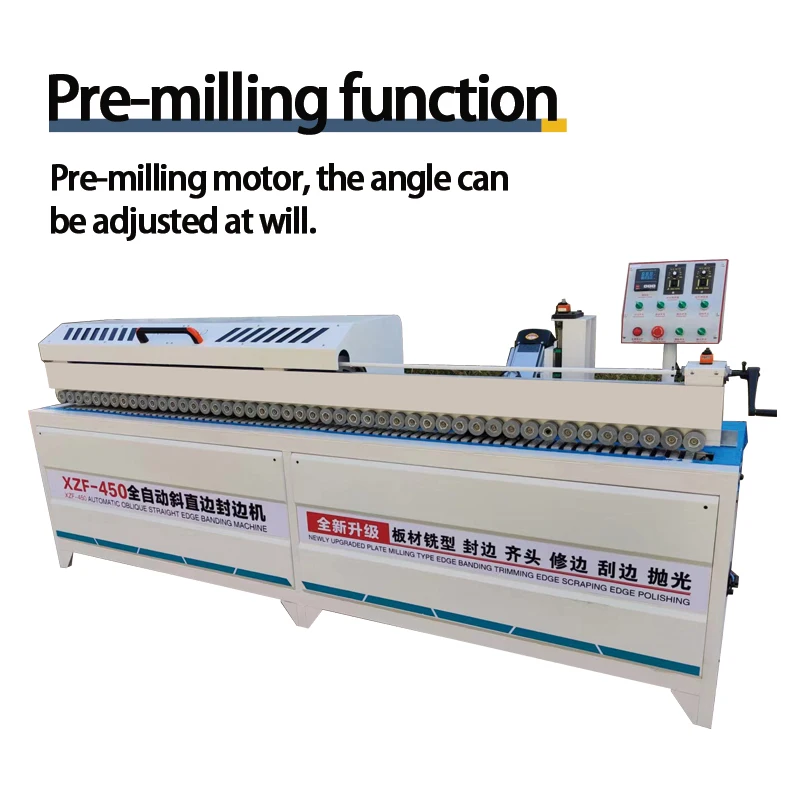

The 4 kW pre-milling motor removes surface irregularities from raw panel edges before the glue station, which is what keeps the glue line thin and consistent across MDF and particleboard. The dual 2.2 kW trimming motors handle both rough and fine trimming in one pass, so operators are not walking panels back through a second time for cleanup. Feed speed adjusts from 0 to 12 m/min, giving you the range to slow down for thick 3 mm PVC on curved components or speed up for straight-run melamine stock. The 4000 ml glue pot capacity supports extended runs without stopping to refill, which matters when you are batching an entire kitchen order in one session.
What Happens When Configuration Details Slip Through
A control panel printed in a language the operator cannot read means the commissioning technician is guessing at parameter menus while your production schedule slips. A plug that does not match the local socket standard means an electrician is called in before the machine ever sees a panel. These are not catastrophic failures — they are small oversights that compound into days of lost output. I have seen edge banders of this class sit unopened for a week because nobody confirmed whether the air supply was metric or imperial threading [NEED_CITE: common commissioning delays in imported woodworking machinery].
Why Buyers Route Stock Orders Through This Channel
The XZF450 ships from a 10,000 square-meter facility where the same production line supplies both stock units and custom OEM runs. Every machine passes a four-stage inspection — incoming material, in-process assembly, finished product, and pre-shipment verification — regardless of order size. Voltage, plug type, and panel language are confirmed in writing before the crate is sealed, and the electrical schematic is included in the documentation package. Single-unit orders receive the same test protocol as container loads, because a stopped machine costs the same whether it was one unit or twenty.
Documentation & Verification
- CE declaration of conformity matched to your XZF450 serial number
- Electrical schematic confirming your facility’s voltage and frequency before crating
- Factory test record run on panel thickness matching your production range
- Operation and maintenance manual printed in your agreed control panel language
- Spare parts list cross-referenced to your machine’s specific build configuration
Installation, Commissioning & Support
- Floor space allocation based on the 300 × 65 × 135 cm footprint plus operator clearance zone
- Dedicated circuit sized for 9.5 kW total draw at your confirmed 380V or 415V supply
- Air line connection rated for 0.5–0.7 MPa with metric fittings verified before dispatch
- First-run parameter setup covering feed speed, glue temperature, and trimming depth for your board stock
- Wear-part identification kit covering scraper blades, polishing wheels, and trimming cutters
Getting Your Quote Right the First Time
To avoid the voltage and configuration gaps that delay commissioning, we ask for your facility’s supply voltage and frequency, the plug standard in use, and the control panel language your operators read. If you run both 90-degree and beveled edge profiles, let us know the typical board thickness range and edge material so we set the XZF450 stations accordingly before it leaves the floor.
Frequently Asked Questions
Q: What voltage and plug configurations are available from stock?
A: The XZF450 is configured for 380V or 415V supply, and we confirm whether your facility runs 50 Hz or 60 Hz before dispatch. Plug options include EU, USA, AU, and UK standards. We swap and test the plug head in the factory so the machine connects directly to your existing outlet on arrival.
Q: How quickly can the XZF450 be dispatched after order confirmation?
A: Because this unit is stocked and not built against a new production slot, dispatch follows the pre-shipment verification cycle. Once your voltage, plug, and panel language are confirmed, we run the factory test, document results, and crate the machine. Typical turnaround is measured in days rather than weeks.
Q: Can I order a single unit, or is there a minimum order quantity?
A: Single-unit orders are standard on this channel. The XZF450 receives the same four-stage inspection, electrical verification, and documentation package whether you are ordering one machine or filling a container. There is no minimum quantity requirement for stock units.
Q: What languages are available on the control panel for immediate shipment?
A: Chinese and English are standard on all stocked units. Spanish and other languages can be configured before dispatch. We verify the panel overlay matches your request during the pre-shipment test and photograph the active screen for your records before crating.
Q: What spare parts and consumables are included with the machine?
A: Each XZF450 ships with a spare parts list matched to its build, covering high-wear items such as trimming cutters, scraper blades, and polishing wheels. The exact consumable kit is confirmed during the order process based on your edge material and production volume.
