Description
Voltage-verified dispatch — we confirm your local 380V or custom electrical requirement before the ZDSJCX-880S leaves the factory, eliminating arrival-day surprises.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSJCX-880S |
| Product Type | Automatic Edge Banding Machine with Pre-milling |
| Overall Dimensions (L×W×H) | 8.82 × 1.07 × 1.85 m |
| Total Weight | 3200 kg |
| Total Power | 47.1 kW |
| Voltage | 380 V (frequency 50/60 Hz to be confirmed per destination) |
| Air Pressure Requirement | 0.6–0.8 MPa |
| Vacuum Opening Size | Ф100 × 6 |
| Panel Thickness Range | 18–22 mm |
| Edge Banding Thickness | 0.5–0.8 mm |
| Edge Banding Width | 58 mm |
| Minimum Sheet Width | 150 mm |
| Minimum Sheet Length | 300 mm |
| Conveying Speed | 6–8 m/min |

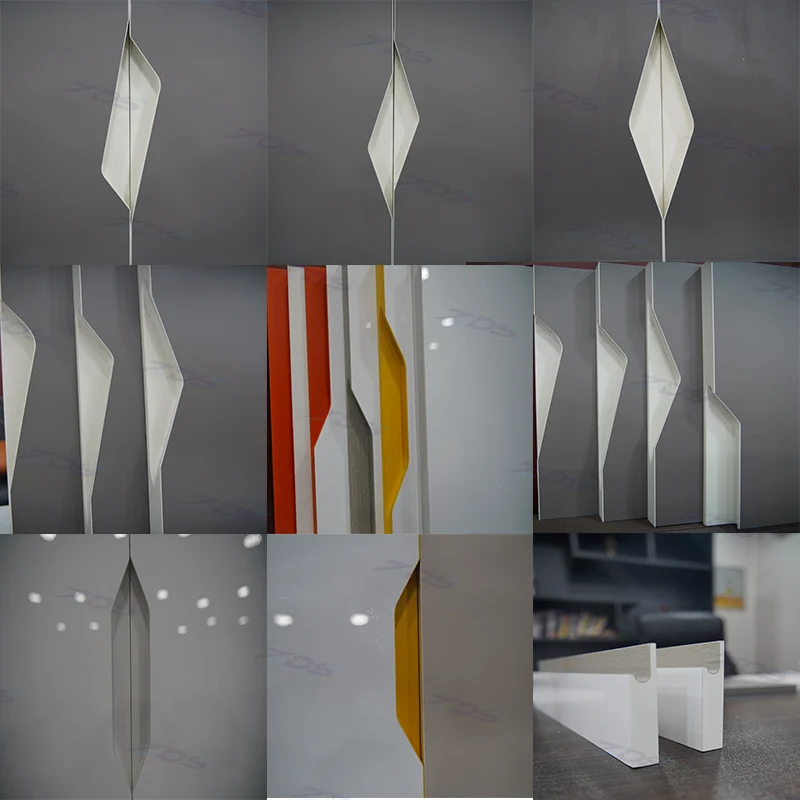

| Machining Shape Capability | J type, C type, oblique straight, left/right semi-pass, water drop, rhombus, triangle — 15+ profile types |
| Assembly State | Partially assembled; main unit requires on-site assembly with manual and video guidance |
| Production Lead Time | 25–30 days (depends on configuration and quantity) |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Furniture and cabinet panel edge finishing | MDF, particleboard, plywood panels 18–22 mm thick |
| PVC edge banding application | 0.5–0.8 mm PVC strips up to 58 mm width |
| Custom furniture factory panel production | Sized sheets from 150 × 300 mm upward |
| Pre-milling and multi-profile edge shaping | Joinery workshop components requiring shaped edges |
Why Voltage Confirmation Must Happen Before the Automatic Edge Banding Machine in Stock Ships
We lock in your exact voltage and frequency before dispatch, not after the crate is opened.
Machines quoted without verifying local electrical standards arrive at the workshop door as expensive dead weight. I have watched a three-phase unit sit idle for weeks because the buyer’s local grid runs at 60 Hz while the motor was wound for 50 Hz — the contactor chattered, the feed motor overheated, and the control transformer failed within the first hour. For export orders, a voltage mismatch is the single most common reason an automatic edge banding machine in stock never reaches commissioning [NEED_CITE: voltage and frequency standards by export market].
Dispatch Logistics for Stocked Equipment
What "Ready to Ship" Actually Means on the Floor

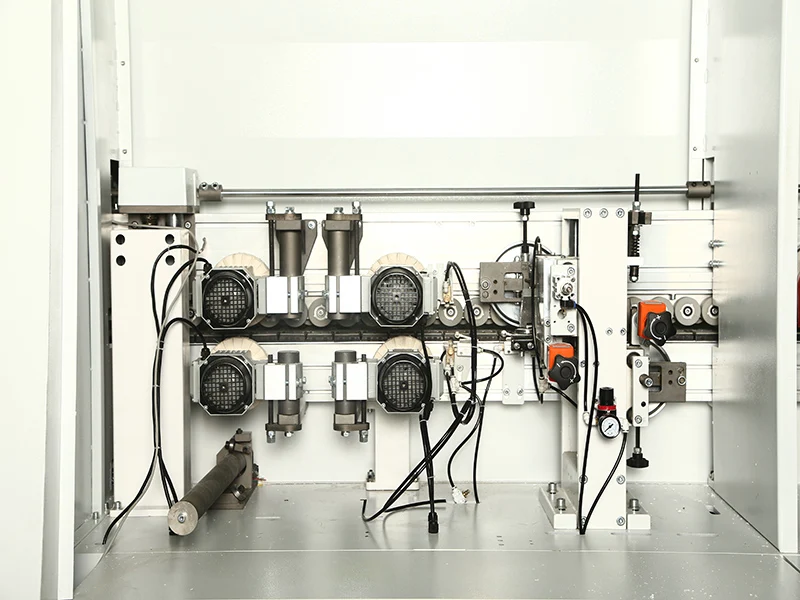

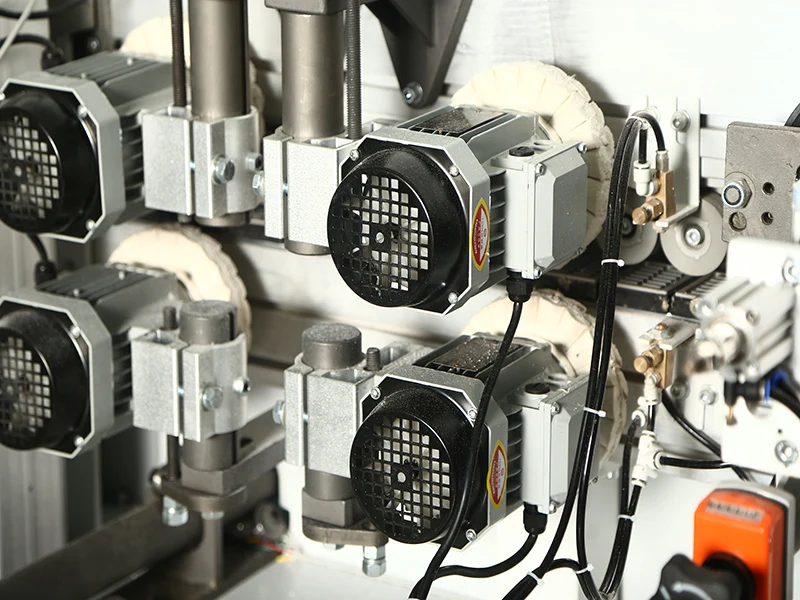

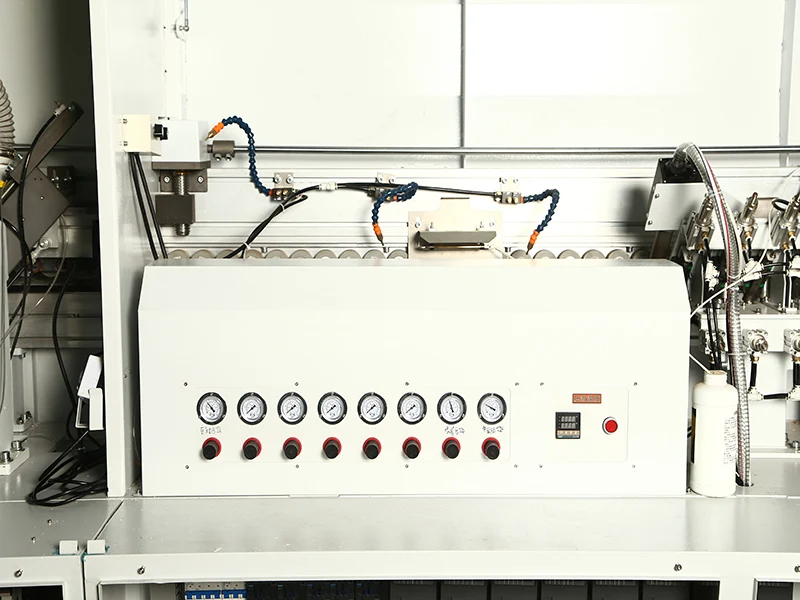

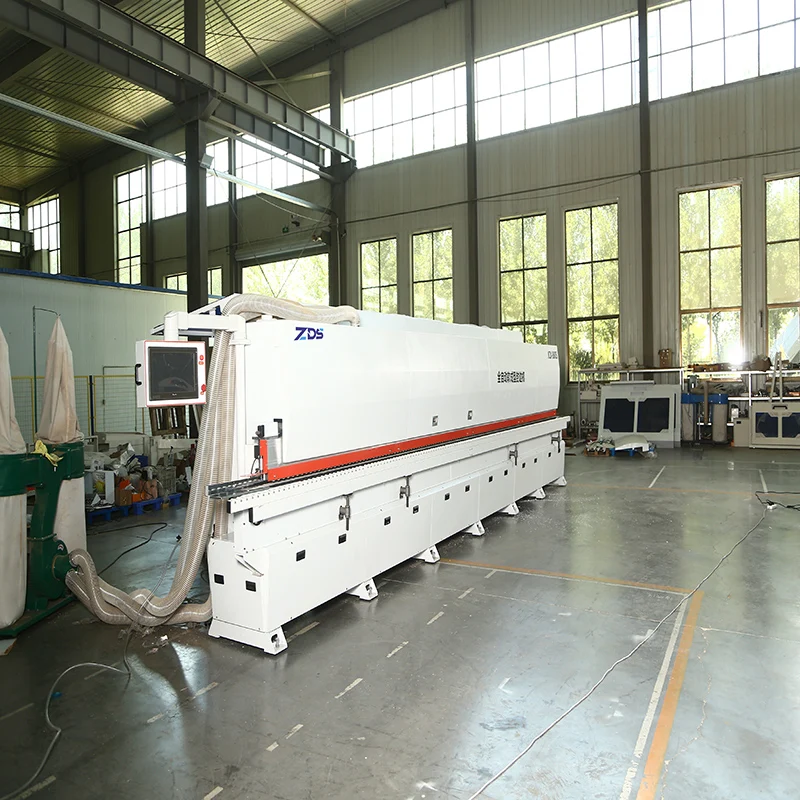

A stocked ZDSJCX-880S automatic edge banding machine in stock sits partially assembled in the warehouse, not bolted to a foundation. The main frame, conveyor bed, and pressure beam are built; the glue pot, trimming stations, and buffing units are mounted but require final alignment after transit. You receive the machine on a flat-rack or in an open-top container, and your local rigging team positions it using the lifting points marked on the base frame. The 8.82-meter footprint requires clear floor space plus room for the operator to walk the full length during threading.
How Fast Can It Reach Your Dock
Standard dispatch from the Shandong facility runs 25–30 days for configured units, accounting for voltage customization, control panel language setup, and pre-shipment test runs on your specified panel material [NEED_CITE: typical lead time for configured woodworking machinery]. True same-week shipment applies only to units already built to 380V/50Hz with Chinese or English panels — which covers many Asian and Middle Eastern markets but not every destination. If your workshop runs 220V three-phase or requires a Spanish-language HMI, factor in the rewinding and panel programming time. The automatic edge banding machine in stock label means the core mechanical assembly is complete; electrical and software customization still follows the standard workflow.
How Panel Thickness and Feed Speed Interact on the ZDSJCX-880S
The 18–22 mm panel thickness range and the 6–8 m/min conveying speed are not independent variables. At the upper end of thickness, the pre-milling cutter engages more material per pass, and the glue roller must transfer enough adhesive to bond the full 0.8 mm PVC strip against the increased edge surface area. Running 22 mm particleboard at 8 m/min demands that the glue pot temperature hold steady — if the thermal recovery lags, the bond line weakens at the trailing end of long panels. For 18 mm MDF, which has a denser fiber structure and smoother edge after pre-milling, the same speed produces reliable adhesion with standard EVA application. The six vacuum openings (Ф100 each) hold the panel flat against the conveyor fence; insufficient vacuum on warped or cupped stock causes the panel to drift laterally, pushing the edge strip out of alignment before it reaches the snipping station.
The Hidden Cost of Ordering Without Material Samples
Buyers who specify an automatic edge banding machine in stock based on catalog specifications alone often discover — after installation — that their actual production material behaves differently from the test panels used at the factory. High-moisture particleboard absorbs glue unevenly, leaving visible starved joints. Veneer edge banding, which falls outside the ZDSJCX-880S’s 0.5–0.8 mm PVC range, requires a different pressure profile and temperature curve. I have seen workshops run standard-density test boards at the factory, sign off on the sample, and then spend weeks troubleshooting glue-line failures on their own substrates because nobody sent a panel sample for pre-shipment verification [NEED_CITE: substrate moisture content impact on hot-melt edge banding adhesion].
Why Buyers Source This Model Through Ruiqi Store
- In-house patented cutting mechanisms hold verified tolerances, not claimed ones — each ZDSJCX-880S undergoes dimensional checks before the crate is sealed.
- Voltage, control language, and specification customization are handled as standard order-line items rather than special engineering requests.
- The full product family — from entry-level manual feeders to this pre-milling automatic unit — means a growing workshop can add capacity from one supplier without retraining operators on a different interface.
- Pre-shipment test records are generated on the panel material you supply or specify, not on generic MDF that may not match your production reality.
- Four-stage quality control covers incoming material inspection through final dispatch verification, reducing the chance of a fault discovered only at commissioning.
Documentation & Verification
- CE declaration of conformity for the ZDSJCX-880S covering machinery and low-voltage directives
- ISO 9001 certificate tied to the manufacturing facility
- Machine specification sheet with confirmed voltage and frequency for your destination
- Electrical schematic matching the as-built control panel wiring
- Factory test record run on your specified panel thickness and edge banding material
- Operation and maintenance manual in your agreed language with spare parts list
Installation, Commissioning & Support
- Floor must support 3200 kg point load across the 8.82 m bed length with level anchors
- Dedicated 47.1 kW three-phase circuit with lockable isolator within 2 m of the main panel
- On-site assembly of pressure beam, glue pot, and trimming stations per video-guided manual
- First-run parameter tuning for your specific 18–22 mm panel stock and PVC strip width
- Spare wear parts list covers conveyor pads, scraping blades, and buffing wheels for the first year
Before You Place the Order
Tell us your daily panel volume, the exact substrate you run most often, and whether your edge banding is standard PVC or something outside the 0.5–0.8 mm range. Share your local voltage and frequency — a photo of an existing machine nameplate in your workshop is often the fastest way to confirm. If you are integrating the ZDSJCX-880S into an existing line, send us the infeed and outfeed conveyor heights so we can match transfer levels before the machine ships.
Frequently Asked Questions
Q: What is the dispatch lead time and is this model in stock now?
A: The ZDSJCX-880S core assembly is typically held in stock, but final dispatch depends on your voltage and language requirements. A standard 380V/50Hz unit with English panels can ship faster than a custom-voltage build. Typical configured orders dispatch within 25–30 days. We confirm the exact timeline at quotation based on your electrical specification and any sample testing requested.
Q: How do I confirm the correct voltage and frequency for my country?
A: Send us a photo of the nameplate from any existing three-phase machine in your workshop, or provide the local utility standard. We rewire motors, resize control transformers, and adjust VFD parameters to match before the ZDSJCX-880S ships. This step is mandatory — we do not dispatch until voltage and frequency are confirmed in writing.
Q: What edge banding materials and thicknesses does the ZDSJCX-880S handle?
A: The machine processes PVC edge banding strips from 0.5 to 0.8 mm thick, up to 58 mm wide, on panels 18–22 mm thick. It is configured for PVC with standard EVA hot-melt adhesive. If you need to run veneer, ABS, or thicker solid-wood strips, discuss this at the inquiry stage so we can confirm compatibility or recommend a different configuration.
Q: Can I order a single unit, or is there a minimum order quantity?
A: Single-unit orders are standard on Ruiqi Store. There is no minimum order quantity for the ZDSJCX-880S. Each machine is individually configured, tested, and documented. Volume orders for production-line projects are also supported with matched throughput across multiple stations.
Q: What shipping options are available for door-to-door delivery?
A: We provide FOB port shipment as standard and can arrange CIF or door-to-door delivery through our forwarding partners. The 8.82-meter length typically requires a flat-rack or open-top container. Packing photographs and full customs documentation are provided before the container is sealed to support smooth clearance at your port.
