Description
Ready Stock, Verified Power — Every ZDSF750 unit in our inventory ships with 220V voltage confirmed and pre-dispatch video inspection, so you can commission on arrival without waiting for transformer swaps or rewiring.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF750 |
| Product Type | Curved and Straight Edge Banding Machine |
| Edge Banding Speed | 6 m/min |
| Rated Voltage | 220V |
| Rated Power | 1000W |
| Overall Dimensions (L×W×H) | 1200×500×500 mm |
| Net Weight | 60 kg |
| Glue Pot Capacity | 1000 ml |
| Working Method | Semi-automatic |
| Feeding System | Automatic caterpillar plate-sealing feed |
| Table Top Rotation | 360° free rotation |
| Extension Plates | Dual-side, 30 cm stretch brackets |
| Press Mechanism | Multi-wheel profiling press |
| Edge Banding Height | Adjustable |
| Edge Strip Trailer | Metal construction |
| Core Components | Motor, Engine |
| Condition | New |
| Video Outgoing-Inspection | Provided |
| Origin | China |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and particleboard panels with PVC or veneer edge banding |
| Small-batch furniture production | Plywood panels requiring both curved and straight edge profiles |
| On-site repair and retrofit work | Solid wood and MDF boards in workshops with limited floor space |
| Prototyping and sample runs | Laminate and ABS strips on narrow or contoured panel edges |
Why the Voltage Question Should Come Before the Quote
Ordering a Curved and Straight Edge Bander in stock fast delivery sounds convenient until the crate arrives and the motor hums at the wrong frequency. Confirming voltage, phase, and plug type before dispatch avoids weeks of on-site electrical retrofitting. I once saw a batch of portable banders shipped to a North American shop wired for 220V single-phase, only to find the facility ran 208V three-phase; the machines sat idle while a variable-frequency drive was sourced and installed locally. That downtime cost the buyer far more than the shipping delay itself. Voltage mismatches remain one of the most common reasons new woodworking equipment fails to start on the first day [NEED_CITE: voltage and frequency standards by export market].
Inventory That Ships When Your Production Schedule Demands It
Small workshops rarely have the luxury of a multi-week production lead time when a machine goes down or a new contract lands. The ZDSF750 is stocked as a Curved and Straight Edge Bander in stock fast delivery configuration, meaning the unit is assembled, tested, and crated in the warehouse rather than built after your purchase order clears. For a cabinet maker picking up a short-run kitchen job or a joinery shop filling in for a broken mainline bander, that availability gap between order and arrival can be the difference between meeting a deadline and issuing an apology.
Compact Footprint Without Sacrificing Panel Range

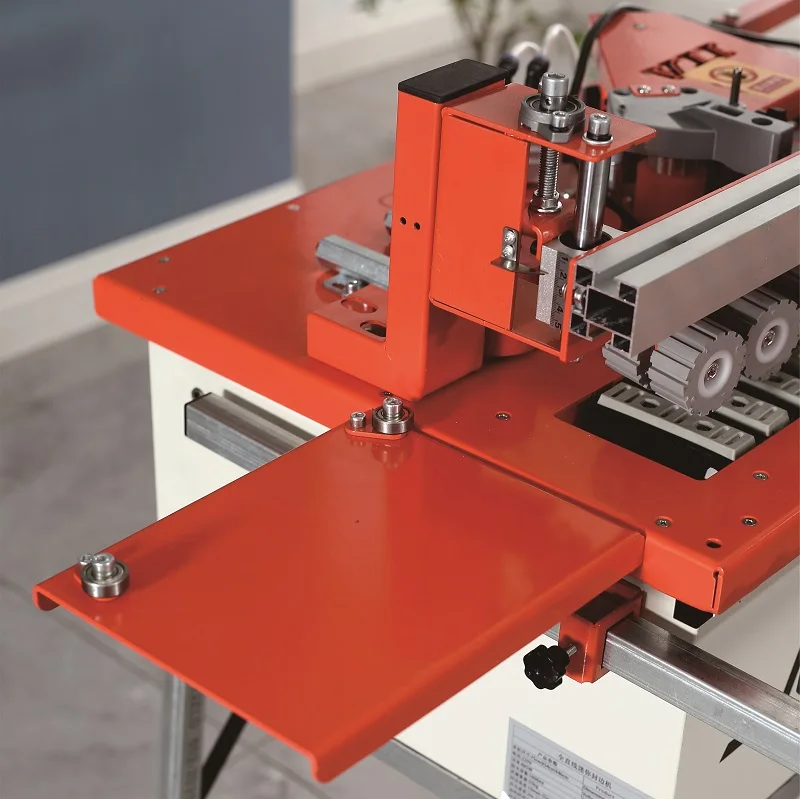

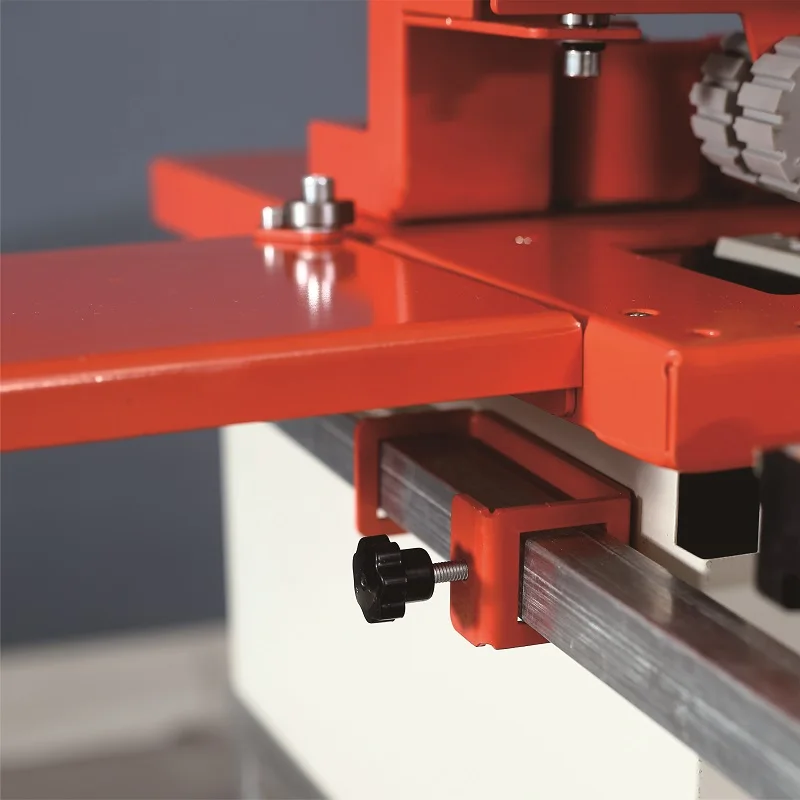

The 1200×500×500 mm body and 60 kg net weight let one person roll the ZDSF750 off a pallet and position it against any workshop wall. Despite the portable frame, the dual 30 cm extension brackets and 360° rotating tabletop give operators enough lateral support to edge-band wide shelving panels and cabinet sides without an auxiliary roller stand. This matters on job sites and in garage-scale workshops where floor space is shared with saws, drills, and material racks [NEED_CITE: typical small workshop floor space constraints for panel processing].
Reading the ZDSF750 Spec Sheet Against Real Panel Work

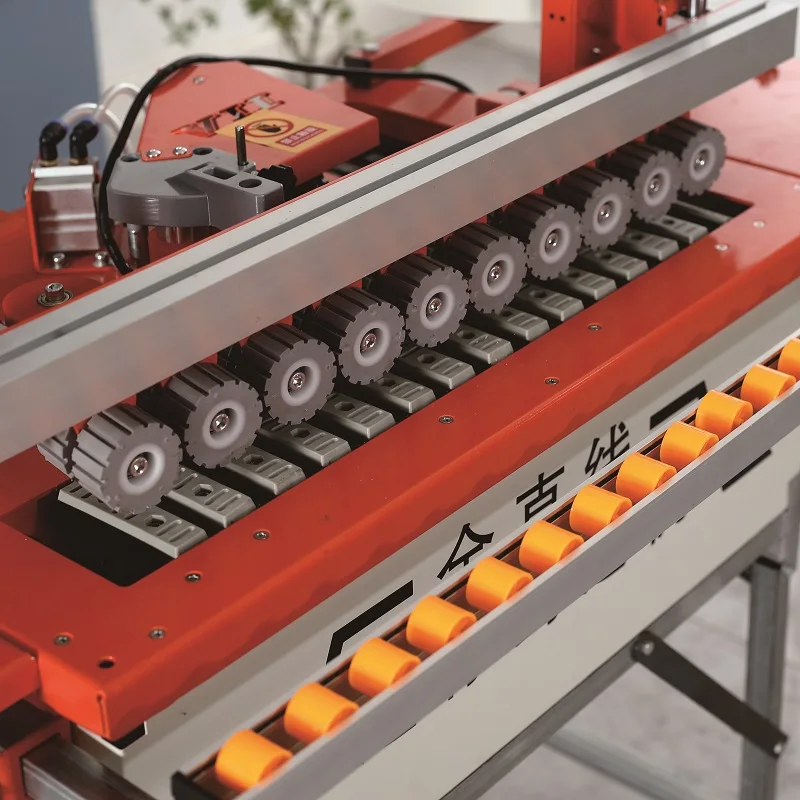

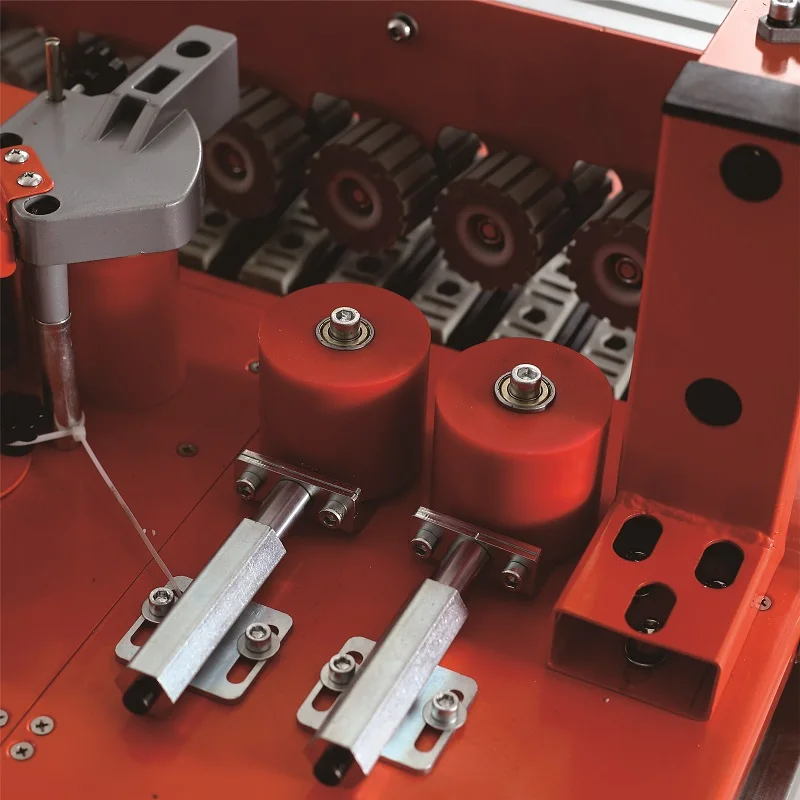

The 6 m/min feed speed is typical for semi-automatic curved and straight banding, balancing glue open-time with operator handling speed on contoured edges. At that rate, the 1000 ml glue pot holds enough adhesive for sustained runs on narrow stock before a refill is needed, which reduces mid-batch temperature fluctuations in the glue reservoir. The caterpillar feeding system grips panels more evenly than manual push-feed setups, helping maintain consistent edge pressure on warped particleboard that would otherwise drift against the banding strip. Adjustable edge banding height lets operators switch between thin 0.4 mm PVC and thicker veneer or ABS strips without changing tooling, which is practical when a single job mixes material types. The multi-wheel profiling press conforms to slight surface irregularities, pressing the strip into the glue line with distributed force rather than a single-point contact that can leave gaps on textured MDF substrates.
What Happens When Portability Is an Afterthought
Buyers who select a bander purely on feed speed often discover that a heavier, stationary frame is impossible to relocate once the shop layout changes or a job requires on-site installation. A machine that cannot be moved by one or two people becomes a bottleneck when the floor plan needs to adapt to a new production run. I have seen small shops lose entire production days simply re-routing material flow around a fixed-position bander that was too heavy to shift [NEED_CITE: workshop layout changes and equipment repositioning frequency]. With the ZDSF750 at 60 kg, repositioning takes minutes rather than a rigging crew.
Reasons Buyers Source This Model Through the Store
Units are held in inventory and dispatched on confirmation, so you are not waiting for a production slot to open on the assembly line. Each ZDSF750 ships with pre-dispatch video showing the machine running edge banding on test stock, letting you verify glue line quality before the crate is sealed. Voltage and plug configuration are confirmed against your local grid standard before the order is released, preventing the 220V-versus-380V mismatch that stalls commissioning. The operation manual is provided in the language you specify, so your operator is not reading translated labels on the control panel for the first time on delivery day. Factory test records travel with the shipment, giving you a baseline for glue temperature and feed alignment straight out of the crate.
Documentation & Verification
- CE declaration of conformity matched to this edge bander model
- Electrical schematic confirming 220V wiring and plug type for your market
- Pre-dispatch video showing ZDSF750 running your specified edge banding material
- Factory test record with glue line inspection on your panel thickness
- Operation and maintenance manual in your operator’s working language
Installation, Commissioning & Support
- Requires a dedicated 220V single-phase circuit rated for at least 1000W continuous draw
- Position on a level floor within the 1200×500 mm footprint, allowing clearance for extension plates
- Arrives assembled; connect power, load glue pellets, and run a test strip before production
- Verify caterpillar feed alignment and multi-wheel press pressure on your specific panel thickness
- Keep spare glue pot seals and edge strip trailer rollers in stock for routine maintenance intervals
Before You Request a Dispatch Date
To move quickly from inquiry to shipping confirmation, we need your local voltage and frequency, the plug type standard in your facility, and the primary edge banding material you intend to run — PVC, ABS, or veneer. If your panels fall outside typical MDF and particleboard thicknesses, share the exact range so we can verify the adjustable banding height covers your stock. Specifying these details up front is what keeps a Curved and Straight Edge Bander in stock fast delivery order on track for same-week dispatch.
Frequently Asked Questions
Q: Is the ZDSF750 in stock and what is the dispatch lead time?
A: The ZDSF750 is held as ready inventory rather than built to order. Once voltage, plug type, and language preferences are confirmed, the unit goes through a pre-shipment test and video inspection before crating. Dispatch typically follows within days rather than weeks, depending on the shipping route and destination port.
Q: Can the 220V rating be adapted for my local power supply?
A: The ZDSF750 is configured for 220V single-phase operation. If your facility runs a different voltage or three-phase supply, let us know before dispatch so we can confirm whether the available stock matches your grid or if a voltage conversion unit is needed on your end. We verify electrical compatibility before the machine ships.
Q: What edge banding materials and panel thicknesses does this machine handle?
A: The adjustable banding height accommodates PVC, ABS, and veneer strips commonly used in cabinet and furniture work. The caterpillar feed and multi-wheel press handle MDF, particleboard, and plywood panels. Share your specific panel thickness and strip width so we can confirm suitability during the pre-dispatch test run.
Q: How is the machine packed, and does it arrive fully assembled?
A: The ZDSF750 ships crated and fully assembled — there is no frame construction or motor mounting required on arrival. You will need to unpack, position the 60 kg unit, connect it to a 220V circuit, and load glue pellets. Packing photographs are provided before dispatch so you can verify crate condition upon delivery.
