Description
Ready From Stock — Every Model 802 unit is tested on actual panel material and voltage-verified against your local grid before the crate closes, so it runs the day it lands.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 802 |
| Product Type | Semi-Automatic Portable Edge Banding Machine |
| Function Sequence | Automatic plate feeding, end cutting, head/tail trimming, upper/lower polishing |
| Rated Voltage | 220V (frequency to be confirmed per destination) |
| Rated Power | 4 kW |
| Trimming Power | 800 W × 2 |
| Polishing Power | 180 W × 2 |
| Suction Power | 1200 W |
| Heating Power | 1000 W (5–10 min heat-up) |
| Feed Speed | 0–10 m/min |
| Conveyor Belt Speed | 0–10 m/min |
| Edge Strip Thickness | 0.5–2.5 mm |
| Sheet Thickness Range | 10–50 mm |
| Glue Pot Capacity | 4000 ml |
| Rated Air Pressure | 0.4–0.6 MPa |
| Pressure Beam | One-piece, double-row silicone pressure wheels |
| Conveyor Belt Material | Silicone |
| Band Breaking Method | Pneumatic |
| Dust Extraction | Built-in 1200 W vacuum device |
| Overall Dimensions | 130 × 65 × 75 cm |
| Machine Weight | 150 kg |
| Key Features | Extendable support strips for large panels, digital glue pot temperature display, independent control switches, built-in dust collector |
Application Suitability
| Application | Material or Output |
|---|---|
| Small workshop straight-line edge banding | MDF, particleboard, plywood with 0.5–2.5 mm PVC strips |
| Custom cabinet door and carcass edging | Melamine-faced chipboard with PVC or veneer edge banding |
| On-site joinery and satellite workshop production | Plywood and blockboard panels in constrained floor spaces |
| Entry-level furniture panel finishing | Particleboard shelving and wardrobe panels requiring clean trim lines |
Why the Voltage Question Must Come Before the Purchase
Ordering a portable edge banding machine in stock only to discover it cannot connect to your workshop’s power supply is a setback no production schedule can absorb. We have seen units sit idle for weeks while transformers are sourced locally. Voltage and frequency must be matched to your facility before the machine leaves the factory, not after it arrives at your door.
A 220V machine shipped to a region running 50 Hz on a 60 Hz-rated motor will overheat under sustained trimming loads. Glue pot heating elements calibrated for one voltage band will run outside their intended temperature window on another, producing weak adhesion or burned adhesive. These are not warranty claims — they are configuration errors that happen when the electrical specification step is skipped. [NEED_CITE: voltage and frequency standards by export market]
Dispatch Without the Custom-Build Wait
Workshops scaling from manual edge banding need equipment on the floor quickly, not after a multi-week production queue. The Model 802 ships from ready inventory, which means the portable edge banding machine in stock you see in the listing is the unit that gets crated. Pre-shipment testing covers trimming alignment, polishing finish, glue heating cycle, and pneumatic band breaking on actual panel stock so you receive a machine with verified function, not just verified existence in a warehouse.
Small Footprint, Full Function Set

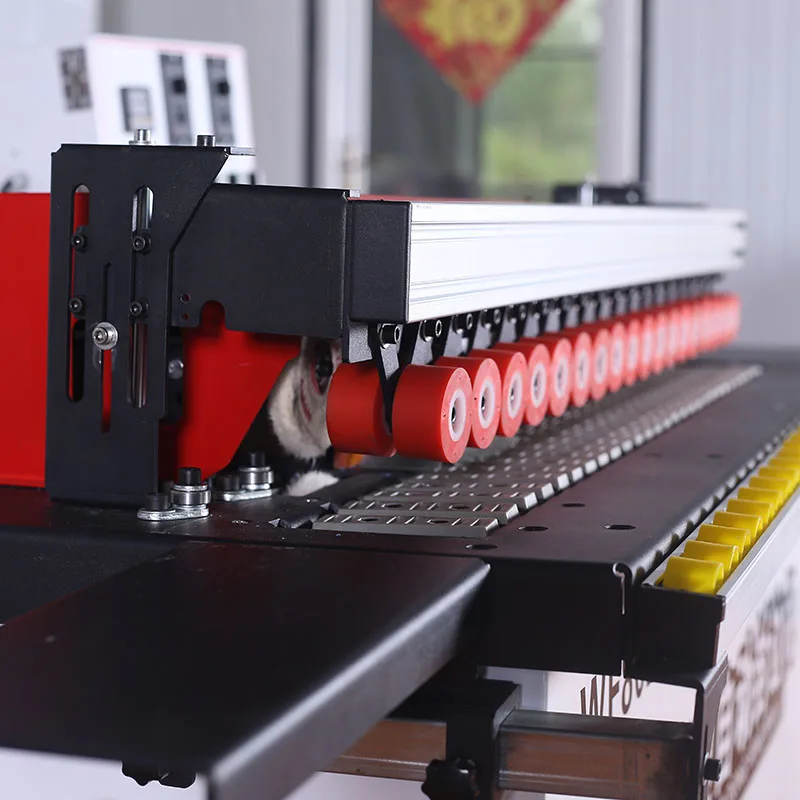

At 130 × 65 cm and 150 kg, this unit fits workshops where a full-size automatic edge bander is not an option. The silicone conveyor belt and double-row pressure wheels handle sheet thicknesses from 10 to 50 mm without surface marking, and the extendable support strips let you run wider panels that would otherwise need a second operator. Dust extraction is built in at 1200 W, so you do not need to allocate floor space and budget for a separate extraction system. [NEED_CITE: CE machinery directive requirements for industrial equipment]
Reading the Specs That Matter on the Shop Floor

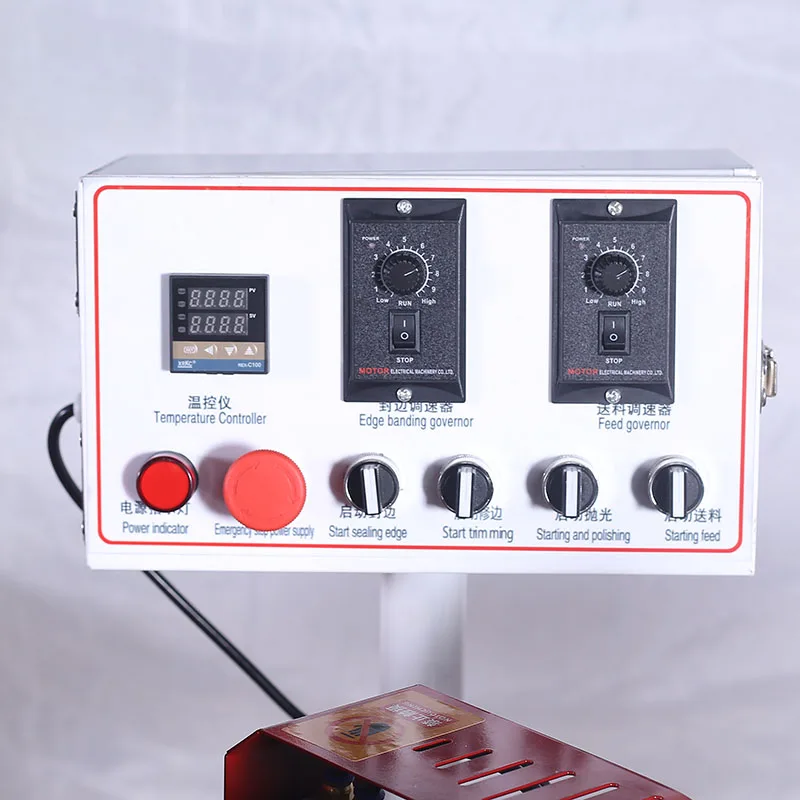

The 4000 ml glue pot capacity means fewer interruptions during a batch run — small shops running fifty or sixty panels in a session will not stop mid-job to refill. The 0–10 m/min variable feed speed lets operators slow down for thick PVC strips that need longer heat contact and speed up for thin veneer banding where overheating causes discoloration. Trimming at 800 W per side provides adequate torque for clean cuts on 2.5 mm PVC without chipping the substrate edge, while the 180 W polishing motors remove the fine burr that causes visible lines after assembly. The digital glue pot display with independent switches gives operators direct temperature control rather than relying on a single preset, which matters when switching between PVC and veneer materials that bond at different temperatures.
What Happens When Configuration Gets Skipped
A portable unit ordered without confirming air pressure requirements will underperform on pneumatic band breaking, leaving ragged strip ends that require manual trimming — defeating the purpose of the machine. Panels thicker than the stated range will jam the pressure beam, damaging both the workpiece and the silicone wheels. These failures show up as operator error in most workshops, but they trace back to a mismatch between the machine’s rated specifications and the actual production task. [NEED_CITE: common causes of edge banding machine downtime in small workshops]
What Ready Stock Actually Means Here
Every stocked unit carries a pre-shipment test record documenting performance on real panel material, not a dry run on an empty conveyor. Voltage is confirmed against your destination country’s standard before crating, eliminating the transformer delay we have seen cost workshops weeks of lost production. The silicone conveyor belt and pressure wheels are inspected for alignment and surface condition as part of the dispatch check. You receive packing photographs so you can verify crate condition before the shipment leaves our facility. Single-unit orders are standard — there is no minimum order quantity forcing you to buy equipment you are not ready for.
Documentation & Verification
- Factory test record covering trimming, polishing, and glue heating on your specified panel thickness
- Voltage and frequency confirmation sheet signed by electrical engineer before dispatch
- Operation manual in your agreed language with control panel switch labels explained
- Spare parts list identifying consumables specific to the Model 802 configuration
- Packing photographs showing crate condition and machine securing method
Installation, Commissioning & Support
- 220V dedicated circuit required — confirm amperage matches the 4 kW rated draw before connection
- Assembly needed on arrival with user manual and video guidance covering belt tensioning and beam alignment
- 0.4–0.6 MPa clean, dry air supply to be connected for pneumatic band breaking
- Glue pot heat-up verified at 5–10 minutes on first power-up before loading adhesive
- Extendable support strips adjusted to match your maximum panel width during commissioning
- Spare trimming blades and polishing pads identified on the included consumables list
Tell Us What You Need to Run
Before we confirm dispatch, share your panel material type, the edge strip thickness you work with most often, and your local voltage and frequency so we can verify compatibility. If you run both PVC and veneer, let us know — the glue pot temperature range may need adjustment before shipment. Floor space and ceiling height matter too, especially if your workshop is tight on the 130 × 65 cm footprint plus operator clearance.
Frequently Asked Questions
Q: How fast can the Model 802 ship from stock?
A: Stocked units are prepared for dispatch once voltage confirmation and pre-shipment testing are complete. This typically takes a few working days, not weeks. We verify every unit on actual panel material before crating, so the lead time includes that testing stage rather than cutting it out to rush an untested machine to you.
Q: Will 220V work in my country, or can I order a different voltage?
A: The standard configuration is 220V, but frequency must also match your local grid. Before we ship any portable edge banding machine in stock, our electrical engineer confirms both voltage and hertz against your country’s standard. Other voltage configurations can be arranged for new production runs outside the current ready-stock inventory.
Q: What materials and panel sizes does this machine handle?
A: The Model 802 processes MDF, particleboard, and plywood sheets from 10 to 50 mm thick, applying PVC or veneer edge strips between 0.5 and 2.5 mm. Extendable support strips are included for wider panels. The straight-line function covers standard cabinet and furniture edging — curved or contoured profiles require a different machine class.
Q: What support is available when the machine arrives?
A: The unit ships with an operation and maintenance manual in your agreed language plus assembly video guidance. The 150 kg weight means two people can position it without a forklift. First-time setup covers conveyor belt tensioning, pressure beam adjustment, and glue pot calibration. Remote technical support is available if issues arise during commissioning.
Q: Which spare parts should I order with the machine?
A: We recommend adding trimming blades, polishing pads, and spare silicone pressure wheels to your initial order. The spare parts list included with every dispatch identifies these consumables by part number. Ordering them with the machine avoids production stops later when shipping a small parcel internationally would take longer than the part replacement itself.
