Description
Ready-stock dispatch — this automatic edge bander ships from our Shandong floor within days, with voltage and language verified against your workshop before the crate closes.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Edge Banding Machine |
| Function Sequence | Gluing, End cutting, Trimming, Vacuuming, Cleaning, Buffing |
| Voltage & Frequency | 220V 50Hz (configurable) |
| Rated Power | 4kW |
| Feed Speed | 0-7 m/min (basis to be confirmed) |
| Rated Air Pressure | 0.6 MPa |
| Suction Power | 1200W |
| Heating Power | 800W |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Panel Thickness Range | 10–50 mm |
| Edge Strip Thickness Range | 0.5–2.5 mm |
| Minimum Board Width | 2.5 cm |
| Glue Pot Capacity | 1000 ml |
| Edge Type Capability | Straight and curved (180° rotation) |
| Pressure Beam | Adjustable aluminum alloy |
| Feed System | Double-row rubber pressure wheels |
| Trimming Motors | 2 high-speed motors |
| Cutter Head | 4-edge arc-shaped alloy cutter |

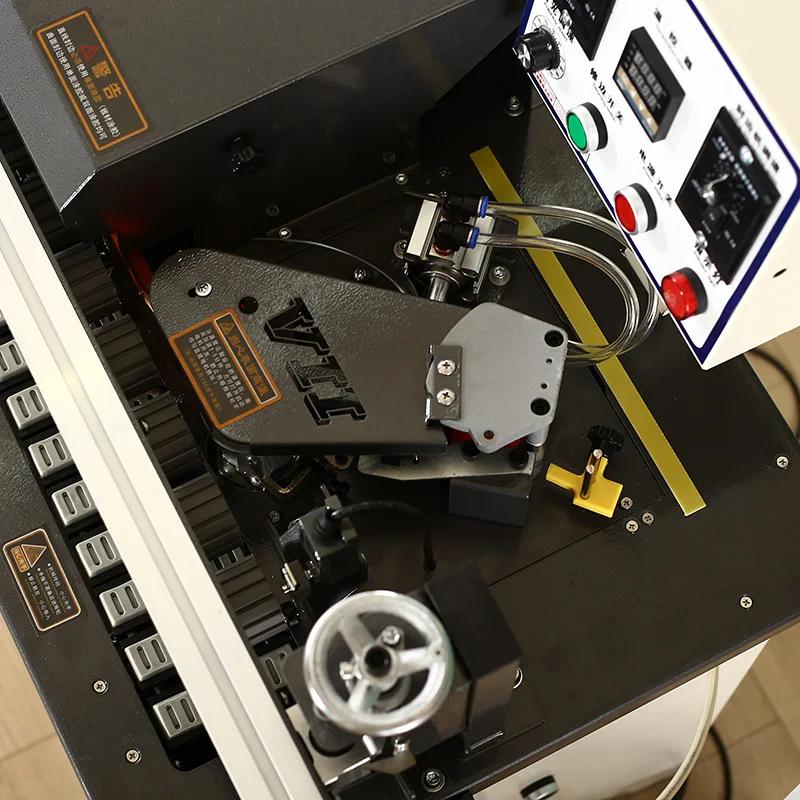

| Control Panel | Multi-function button operation |
| Overall Dimensions (L×W×H) | 1300 × 560 × 1090 mm |
| Net Weight | 186 kg |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edging | MDF and particleboard with PVC strips |
| Cabinet door contour finishing | Plywood and MDF with veneer banding on curved profiles |
| Joinery workshop small-batch production | Solid wood panels with 0.5–2.5 mm edge material |
| Narrow strip and shelf edging | Boards as narrow as 2.5 cm with straight PVC banding |
| Prototype and sample room use | Mixed substrates requiring quick changeover between straight and curved |
Why the Voltage Conversation Must Happen Before Dispatch
Every Edge Banding Machine in stock leaves our floor only after the nameplate voltage matches the buyer’s confirmed supply.
I once watched a container get unloaded in the Middle East, the forklift driver already peeling off the crate labels, only for the electrician to open the control box and find a 380V three-phase motor staring back at a single-phase 220V workshop panel. The machine sat wrapped in plastic for three weeks while a step-up transformer was air-freighted at the buyer’s cost, and the entire cabinet line downstream stalled waiting for edged panels [NEED_CITE: voltage and frequency standards by export market]. That failure was entirely preventable. Since then, my rule on the shipping floor is simple: no unit gets strapped to the pallet until the voltage confirmation sheet is signed and the frequency matches the destination grid. When you search for an Edge Banding Machine in stock for fast delivery, the lead time advantage disappears the moment the machine arrives and cannot be powered on. Confirming the electrical specification before dispatch costs nothing; correcting it on site costs weeks.
Stock Availability and Dispatch Timing
Workshops that need equipment running within days, not months, turn to an Edge Banding Machine in stock precisely because the production calendar cannot absorb a custom build cycle. This unit sits crated and tested on our Shandong floor, with the glue pot flushed, the feed belt tensioned, and the trimming motors verified under load. Dispatch lead time is measured in days from order confirmation, and the shipping documents — commercial invoice, packing list, and certificate of origin draft — are prepared in parallel with the final pre-shipment run.
Straight and Curved Edging on a Single Footprint
Most compact banders force a choice: dedicate the machine to straight panels and outsource curved work, or buy a second unit. The 180° rotation mechanism on this model lets the operator swing the feed path and pressure beam to follow contoured cabinet fronts, radius shelving, and rounded tabletop edges without moving the workpiece to another station. For a small workshop running mixed orders, that single changeover removes an entire machine from the floor plan and the capital budget [NEED_CITE: CE machinery directive requirements for industrial equipment].
What the Spec Sheet Means on the Shop Floor

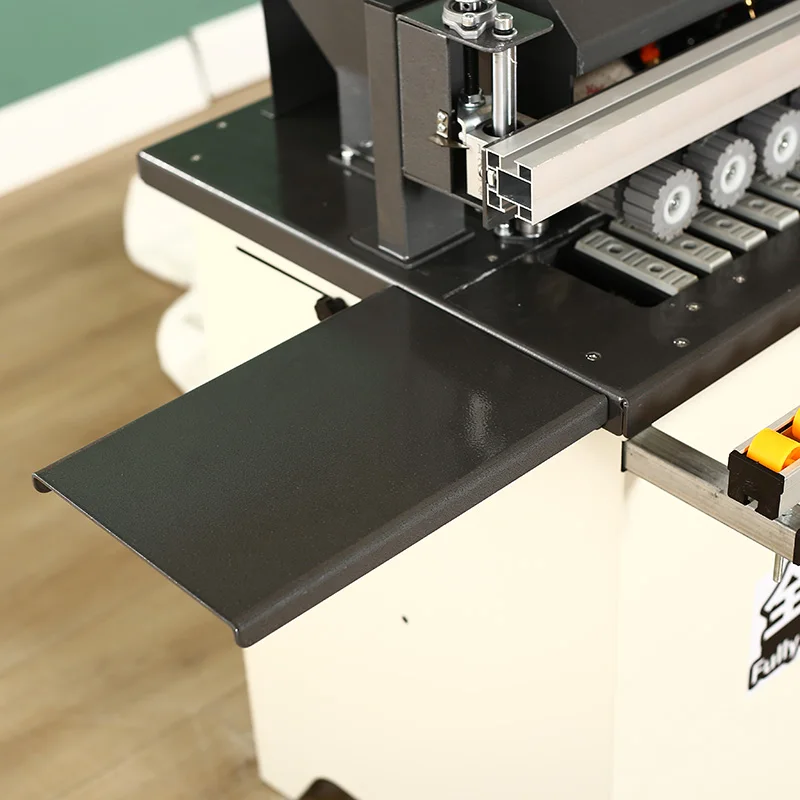

The 10–50 mm panel thickness range covers everything from thin MDF drawer sides to heavy particleboard shelving without shimming or changing pressure wheels between jobs. The double-row rubber feed system grips the panel across its width, so a 2.5 cm narrow strip — the kind that typically chatters and leaves a wavy glue line on lighter machines — tracks straight through the trimming station. The 4-edge arc-shaped alloy cutter head rounds the PVC or veneer edge in a single pass; rotating to a fresh edge takes a hex key and seconds, extending consumable life across mixed production runs. Meanwhile, the 1000 ml glue pot holds enough adhesive for a full shift of standard cabinet panels before needing a refill, reducing mid-run interruptions.
The Cost of Skipping the Compatibility Check
Buying a compact bander on price alone, then discovering the feed height does not match the upstream panel saw or the throughput cannot keep pace with an existing CNC router, leaves the new machine bottlenecked on day one [NEED_CITE: production line throughput matching principles]. Operators who cannot read the control panel language stall the commissioning process, and every day spent translating button labels is a day the cabinet line runs unedged stock. When the trimming tolerance is claimed but never demonstrated on the buyer’s actual board material, the panels fail at the dowel and hinge drilling stage downstream, and the rework cost lands on the furniture maker, not the machine seller.
Why Buyers Source This Model Through Us
Stock inventory means the unit you see in the specification is the unit that ships, not a placeholder for a future production slot. Every machine passes a four-stage quality check — incoming material, in-process assembly, finished product, and pre-shipment verification — before it reaches the dispatch bay. Voltage and control panel language customization are standard options, not afterthoughts negotiated post-order. Our engineers confirm the configuration against your panel material and edge strip type, and the formal quotation arrives within one working day of the inquiry. Factory visits and sample processing tests are available before you commit.
Documentation & Verification
- CE declaration of conformity covering the full machine assembly
- Voltage and frequency confirmation sheet signed before dispatch
- Factory test record on your specified panel thickness and edge material
- Operation and maintenance manual in the language you confirm at order
- Spare parts list with consumable part numbers for reordering
- Electrical schematic matching the as-built control box wiring
Installation, Commissioning & Support
- 220V single-phase supply with a dedicated 20A circuit required at the panel
- 1300 × 560 mm footprint fits through standard workshop double doors
- Machine arrives assembled; connect air line at 0.6 MPa and power on
- Glue pot first heat-up and feed belt tracking adjustment guided remotely
- Trimming and buffing parameter setting calibrated to your edge strip sample
- Spare cutter heads and glue roller shipped inside the crate for immediate use
Before You Request a Quote
Send us your primary panel material and thickness range, the edge strip type and thickness you run most often, and the local voltage and frequency at the installation site. Let us know the control panel language your operators require and whether you need the machine set for predominantly straight, curved, or mixed edging work. If you have a sample panel and edge strip available, ship them to us for a processing test before dispatch.
Frequently Asked Questions
Q: Is this model currently in stock, and what is the dispatch lead time?
A: Yes, this unit is in stock on our Shandong floor and undergoes a final pre-shipment test after order confirmation. Dispatch typically follows within a few working days, with shipping documents prepared in parallel. Lead time to your port depends on the destination and carrier schedule at the time of booking.
Q: Can the voltage be changed to match my workshop supply?
A: Voltage and frequency are configurable to match your local grid before the machine leaves our facility. We confirm the required electrical specification during the quotation stage and verify it on the nameplate and inside the control box prior to crating. A signed voltage confirmation document ships with the machine.
Q: What is included for immediate commissioning on arrival?
A: The shipment includes the machine fully assembled, a spare parts list, an operation manual in your confirmed language, and a set of consumable items such as cutter heads and a glue roller. Glue and edge strips are not included but the glue pot is clean and ready for your chosen adhesive.
Q: How is door-to-door delivery arranged, and is customs support available?
A: We provide full customs documentation including commercial invoice, packing list, and certificate of origin to support clearance at your port. Door-to-door shipping can be quoted through our forwarding partners or arranged by your own nominated agent. We coordinate loading and container stuffing at our facility.
Q: What after-sales support is available once the machine is installed?
A: We provide remote installation guidance and parameter calibration support via video call once the machine is on your floor. Warranty coverage and spare part supply are handled directly through our Shandong facility. Our engineers remain available for troubleshooting throughout the machine’s service life.
