Description
Ready for Dispatch — Every DW1800 leaves our Shandong floor with voltage confirmed, language set, and a test record matching your panel material before the crate closes.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW1800 |
| Product Type | Automatic Edge Banding Machine |
| Rated Power | 4.9 kW |
| Voltage Options | 380V / 220V / 415V (frequency to be confirmed) |
| Feed Speed | 0–14 m/min |
| Edge Banding Thickness Range | 0.3–3 mm |
| Edge Banding Height Range | 0–50 mm |
| Minimum Panel Length | 20 cm |
| Minimum Panel Width | 10 cm |

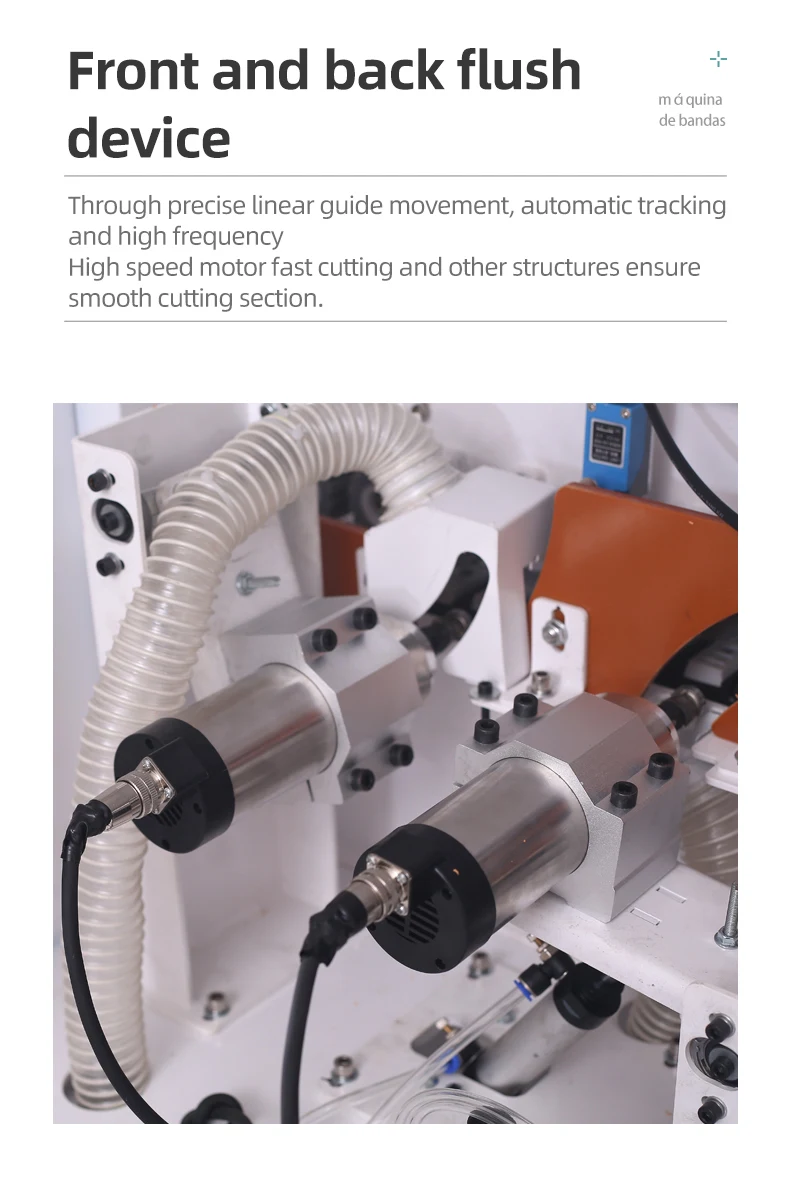

| Trimming Power / Speed | 800 W × 2 / 24,000 r/min |
| Polishing Power | 380 W × 2 |
| Vacuum Power | 550 W |
| Glue Pot Capacity | 4,000 ml |
| Air Supply Requirement | 0.4–0.6 MPa |
| Overall Dimensions (L×W×H) | 220 × 65 × 125 cm |
| Net Weight | 320 kg |
| Control Panel Language | Chinese, English, Spanish, or customized |
| Standard Functions | Double-sided gluing, front/rear alignment, top/bottom trimming, flexible edge scraping, top/bottom polishing, dust extraction |
| Profile Tracking | Four-corner rounding |
| Worktable | Extruded aluminum alloy, oxidation-treated, roll-ball differential guide |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge finishing | MDF and particleboard with PVC or melamine banding |
| Wardrobe side panel processing | Plywood panels with veneer edge band |
| Small-batch furniture production | ABB boards and organic glass plates |
| Workshop automation transition | Solid wood panels up to 50 mm edge height |
Why Confirming Voltage Before Ordering Saves Your Commissioning Week
The DW1800 ships with your facility’s exact voltage and frequency locked in — not a guess based on your country name.
I have watched a container land at a buyer’s dock only for the electrician to open the panel and find 380V/50Hz wiring feeding a 220V/60Hz shop. The machine sat idle while transformers were sourced locally, pushing production back by weeks. With this automatic edge banding machine in stock, we verify your supply before the unit leaves the floor, so the first thing you do on arrival is plug it in and run panels [NEED_CITE: voltage and frequency standards by export market].
Stock That Ships With Your Language Already Loaded
A control panel in a language your operator cannot read stalls commissioning before the first board feeds through. The DW1800 ships with the interface set to English, Spanish, or another agreed language. When this automatic edge banding machine in stock arrives at your door, your team can navigate feed speed, glue temperature, and trimming depth without a translator standing by.
Single-Unit Orders Without the Custom-Build Wait
Most workshops do not need a container load — they need one reliable bander to replace manual edge work. The DW1800 is stocked as a complete, fully assembled unit. You place the order, confirm your voltage, and the machine dispatches within a short lead window rather than entering a multi-week production queue [NEED_CITE: CE machinery directive requirements for industrial equipment].
Reading the Specs That Actually Matter on the Floor
Feed speed on the DW1800 runs from 0 to 14 m/min, which suits batch runs where panel sizes vary and operators need to slow down for shorter workpieces. The trimming motors spin at 24,000 r/min — fast enough to leave a clean cut on PVC and melamine without chipping the substrate edge. Glue pot capacity sits at 4,000 ml, giving enough reservoir volume for sustained runs on particleboard without frequent refills. The roll-ball differential guide on the extruded aluminum table keeps panels tracking straight, which is where most edge quality problems actually start when the worktable flexes under load.
What Happens When You Skip the Voltage and Language Check
A machine wired for the wrong frequency runs its motors at incorrect speeds, which means the trimming heads do not hit the rated 24,000 r/min and edge finish degrades. Operators faced with a Chinese-only screen start guessing parameter names, sometimes setting feed speed too high for the glue open time and getting delamination downstream. These are not warranty claims — they are commissioning failures that cost you production days [NEED_CITE: electrical safety compliance for imported woodworking machinery].
Why Buyers Source This Bander Through Our Ready-Stock Channel
The DW1800 sits on our floor assembled and tested, not in a parts warehouse waiting for a build slot. Voltage confirmation happens at the quotation stage, not after crating. Every unit ships with a factory test record on your actual panel thickness and banding material. Language customization is applied before dispatch, not handed to you as a PDF to figure out later. Our four-stage QC covers incoming material through pre-shipment verification, so the machine you receive matches the spec sheet you signed off on.
Documentation & Verification
- Factory test record showing edge output on your specified panel and banding material
- Electrical schematic confirming voltage, frequency, and plug configuration for your facility
- Operation and maintenance manual delivered in your agreed language before shipment
- Spare parts list itemizing trimming blades, polishing wheels, and glue-pot consumables
- Packing photographs documenting machine condition at the point of dispatch
Installation, Commissioning & Support
- The 4.9 kW rated power requires a dedicated circuit matching your confirmed 220V, 380V, or 415V supply
- Overall footprint of 220 × 65 cm needs clear infeed and outfeed space for full panel lengths
- Machine arrives fully assembled — level the extruded aluminum worktable before first run
- Set glue temperature and feed speed based on your banding thickness between 0.3 and 3 mm
- Verify air supply at 0.4–0.6 MPa to ensure trimming and scraping cylinders cycle correctly
- Review spare parts list for trimming blades and polishing wheels before initial production run
What We Need to Quote You Accurately
Send us your panel material type, typical board thickness, and the edge banding stock you run most often. Tell us your local voltage and frequency so we wire the DW1800 correctly before it leaves Shandong. If you need the control interface in a specific language, let us know at the inquiry stage so it is loaded and tested before dispatch.
Frequently Asked Questions
Q: Is the DW1800 currently in stock and what is the dispatch lead time?
A: The DW1800 is stocked as a fully assembled unit on our Shandong floor. Once your voltage, frequency, and control panel language are confirmed, the machine goes through a pre-shipment test on your specified panel material and dispatches within a short lead window. We share packing photographs and tracking once the crate is sealed.
Q: How do I confirm the correct voltage and plug type for my country?
A: Tell us your facility’s supply voltage and frequency at the inquiry stage. We configure the DW1800 for 220V, 380V, or 415V operation accordingly and provide an electrical schematic for your electrician to review before shipment. This eliminates transformer purchases or rewiring on arrival.
Q: Can the control panel be set to English, Spanish, or another language before shipping?
A: Yes. The DW1800 control interface is available in Chinese, English, Spanish, or a customized language. We apply your chosen language before dispatch and test every menu function so your operators can set feed speed, glue temperature, and trimming parameters from day one.
Q: What edge banding materials and thicknesses does this machine handle?
A: The DW1800 processes PVC, melamine, and veneer edge banding from 0.3 to 3 mm thick, with edge heights up to 50 mm. It is suited to MDF, particleboard, plywood, and solid wood panels. Profile tracking rounds all four corners for a smooth finish on cabinet and furniture components.
Q: What spare parts and consumables should I order with the machine?
A: We recommend ordering an initial set of trimming blades, polishing wheels, and glue-pot consumables alongside the machine. The spare parts list is provided before shipment so you can evaluate quantities based on your expected production volume and reorder lead times.
