Description
Ready From Stock — ZDS802 units are pre-built and warehouse-tested so your workshop avoids typical multi-week production waits, with voltage and documentation locked in before dispatch.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDS802 |
| Product Type | Automatic Edge Banding Machine |
| Function Sequence | Plate feeding, end cutting, trimming, polishing |
| Rated Voltage | 220V |
| Rated Power | 4 kW |
| Trimming Power | 800 W × 2 |
| Polishing Power | 180 W × 2 |
| Suction Power | 1200 W |
| Heating Power | 1000 W |
| Feed Speed | 0–10 m/min |
| Conveyor Belt Speed | 0–10 m/min |
| Glue Pot Capacity | 4000 ml |
| Edge Strip Thickness | 0.5–2.5 mm |
| Panel Thickness Range | 10–50 mm |
| Rated Air Pressure | 0.4–0.6 MPa |
| Overall Dimensions | 130 × 65 × 75 cm |
| Machine Weight | 150 kg |
| Control Interface | Digital display with independent switches |
| Pressure Beam | Integrated, double-row pressure wheels |
| Conveyor Belt Material | Silicone |
| Band Breaking | Pneumatically controlled |
| Dust Extraction | Integrated vacuum cleaner |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door production | MDF panels with PVC edge banding |
| Small-batch furniture manufacturing | Particleboard shelving with melamine edges |
| Custom joinery and fit-out work | Plywood carcass panels with veneer strips |
| Workshop prototyping and sample runs | Solid wood panels up to 50 mm thickness |
Why the Voltage Question Must Come Before the Order
A 220V machine arriving in a 110V or 380V workshop is a 150 kg paperweight until the transformer shows up. I once watched a customer wait three weeks for a rewound transformer because nobody confirmed the local supply before the edge bander shipped. The ZDS802 is rated at 220V, and that number needs to match your workshop’s actual outlet before any Automatic Edge Banding Machine in stock leaves our floor. Small workshops in regions with mixed voltage standards often assume a single-phase machine will simply plug in. It will not. Frequency matters too — a 50 Hz motor on a 60 Hz supply spins faster, runs hotter, and burns out sooner than the bearings were designed for [NEED_CITE: voltage and frequency standards by export market]. Confirming this in writing before dispatch saves more downtime than any feed-speed comparison ever will.
Dispatch Without the Usual Wait

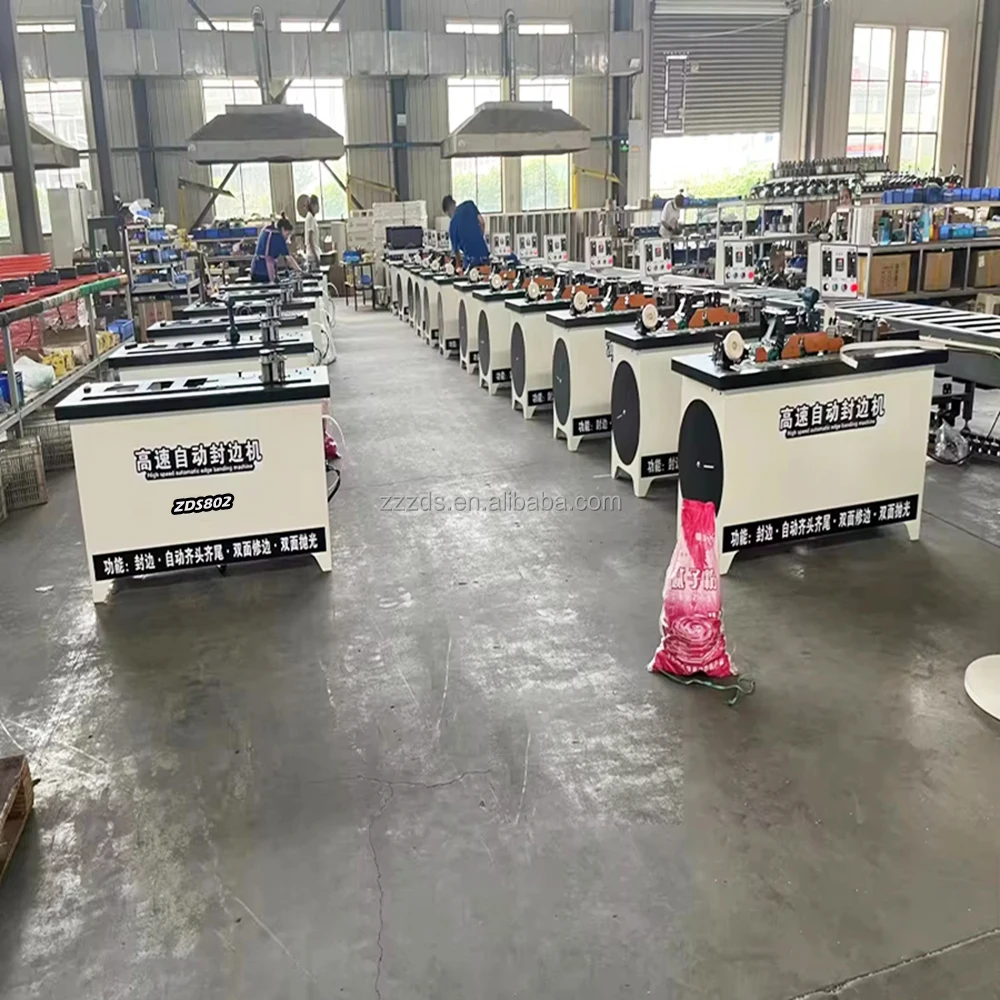

Workshops ordering a single Automatic Edge Banding Machine in stock rarely want to hear about six-week build slots. The ZDS802 sits in the warehouse assembled to its core modules — trimming stations wired, glue pot sealed, conveyor tensioned — so the gap between payment confirmation and crate closing stays short. You specify voltage and language on the order form; we run a loaded test before the machine leaves the floor.
What Arrives at Your Dock
The machine ships with the extendable fluent-strip plate support, the integrated vacuum unit, and the pneumatic band-breaking assembly all accounted for in one crate. Partial assembly is required on site — the pressure beam and dust hood need bolting into position — but a video walkthrough and printed manual walk a single operator through it without a specialist visit [NEED_CITE: CE machinery directive requirements for industrial equipment].
How the Numbers Translate on the Shop Floor
The 10–50 mm panel thickness range covers the full spread of carcass stock a cabinet shop typically handles, from 12 mm shelving to 40 mm solid-wood benchtops. The 0–10 m/min variable feed speed lets the operator slow down for dense veneer strips and speed up for standard 0.8 mm PVC, keeping glue transfer consistent across runs. The 4000 ml glue pot holds enough adhesive for extended runs without mid-batch refills — a detail that matters once a shop moves past a few dozen panels per day. The 0.4–0.6 MPa air pressure requirement is standard for most workshop compressors, so no auxiliary boosting is needed. Double high-speed trimming motors at 800 W each cut both faces in one pass, which keeps the edge square and reduces hand-finishing downstream.
What Happens When Specs Are Skipped
Ordering a compact Automatic Edge Banding Machine in stock without checking the air supply is a common shortcut. The ZDS802’s pneumatic band-breaking cylinder and pressure-beam clamping both draw from the same compressor line. If that line drops below 0.4 MPa during a run, the trimming station chatters and the edge shows micro-steps that no amount of polishing hides [NEED_CITE: compressed air quality standards for pneumatic woodworking tools]. Workshops that skip the compressor check end up blaming the machine for a problem that cost a regulator and a filter to fix.
Reasons Buyers Source This Model Here
The four-stage QC process runs incoming material checks, in-process assembly inspection, finished-product testing, and a pre-shipment verification that includes a loaded feed test on actual panel stock. Engineer-led configuration means the quotation you receive within one working day accounts for your panel thickness, edge material, and local voltage — not a generic price list row. Factory test records travel with the machine, so you can see the panels that were run and the temperatures logged before crating. Full documentation support covers customs paperwork and electrical schematics in the format your local electrician needs.
Documentation & Verification
- CE declaration of conformity for the ZDS802 edge bander covering electrical and mechanical safety
- Machine specification sheet matching your confirmed voltage and frequency at order
- Electrical schematic with circuit diagram for your local 220V single-phase supply
- Factory test record showing glue temperature and feed run on your panel thickness
- Operation and maintenance manual in your chosen language with illustrated assembly steps
- Spare parts list identifying consumables, trimming blades, and polishing pads by part number
Installation, Commissioning & Support
- Requires a level concrete floor with at least 150 × 80 cm clearance including the extendable plate support
- Dedicated 220V single-phase circuit rated for at least 4 kW continuous draw, no shared breaker
- Partial assembly on arrival: pressure beam and dust hood bolt into pre-drilled mounts
- Digital display shows glue pot temperature; allow 5–10 minutes heat-up before first feed
- Pneumatic connections need a regulated 0.4–0.6 MPa supply with inline moisture trap
- Trimming and polishing consumables listed in the included spare parts sheet for reorder
What to Include With Your Inquiry
Tell us your panel material and the thickness range you run most often, so we can confirm the ZDS802’s 10–50 mm window covers your work. Confirm your workshop voltage and frequency — 220V/50Hz or 220V/60Hz — so the motor and heating element are matched before dispatch. Let us know if you need the operation manual and control labels in a specific language, and whether you have an existing compressor meeting the 0.4–0.6 MPa requirement.
Frequently Asked Questions
Q: Is the ZDS802 currently in stock, and how quickly can it ship?
A: Yes, the ZDS802 Automatic Edge Banding Machine in stock is available for dispatch without a custom build cycle. Once you confirm voltage, language, and shipping address, pre-shipment testing and crating follow within a short window. Exact dispatch dates are quoted at order confirmation based on your destination and chosen freight method.
Q: My workshop runs 220V at 60Hz — will this machine work?
A: The ZDS802 is rated for 220V, but frequency matters for motor speed and heating behavior. Tell us your exact voltage and frequency at inquiry so the electrical engineer can confirm compatibility or specify adjustments before the machine ships. Running a 50Hz motor on 60Hz without adjustment shortens bearing life.
Q: What shipping methods are available for a single unit?
A: Sea freight, air freight, and door-to-door courier are all available depending on your urgency and budget. The ZDS802 weighs 150 kg and measures 130 × 65 × 75 cm, so it fits standard LCL consolidation for ocean shipping. Air and courier options are quoted on request with your delivery address.
Q: Will the machine arrive fully assembled and ready to run?
A: The ZDS802 ships partially assembled — core systems are wired and tested, but the pressure beam and dust hood require bolting on site. A video guide and printed manual walk through the remaining steps. You will need a regulated compressed air supply at 0.4–0.6 MPa connected before the first test run.
Q: What consumables should I order along with the machine?
A: The included spare parts list identifies trimming blades, polishing pads, and silicone belt sections by part number. Glue pellets and PVC edge banding are sourced locally to match your panel colors. We recommend ordering a starter set of trimming blades with the machine so you have replacements on hand from day one.
