Description
Ready-to-Ship Edge Bander — every unit verified for your local voltage and shipped with language-matched controls so commissioning starts on day one.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Automatic Edge Banding Machine |
| Model | 802 |

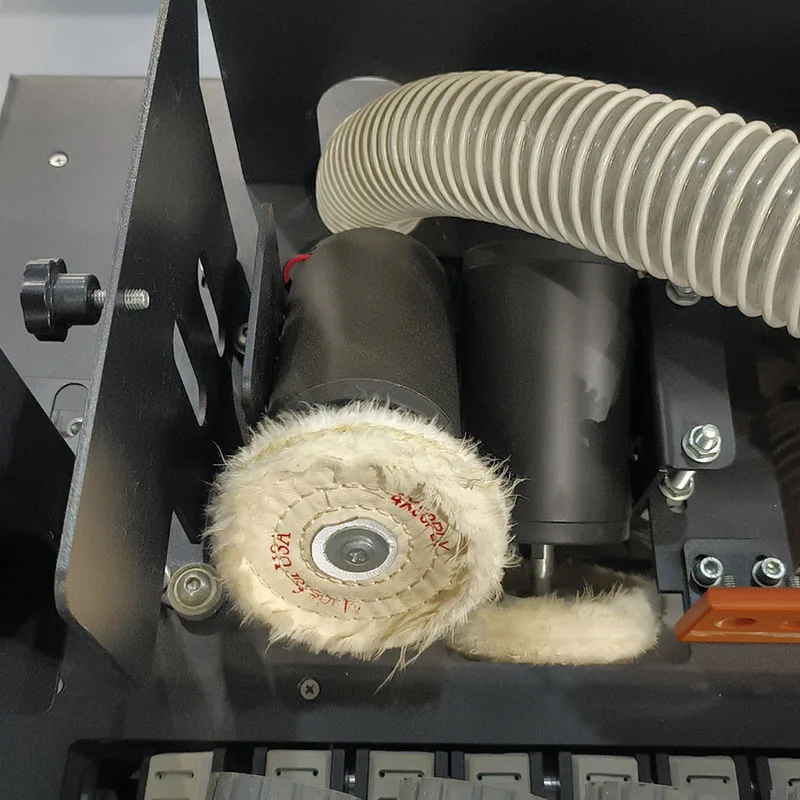

| Function Sequence | Automatic plate feeding, end cutting, trimming, polishing, dust collection |
| Edge Type | Straight line |
| Rated Voltage | 220V |
| Rated Power | 4 kW |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Suction Power | 1200W |
| Heating Power | 1000W (5-10 min heat-up) |
| Feed Speed | 0-10 m/min |
| Conveyor Belt Speed | 0-10 m/min |
| Strip Thickness | 0.5-2.5 mm |
| Sheet Thickness | 10-50 mm |
| Glue Pot Capacity | 4000 ml |
| Rated Air Pressure | 0.4-0.6 MPa |

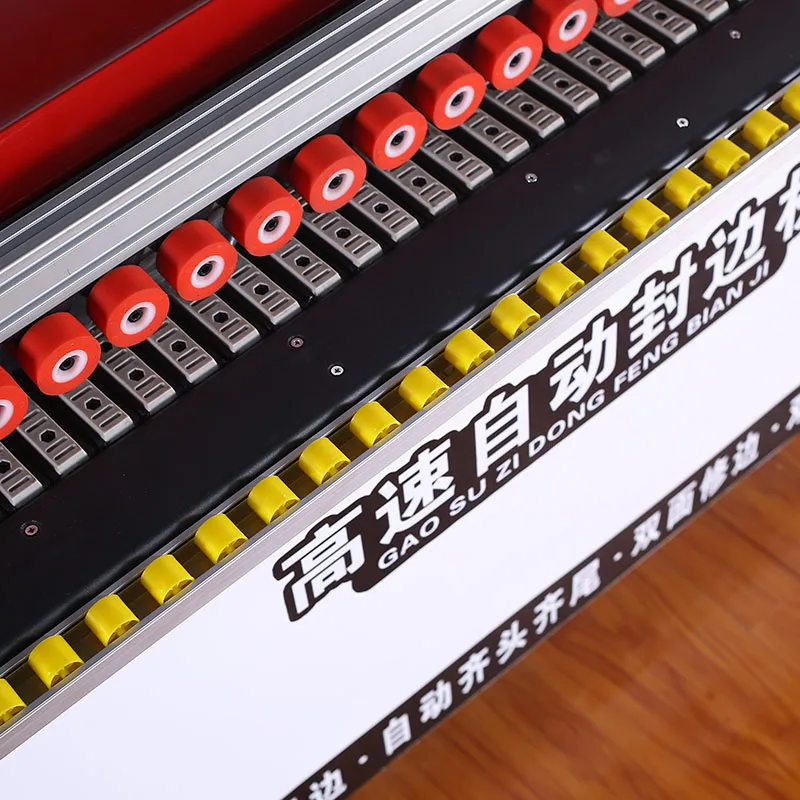

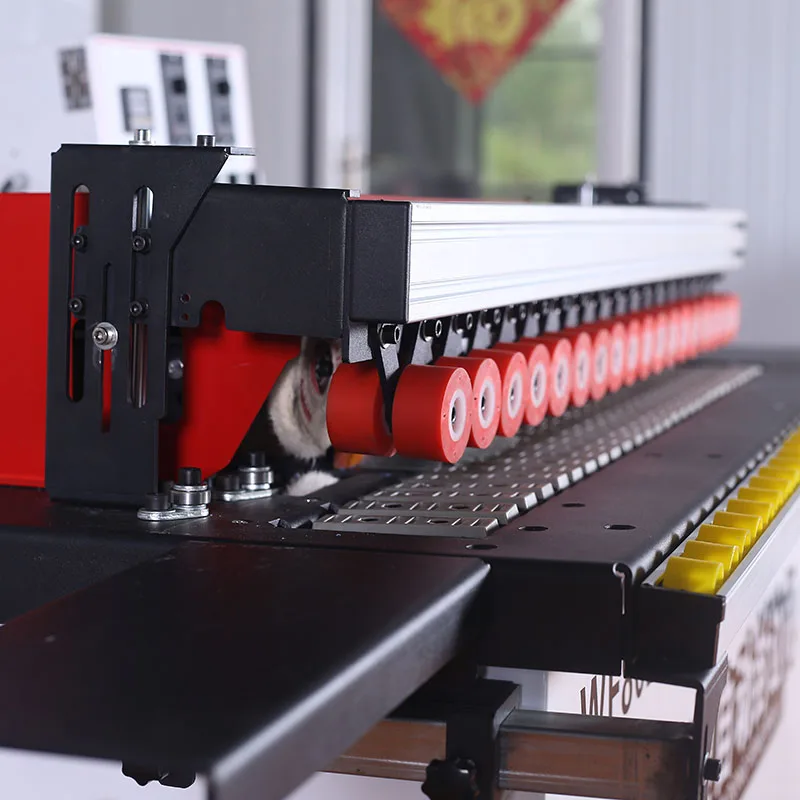

| Pressure Beam | One-piece, double rows of pressure wheels |
| Conveyor Belt Material | Silicone |
| Belt Breaking Method | Pneumatically controlled |
| Extension Support | Extendable fluent strips for large plates |
| Overall Dimensions | 130 × 65 × 75 cm (source value — verify against manufacturer catalog) |
| Machine Weight | 150 kg (source value — verify against manufacturer catalog) |
| Certification | CE |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge banding | MDF and plywood with PVC edge banding |
| Kitchen cabinet door production | Particleboard with PVC or veneer strips |
| Wardrobe panel finishing | Solid wood panels with veneer edge banding |
| Joinery workshop straight-edge sealing | MDF, plywood, particleboard, solid wood |
| Small-batch cabinet maker runs | Panel thicknesses from 10 mm to 50 mm |
Why the Voltage Question Should Come Before the Price
Ordering an automatic edge banding machine in stock without confirming your workshop’s electrical supply is the fastest way to stall a production upgrade. Every 802 unit ships only after the buyer’s voltage and frequency are cross-checked against the machine’s electrical schematic.
I have seen 220V single-phase machines arrive at workshops wired for a different standard, sitting idle while a transformer is sourced locally. That delay costs more than the transformer itself — operators stand by, delivery schedules slip, and the machine that was supposed to solve a bottleneck becomes one [NEED_CITE: voltage and frequency standards by export market]. The 802 is configured for 220V, which suits many small workshops, but local grids vary and confirmation before dispatch prevents the problem entirely.
Stock Availability and Dispatch Timing
This automatic edge banding machine in stock is held at the Shandong facility and prepared for fast dispatch once pre-shipment checks clear. The process is built around one principle: the machine leaves the factory only when it matches your workshop’s actual conditions, not just the order form. Voltage confirmation, control panel language, and a test run on your specified panel material all happen before crating.
What "Ready to Ship" Actually Means Here
Stock status does not mean skipping verification. Each 802 goes through a pre-shipment test covering feed speed stability, glue temperature consistency across a full production cycle, and trimming quality on the edge banding material you will use. The machine is then photographed in its packed state and documented for customs [NEED_CITE: CE machinery directive requirements for industrial equipment]. For buyers who need a unit quickly but cannot afford to receive the wrong configuration, this step separates fast delivery from fast problems.
Glue Pot Capacity and Trimming Configuration Explained

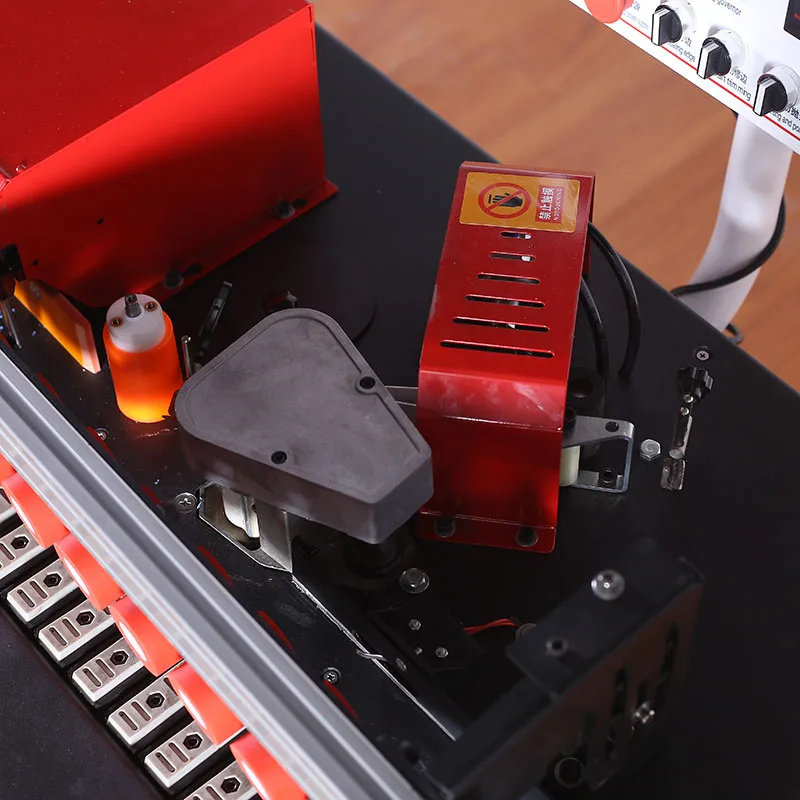

The 4000 ml glue pot on the 802 reduces refill interruptions during continuous runs — a factor that matters when you are sealing dozens of cabinet panels in sequence and every stop introduces a temperature recovery period. The 1000W heating element brings the pot to working temperature in roughly five to ten minutes, which is relevant for shops that power down between batches rather than running all day. The twin 800W trimming motors handle upper and lower edge finishing in a single pass, producing a clean result on PVC and veneer strips across the 0.5-2.5 mm thickness range. Pneumatically controlled belt breaking ensures precise strip cutoff without manual intervention, and the integrated 1200W dust collector keeps the immediate work area clear of trimming debris without requiring a separate extraction line.
The Hidden Cost of Skipping Configuration Checks
Buying on price alone and discovering the control panel is in a language your operator cannot read is a surprisingly common problem. Commissioning stalls while someone translates menus, and incorrect parameter settings can damage both panels and edge banding stock [NEED_CITE: operator error from untranslated machine interfaces]. Similarly, a machine quoted without confirming local air pressure requirements may arrive and fail to actuate pneumatic functions like the belt breaker, requiring a compressor upgrade the buyer did not budget for.
Why Procure Through This Channel
The 802 ships from a facility with in-house manufacturing and patented cutting mechanisms, so configuration adjustments happen on the production floor rather than through a middleman. Voltage and language customization is treated as standard procedure, not a special request. The four-stage quality control process covers incoming material inspection through pre-shipment verification, and every unit includes a factory test record specific to your panel specifications. Engineer-led configuration support means you receive a formal quotation with confirmed specifications within 24 hours, and factory visits are available for buyers who want to see the machine run before committing.
Documentation & Verification
- Factory test record on your specified panel thickness and edge banding material
- Electrical schematic with voltage and frequency confirmed against your local supply
- Operation and maintenance manual provided in your agreed language
- CE declaration of conformity included with shipping documents
- Packing photographs and customs documentation support for every shipment
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated for the 4 kW total power draw
- Compressed air supply must deliver 0.4-0.6 MPa at the machine inlet
- Arrives assembled; operator connects power, air, and dust collection before first run

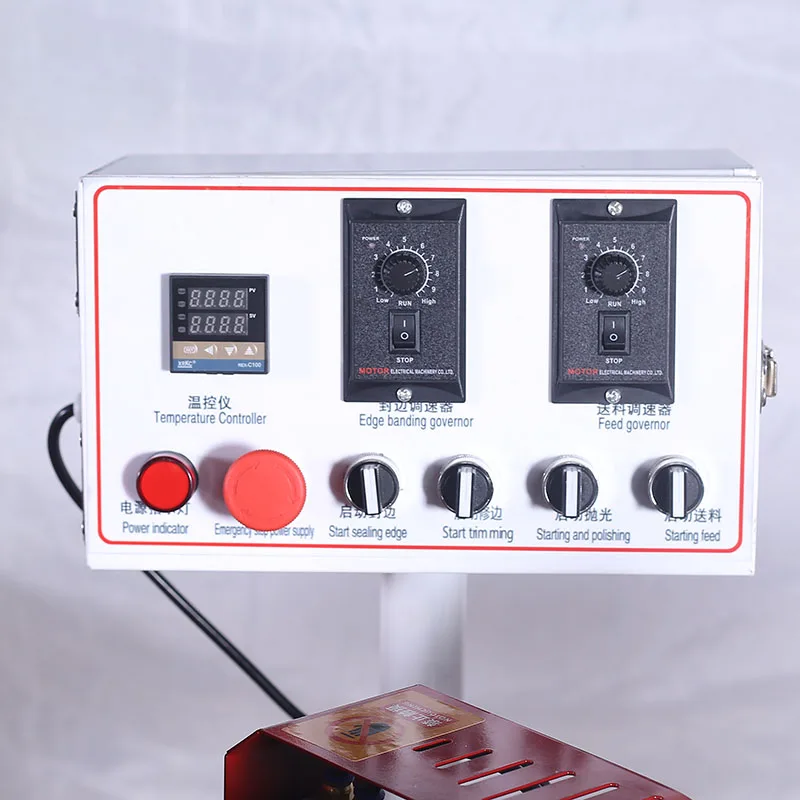

- Glue pot temperature and feed speed calibrated during commissioning for your material
- Silicone conveyor belt and trimming blades listed in spare parts documentation
- Extendable fluent strips support large panels during installation alignment
Before You Request a Quote
Share your workshop’s local voltage and frequency, the panel materials and edge banding types you work with most often, and your preferred control panel language. If you are integrating the 802 into an existing line, note the upstream and downstream equipment so feed height and throughput can be confirmed as compatible.
Frequently Asked Questions
Q: Is this model currently in stock and how fast can it ship?
A: The 802 is held as ready stock at the Shandong facility. Dispatch follows pre-shipment verification, which includes a test run on your panel material and voltage confirmation. Once those checks clear, the machine is crated and handed to freight, typically within a short turnaround for stocked units.
Q: Can the voltage and control panel language be confirmed before dispatch?
A: Yes. Voltage is cross-checked against your local supply and the electrical schematic is reviewed before the machine ships. The control panel language is set to your specification so operators can read menus and parameter displays from the first day of use.
Q: What panel thickness and edge banding materials does the 802 handle?
A: The machine accepts sheet thicknesses from 10 mm to 50 mm and edge banding strips from 0.5 mm to 2.5 mm. It is used with PVC and veneer edge banding on MDF, plywood, particleboard, and solid wood panels for straight-line edge applications.
Q: Does the machine arrive fully assembled or require on-site setup?
A: The 802 ships fully assembled. On-site setup involves connecting the 220V power supply, the compressed air line at 0.4-0.6 MPa, and the dust collector. Installation guidance is provided so your team can complete these connections and begin the first test run.
Q: How are spare parts and consumables supplied after delivery?
A: A spare parts list is included with every shipment, covering items like trimming blades and glue pot components. Consumables and replacement parts are available through the same supply channel, with documentation in your agreed language for ordering and maintenance reference.
