Description
Ready Dispatch Guarantee — ZDS702 double-sided glue edge banding machines are warehouse-tested and packed for immediate loading, so your workshop does not wait weeks for production scheduling.
Technical Specifications
| Parameter | Value |
|---|---|

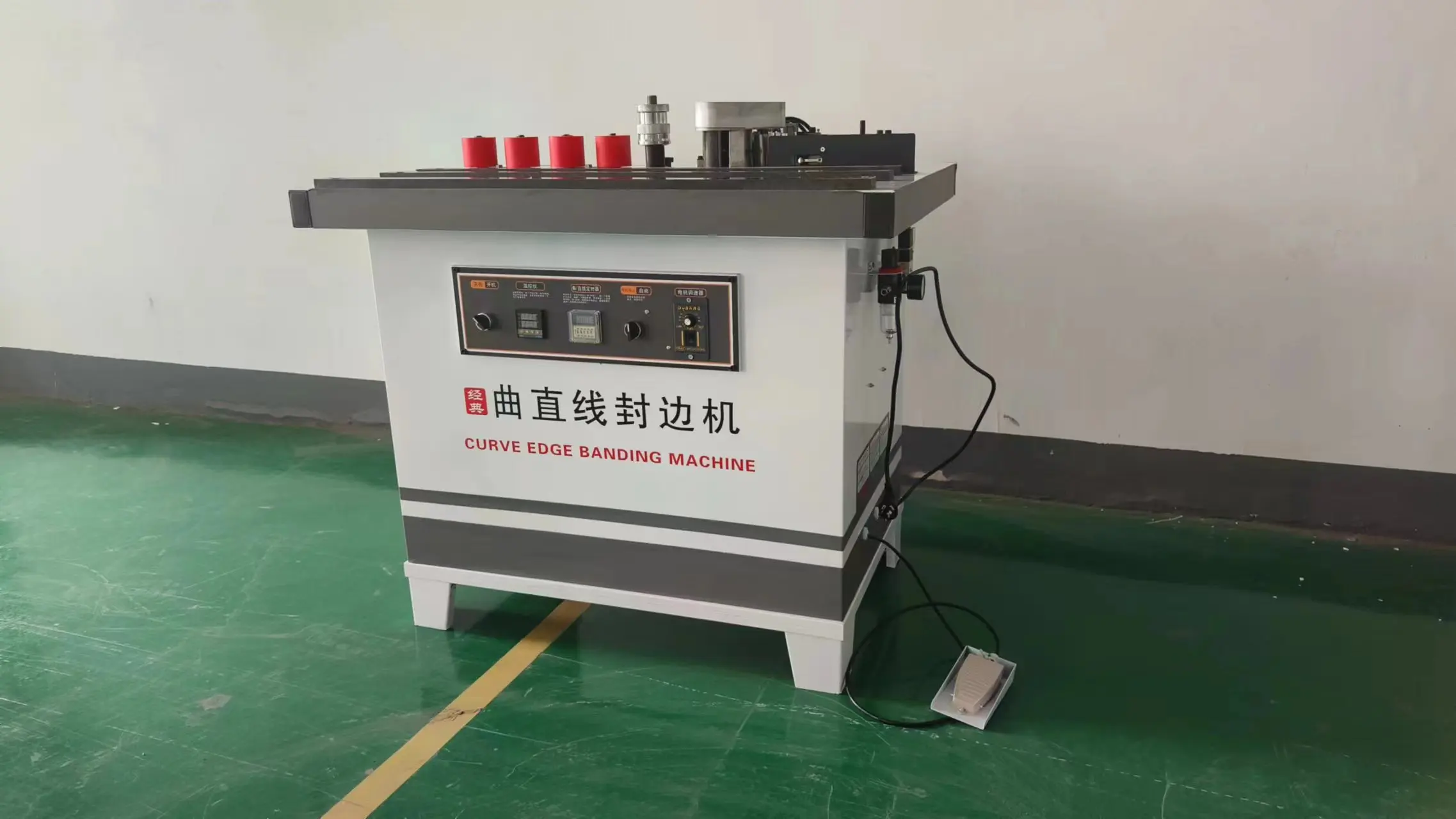

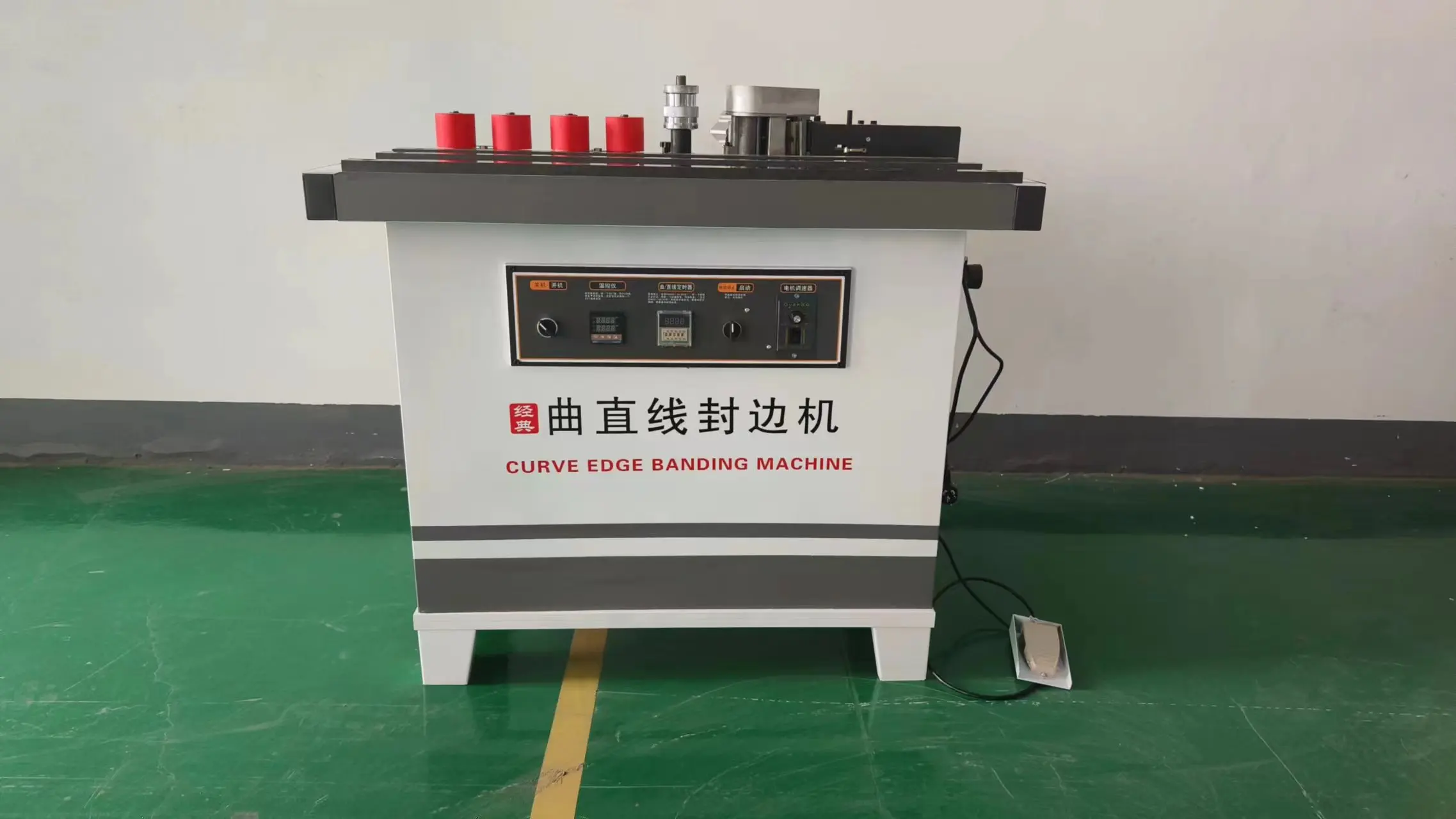

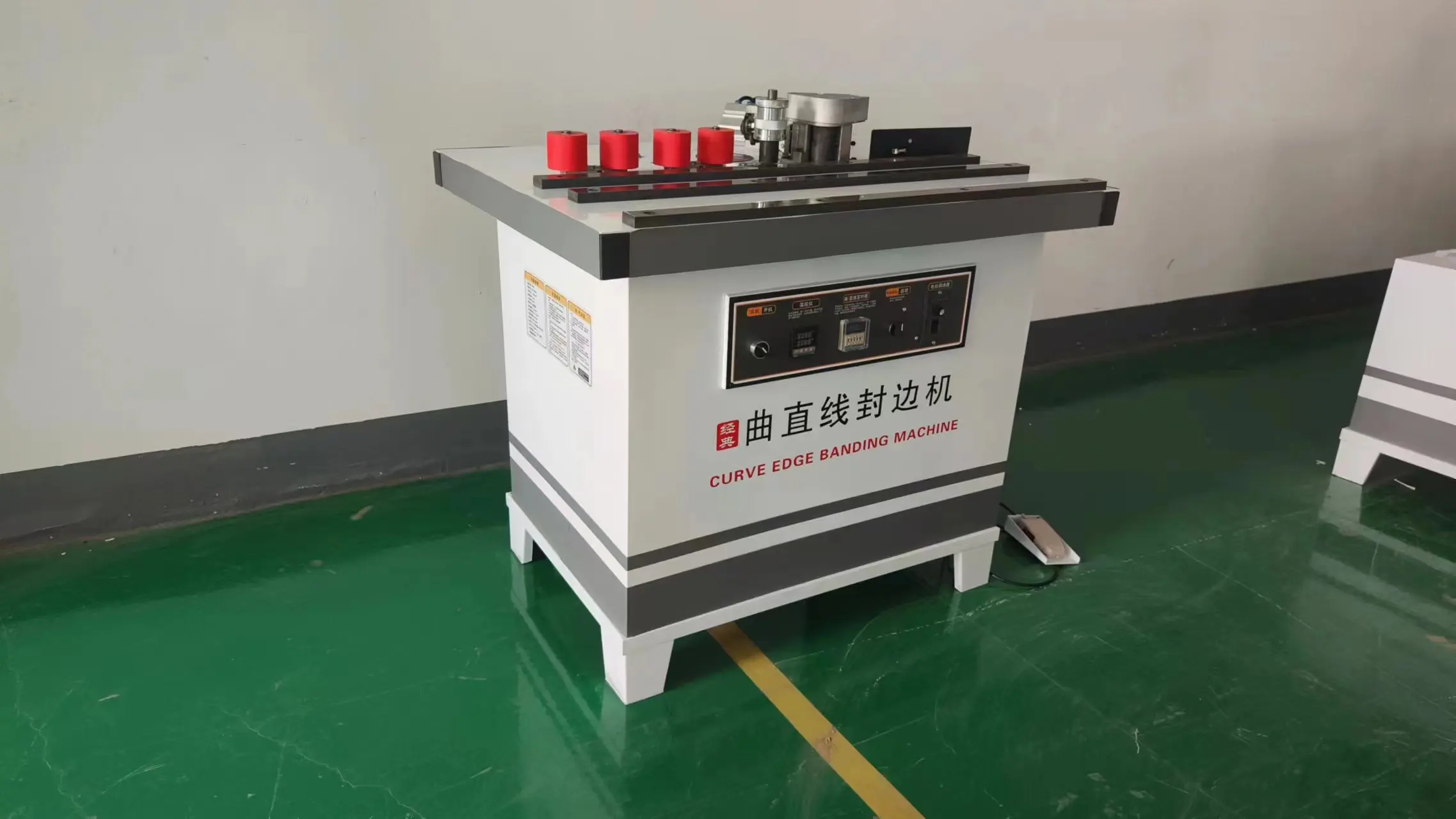

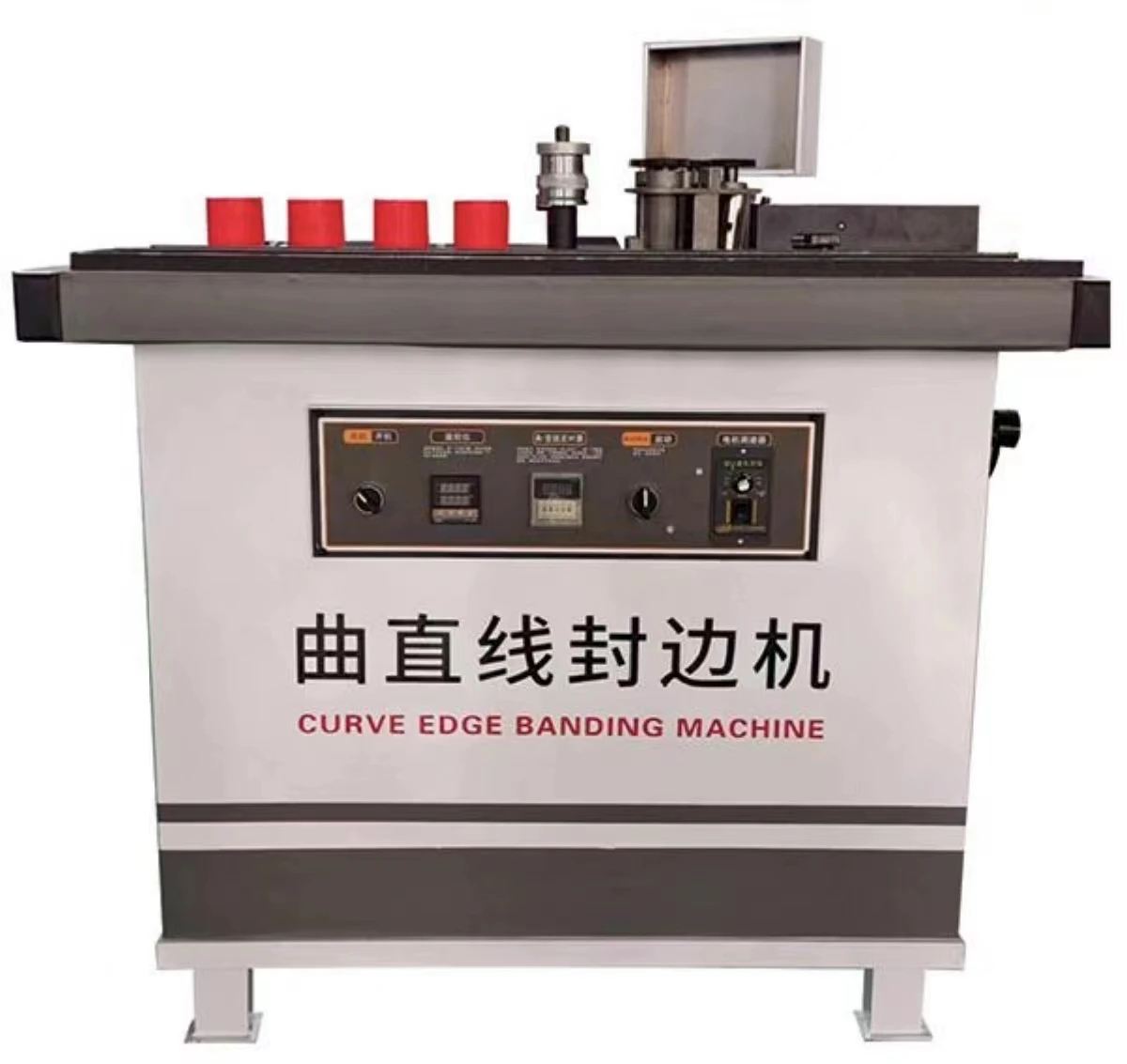

| Model | ZDS702 |
| Product Type | Double-Sided Glue Edge Banding Machine |
| Rated Voltage | 220V |
| Rated Power | 1.4kW |
| Trimming Height (Panel Thickness) | 10–50mm |
| Rated Air Pressure | 0.6–0.8 MPa |
| Glue Capacity | 2000ml |
| Overall Dimensions | 100 × 75 × 95 cm |
| Machine Weight | 120kg |
| Gluing Method | Double-sided |
| Functionality | Curved & Straight dual-purpose |
| Edge Banding Compatibility | PVC, Wood Veneer, Melamine, Plastic |
| Belt Breaking | Automatic |
| Table Type | One-time molding table |
| Memory Function | Time memory |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door edge finishing | MDF and plywood panels with PVC or melamine banding |
| Custom furniture curved edges | Solid wood and veneer on shaped components |
| Shelving panel banding | Particleboard with PVC edge protection |
| Wooden door frame sealing | Veneer and plastic banding on 10–50mm stock |
| Small-batch joinery work | Mixed substrate runs in compact workshop environments |
Why the Voltage Question Comes Before the Price on a Double-Sided Glue Edge Banding Machine in Stock
Confirming your local supply voltage avoids a machine that sits idle on arrival.
I have visited workshops where a brand-new edge bander was still wrapped in plastic three months after delivery. The factory wired it for 380V three-phase, but the shop only had single-phase 220V available. No one asked during the inquiry stage, and nobody checked the nameplate before crating. That Double-Sided Glue Edge Banding Machine in stock sat there while the owner negotiated with an electrician about installing a new drop from the mains [NEED_CITE: voltage and frequency standards by export market]. A 1.4kW, 220V single-phase unit like the ZDS702 plugs into standard workshop supply without an electrical upgrade — but only when both sides agree on the specification before the machine leaves the floor.
Stock Availability Without the Production-Line Wait

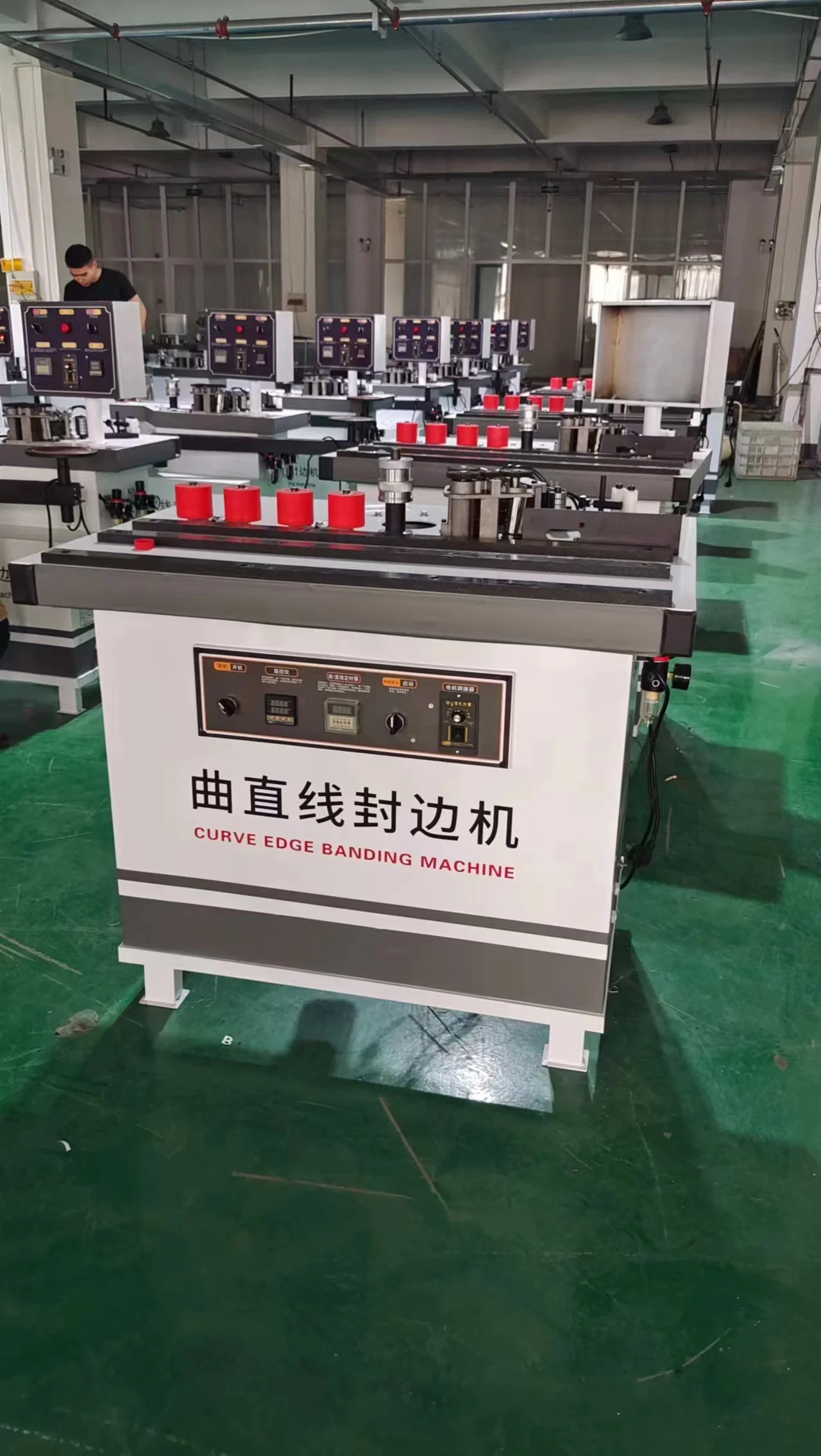

Most edge banders in this segment are built against confirmed orders, which means a small workshop ordering a single unit often waits for a larger batch to fill the production schedule. The ZDS702 is held as a Double-Sided Glue Edge Banding Machine in stock so that a one-off purchase ships on its own timeline. For a joinery shop adding its first machine-based edge finishing capability, that difference means doors and panels get banded this week instead of next month.
Compact Footprint That Fits Where Full Lines Cannot
A 100 × 75 × 95 cm frame and 120kg weight mean this machine rolls into a corner of an existing workshop without clearing space for a conveyor-fed production cell. The one-time molding table and integrated glue pot keep everything self-contained. Small custom furniture operations running short batches of curved-edge cabinet components alongside standard straight shelving do not need a 6-meter linear line — they need one machine that handles both profiles [NEED_CITE: typical workshop floor space constraints for small joinery operations].
Reading the Specs That Actually Matter on the Shop Floor
The 10–50mm trimming height covers the full range of board stock a furniture workshop encounters — from 10mm shelf panels in particleboard up through 50mm solid-wood door components. Double-sided gluing applies adhesive to both the panel edge and the banding strip simultaneously, which improves bond consistency on porous substrates like MDF where single-sided glue application sometimes leaves dry spots. The 2000ml glue capacity supports sustained runs without constant refilling, and the automatic belt breaking function stops the banding feed when a panel clears the station, reducing material waste between pieces. Air pressure at 0.6–0.8 MPa drives the trimming and pressing mechanisms — confirm your workshop compressor can sustain that range under continuous draw, because pressure dips show up immediately as uneven trim lines on the finished edge.
What Happens When Panel Material Is Not Confirmed Upfront
Last year I configured an edge bander for a custom cabinet maker who tested on high-density fiberboard and got clean results. His actual production material turned out to be low-grade particleboard with an open, uneven surface. The glue line came out thick and visible on every door front, and the entire first batch had to be reworked. The machine was fine — the substrate was the variable nobody pinned down [NEED_CITE: substrate density variation and glue adhesion performance]. The ZDS702 handles PVC, veneer, melamine, and plastic banding across a range of panel materials, but the operator still needs to dial in glue temperature and feed pressure to match the specific board in use.
Why Procurement Through a Stock-and-Ship Channel Works Here
Every ZDS702 ships with voltage and frequency confirmed in writing against your local electrical standard, documented on the electrical schematic before dispatch. The machine specification sheet lists the exact trimming height, air pressure, and glue capacity your operators will work with — no generic brochure figures. Pre-shipment testing verifies the glue pot heats to working temperature and the double-sided mechanism applies evenly across the full 10–50mm range on your chosen panel material. Operation and maintenance manuals ship in the language your floor team actually reads, so commissioning does not stall on translation. Spare parts lists are included in the crate, covering the wear items most likely to need replacement during the first year [NEED_CITE: standard edge bander consumable wear components]. The 220V single-phase configuration means most international workshops can energize and test the machine the same day it is uncrated.
Documentation & Verification
- CE declaration of conformity specific to the ZDS702 configuration shipped
- Electrical schematic with confirmed voltage and frequency for your local supply
- Pre-shipment test record showing glue application on your specified panel thickness
- Operation manual in agreed language covering curved and straight edge procedures
- Spare parts list with part numbers for glue pot seals, trimming blades, and feed rollers
Installation, Commissioning & Support
- Requires a dedicated 220V single-phase circuit rated for at least 1.4kW continuous draw
- Compressed air line at 0.6–0.8 MPa with inline moisture trap feeding the machine regulator
- Machine arrives fully assembled — position on level floor and lock casters before first run
- Initial glue pot temperature calibration matched to your chosen PVC or veneer banding material

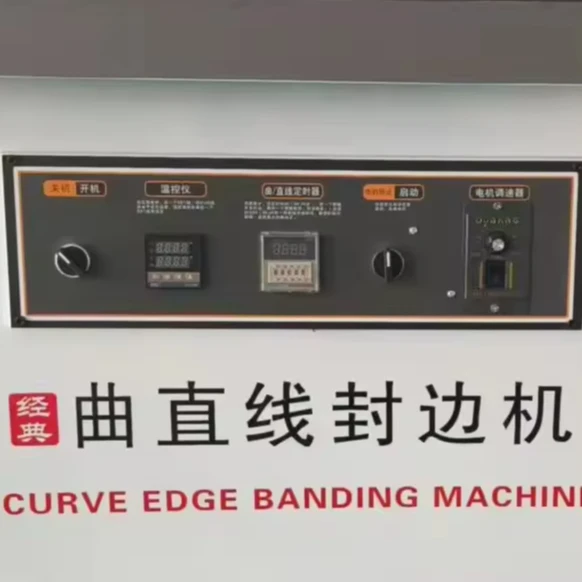

- Operator walkthrough covers time memory function setup for repeat batch consistency
What We Need to Prepare Your Shipment
Send us the panel materials you run most often — substrate type, typical thickness range, and the edge banding material you plan to apply. Confirm your workshop voltage and frequency so we match the electrical configuration before crating. Let us know if you need the operation manual in a specific language or if curved-edge components make up a significant share of your output, so we can include relevant setup guidance.
Frequently Asked Questions
Q: Is the ZDS702 in stock and how fast can a single unit ship?
A: The ZDS702 is held as warehouse stock for single-unit dispatch. Once voltage confirmation and documentation are finalized, the machine moves to pre-shipment testing and crating. Lead time from order to dispatch is measured in days rather than production-cycle weeks, which matters when a workshop is filling a gap in its edge finishing capability.
Q: Will the 220V configuration work with my local power supply?
A: The ZDS702 ships at 220V single-phase, which aligns with standard supply in many export markets. Before dispatch, we document your local voltage and frequency on the electrical schematic to confirm compatibility. If your supply differs, discuss configuration options at the inquiry stage so the correct setup ships from stock.
Q: What materials and panel thicknesses does this machine handle?
A: The ZDS702 processes PVC, wood veneer, melamine, and plastic edge banding on panels from 10mm to 50mm thick. Double-sided gluing applies adhesive to both the panel edge and the banding strip, improving bond quality on porous substrates like MDF and particleboard commonly used in cabinet and furniture work.
Q: Can door-to-door shipping be arranged for a single machine?
A: Yes. Single-unit orders ship in a dedicated crate with packing photographs provided before dispatch. Shipping options including port-to-port and door-to-door delivery are quoted based on your destination. Customs documentation support is included so clearance at the receiving end proceeds without delays.
Q: What spare parts are included and how are replacements sourced?
A: Each ZDS702 ships with a spare parts list covering high-wear items such as glue pot seals, trimming blades, and feed belt components. Replacement parts are available through the same supply channel after delivery, with part numbers documented so reordering does not require a second round of specification matching.
