Description
Ready Stock Dispatch — The XZF450 automatic edge banding machine ships from inventory with factory test records, so cabinet makers can bring it online within days rather than waiting through a production cycle.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | XZF450 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 9.5 kW |
| Voltage | 380V/415V (50Hz/60Hz to be confirmed at order) |
| Feed Speed | 0–12 m/min |
| Edge Banding Height Range | 0–50 mm |
| Edge Banding Thickness Range | 0.3–3 mm |
| Minimum Sheet Length | 30 cm |
| Minimum Sheet Width | 15 cm |
| Pre-milling Motor Power | 4 kW |
| Trimming Motor Power | 2.2 kW × 2 |
| Polishing Motor Power | 0.4 kW × 2 |
| Glue Pot Capacity | 4000 ml |
| Air Source Pressure | 0.5–0.7 MPa |
| Dust Extraction Power | 550 W |
| Overall Dimensions (L×W×H) | 300 × 65 × 135 cm |
| Net Weight | 430 kg |
| Control System | Operation panel with Chinese/English standard; other languages on request (basis not stated in source) |

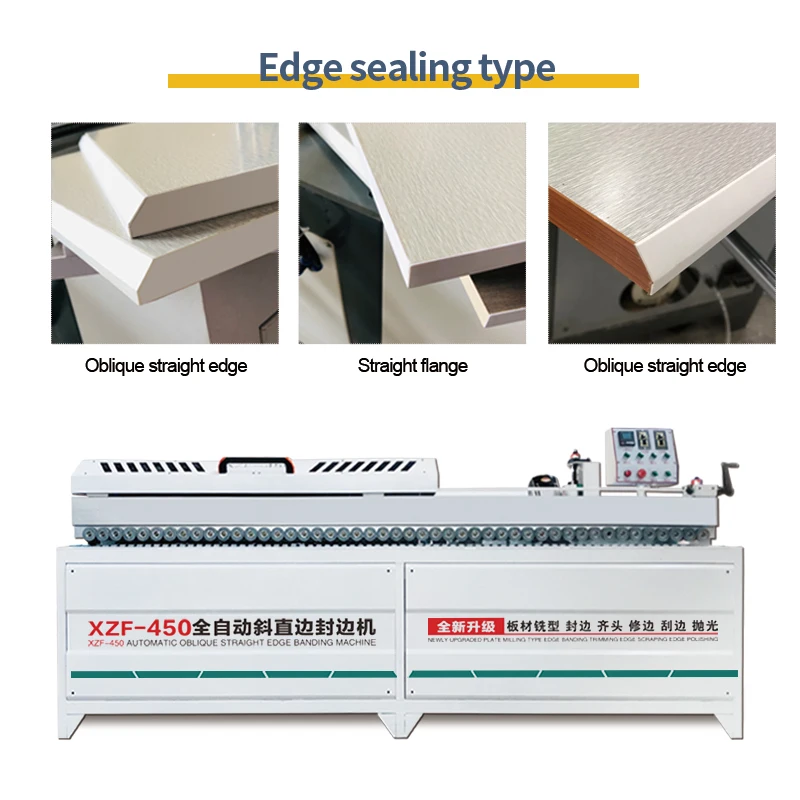

| Standard Functions | Pre-milling, 30°/45°/60° edge banding, trimming, scraping, polishing, vacuum extraction |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door edge banding | MDF, melamine board, particleboard with PVC or veneer tape |
| Straight edge finishing for shelving | Plywood and blockboard up to 50 mm edge height |
| Angled edge profiles for polymer doors | 45° and 60° bevel cuts on solid wood composites |
| Custom furniture panel finishing | Three-ply and melamine-faced chipboard at 0.3–3 mm banding thickness |
| Wardrobe and drawer front production | Large-format panels from medium to high-density substrates |
Why the Voltage Question Must Come Before the Crate Is Nailed Shut
An automatic edge banding machine in stock is only useful if it runs on your shop floor’s power supply.
I have seen containers arrive at port with a brand new edge bander that sat for weeks because the buyer assumed 380V three-phase was universal. The XZF450 supports 380V/415V, but the frequency — 50Hz or 60Hz — changes motor behaviour, heater ramp-up time, and feed speed calibration. Confirming the local voltage and frequency before dispatch avoids a scenario where the glue pot never reaches temperature or the feed motor runs hot within the first shift [NEED_CITE: voltage and frequency standards by export market]. Matching the electrical supply to the machine nameplate is the single most important step between order confirmation and crating.
Dispatch Lead Time for Single-Unit Orders
Purchasing a single automatic edge banding machine in stock from the XZF450 range means the unit has already passed a four-stage quality check and is ready for pre-shipment verification. Stocked models ship without waiting through a build cycle, which matters when a cabinet shop needs to replace a failing machine or add capacity before a seasonal rush. Single-unit orders are accepted without minimum quantity pressure, and each machine leaves the floor with its own factory test record matching the buyer’s agreed panel thickness range.
Confirming Panel Compatibility Before Loading
The lesson I keep coming back to: a machine tested on standard MDF behaves differently when the buyer’s real production material is high-density moisture-resistant board. Glue temperature, feed speed, and pressure roller settings all shift. That is why every XZF450 dispatch now carries a note on the specific substrate the buyer intends to run. Asking for the exact board brand, density, and edge banding material before the machine is crated prevents the opening-week scrap pile that no one wants to explain to a factory owner [NEED_CITE: edge banding adhesion factors on engineered wood panels].
How Pre-milling, Trimming, and Polishing Translate to Edge Quality

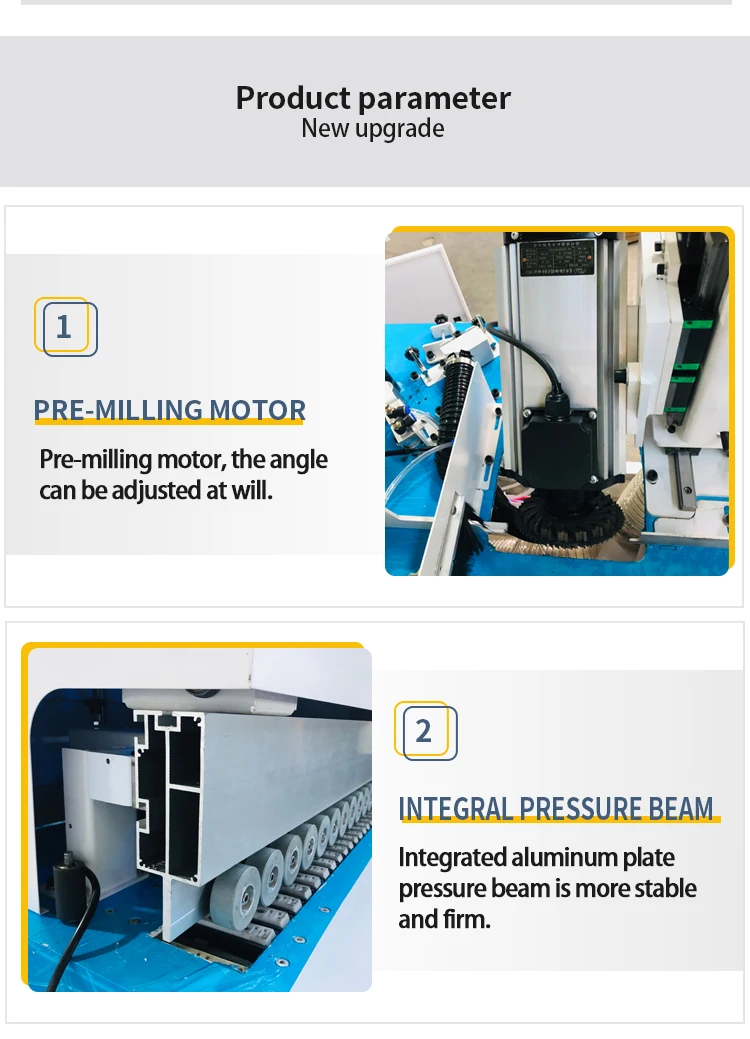

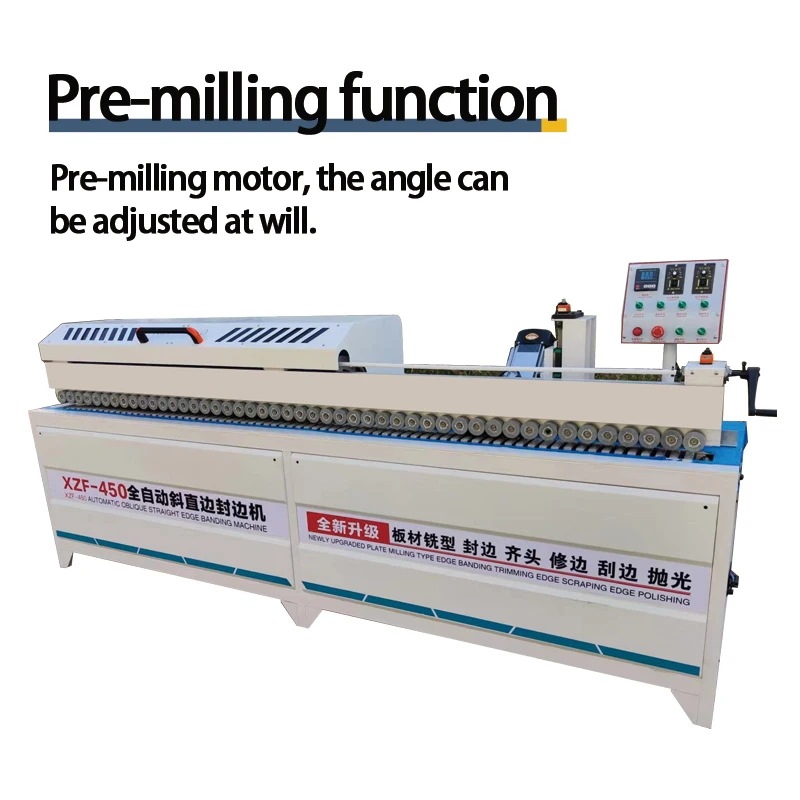

The 4 kW pre-milling motor on the XZF450 removes a thin layer from the panel edge before the glue meets the surface, which matters when working with particleboard or recycled MDF where the cut edge is porous or uneven. Without pre-milling, glue penetrates the substrate instead of bonding to the tape, and the result shows as a visible seam line under angled light. The dual 2.2 kW trimming motors then cut the overhang flush at the panel face, and the 0.4 kW polishing wheels finish the edge to a uniform sheen. Feed speed at 0–12 m/min gives the operator room to slow down for delicate veneer tape on curved door profiles or speed up for long straight runs on melamine shelving. The 4000 ml glue pot capacity reduces mid-shift refills, which is where temperature inconsistency usually creeps in and causes adhesion failure.
The Hidden Cost of Skipping the Configuration Conversation
Ordering a machine without confirming the control panel language sounds minor until an operator who reads only Spanish is staring at Chinese error codes on day one of commissioning. The XZF450 ships standard with Chinese and English on the interface, but monolingual panels in other languages are available on request. I now treat language confirmation as non-negotiable, the same as voltage. A machine that arrives with an unreadable interface sits idle until a new panel is sourced and shipped, and the cost of that downtime dwarfs the effort of a two-minute email exchange before dispatch [NEED_CITE: machinery safety directive requirements for operator interface language].
Why Sourcing This Edge Bander From Inventory Works
In-house manufacturing with a patented cutting mechanism means the pre-milling unit on the XZF450 is not a bolted-on third-party attachment — it was designed alongside the feed chain and pressure rollers for consistent tolerance. Four-stage quality control covers incoming material inspection, in-process assembly checks, finished product testing, and a final pre-shipment verification against the buyer’s order sheet. Voltage, control language, and edge banding height range are confirmed in writing before crating, so the machine that arrives is the machine that was specified. Engineer-led configuration recommendations are provided within 24 hours of an inquiry, and factory visits are welcomed for buyers who want to see their exact panel material run through the machine before it ships.
Documentation & Verification
- CE declaration of conformity covering the XZF450 edge banding machine
- ISO 9001 certificate for the manufacturing facility
- Factory test record using the buyer’s specified panel thickness and edge material
- Electrical schematic confirming voltage and frequency at point of dispatch
- Operation and maintenance manual in the agreed control panel language
- Spare parts list with part numbers matching the shipped configuration
Installation, Commissioning & Support
- Allocate floor space for the 300 × 65 cm footprint plus operator clearance on the feed side
- Provide a dedicated 380V/415V circuit rated for the 9.5 kW total draw with proper earthing
- Confirm 0.5–0.7 MPa air supply from a compressor sized above the machine’s consumption
- Schedule first-run calibration with the buyer’s actual board stock and edge banding tape
- Set pre-milling depth and feed speed together — aggressive milling on thin melamine causes chipping
- Stock scraper blades and polishing wheels from the shipped spare parts list for the first year
What to Share Before Requesting a Quote
To match the right configuration to your production, provide the exact board material and thickness range you plan to run, the edge banding tape type and thickness, and the voltage and frequency at your facility. If you are running angled profiles on polymer doors, note the angle and the panel dimensions so the feed rail setup can be confirmed before the machine is crated.
Frequently Asked Questions
Q: What voltage and plug configurations does the in-stock XZF450 support?
A: The XZF450 is configured for 380V/415V three-phase power. Frequency must be confirmed as either 50Hz or 60Hz depending on the destination market, as this affects motor calibration and glue pot heating behaviour. Plug type and cable termination are set to match the buyer’s local standard before dispatch, so the machine is ready to connect on arrival without adapter sourcing.
Q: How fast can a single unit ship from stock?
A: Stocked XZF450 units go through a pre-shipment test against the buyer’s specified panel material before crating. Once voltage, language, and configuration details are confirmed, the machine is prepared for container loading. Actual transit time depends on the destination port and shipping method chosen at the time of order.
Q: Can the operation panel be set to a language other than Chinese and English?
A: Yes. The XZF450 control panel ships standard with Chinese and English, but monolingual configurations in other languages are available on request. This must be confirmed before the machine leaves the factory, as the interface panel is swapped during the pre-shipment preparation stage rather than in the field.
Q: What adjustments are needed to switch between 45° and 90° edge banding?
A: Switching between angled and straight edge banding on the XZF450 involves changing the edge tape guide angle and adjusting the trimming cutter path to match. The 30°/45°/60° capability is built into the standard function set, so no additional tooling purchase is required — just the correct setup procedure from the operation manual for each profile type.
Q: How is installation support handled after the machine arrives at the factory?
A: Each XZF450 ships with a factory test record, electrical schematic, and operation manual in the agreed language. Installation guidance is provided after delivery to help the buyer connect power, air supply, and dust extraction correctly. The documentation package is designed so a local electrician and maintenance technician can complete commissioning with remote support if needed.
