Description
Ready-Stock Dispatch — voltage verified before crating so the XZF450 arrives wired for your facility’s exact supply.
Technical Specifications
| Parameter | Value |
|---|---|

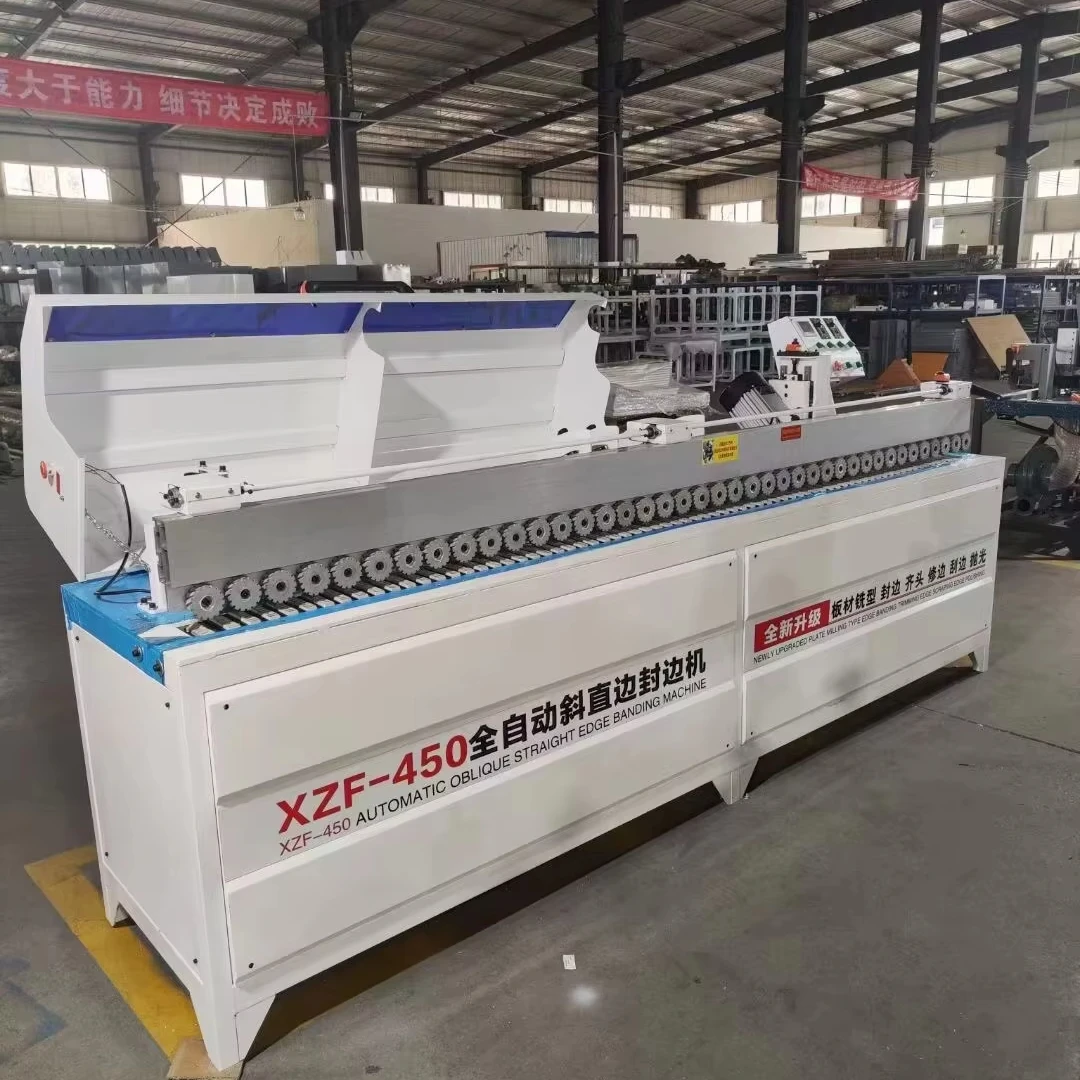

| Model | XZF450 |
| Product Type | Bevel and Straight Edge Banding Machine |
| Edge Shape Capability | 30°, 45°, 60° Bevel and 90° Straight |
| Functions | Gluing, End Cutting, Trimming, Scraping, Buffing |
| Voltage | 380V (220V available on request) |
| Total Power | 9.5 kW |
| Feed Speed | 0–12 m/min |
| Board Thickness Range | 0–50 mm |
| Strip Thickness Range | 0.5–3 mm |
| Glue Pot Capacity | 4000 ml |
| Overall Dimensions | 300 × 65 × 135 cm |
| Net Weight | 430 kg |
| Assembly State | Requires on-site assembly; manual and video guidance provided |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edging | MDF and particleboard with PVC or melamine strip |
| Beveled shelving profiles | Plywood panels requiring 30° or 45° edge treatment |
| Solid wood furniture components | Solid wood panels up to 50 mm thick with veneer banding |
| Mixed-run workshop production | Varied panel thicknesses in batch or one-off fabrication |
Why Confirming Voltage Before Dispatch Saves Weeks of Downtime
A machine that cannot power on is a machine that cannot earn.
I once watched an edge bander sit idle for three weeks on a factory floor in Southeast Asia because the local supply was 220V single-phase and the machine had been shipped wired for 380V three-phase. The control cabinet tripped the breaker the moment they energized it. A step-down transformer had to be sourced locally, and the wiring diagram was not in the operator’s language. The cost of the transformer was small; the cost of twenty-one lost production days was not. Every bevel and straight edge banding machine in stock at our warehouse can be reconfigured to match your local voltage and frequency before it leaves the dock, and we treat that verification as a non-negotiable step in the dispatch process [NEED_CITE: voltage and frequency standards by export market].
Immediate Availability Without the Production Wait
Most edge banding machines in this class are built to order, meaning a workshop committing today may not see the equipment arrive for several weeks. The XZF450 bevel and straight edge banding machine in stock ships from our ready inventory, shortening the gap between purchase decision and first panel through the feed rollers. This matters when a furniture contract has a fixed delivery date and your current manual edging process is the bottleneck.
Single-Unit Ordering for Workshops Scaling Gradually
Not every operation is ready to invest in a full automated line. The XZF450 ships as a single unit with no minimum order quantity, which suits joinery workshops adding their first powered edge bander as well as established factories needing a backup machine during peak seasons. The dispatch process is straightforward: confirm voltage, confirm control panel language, and the machine is crated for export.
Reading the Numbers That Actually Matter on the Shop Floor

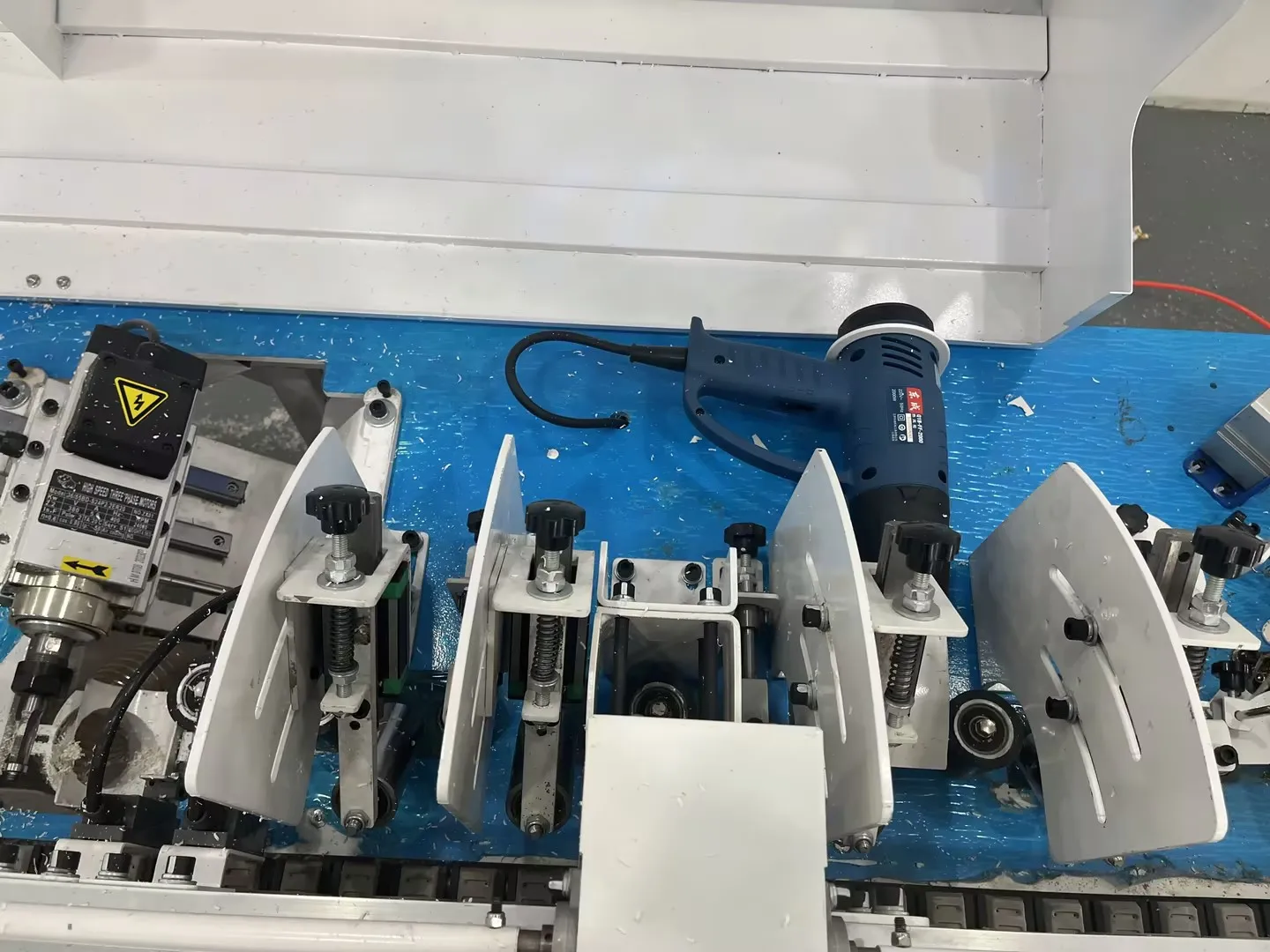

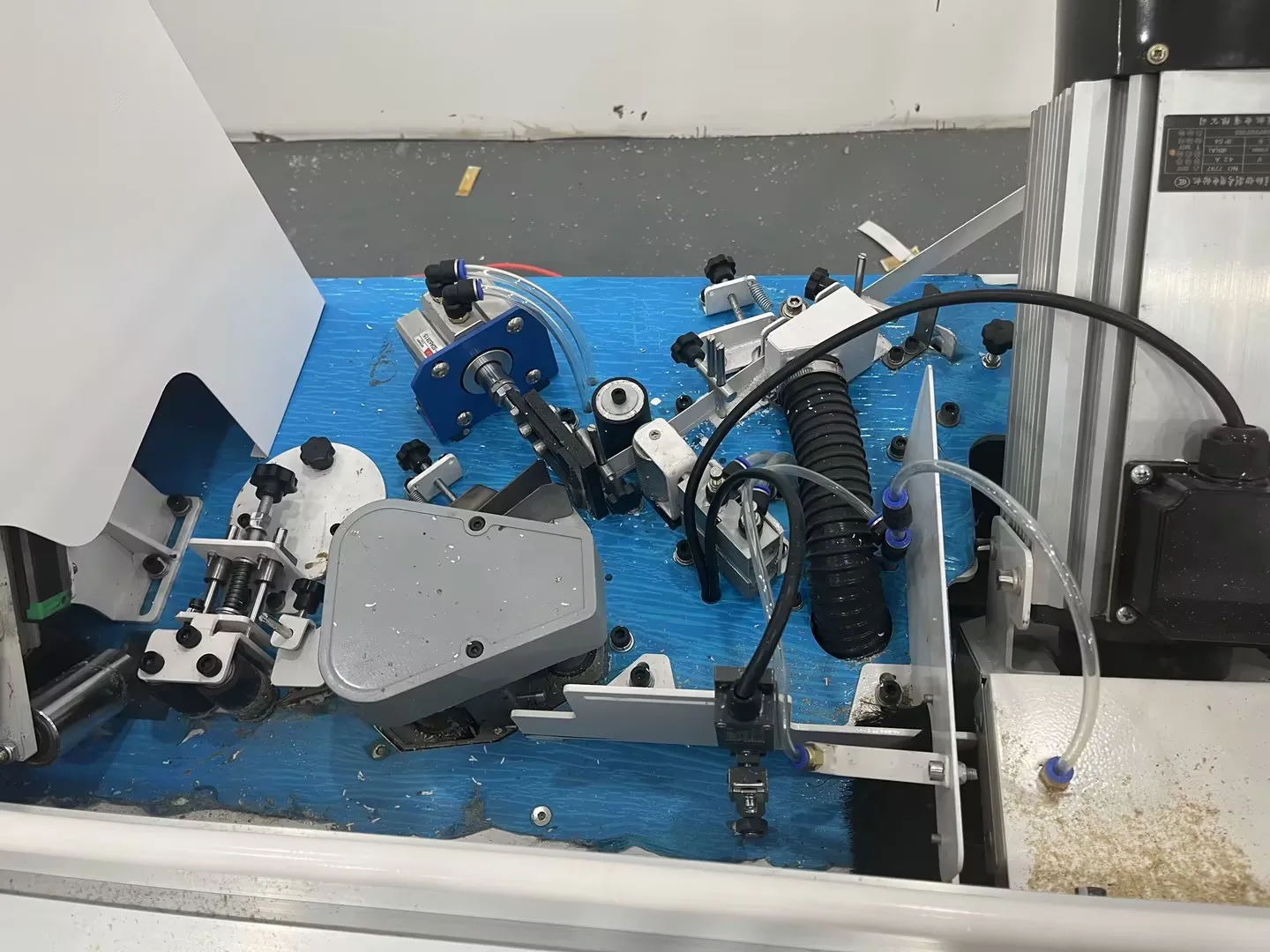

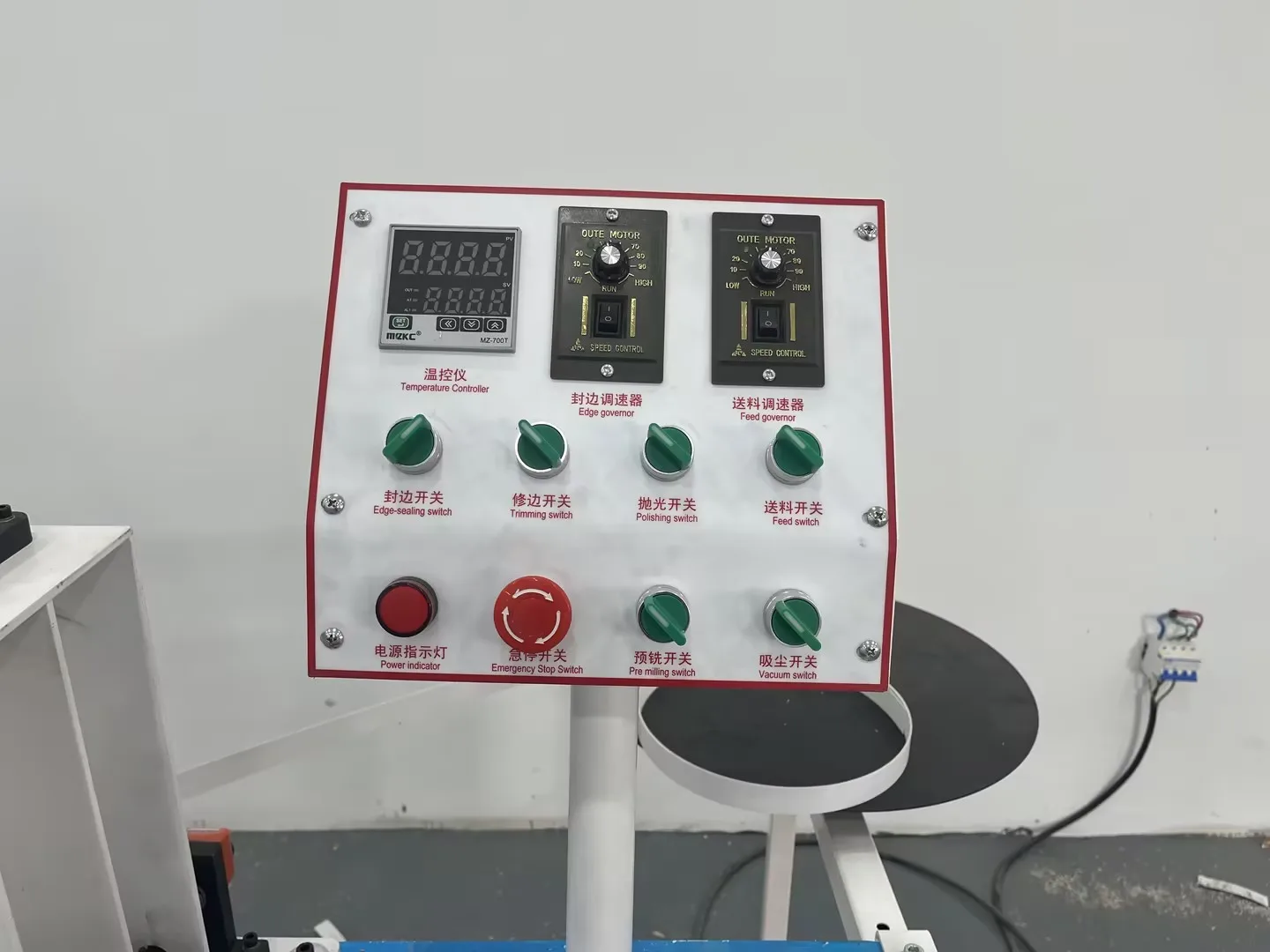

The 0–50 mm board thickness range covers the full spectrum of panel materials a custom furniture workshop encounters, from 3 mm hardboard backs to 50 mm solid wood bench tops. Feed speed adjusts from zero to 12 m/min via the control panel, letting operators dial in slower speeds for delicate veneer strips and faster feeds for high-volume PVC runs. The glue pot holds 4000 ml, reducing refill frequency during extended production shifts and maintaining consistent adhesive temperature across the workpiece. Five function stations — gluing, end cutting, trimming, scraping, and buffing — complete the edge in a single pass, which eliminates the handling marks and alignment errors that occur when a panel moves between separate machines [NEED_CITE: CE machinery directive requirements for industrial equipment].
When the Wrong Configuration Turns Into a Costly Delay
Ordering a machine without confirming the strip thickness range against your actual banding material inventory is a common oversight. A workshop running 4 mm solid wood lipping on a machine rated only to 3 mm will force-feed the strip, causing the trimming station to leave visible chatter marks on every panel. Similarly, specifying a machine without verifying the feed height against your conveyor or roller table creates a misalignment that wears the feed chain prematurely. These are not defects; they are mismatches that could have been caught during the quotation stage with a simple checklist [NEED_CITE: common edge banding machine commissioning failures].
What Sets This Procurement Path Apart
Voltage reconfiguration from 380V to 220V or other regional standards is handled before crating, not after arrival. A factory test record accompanies each XZF450, documenting that the machine ran actual panel stock through all five function stations and achieved acceptable edge quality before it was disassembled for shipping. Operation manuals are produced in the language your operators read, removing the guesswork from first-day commissioning. The four-stage quality process covers incoming component inspection, in-process assembly checks, finished product testing, and pre-shipment verification. Single-unit orders receive the same documentation package and testing rigor as larger production-line shipments.
Documentation & Verification
- CE declaration of conformity covering the XZF450 edge banding machine
- Electrical schematic reflecting your confirmed voltage and wiring configuration
- Factory test record showing panel edge quality on your specified material thickness
- Operation and maintenance manual in your chosen language with illustrated guides
- Spare parts list with part numbers matching the units installed on your machine
- Packing photographs taken after crating for your customs and receiving records
Installation, Commissioning & Support
- The 300 × 65 × 135 cm footprint requires a clear floor area with level concrete and clearance for panel infeed on both sides
- A dedicated 9.5 kW circuit with appropriate breaker rating must be installed before the machine is assembled on-site
- Assembly is required after delivery; video guidance and the operation manual walk through reconnection of feed chain, glue pot, and trim stations
- First-run commissioning includes setting glue temperature for your specific adhesive type and adjusting trimming depth for strip thickness
- Operator training videos cover daily startup, glue pot cleaning, and scraper blade adjustment for bevel and straight profiles
Before You Request a Quote
Share the panel materials you process most often — MDF, particleboard, plywood, or solid wood — along with the typical thickness range and the edge banding strip material and width you intend to run. Confirm your facility voltage and frequency so we configure the XZF450 before dispatch. If you have upstream panel saws or downstream boring machines, mention their feed height so we can verify compatibility with the XZF450 infeed table.
Frequently Asked Questions
Q: What is the current dispatch lead time for the XZF450?
A: The XZF450 bevel and straight edge banding machine ships from ready stock, so dispatch timing depends on voltage reconfiguration and pre-shipment testing rather than manufacturing lead time. Once your local voltage and control panel language are confirmed, the machine goes through a factory run test, is crated, and handed to freight. Most orders clear the dock within a short window after configuration is finalized.
Q: Can the machine be wired for 220V or other voltages before shipping?
A: Yes. The XZF450 is listed at 380V, but 220V and other voltage configurations are available on request. We confirm your facility’s voltage and frequency during the quotation stage and rewire the control cabinet and motor connections before crating. A revised electrical schematic reflecting the confirmed voltage accompanies the machine.
Q: Which edge banding materials are compatible with this machine?
A: The XZF450 handles PVC, melamine, and veneer strips within the 0.5–3 mm thickness range. The glue pot maintains consistent adhesive temperature for standard hot-melt EVA adhesives. For thicker solid wood lipping or specialty adhesive systems, confirm compatibility before ordering so we can advise on suitability.
Q: Is installation support provided after the machine arrives?
A: The XZF450 requires on-site assembly after delivery. We provide an operation manual in your agreed language along with video guidance covering reassembly, first startup, glue pot loading, and trim station adjustment. The documentation package includes a spare parts list with matching part numbers for reordering consumables and wear items.
Q: How do I order replacement spare parts?
A: A spare parts list with numbered components specific to your XZF450 ships with the machine. When a part needs replacement, reference the part number to place a reorder. Keeping common wear items like trimming blades, scraper inserts, and feed chain shoes in stock locally minimizes unplanned stoppages during production runs.
