Description
Fast Dispatch Guarantee — the ZDSW-1 folding arm manual edge banding machine ships from ready stock with confirmed 220V/50Hz electrical specifications, so your workshop gains curved and straight edge banding capability without waiting for custom production runs.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSW-1 |
| Product Type | Folding Arm Manual Edge Banding Machine |
| Total Power | 1.4 kW |
| Voltage & Frequency | 220V 50Hz |
| Air Supply Requirement | 0.5–0.8 MPa |
| Edge Banding Speed | 0–180 mm/s |
| Edge Band Thickness Range | 0.4–2 mm |
| Edge Band Width Range | 8–50 mm |
| Standard Suction Cup Size | 200×26 mm |
| Overall Dimensions (L×W×H) | 900×620×820 mm |
| Net Weight | 88 kg |
| Control Panel Features | Intelligent temperature control, speed adjustment, timer |
| Glue Pot | Enlarged capacity |
| Hot Air Device | Bottom-up hot air heating |
| Belt Breaking | Automatic double-cylinder controlled |
| Edge Banding Wheel | Adjustable +0.5 mm |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet and wardrobe production | Plywood and MDF panels with melamine edge banding |

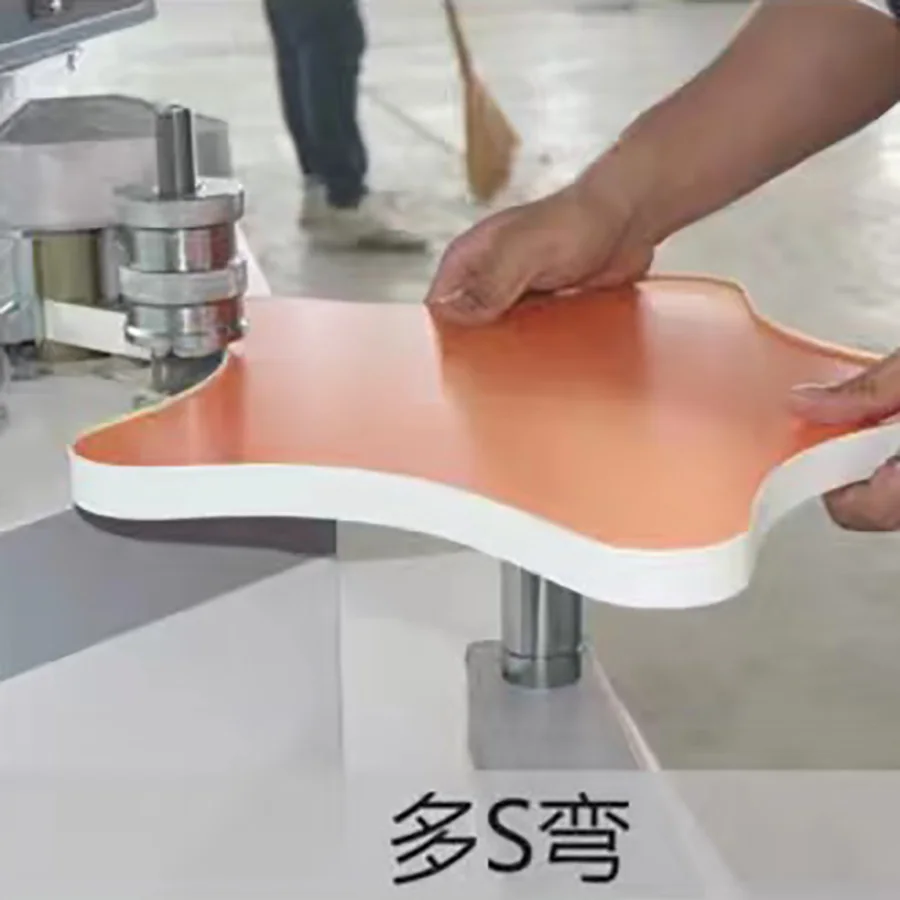

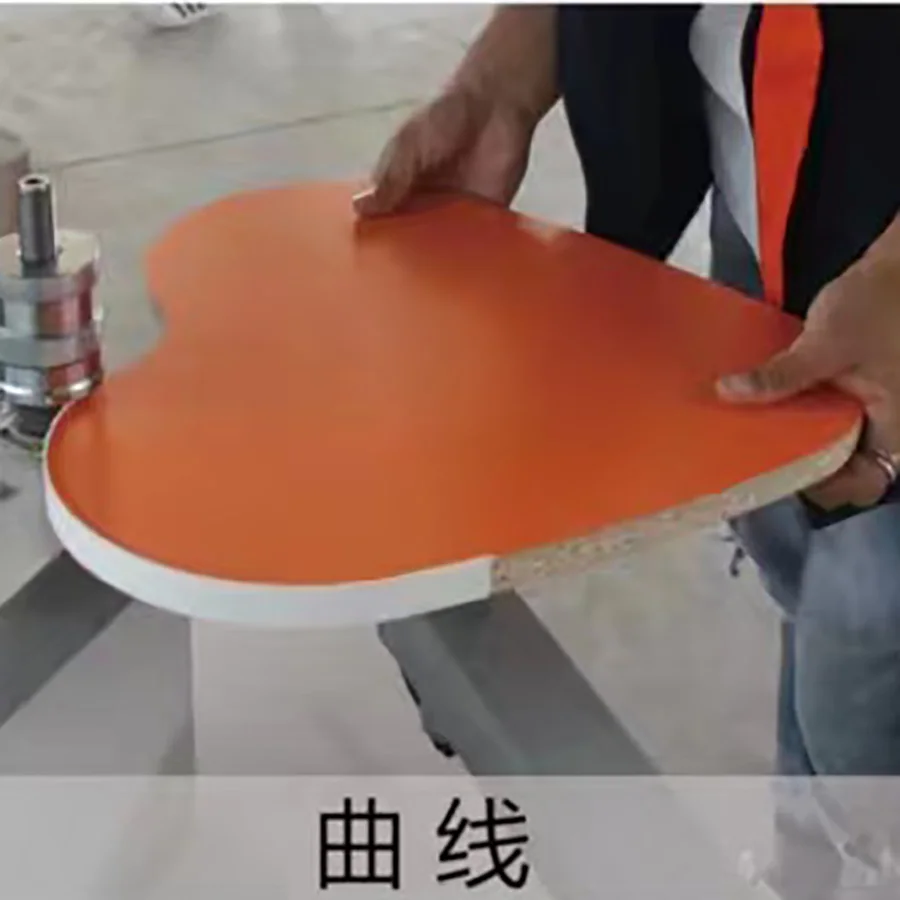

| Curved furniture component finishing | PVC and veneer edge banding on shaped profiles |
| Office furniture and study table manufacturing | Particleboard substrates with 0.4–2 mm edge treatments |
| Door and window frame edge finishing | Solid wood and composite panels requiring manual feed control |
| Small batch decoration industry work | Mixed material edge banding across varying thickness ranges |
Why Voltage Confirmation Matters Before You Order
The ZDSW-1 folding arm edge banding machine in stock ships with verified 220V/50Hz specifications, eliminating the transformer delay that stalls workshop commissioning.
I watched a customer wait nearly a month for a step-down transformer because someone shipped a 380V machine to a 220V facility without checking. The folding arm edge banding machine in stock arrives with electrical specifications confirmed before dispatch, so you plug in and run test pieces the same week it clears customs. Small workshops cannot afford downtime while waiting for electrical infrastructure that should have been specified during the quotation stage [NEED_CITE: voltage and frequency standards by export market].
Stock Availability and Single-Unit Ordering
The ZDSW-1 folding arm edge banding machine in stock enables cabinet makers and joinery startups to order a single unit without meeting minimum order quantities designed for production line purchases. This machine sits in the warehouse configured for immediate dispatch, meaning your curved edge banding capability arrives within typical shipping timeframes rather than after a multi-week build cycle. Workshops adding shaped panel work to their existing straight-edge operations gain flexibility without committing to full automation investments.
Dispatch Lead Time and Logistics Simplicity
When you need edge banding equipment fast, the ZDSW-1 folding arm edge banding machine in stock eliminates the back-and-forth of custom specification negotiations that delay shipment. The machine ships at 88 kg with dimensions that fit standard LCL consolidation, and packing photographs are supplied before dispatch so you can plan receiving space and forklift requirements [NEED_CITE: typical LCL shipping dimensions for woodworking machinery]. Single-unit orders move through the same pre-shipment verification process as larger batches, ensuring your machine arrives tested and documented.
How the 0.4–2 mm Thickness Range Covers Your Material Mix
The edge band thickness range from 0.4 mm to 2 mm means the ZDSW-1 handles thin melamine veneers for cabinet carcasses and thicker PVC profiles for furniture edges without requiring separate machines or tooling changes. The adjustable edge banding wheel compensates +0.5 mm to prevent strip shifting during manual feed, which matters when operators are learning to control feed speed on curved profiles. The enlarged glue pot reduces refill interruptions during continuous production sessions, and the bottom-up hot air heating improves adhesion on substrates that typically show visible glue lines with cold application methods.
What Happens When You Skip the Voltage Question
Machines quoted without confirming local voltage and frequency arrive unusable, forcing workshops to source transformers or return equipment at significant cost. The ZDSW-1 ships at 220V/50Hz with electrical schematic documentation available on request, so facilities running different supply configurations can verify compatibility before the machine leaves the factory. Skipping this verification step turns a fast delivery advantage into a month-long delay while electrical infrastructure catches up to equipment that should have been specified correctly from the start [NEED_CITE: industrial equipment voltage mismatch consequences].
Why Procurement Through This Channel Works
The ZDSW-1 ships with pre-shipment test records available on request, so you verify operation on your specified panel thickness range before the machine enters transit. Operation and maintenance manuals arrive in your agreed language with spare parts lists included, eliminating the commissioning stall that happens when operators cannot read control panel instructions. The four-stage quality control process covers incoming material verification through pre-shipment testing, and engineer-led configuration recommendations ensure the machine matches your workshop’s actual production volume rather than theoretical capacity claims.
Documentation & Verification
- Factory test record on your specified edge band thickness before dispatch
- Electrical schematic confirming 220V/50Hz configuration for your facility
- Operation manual in agreed language with speed adjustment procedures
- Spare parts list covering suction cups, glue pot components, and belt breaking cylinders
- Packing photographs supplied prior to shipment for logistics planning
- CE declaration of conformity documentation for customs clearance
Installation, Commissioning & Support
- Requires 0.5–0.8 MPa air supply with dedicated compressor connection for double-cylinder belt breaking
- 1.4 kW total power draw fits standard workshop circuits without dedicated high-amperage lines
- 900×620×820 mm footprint allows placement in compact joinery workshops with limited floor space
- Intelligent temperature control requires initial calibration to your specific edge banding material type
- Manual feed operation demands operator training on curved profile speed control using 0–180 mm/s range
- Enlarged glue pot requires regular cleaning schedule to prevent adhesive degradation between production runs
Requesting a Quotation with Complete Specifications
Provide your local voltage and frequency specifications so we confirm electrical compatibility before quoting dispatch timing. Share the edge banding materials you work with most frequently—melamine, PVC, or veneer—along with typical panel thickness ranges so we verify the ZDSW-1 matches your production requirements. Let us know if you need door-to-door delivery arranged or if you have existing freight forwarding relationships we should coordinate with for seamless handoff at origin port.
Frequently Asked Questions
Q: Is the ZDSW-1 in stock or built to order, and what is the dispatch lead time?
A: The ZDSW-1 folding arm manual edge banding machine ships from ready stock with confirmed specifications, enabling dispatch within standard processing timeframes rather than custom build cycles. Pre-shipment testing and documentation preparation occur before the machine enters transit, so your workshop gains edge banding capability without extended production delays.
Q: Can I order a single unit, or is there a minimum order quantity?
A: Single-unit orders are accepted without minimum quantity requirements, making the ZDSW-1 suitable for workshops adding curved edge banding capability to existing operations. The machine ships with complete documentation, spare parts list, and operation manual regardless of order size, ensuring you have everything needed for commissioning.
Q: Is the 220V/50Hz voltage fixed, or can a different voltage be arranged before shipment?
A: The ZDSW-1 in stock ships at 220V/50Hz with electrical specifications confirmed before dispatch. Facilities requiring different voltage configurations should request electrical schematic documentation to verify compatibility or discuss custom voltage arrangements that may affect dispatch timing and stock availability.
Q: What shipping options are available and can door-to-door delivery be arranged?
A: The ZDSW-1 ships via standard LCL consolidation given its 88 kg weight and compact dimensions, with packing photographs supplied before dispatch for logistics planning. Door-to-door delivery arrangements can be coordinated, or the machine can be handed off to your existing freight forwarder at origin port based on your preference.
Q: What spare parts and consumables are included, and how do I order replacements?
A: The ZDSW-1 ships with a spare parts list covering wear components like suction cups and belt breaking cylinders, along with consumable specifications for glue pot refills. Replacement parts can be ordered separately with documentation provided in your agreed language to ensure correct specification matching.
