Description
Voltage-Verified Dispatch — every ZDSF910H unit is confirmed for your local 220V/50Hz grid before crating, eliminating the on-site rewiring delays that stall commissioning.
Technical Specifications
| Parameter | Value |
|---|---|

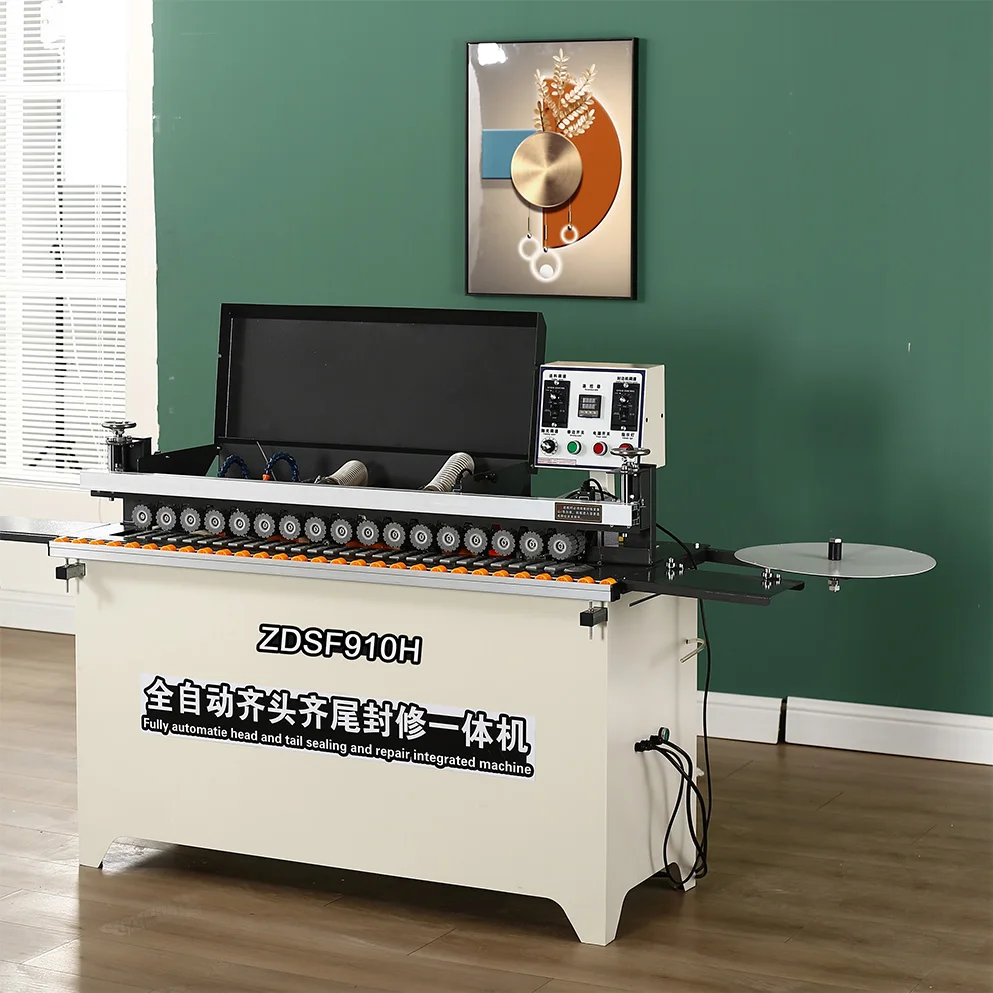

| Model | ZDSF910H |
| Product Type | Fully Automatic Edge Banding Machine |
| Function Sequence | Automatic plate feeding, double-sided gluing, end cutting, upper and lower polishing, automatic head and tail trimming |
| Voltage & Frequency | 220V 50Hz |
| Rated Power | 4 kW |
| Heating Power | 800 W |
| Polishing Power | 180 W × 2 |
| Trimming Power | 800 W × 2 |
| Suction Power | 1200 W |
| Belt Power | 25 W |
| Transmission Power | 120 W |
| Rated Air Pressure | 0.4–0.6 MPa |
| Sheet Thickness Range | 10–50 mm |
| Strip Thickness Range | 0.5–2.5 mm |
| Minimum Board Width | 2.5 cm |
| Glue Capacity | 1000 ml |
| Gluing Method | Double-sided gluing |
| Transmission Type | Steel rod slide rails with double-row rubber pressure wheels |
| Trimming Method | Imported 4-blade alloy arc knife, profiling trim with automatic end cutting |

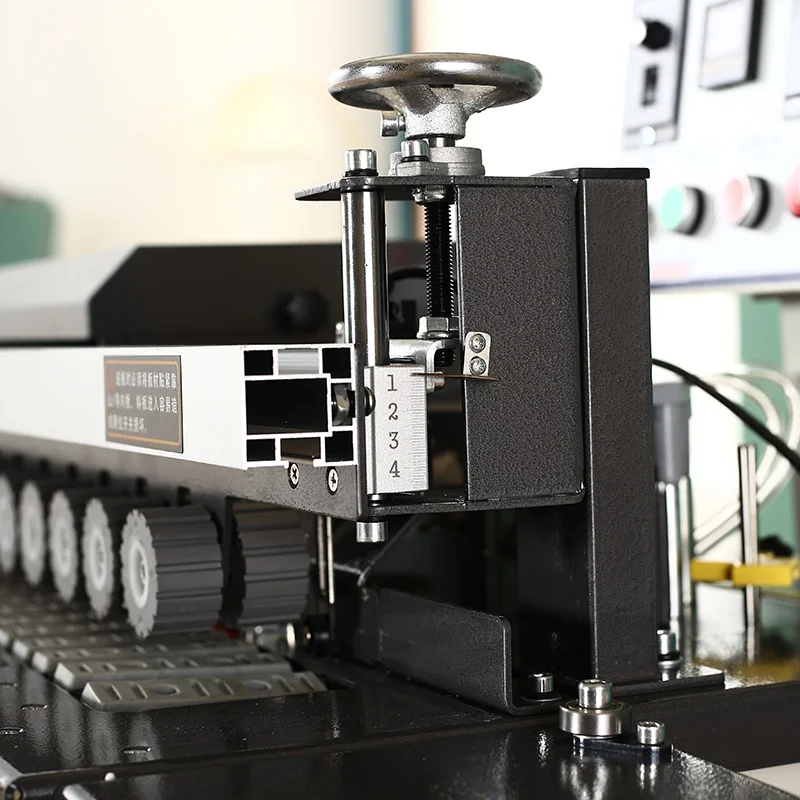

| Pressure Beam | Adjustable aluminum alloy |

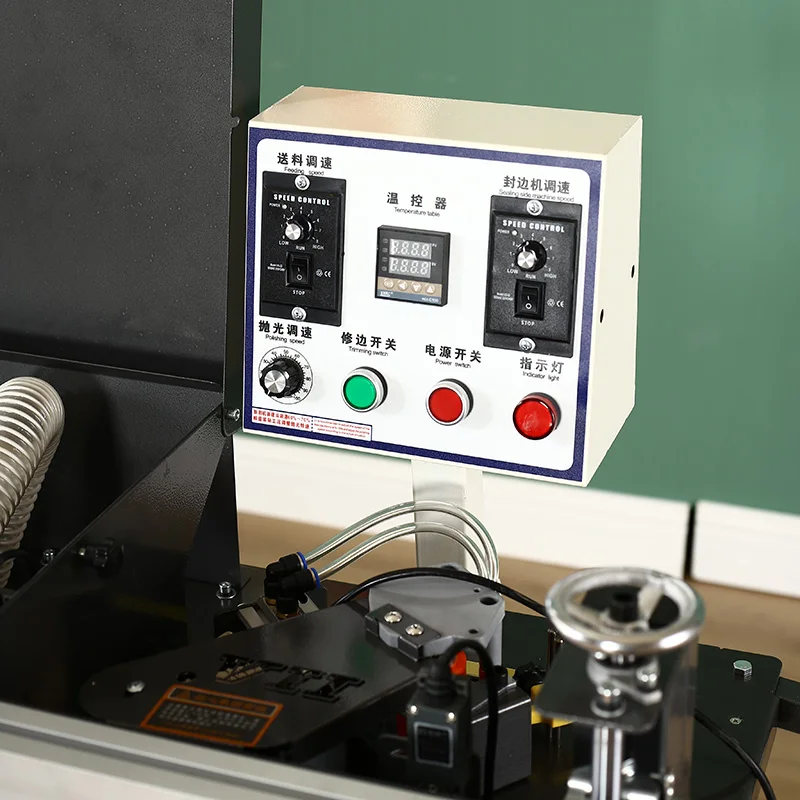

| Control Panel | Multi-function button operation |

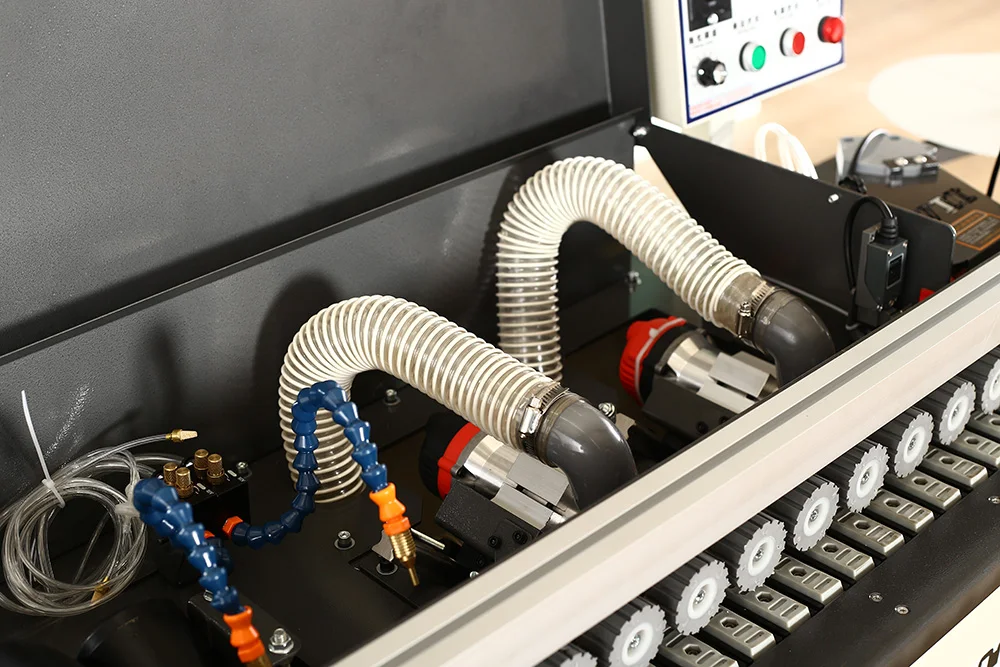

| Dust Extraction | Full-envelope vacuuming, dust collector included |
| Overall Dimensions (L×W×H) | 1300 × 560 × 1090 mm |
| Net Weight | 185 kg |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge sealing | MDF and particleboard with 0.5–2.5 mm PVC strips |
| Small-batch furniture panel finishing | Plywood panels with veneer edge banding |
| Narrow drawer side edging | Solid wood and composite stock from 2.5 cm width upward |
| Workshop overflow capacity | Mixed panel runs on existing furniture production floors |
| Startup joinery first-machine setup | Board thickness 10–50 mm across common sheet materials |
Why Voltage Must Be Settled Before the Crate Goes Shut
An automatic edge banding machine in stock is only useful if it runs the moment you plug it in.
I watched a Southeast Asian customer sit idle for three weeks because the edge bander they received was wired for a grid their workshop did not have. The machine tripped its breaker on first power-up, and the entire production schedule slipped while an electrician reconfigured the supply. That delay was entirely avoidable. Voltage mismatches are among the most common commissioning failures for imported woodworking equipment [NEED_CITE: voltage and frequency standards by export market]. When you order a ZDSF910H from ready inventory, the 220V 50Hz configuration is confirmed against your site supply before the unit leaves the floor — not after it arrives at your dock.
Stock Availability Without the Guesswork
Finding an automatic edge banding machine in stock that actually matches your production requirements is harder than it sounds. Many listings show generic availability, but the unit that ships may differ in voltage, control language, or trim configuration. With the ZDSF910H, the specification you see is the specification that gets crated. The 4 kW rated power package, the 1000 ml double-sided glue pot, and the full-envelope dust collector are all present on every unit sitting on our floor — no substitutions, no back-ordered modules.
Dispatch Speed That Respects Your Floor Schedule
When a workshop commits to a delivery date with its own customers, every day of machine lead time compounds downstream. The ZDSF910H ships as a single integrated unit weighing 185 kg, meaning no separate dust collector crate, no auxiliary conveyor to coordinate. You receive one machine, move it into position within its 1300 × 560 mm footprint, connect power and air, and begin test runs. This simplification matters most for small shops running lean crews where receiving and setup compete with regular production [NEED_CITE: typical commissioning timelines for imported panel processing equipment].
Reading the Spec Sheet Against Real Workshop Demands
The 10–50 mm sheet thickness range covers the majority of panel stock in cabinet and furniture work, from thin 10 mm MDF shelving to 50 mm solid-wood countertop blanks. Pairing that range with a minimum board width of just 2.5 cm opens up narrow components like drawer sides and divider strips that wider machines simply cannot feed. The imported 4-blade alloy arc knife handles profiling trim on contoured edges, which directly affects how clean the joint appears once the panel moves to assembly. Glue pot capacity at 1000 ml with double-sided application reduces refill interruptions during longer batch runs. Air pressure at 0.4–0.6 MPa is standard for most workshop compressors, so no dedicated high-pressure line is required.
What Happens When Configuration Gets Skipped
Ordering a machine without locking down the electrical specification and control language upfront creates problems that only surface on installation day. Operators facing a control panel in an unfamiliar language stall the entire commissioning sequence while translations are hunted down. A unit rated for a different frequency may run its motors outside design tolerance, shortening bearing life and producing inconsistent feed speeds. These failures rarely show up in a factory acceptance test — they emerge after the machine has been in your shop for a few weeks, when intermittent faults become expensive to diagnose [NEED_CITE: common causes of post-installation faults in imported woodworking machinery].
Why Sourcing This Unit Here Makes Sense
The ZDSF910H is built in-house with a proprietary cutting mechanism and verified trimming tolerance, so the edge quality you see in pre-shipment test photos is the edge quality you get on your floor. Every unit passes a four-stage quality check covering incoming components, in-process assembly, finished-product function, and final pre-shipment verification. Voltage and control language are confirmed order by order, not batch by batch. Engineer-led configuration ensures the machine matches your actual panel mix and air supply rather than a generic default. Single-unit orders are standard — no minimum quantity pressure on a first purchase.
Documentation & Verification
- CE declaration of conformity covering the ZDSF910H electrical and mechanical safety scope
- Factory test record on your specified panel thickness and strip material before dispatch
- Electrical schematic showing 220V 50Hz wiring and confirmed component ratings
- Operation and maintenance manual produced in your agreed language
- Pre-shipment packing photographs and customs documentation support for your forwarding agent
- Spare parts list matched to the trimming knives and pressure wheel assemblies on your unit
Installation, Commissioning & Support
- Requires a dedicated 220V 50Hz circuit rated above the 4 kW total draw to avoid shared-line voltage drop
- Compressed air supply at 0.4–0.6 MPa with a clean, dry line feeding the 1200 W dust collector
- Machine arrives as one 185 kg unit; position within the 1300 × 560 mm footprint and level the steel rod rails
- First-run calibration covers glue temperature at the 800 W heater and trim alignment on your panel stock
- Multi-function button panel walkthrough provided in your language during remote commissioning guidance
- Spare alloy arc knives and rubber pressure wheels identified for initial reorder planning
What to Include With Your Inquiry
Tell us the panel materials and thicknesses you run most often, along with the edge strip type and thickness range. Confirm your workshop voltage and frequency so we can verify the 220V 50Hz match or flag any adjustment needed. Let us know your preferred control panel language and whether you need a test run on your own sample material before dispatch.
Frequently Asked Questions
Q: Is the ZDSF910H currently in stock and what is the dispatch lead time?
A: Yes, this model is held in ready-to-ship inventory. Once your voltage and language requirements are confirmed, the unit moves to pre-shipment testing and crating. Dispatch typically follows within a short window after verification, and you receive packing photographs before the crate leaves our floor.
Q: Can the voltage be confirmed for my country before the machine ships?
A: Absolutely. Voltage and frequency confirmation is a mandatory step in our order process. We verify that the 220V 50Hz configuration matches your local supply, and if any adjustment is needed we address it before crating — not after the machine arrives at your workshop.
Q: What is included in the package — is the dust collector built in or separate?
A: The ZDSF910H ships as a single integrated unit. The full-envelope dust collector with its 1200 W suction motor is part of the machine, so you do not need to source or connect a separate extraction system. One crate, one power connection, one air line.
Q: Do you support single-unit orders or is there a minimum order quantity?
A: Single-unit orders are standard. There is no minimum quantity requirement, which makes this model straightforward for workshops purchasing their first automatic edge bander or adding a second unit to handle overflow demand.
Q: How is shipping arranged and do you offer door-to-door delivery?
A: We prepare all customs documentation and packing photographs to support your chosen freight forwarder. Door-to-door shipping can be quoted based on your delivery address. The machine ships as one 185 kg crate within compact dimensions, keeping freight costs predictable.
