Description
Stock-to-dock readiness — pre-wired DW802 units with confirmed voltage and language settings ship within days, not weeks, verified before leaving our facility.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW802 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4200W |
| Voltage | 220V / 380V / customization |
| Edge Banding Thickness | 0.3–3MM |
| Edge Banding Height | 0–50MM |
| Minimum Sheet Length | 25CM |
| Minimum Sheet Width | 10CM |
| Edge Power | 140W |
| Transmission Power | 140W |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Vacuum Power | 1200W |
| Glue Pot Capacity | 4000ml |
| Air Source Pressure | 0.4–0.8Mpa |

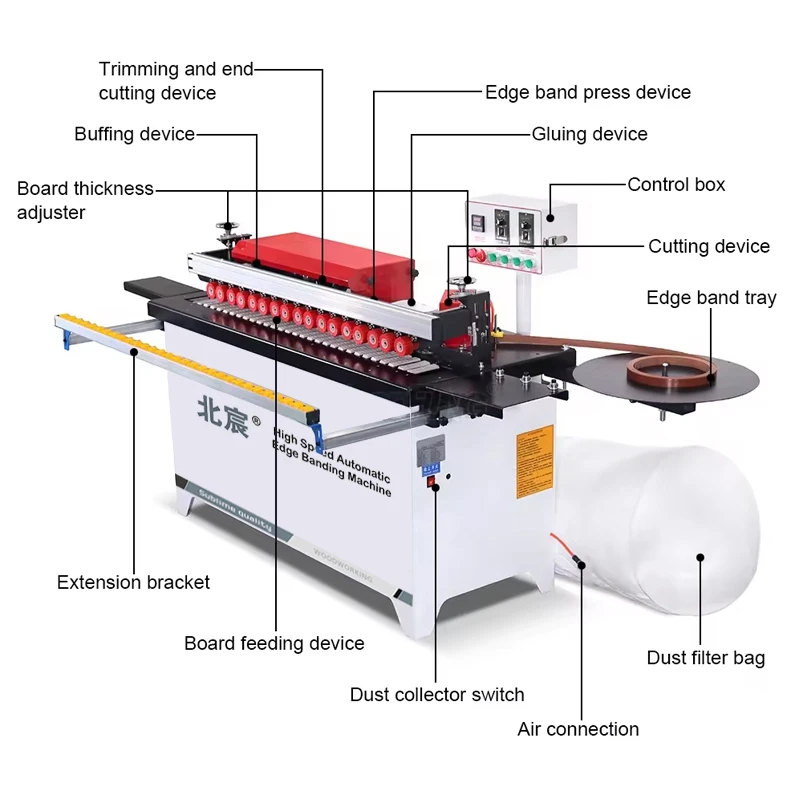

| Standard Features | Gluing, trimming, polishing, automatic head and tail cutting, integrated vacuum |
| Product Size | 130 × 60 × 95CM |
| Product Weight | 135KG |
| Language Options | Chinese / English default; Spanish or other languages customizable |
| Plug Options | EU, USA, AU, UK |
| Certification | CE, ISO 9001 |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edging | MDF and particleboard with PVC or veneer banding |
| Home decoration panel finishing | Plywood and ecological board with 0.3–3MM edge strips |
| Small-batch furniture production | Solid wood panels requiring gluing, trimming, and polishing in one pass |
| Workshop showroom demonstration | Single-unit operation for regional reseller display and buyer trials |
Why Voltage Confirmation Matters More Than Dispatch Speed
A stocked Automatic Edge Banding Machine that arrives with the wrong voltage is dead weight on your shop floor.
When a ready-stock machine is quoted purely on lead time, the electrical configuration often defaults to the factory’s domestic standard. We have seen 380V units arrive at workshops running on 220V single-phase supply, sitting idle until a step-down transformer is sourced locally. The DW802 is held in stock, but voltage and plug type are confirmed to match the buyer’s grid before the crate is sealed [NEED_CITE: voltage and frequency standards by export market]. An Automatic Edge Banding Machine in stock means nothing if the commissioning stalls on day one because the power supply does not align.
Ready-Stock Fulfillment Without the Configuration Guesswork
The DW802 Automatic Edge Banding Machine is built on a single platform with modular electrical and control options. This means stock units can be reconfigured to 220V or 380V, fitted with the correct regional plug, and loaded with an operation manual in the buyer’s language before dispatch. For single-unit buyers ordering a stocked machine, the configuration is locked in during the order confirmation stage rather than discovered at the destination port.
Language and Control Settings Verified Before Crating

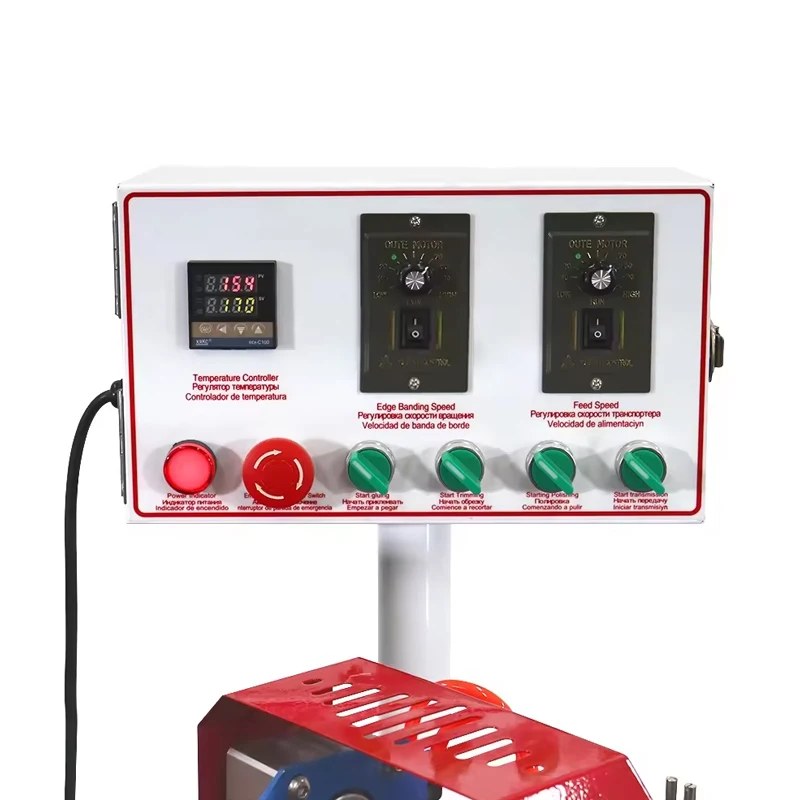

A recurring commissioning failure on exported woodworking machinery is an HMI that the local operator cannot read. The DW802 control panel defaults to Chinese or English, but Spanish and other language options are set and tested at the factory. The touch interface is cycled through all primary menus — glue temperature, feed speed, trimming depth — to confirm the selected language renders correctly on every screen [NEED_CITE: CE machinery directive requirements for industrial equipment].

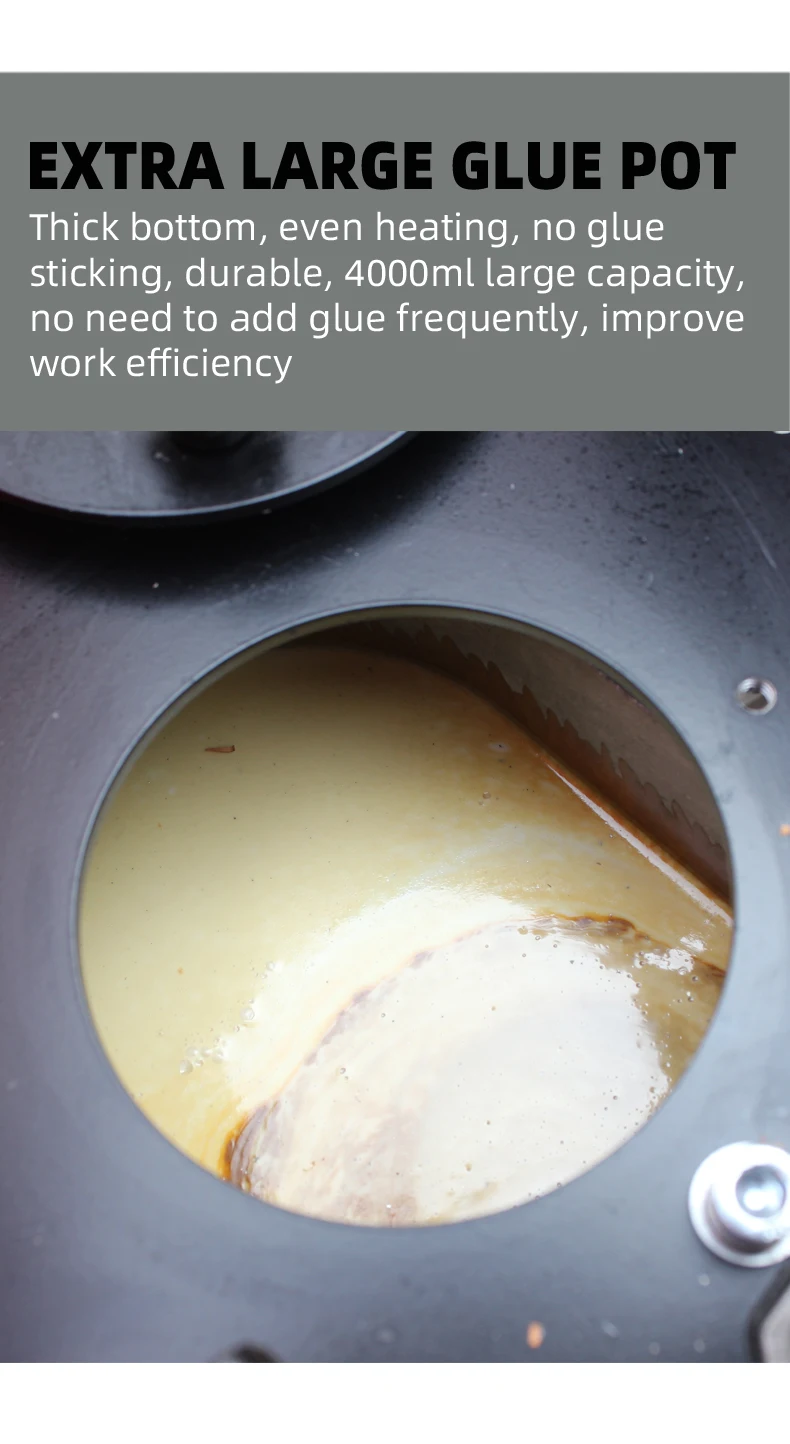

How the 4000ml Glue Pot Supports Continuous Sealing Runs
The DW802 carries a 4000ml glue pot, which allows extended panel runs without mid-batch refills. For a small workshop processing cabinet components in sequence, this capacity means the operator can complete a full batch of doors or side panels before the glue level requires attention. The integrated vacuum system holds panels flat against the silica gel conveyor belt, protecting finished surfaces from scuff marks during the gluing and trimming stages.

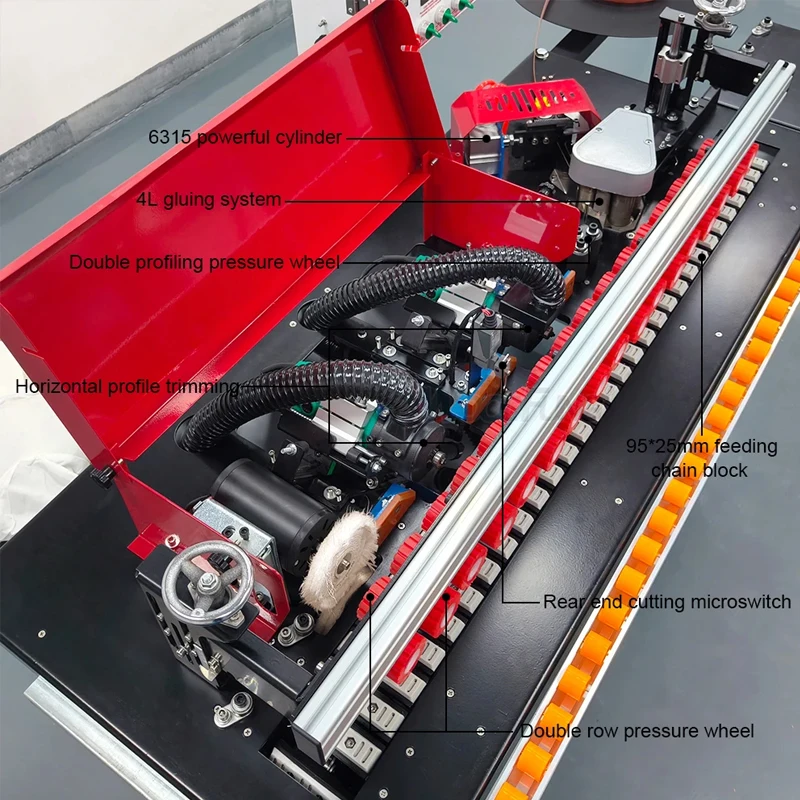

Panel Thickness, Feed Rate, and Trimming Precision
The DW802 handles edge banding heights from 0 to 50MM and thicknesses from 0.3 to 3MM, covering the full range of PVC, melamine, and real-wood veneer strips used in custom furniture. The dual 800W trimming motors remove overhang on both top and bottom in a single pass, while the twin 180W polishing wheels clean residual adhesive from the panel face. Air source pressure between 0.4 and 0.8Mpa drives the pneumatic actuators that control head-and-tail cutting, ensuring clean end-trims even on the minimum 25CM sheet length. The total 4200W power draw is distributed across dedicated circuits for the glue heater, conveyor drive, trimming spindles, and vacuum blower, which keeps each subsystem operating within its rated load without thermal derating [NEED_CITE: electrical load distribution in single-pass edge banders].
What Happens When Stock Orders Skip Configuration Checks
When a buyer selects a machine purely on availability and price, the electrical and control defaults often go unexamined until the unit is uncrated. A 380V three-phase machine wired to a 220V single-phase workshop will not start, and sourcing a compatible transformer locally adds cost and delay. An HMI locked in a language the operator cannot read turns a simple feed-speed adjustment into a trial-and-error exercise, risking panel waste on the first production run. These are not manufacturing defects; they are order-specification gaps that surface only after the machine has crossed an ocean.
Procurement Advantages Built Into the Stock-to-Ship Workflow
Every DW802 leaving our dock is accompanied by a factory test record that documents the voltage setting, glue temperature curve, and trimming alignment verified on a sample panel matching the buyer’s material specification. The four-stage QC protocol covers incoming component inspection, in-process assembly checks, finished-product functional testing, and pre-shipment verification with photographic documentation. Voltage, plug type, and HMI language are confirmed in writing during the order stage, eliminating the guesswork that typically plagues single-unit export orders [NEED_CITE: ISO 9001 pre-shipment verification requirements]. CE conformity documentation and electrical schematics are included in the shipping crate for customs clearance and local electrical inspection.
Documentation & Verification
- CE declaration of conformity matching DW802 model designation for customs entry
- Factory test record showing voltage, glue temperature, and trim alignment on buyer-specified panel material
- Electrical schematic confirming wiring configuration for local 220V or 380V supply
- Operation and maintenance manual printed in the agreed language at dispatch
- Spare parts list with OEM part numbers for trimming blades, polishing wheels, and conveyor belt segments
- Packing photographs documenting crating condition before container loading
Installation, Commissioning & Support
- Requires a dedicated circuit matching confirmed 220V or 380V supply with appropriate breaker rating for 4200W total draw
- Air compressor delivering 0.4–0.8Mpa at sufficient flow rate for pneumatic head-and-tail cutting actuators
- Compact 130 × 60 × 95CM footprint fits standard workshop aisles without special foundation work
- Glue pot pre-heated to target temperature and feed speed calibrated on buyer’s panel stock during first run
- HMI language verified on-site against operation manual to confirm all menu screens render correctly
- Trimming blade and polishing wheel replacement intervals documented in the included spare parts list
What We Need to Configure Your DW802 Correctly
To match the DW802 to your workshop, we need your local voltage and frequency, the plug type required by your electrical code, and the primary language for the control panel and operation manual. Let us know the panel materials you process most frequently — MDF, particleboard, plywood, or solid wood — and the typical edge banding thickness range so we can set the trimming and polishing parameters before dispatch. If you are integrating this machine into an existing production line, share the upstream saw output dimensions and downstream assembly requirements so we can verify throughput compatibility.
Frequently Asked Questions
Q: Is the DW802 currently in stock and what is the dispatch lead time?
A: The DW802 Automatic Edge Banding Machine is held as ready stock for fast fulfillment. Once voltage, plug type, and HMI language are confirmed during order placement, the unit goes through pre-shipment testing and is typically dispatched within days. Exact lead time depends on the customization scope and destination port logistics.
Q: Can voltage and plug type be confirmed before shipping?
A: Yes. Every DW802 is configured to the buyer’s local voltage — 220V, 380V, or other custom specifications — and fitted with the correct regional plug (EU, USA, AU, or UK) before crating. A written confirmation of the electrical setup is provided, and the factory test record documents the verified configuration.
Q: What is the minimum order quantity for the DW802?
A: Single-unit orders are standard for the DW802. This makes the model suitable for individual workshops upgrading from manual edge sealing, regional resellers stocking a showroom unit, or buyers testing the machine before committing to a larger production line order.
Q: Which panel materials and edge banding thicknesses does this model handle?
A: The DW802 processes MDF, particleboard, plywood, ecological board, and solid wood panels. It applies edge banding strips from 0.3 to 3MM in thickness and 0 to 50MM in height, covering PVC, melamine, and veneer materials commonly used in custom furniture and home decoration applications.
Q: What documentation comes with the machine for import clearance?
A: Each DW802 ships with a CE declaration of conformity, ISO 9001 certificate reference, electrical schematic matching the confirmed voltage, factory test record, operation manual in the agreed language, spare parts list, and packing photographs. This documentation package supports customs clearance and local regulatory compliance in the destination market.
