Description
Voltage-Confirmed Dispatch — every DW802 ships only after your local voltage, frequency, and plug type are verified in writing to match your workshop power supply.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW802 |

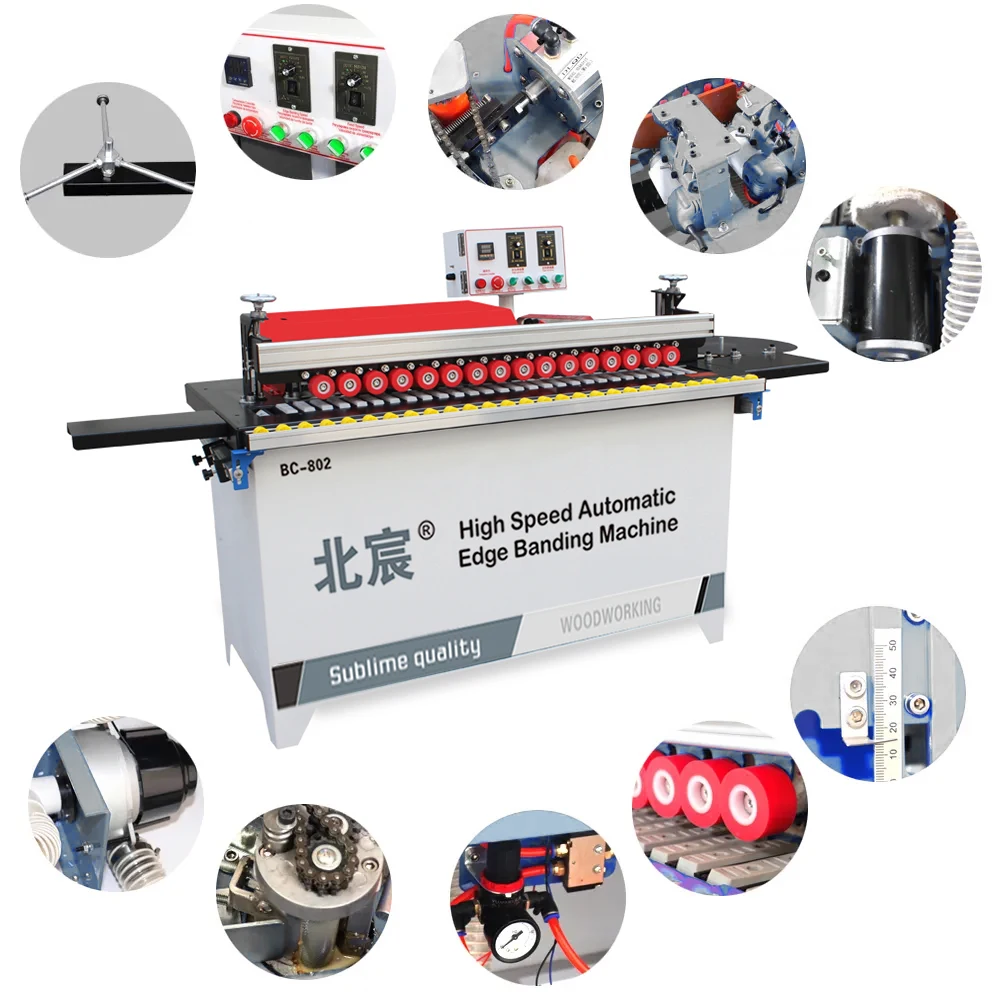

| Product Type | Automatic Edge Banding Machine |
| Total Power | 4200W |
| Voltage | 220V / 380V / customization |
| Standard Functions | Edge banding, trimming, polishing, automatic head and tail cutting, with vacuum |
| Minimum Sheet Length | 250 mm |
| Minimum Sheet Width | 100 mm |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Edge Trimming Motor Power | 140W |
| Transmission Motor Power | 140W |
| Trimming Motor Power | 800W × 2 |
| Polishing Motor Power | 180W × 2 |
| Vacuum Power | 1200W |
| Air Source Pressure | 0.4–0.8 MPa |
| Glue Pot Capacity | 4000 ml |
| Overall Dimensions (L×W×H) | 1300 × 600 × 950 mm |
| Net Weight | 135 kg |
| Conveyor Belt Material | Silica gel with integrated pressure beam |
| Language Options | Chinese and English standard; Spanish and other languages available on request |
| Plug Options | EU, USA, AU, UK |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge sealing | MDF, particleboard, plywood |
| Cabinet door and carcass production | Ecological board, melamine-faced chipboard |
| Home decoration joinery | Solid wood panels with PVC or veneer banding |
| Small workshop straight-edge finishing | Panels from 250 mm minimum length, 0.3–3 mm banding |
Why Voltage Confirmation Must Happen Before You Pay
An Automatic Edge Banding Machine in stock is only useful if it runs on your local grid. I once shipped a unit to a Chilean furniture maker without confirming the frequency spec. The machine arrived, the motor overheated within the first hour, and the workshop lost two weeks of production waiting for a replacement winding from Shandong. That kind of failure has nothing to do with build quality and everything to do with a missing line on the order form.
When you source from ready stock, the temptation is to pay and ship immediately. But the plug shape is only half the problem. A 220V/60Hz market running a machine wound for 220V/50Hz will see the main drive motor spin faster than rated, the glue pot overheat, and the trimming motors draw excess current until the thermal relay trips — or worse, until insulation breaks down. The cost of rewinding a motor overseas is often higher than the motor itself [NEED_CITE: voltage and frequency standards by export market]. That is why the DW802 order process locks in your exact voltage, frequency, and plug type before the machine leaves the floor.
Ready Stock Does Not Mean Unchecked Stock
Every DW802 pulled from inventory goes through a pre-shipment verification before crating. The glue pot is heated to operating temperature, the conveyor runs under load, and the trimming and polishing stations are tested on a sample panel. You receive photographs of the test run and the packed crate. This step matters because warehouse storage can introduce moisture into electrical connections or allow the silica gel belt to pick up dust that affects panel grip during the first production run.
Dispatch Speed Without Sacrificing Configuration
The advantage of ordering an Automatic Edge Banding Machine in stock is the shorter wait. A single-unit DW802 order typically moves from confirmation to dispatch in a matter of days rather than weeks. The voltage confirmation, language setting on the control panel, and plug swap all happen during that pre-shipment window. If you need Spanish-language labels or a specific plug standard, those are handled before the machine is bolted to the crate base. The goal is a unit that powers on and runs the day it reaches your workshop, not one that sits idle while you source a step-down transformer [NEED_CITE: common import delays from incorrect electrical specifications].
What the Numbers Actually Mean for Your Panels

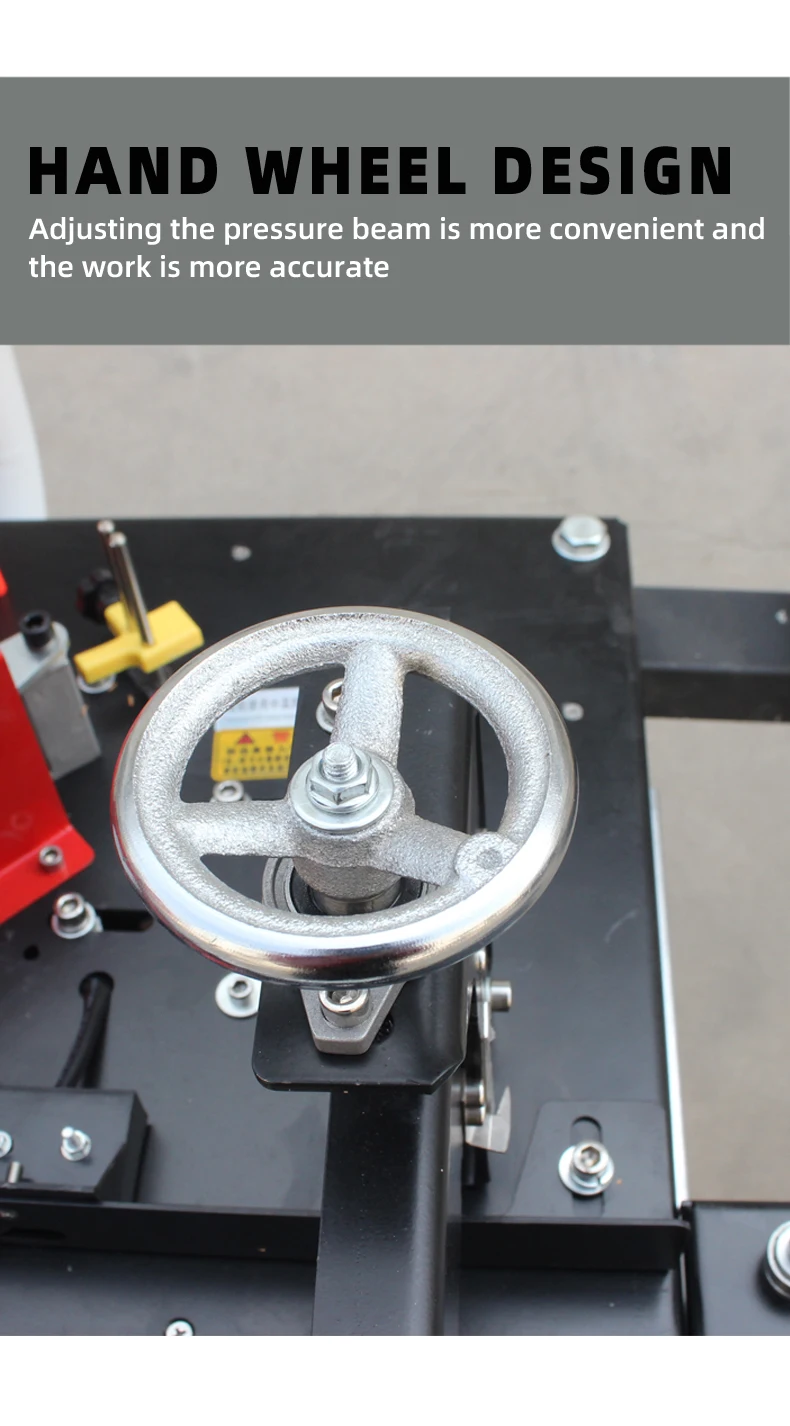

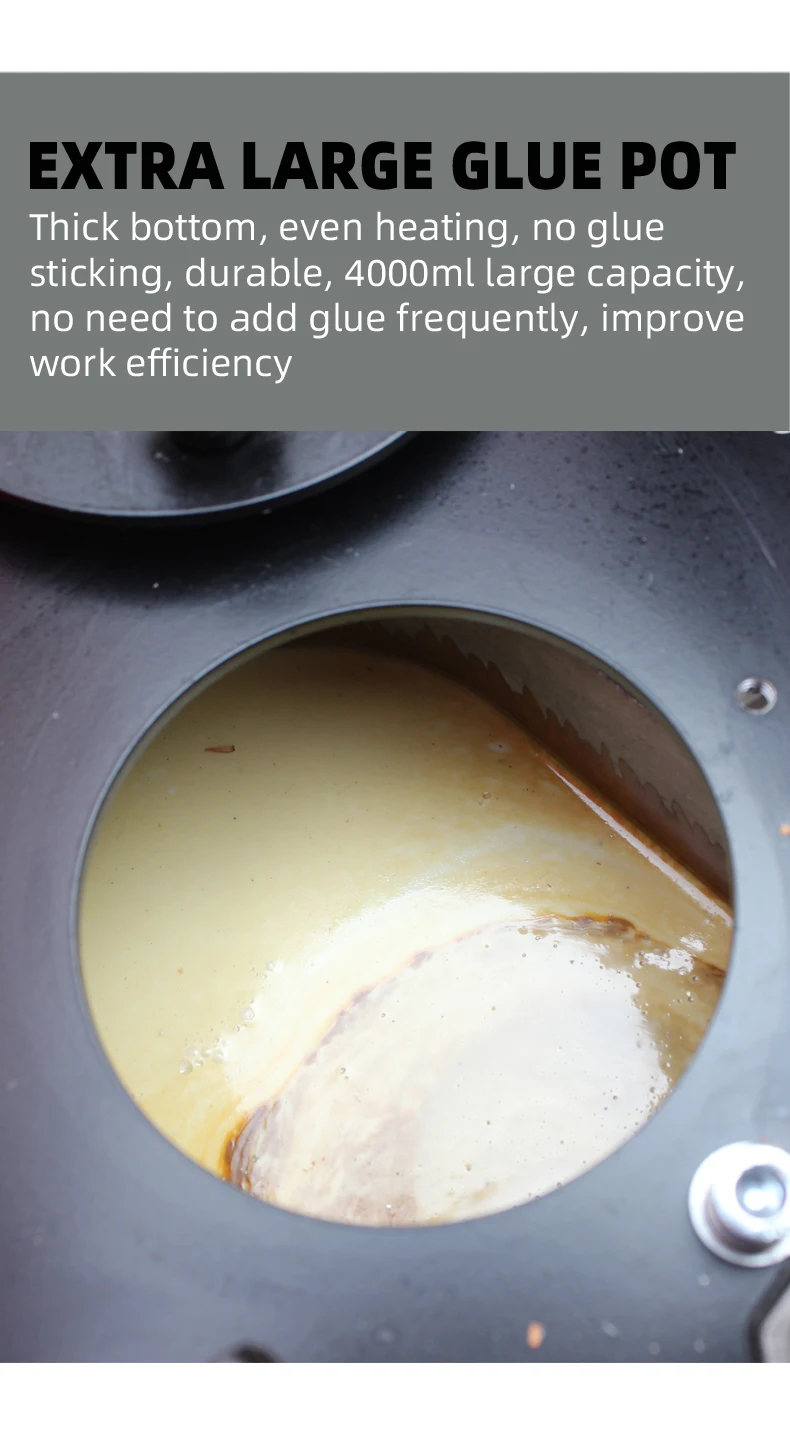

The DW802 carries 800W × 2 trimming motors and 180W × 2 polishing motors. In practical terms, the dual trimming motors give you independent rough and fine trim in a single pass — the first removes the bulk of the overhang, the second cleans the edge to final dimension. The 4000 ml glue pot capacity means you can run a full morning shift on MDF panels without stopping to refill hot-melt adhesive. The silica gel conveyor belt with integrated pressure beam holds panels flat without the surface marring that rubber belts sometimes leave on high-gloss melamine. Edge banding thickness from 0.3 mm veneer to 3 mm PVC covers the range most custom furniture workshops use daily. The minimum sheet size of 250 mm × 100 mm lets you edge-band small drawer components and narrow filler strips that larger machines cannot feed reliably.
The Real Cost of Skipping the Spare Parts Conversation
I learned this the hard way in Latin America. A customer bought an edge bander, and we shipped it with the standard spare kit. Two months later the trimming blade dulled and the scraper wore down. He could not source replacements locally — the blade bore was metric, the scraper profile was specific to the machine family. His shop stopped edge banding for fourteen days while I sent a DHL package from Shandong. Since then, every machine I send out goes with a reviewed spare parts list, and I add extra consumables when the destination market has limited local supply. The DW802 ships with an electrical schematic and a spare parts list so you can identify wear items before you need them [NEED_CITE: availability of edge bander consumables in South American hardware markets].
What Sets This Order Apart
The DW802 is built around an in-house manufactured frame with precision-ground components inspected across four QC stages — incoming material, in-process, finished assembly, and pre-shipment. The voltage and plug are customized per order as standard practice, not as a special request. The control panel language is set to your operator’s preference before dispatch. Engineer-led configuration ensures the machine matches your panel types and production volume rather than being a generic box on a pallet. A formal quotation with full specification confirmation is issued within 24 hours of your inquiry.
Documentation & Verification
- CE declaration of conformity covering the DW802 automatic edge banding machine
- Electrical schematic confirming your ordered voltage and plug configuration
- Factory test record with photographs from your pre-shipment panel run
- Operation and maintenance manual in English, Spanish, or your requested language
- Spare parts list with part numbers for trimming blades, scrapers, and glue pot components
- Packing photographs showing crate condition before the container is sealed
Installation, Commissioning & Support
- Requires a dedicated circuit matching the confirmed voltage and the 4200W total power draw
- Air compressor must deliver 0.4–0.8 MPa to the machine’s pneumatic inlet
- Overall footprint of 1300 × 600 mm fits standard workshop doorways for placement
- Glue pot first heat-up should run empty for 20 minutes before loading adhesive
- Silica gel conveyor belt tension check after the first 40 hours of operation
- Spare trimming blades and scrapers included for immediate production start
Before You Place the Order
Send your panel material types, typical panel thickness, and the edge banding materials you run most often. Confirm your workshop voltage and frequency at the breaker panel — not the label on your existing equipment, which may itself be wrong. Specify the language your operators read, and whether you need the EU, USA, AU, or UK plug standard. If you are running other machines upstream or downstream, note their feed height so we can confirm the DW802 conveyor aligns with your material flow.
Frequently Asked Questions
Q: What voltage and plug options are available, and how are they confirmed before shipping?
A: The DW802 supports 220V, 380V, or custom voltage configurations. Plug options include EU, USA, AU, and UK standards. Before production or dispatch, we confirm your exact voltage, frequency, and plug type in writing. The machine is then wired and tested on that specific supply before crating, so it arrives ready to connect.
Q: What is the dispatch lead time for a single DW802 unit from ready stock?
A: Single-unit orders from stock are typically dispatched within days after voltage confirmation and pre-shipment testing. The exact timeline depends on the customization required — a standard voltage and English-language panel moves fastest, while a custom language or non-standard plug adds a short handling step before crating.
Q: Can the control panel language be set to English or another language before delivery?
A: Yes. Chinese and English are standard. Spanish and other languages are available on request. The language is configured on the control panel before the machine ships, so your operators can read all menus and error messages from the first power-on without needing a separate translation step.
Q: What panel materials and edge banding thicknesses does the DW802 handle?
A: The DW802 processes MDF, particleboard, plywood, ecological board, and solid wood panels. It applies edge banding from 0.3 mm to 3 mm thick and up to 50 mm in height, covering standard PVC, ABS, melamine, and wood veneer strips used in custom furniture and cabinet production.
Q: What spare parts and documentation ship with the machine?
A: Every DW802 ships with a spare parts list, electrical schematic, operation manual in your agreed language, and factory test photographs. The spare parts list identifies trimming blades, scrapers, and other wear items so you can reorder before production is interrupted.
