Description
Voltage-verified dispatch — Every XZF-450 unit is checked against your local grid standard before leaving the warehouse, so you won’t face weeks of downtime from an electrical mismatch on arrival.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | XZF-450 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 9.5 kW |
| Voltage | 380V / 415V (50Hz/60Hz — confirm before dispatch) |
| Feed Speed | 0–12 m/min |
| Pre-milling Motor | 4 kW |
| Trimming Motor | 2.2 kW × 2 |
| Polishing Motor | 0.4 kW × 2 |
| Edge Banding Thickness | 0.3–3 mm |
| Edge Banding Height | 0–50 mm |
| Minimum Sheet Length | 30 cm |
| Minimum Sheet Width | 15 cm |
| Glue Pot Capacity | 4,000 ml |
| Air Source Pressure | 0.5–0.7 MPa |
| Vacuum Power | 550 W |
| Product Dimensions | 300 × 65 × 135 cm |
| Machine Weight | 430 kg |
| Key Features | Pre-milling, 30°/45°/60° edge banding, trimming, scraping, polishing, high-power dust extraction |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edging | MDF and melamine-faced particleboard |
| Carcass panel finishing | Plywood and blockboard up to 50 mm edge height |
| Straight and angled edge profiles | PVC, veneer, and melamine strips 0.3–3 mm thick |
| Polymer door production | Solid wood board and polymer composite panels |
| Small-to-medium batch runs | Furniture workshops scaling from manual to machine-assisted banding |
Why the Voltage Question Must Come Before the Price
We confirm your exact voltage and frequency requirement before any XZF-450 Automatic Edge Banding Machine in stock is released for shipping.
Machines quoted without a voltage check arrive at foreign workshops and sit idle — sometimes for weeks — while a transformer is sourced locally. I once saw a 380V motor connected to a 440V line because the confirmation step was skipped in a hurry. The contractor waited three weeks for a step-down transformer before the machine could even power on [NEED_CITE: voltage and frequency standards by export market]. That kind of delay erases any advantage of buying a ready-stock unit in the first place.
Stock Availability and What "Ready to Ship" Actually Means
When a workshop needs an Automatic Edge Banding Machine in stock, the clock is already ticking on an order backlog. The XZF-450 ships fully assembled, which means it can be crated and loaded within a short lead time once electrical specifications are confirmed. There is no build-to-order wait, no waiting on a component shipment from a sub-supplier before your machine enters production.
Dispatch Verification Before the Crate Goes Closed
Every unit goes through a pre-shipment electrical check that matches the motor winding, control transformer, and heater element ratings to your confirmed supply. The glue pot heater and the 4 kW pre-milling motor are the two components most sensitive to voltage mismatch, and both are verified under load before the machine is signed off [NEED_CITE: CE machinery directive requirements for industrial equipment]. This step takes time, but it prevents a situation where your electrician discovers an incompatibility after the machine is already on your floor.
What the 7-Function Pass Actually Covers

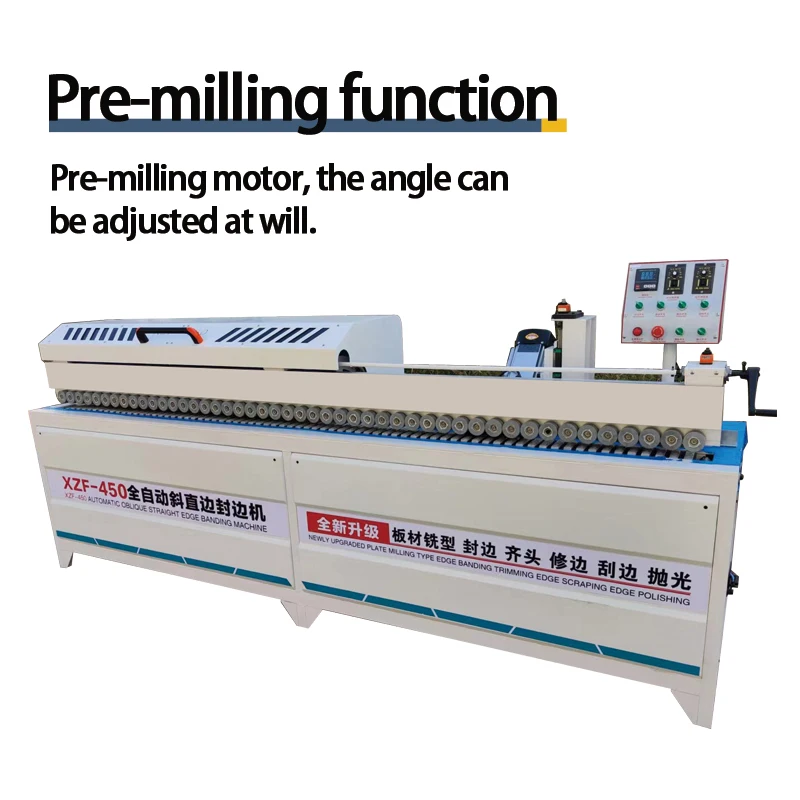

The XZF-450 runs pre-milling, angled edge application at 30°, 45°, and 60°, trimming, scraping, polishing, and dust extraction in a single continuous pass. The 4 kW pre-milling motor removes a thin layer from the panel edge before the glue station, which improves adhesion on melamine and coated surfaces. Trimming at 2.2 kW per side handles overhang cleanly without scoring the panel face. The 4,000 ml glue pot runs long enough for sustained batch work without frequent refills. Feed speed ranges from 0 to 12 m/min, giving operators control over throughput depending on panel size and edge complexity.
The Hidden Cost of Skipping Configuration Checks
Workshops that order a stock machine without specifying their edge material thickness or panel dimensions often find the setup does not match their actual production mix. A machine tuned for 0.4 mm PVC may struggle with 2 mm solid wood veneer if the feed speed and pressure rollers are not adjusted before dispatch. Panel width below the minimum threshold causes feed instability, and operators spend time shimming narrow stock instead of running production [NEED_CITE: common edge banding defects from incorrect feed setup]. These issues are not machine faults — they are configuration gaps that should be resolved before the machine leaves the warehouse.
Why Buyers Source This Unit Through Our Stock Channel
Stock units are inspected and tested against the same four-stage quality protocol used for custom orders, covering incoming material, in-process assembly, finished product, and pre-shipment verification. Voltage, language, and control panel settings are adjusted to your requirement before dispatch, not left as defaults. The XZF-450 belongs to a product family that ranges from entry-level to full-function, so if your volume grows you can add capacity from the same supplier without requalifying a new vendor. Specification sheets, wiring diagrams, and test records are provided with every shipment.
Documentation & Verification
- Machine specification sheet listing all confirmed parameters for the XZF-450
- Electrical schematic with your confirmed voltage and frequency marked
- Factory test record showing edge banding results on your specified panel material
- Operation and maintenance manual supplied in your agreed language
- Packing photographs taken before crate closure for condition reference
Installation, Commissioning & Support
- Requires a dedicated 380V/415V three-phase circuit rated for the 9.5 kW total draw
- Allow floor space of at least 350 × 120 cm to accommodate the 300 × 65 × 135 cm footprint plus operator clearance
- Machine arrives fully assembled — position, level, connect power and 0.5–0.7 MPa air supply
- First-run calibration covers glue temperature, feed speed ramp, and trimming depth on your actual panels
- Spare wear parts list included with recommended reorder intervals for scraper blades and polishing wheels
What We Need From You to Move Forward

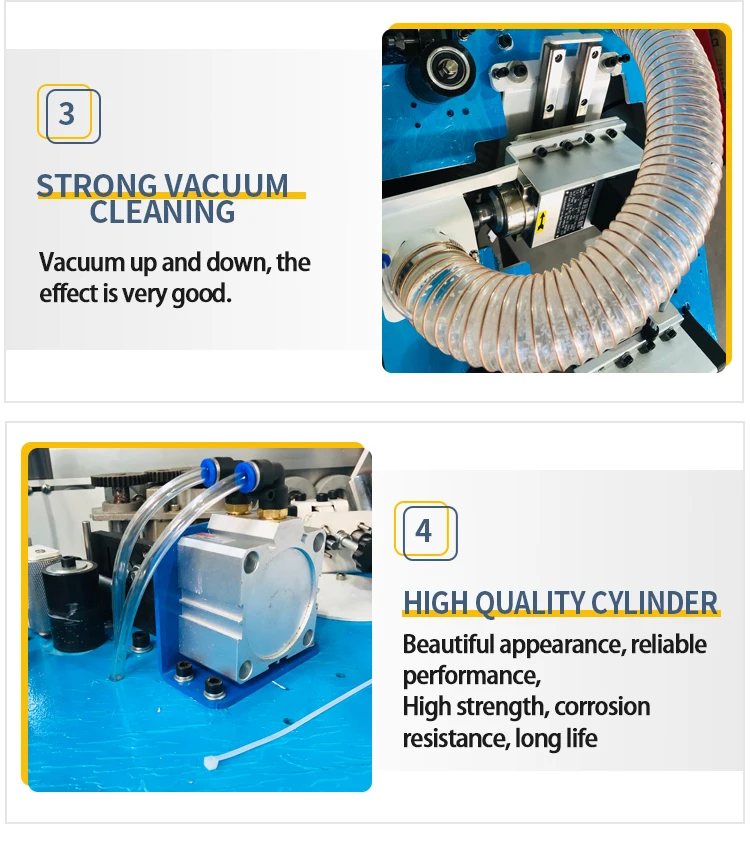

To match the right stock unit to your workshop, share your local voltage and frequency, the panel materials and edge band types you run most often, and the control panel language your operators need. If you have an existing dust extraction system, confirm the port size so we can verify compatibility with the onboard 550 W vacuum unit.
Frequently Asked Questions
Q: Is this machine in stock and how fast can it ship?
A: The XZF-450 Automatic Edge Banding Machine in stock is fully assembled and available for dispatch after electrical verification and pre-shipment testing. We confirm your voltage, language, and edge material requirements before crating, which typically adds a short verification window to ensure the machine runs correctly on arrival.
Q: What voltage options are available and how do I confirm the right one for my country?
A: The standard configuration is 380V/415V, and frequency must be confirmed as 50Hz or 60Hz depending on your local grid. We cross-reference your supply details against the motor and heater ratings before dispatch so there is no mismatch when the machine is connected at your facility.
Q: Can the control panel language be set to my local language?
A: Chinese and English are standard on the XZF-450. Other languages are customizable based on operator requirements. Confirm your preferred language at the order stage so the interface is configured before the machine ships rather than adjusted on site.
Q: What edge banding materials and thicknesses does the XZF-450 handle?

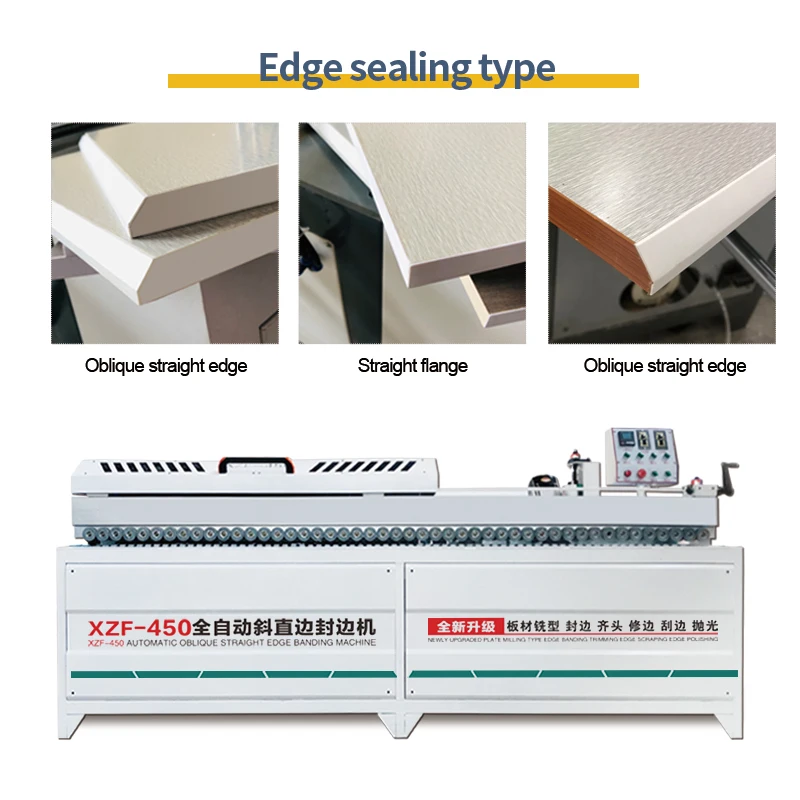

A: The machine handles PVC, veneer, and melamine edge strips from 0.3 mm to 3 mm thick, with banding height up to 50 mm. It supports 30°, 45°, and 60° angled application in addition to standard 90° straight edging across MDF, plywood, particleboard, and solid wood panels.
Q: What spare parts are included and how do I reorder consumables?
A: Each shipment includes a spare parts list identifying wear items such as scraper blades, trimming cutters, and polishing wheels with their reorder intervals. Consumables can be reordered through the same supply channel used for the original machine purchase.
