Description
Electrical Verification Before Dispatch — Every Multifunction Edge Banding Machine we ship includes a confirmed voltage match, plug type, and language setting validated against the buyer’s local site conditions before crating.
Technical Specifications
| Parameter | Value |
|---|---|

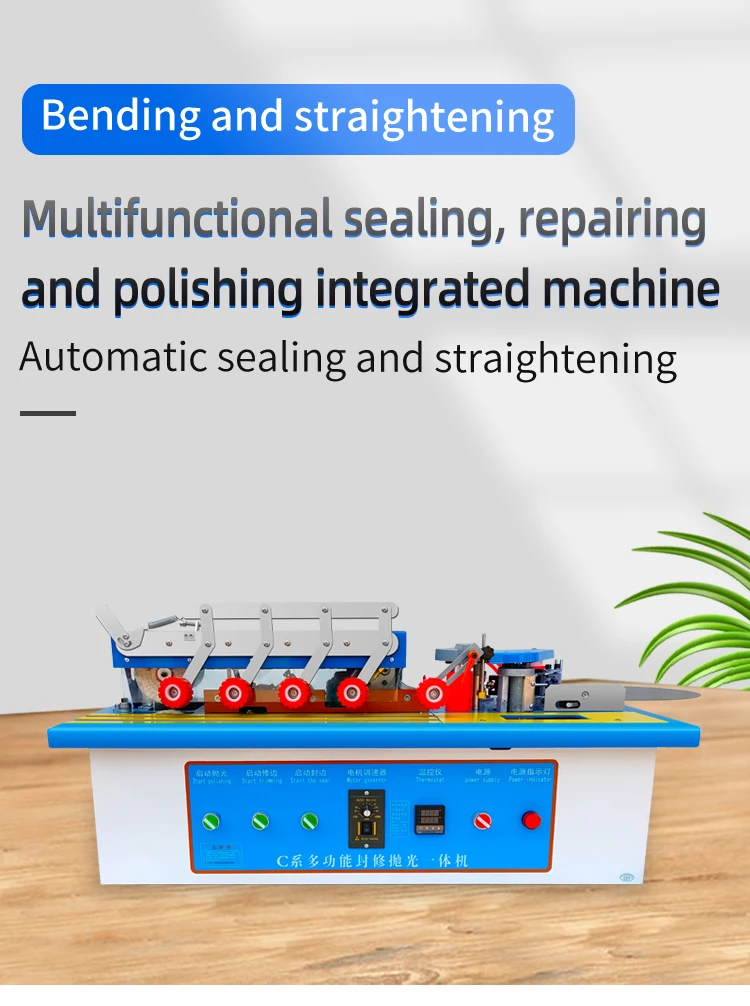

| Product Type | Multifunction Edge Banding Machine |
| Total Power | 2500W |
| Voltage & Frequency | 220V/380V/customization |
| Edge Banding Function | Curved and straight edge banding, trimming, polishing |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 10 cm |
| Edge Banding Height Range | 0–50 mm |
| Edge Banding Thickness Range | 0.3–3 mm |
| Trimming Power | 650W × 2 |

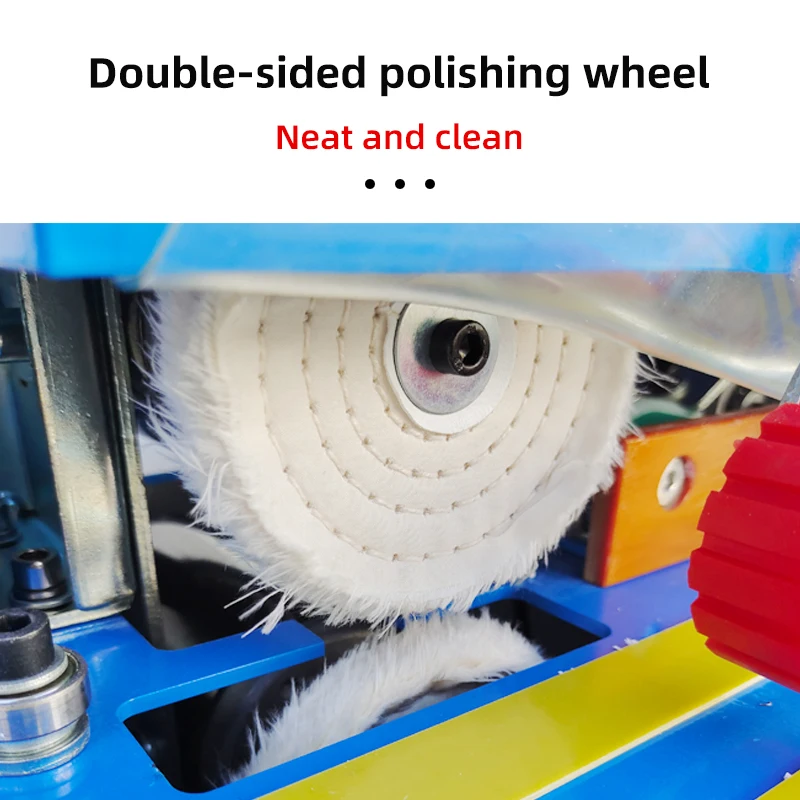

| Polishing Power | 180W × 2 |

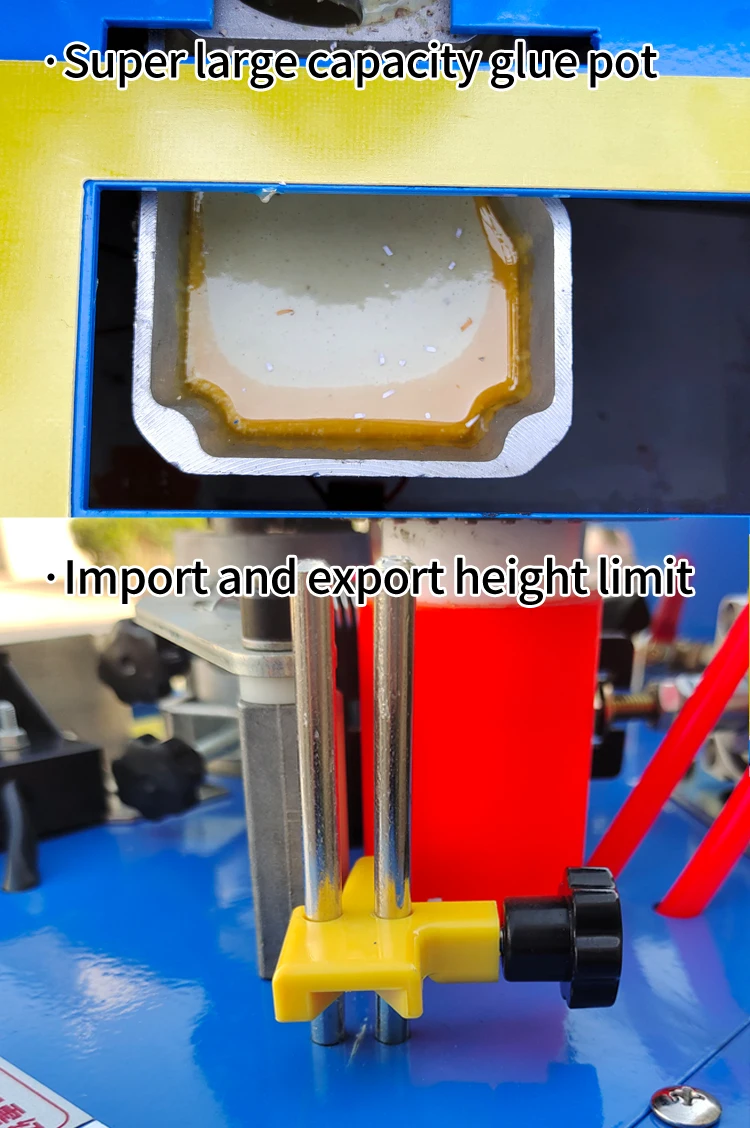

| Glue Pot Capacity | 1000 ml |
| Air Source Pressure | 0.5–0.8 MPa |
| Overall Dimensions (L×W×H) | 100 × 46 × 41 cm |
| Net Weight | 44 kg |
| Control Panel Language | Chinese, English, Spanish or custom |
| Plug Type Options | EU, USA, AU, UK |
| Assembly State | Fully assembled |
| Certification | CE |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door edge finishing | MDF and particleboard panels with PVC or melamine edge banding |

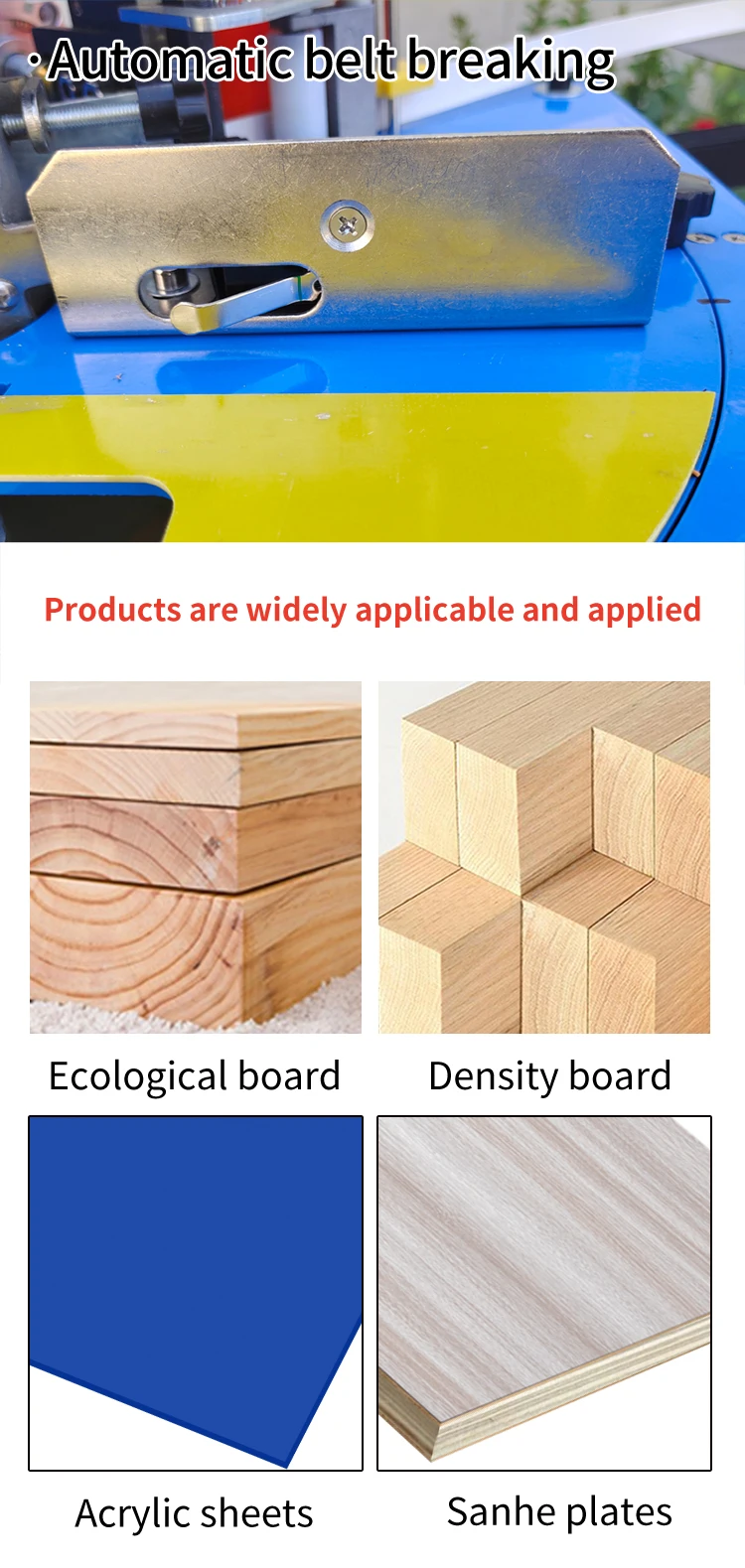

| Home decoration joinery | Ecological board and plywood with curved and straight contours |
| Small-batch furniture production | Solid wood panels requiring trimming and polishing in one pass |
| Repair and rework stations | Re-edging of previously assembled carcass components up to 50 mm height |
Why Voltage Must Be Settled Before the Machine Leaves the Factory
A machine wired wrong is a machine that does not run — no amount of on-site troubleshooting fixes a fundamental voltage mismatch.
I once watched a shipment of handheld edge banders sit idle on a Southeast Asian job site for two full weeks because the units arrived as 220V machines into a 110V environment. The breakers tripped the moment the operators powered up. Nobody had asked the right question during the order. That delay cost the contractor more in idle labor than the transformers they eventually sourced locally. When sourcing a Multifunction Edge Banding Machine in stock, the first conversation should always center on what the buyer’s facility actually supplies at the outlet [NEED_CITE: voltage and frequency standards by export market]. Getting this detail right before crating avoids weeks of downtime and protects sensitive motor windings from under-voltage damage.
Stocked Configuration, Dispatched on Your Timeline
The FX-20 sits in our ready-stock pool, meaning a single-unit order does not wait behind a container run. Once voltage, plug type, and control panel language are confirmed, the machine moves to pre-shipment testing. This is the advantage of ordering a Multifunction Edge Banding Machine in stock rather than commissioning a built-to-order unit — the gap between order and dispatch shrinks to the time needed for electrical verification and crating.
Single-Unit Orders Without a Minimum Order Penalty
Many workshops scaling from hand-applied banding to their first machine face a common barrier: suppliers who will only quote on bulk terms. This edge bander ships as a single unit in a wooden case with no volume requirement attached. A joinery startup replacing manual trimming with automated curved and straight banding can place one order, receive one machine, and start producing immediately without committing to a fleet they are not yet ready to fill.
What the 2500W Power Envelope Means for Daily Use
The total power draw of 2500W, split across trimming motors at 650W each and polishing motors at 180W each, keeps the FX-20 within reach of a standard single-phase workshop circuit. For facilities without three-phase supply, the 220V configuration runs on conventional infrastructure. The dual trimming stations handle the bulk of material removal on 0.3–3 mm banding stock, while the polishing heads deliver a finished edge without a secondary pass. The 1000 ml glue pot capacity is sized for intermittent production runs typical of small workshops, reducing glue degradation from prolonged heating [NEED_CITE: hot-melt adhesive open time and pot life in edge banding].
The Cost of Skipping Electrical Confirmation
A machine that arrives with the wrong plug or an incompatible frequency does not simply need an adapter — it may need entirely different motor windings or a step-up transformer that adds cost, floor space, and a failure point between the wall and the machine. Control panels set to a language the operator cannot read stall commissioning further, turning what should be a first-day startup into a multi-day translation exercise. These are not engineering defects. They are ordering-process failures, and they are entirely preventable [NEED_CITE: common causes of machinery commissioning delays in export markets].
Why Buyers Source This Machine Here
The FX-20 ships fully assembled in a wooden case, so there is no reassembly puzzle waiting at the destination port. Voltage and plug selection — EU, USA, AU, or UK — is confirmed at the order stage, not discovered at the dock. Pre-shipment testing produces a documented record with photographs, giving the buyer visibility into what was run and how it performed before the crate closes. The control panel language is set to the buyer’s specification from a selection that includes English, Spanish, or a custom option, so the operator can read the interface on day one. CE certification accompanies the shipment for customs and compliance documentation.
Documentation & Verification
- Electrical schematic confirming your specified voltage and plug type
- Factory test record run on material matching your panel thickness range
- Pre-shipment packing photographs showing the machine secured in its wooden case
- Operation and maintenance manual in your selected language
- CE declaration of conformity for customs clearance
- Machine specification sheet matching the dispatched configuration
Installation, Commissioning & Support
- Requires a dedicated 220V or 380V circuit matching the confirmed order specification
- Compact 100 × 46 × 41 cm footprint fits standard workshop benches without floor anchoring
- Arrives fully assembled — connect power, air supply at 0.5–0.8 MPa, and begin test runs
- Glue pot initial heat-up and temperature calibration should be the first commissioning step
- Trimming and polishing stations require alignment verification on your actual banding stock
- Spare glue pot liner and trimming cutters recommended as first-order consumables
Before You Request a Quote
To match the correct configuration to your shop, we need your local supply voltage and frequency, the plug standard your facility uses, your preferred control panel language, and the primary board materials and edge banding thickness you plan to run. If you have an existing compressor, confirm its output pressure so we can verify compatibility with the 0.5–0.8 MPa requirement.
Frequently Asked Questions
Q: What is the dispatch lead time and can I order a single unit?
A: Yes, single-unit orders are standard for this model. Because the FX-20 is held in ready stock, dispatch follows the completion of electrical configuration and pre-shipment testing. We confirm the timeline at order placement once your voltage, plug type, and language preferences are locked in.
Q: How do I confirm the correct voltage and plug type for my country?
A: Tell us your country and facility supply details at the inquiry stage. We cross-reference against the available options — 220V or 380V, with EU, USA, AU, or UK plugs — and document the confirmed configuration on the order form and electrical schematic before the machine is crated.
Q: Can the control panel be supplied in English or another language?
A: The control panel is configurable in Chinese, English, Spanish, or a custom language specified at order. We set the language before dispatch so the operator interface is readable on arrival, eliminating commissioning delays caused by untranslated menus.
Q: How is the machine protected during shipping?
A: Each unit ships fully assembled in a wooden case designed to absorb transit impacts. Pre-shipment packing photographs are provided so you can verify the securing method and crate condition before the machine leaves the factory floor.
Q: What spare parts and documentation come with the machine?
A: The shipment includes a spare parts list, operation and maintenance manual in your chosen language, electrical schematic, CE declaration, and factory test record. We recommend ordering consumable trimming cutters and glue pot liners with the initial shipment to cover early production needs.
