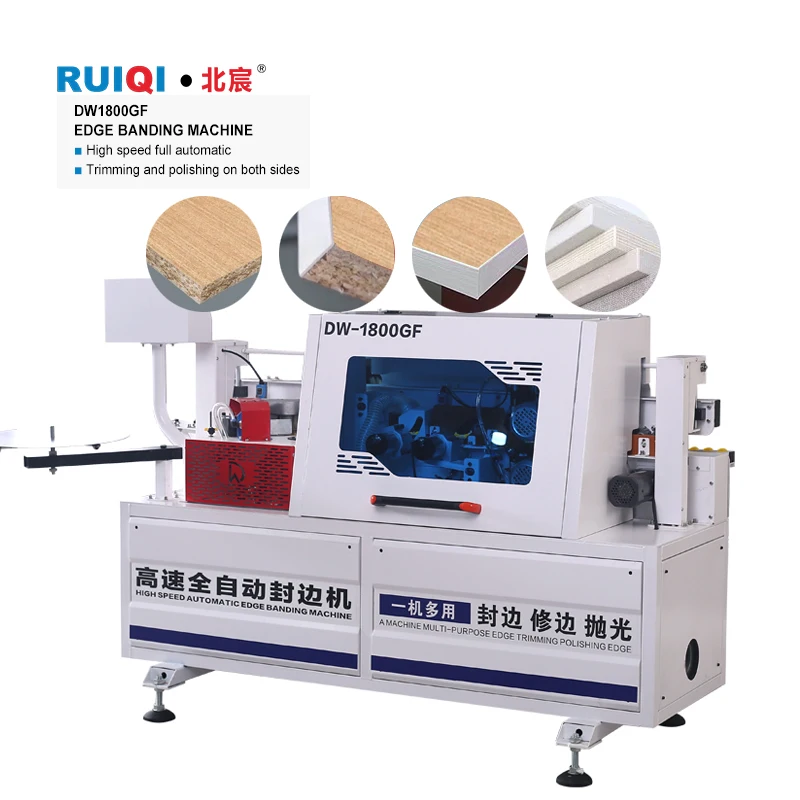

Board Production Line Mdf Hot Glue Electric Setm-2 Automatic Edge Banding Machine Trimmer Trimming Veneer Pvc
CE Certified ISO9001
Edge banding machine

Board Production Line Mdf Hot Glue Electric Setm-2 Automatic Edge Banding Machine Trimmer Trimming Veneer Pvc

This product is currently out of stock and unavailable. SKU: Board Production Line Mdf Hot Glue Electri-36334901 Category: Edge banding machine Description Additional information Table of ContentsDescriptionAdditional informationRelated productsWoodworking Cutting Automatic Portable Edge Bander Banding Tape Machine DW802DW102 Pre Milling Multifunctional Automatic Edge Banding MachinePortable Trade High Quality Corner Rounding Manual Machine Small Edge BandingPortable […]

20yrs
Experience
100+
Countries
OEM
Customizable
  • CE & ISO9001 certified -- meets global import standards
  • Full OEM/ODM: custom logo, voltage (110V-440V), multilingual panels
  • Factory-direct pricing with stable supply chain
  • Professional after-sales: remote support, warranty & spare parts
  • Suitable for small workshops to large industrial factories
Request a Free Quote WhatsApp Now

Direct Contact

woodmachinebc@aliyun.com +86 156 6441 3539

Products Description
DW1800 automatic edge banding machine advantages??/STRONG> Adopt imported motor and high quality electrical component. High precision and work efficiency. Automatic and precise gluing procedure as well as integrated double finish. Glue evenly. conveying stability. All the working area and specifications can be customized according to your requests. 1. It can achieve the gluing. end cutting. rough trimming. fine trimming. tracking. scraping and polishing functions automatically. 2.It applies glue in a stable and uniform way. 3. Profile tracking function rounds the four corners. making them more smooth and safer. 4. Automatic operation greatly improves edge banding efficiency and saves labor costs. 5. Suitable for processing all kinds of MDF. particleboard. plywood. ABB boards. PVC panels. organic glass plates and solid wood and other wood structure. and hardness of a similar plate. 6. Mobile table guide for the roll-ball differential structure. high positioning accuracy. 7. Mobile workstations with high-strength extruded aluminum alloy. high strength. non-deformation. 8. Mobile table surface oxidation treatment. beautiful and wearable. 9. The main blade and a crossed angle of inclination from the precision instrument visual display.
Product Paramenters
Model
DW1800


Total power
4.9KW


Standard features
Double-sided gluing. top and bottom trimming. top and bottom polishing. front and rear alignment. flexible edge scraping. suck
dust
Voltage
380V/220V/415V
Minimum length of sheet
20CM
Minimum width of sheet
10CM
Edge banding height
0-50MM
Edge banding thickness
0.3-3MM
Edge power/speed
160W 0-14M/min
Air source pressure
0.4-0.6Mpa
Transmission power/speed
180W 0-14M/min
Glue pot capacity
4000ml
Trimming power/speed
800W*2 24000r/min
Vacuum power
550W
Polishing power/speed
380W*2


Product Size
220*65*125CM
Product weight
320KG
Package Size
207*84*128CM(Heightened and widened bottom corners)


Why Choose Us
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products. Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ? We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality. Q2:Can I choose the Plug? Yes.we have EU.USA.AU.UK plug for your country use Q3:Is it OK to print my logo on the product? Yes.Please inform us formally before our production and confirm the design firstly for the mass production. Q4.I do not know Chinese.will the operation panel in English or French or other? Yes.all our machine are with Chinese and English.If you want only English or Spanish or other. we also can customize to you Q5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world. also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries. Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe. Q7.What to do if l have any other specifications for the current? lf you have any different requirements.just contact us and we will meet you. Q8.lf I need a sample for pretest. do you sale sample for this inquiry ? Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation. Q9.Can you produce the products according to my own drawings? Yes. we can do OEM according to your requirement

Technical Specifications

Certification
CE, ISO9001
Voltage Options
110V / 220V / 380V / 440V (customizable)
Origin
Shandong, China
OEM/ODM
Supported
Warranty
1 Year
After-Sales Service
Remote support & spare parts supply
Export Markets
100+ countries worldwide
Lead Time
Contact us for current lead time

* Detailed technical parameters (dimensions, motor power, processing speed, etc.) vary by model. Please contact us for the full spec sheet.

Shipping & Packaging

  • Professional export-grade wooden crate packaging
  • Stable supply chain -- on-time delivery guaranteed
  • Sea freight (FCL/LCL), air freight & express options
  • Customs clearance documentation provided
  • Exporting to 100+ countries: Europe, Americas, SEA, Africa, Latin America

After-Sales Support

  • 1-year warranty on all machines
  • Remote technical support via video call
  • English & Spanish-speaking support teams
  • Spare parts supply with fast international shipping
  • Operation manuals in multiple languages

Full OEM / ODM Customization

We support complete OEM/ODM services for global distributors, regional agents and brand owners. Customize any aspect of the machine to fit your market requirements.

Custom Logo & Branding
Your brand name, logo and color scheme on all visible surfaces
Voltage Customization
110V, 220V, 380V, 440V -- any frequency for any market
Multilingual Control Panels
English, Spanish, French, Arabic and more
Custom Packaging
Branded packaging, user manuals and accessory kits
Specification Adjustments
Motor power, processing dimensions and feature configurations
Certification Support
Assistance with CE, FCC, RoHS and other regional certifications
