Description
Locked electrical specs before dispatch — every DW-3600GF leaves the Shandong loading dock only after voltage, frequency, and plug type are confirmed in writing, preventing dead-on-arrival machines at your workshop.
Technical Specifications
| Parameter | Value |
|---|---|

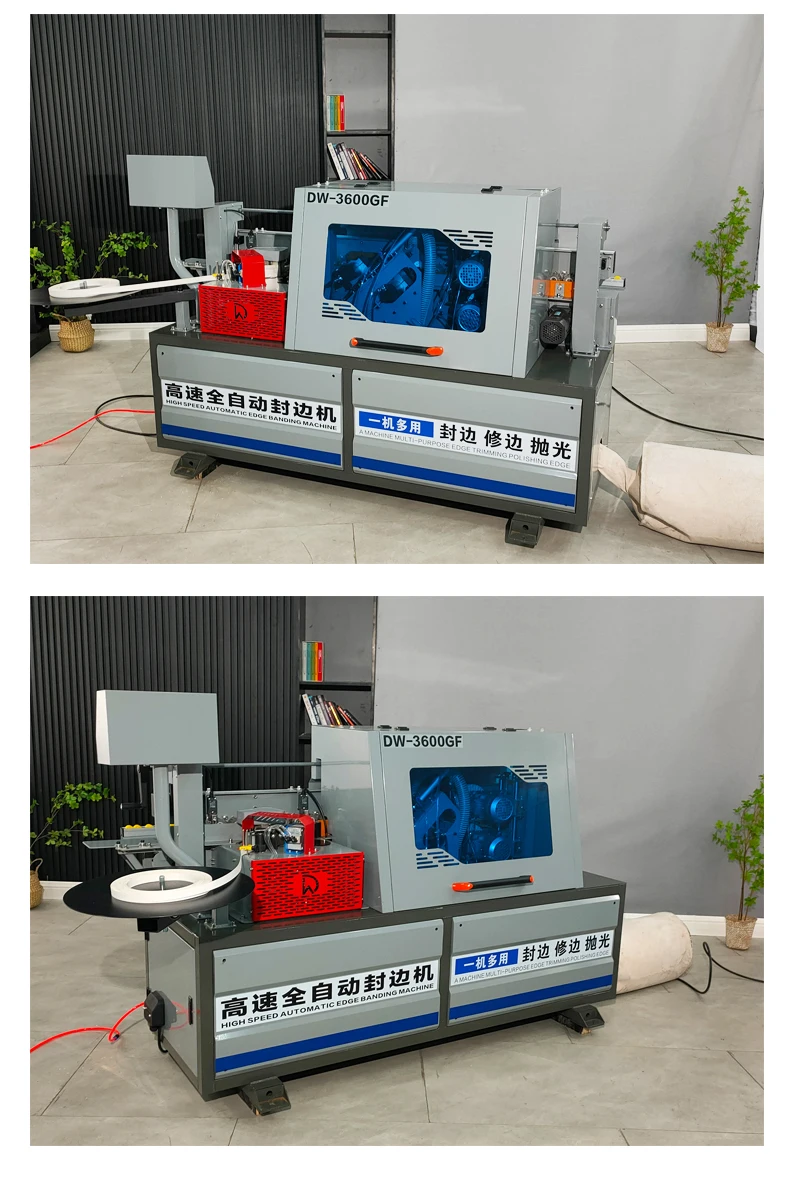

| Model | DW-3600GF |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4.9 kW |
| Voltage & Frequency | 380V Three-Phase Four-Wire (frequency basis not stated in source) |
| Equipment Size (L×W×H) | 2200 × 650 × 1250 mm |
| Net Weight | 320 kg |
| Feed Speed | 0–14 m/min |
| Edge Banding Type | Straight Edge Banding |
| Edge Band Height Range | 0–50 mm |
| Edge Band Thickness Range | 0.3–3 mm |
| Minimum Plate Length | 200 mm |
| Trimming Power | 800 W × 2 at 24000 r/min |
| Polishing Power | 400 W × 2 |
| Air Supply Requirement | 0.4–0.6 MPa |
| Standard Functions | Gluing, Rough & Fine Trimming, Front & Rear End Trimming, Scraping, Polishing, Vacuuming |
| Control Panel Language | Chinese, English (customizable to Spanish or other languages) |
| Plug Options | EU, USA, AU, UK |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door production | MDF panels with PVC edge banding |
| Custom furniture panel finishing | Particleboard and plywood with 0.3–3 mm banding |
| Small workshop straight edge finishing | Solid wood panels and veneer edge banding |
| Job-shop short-batch processing | Mixed substrates requiring fast thickness changeover |
Why the Voltage Question Must Come Before Dispatch
A stocked edge bander that does not match your local grid is a 320 kg paperweight.
I have watched containers get cleared at the port only for the buyer to discover the machine will not power up. The standard 380V configuration works across much of Asia and Europe, but a 440V or 220V three-phase site needs the motor windings and control transformer matched before the machine is crated. Sourcing a step-down transformer locally after delivery adds cost, delays commissioning, and often voids the electrical warranty because the machine was operated outside its specified input range [NEED_CITE: voltage and frequency standards by export market]. Confirming your exact supply at the order stage takes a single email and prevents weeks of downtime.
Stock Availability and Dispatch Timing
The DW-3600GF sits in the ready-stock pool as a complete unit, meaning the gluing, trimming, scraping, and polishing stations are assembled, piped for air, and wired at the factory. Single-unit orders ship without waiting for a production run to fill a container. This matters for workshops that have outgrown hand-held edge trimmers and need an inline machine on the floor within a typical multi-week lead time rather than a custom-build schedule.
Voltage and Plug Confirmation Workflow
Before any DW-3600GF leaves the warehouse, the order confirmation locks in your local voltage, frequency, and plug type from the EU, USA, AU, or UK options. If your site runs on a supply outside the standard range, the control transformer and motor connections are adjusted during final assembly. The pre-shipment test then runs the machine on the exact electrical configuration it will see in your workshop, so the first power-on at your site is a commissioning event, not a troubleshooting session [NEED_CITE: CE machinery directive requirements for industrial equipment].
What the Feed Speed and Station Sequence Mean for Your Panels

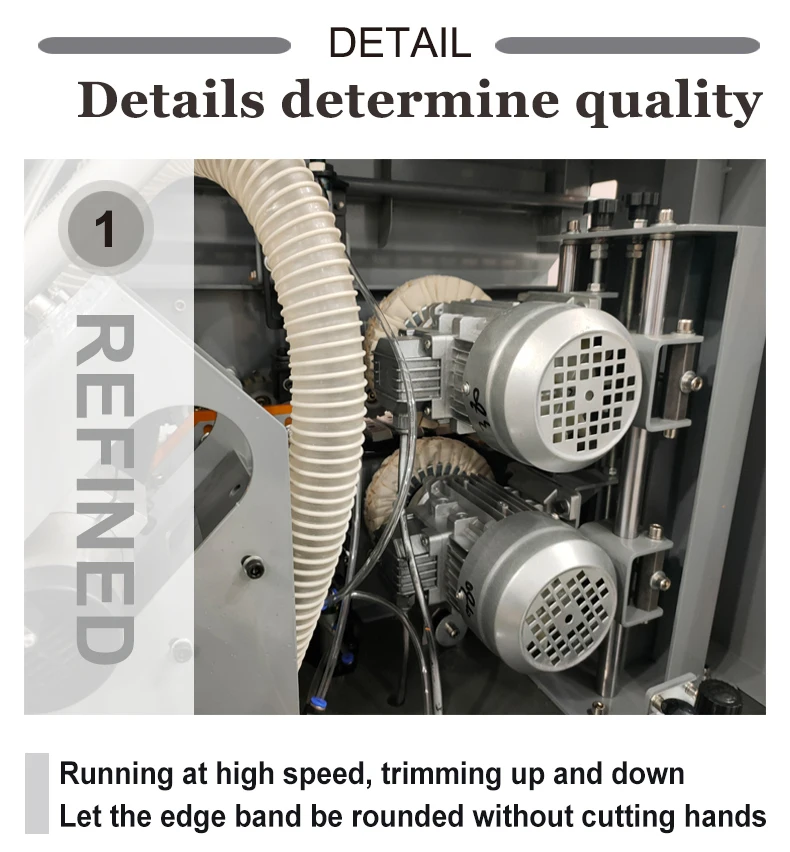

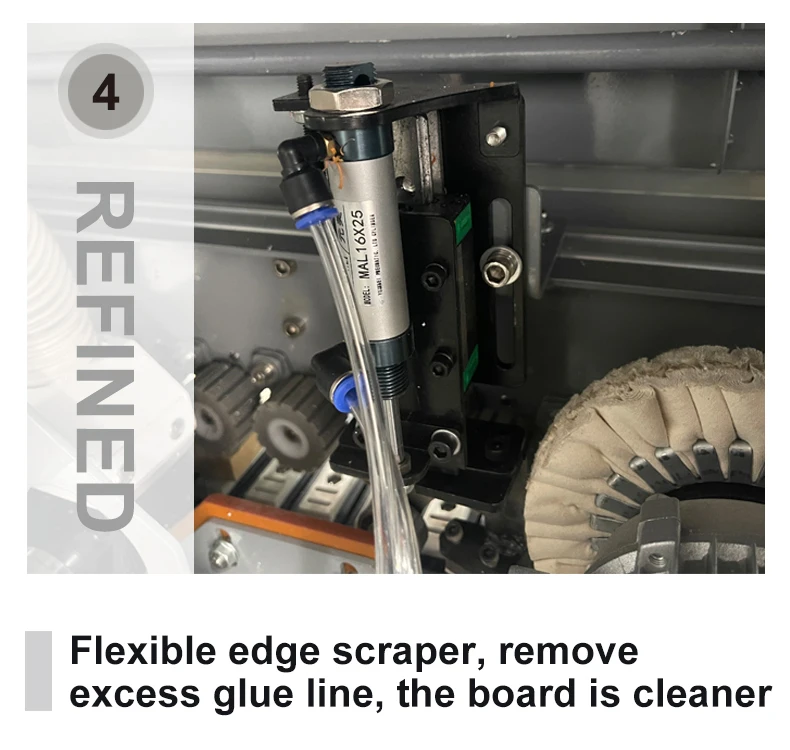

The 0–14 m/min variable feed speed lets you slow the line for thick 3 mm PVC on cabinet doors, giving the glue pot adequate open time for a full bond, then speed up for thin 0.3 mm veneer on shelving panels where excess glue squeeze-out is the main concern. The six-station sequence — gluing, rough and fine trimming, front and rear end trimming, scraping, and polishing — handles the complete edge finish in one pass. The 24000 r/min trimming motors cut cleanly through PVC without chipping the MDF substrate, while the scraping station removes the fine witness line left by the trimmer. The 0.4–0.6 MPa air requirement is compatible with standard workshop piston compressors, so no dedicated high-pressure supply is needed.
The Cost of Skipping Electrical Verification
When a machine arrives with the wrong voltage, the buyer faces a choice between sourcing a heavy-duty transformer or rewinding the main drive motor. Both options pull the machine out of production for days. The control board, glue pot heater, and trimming inverters all depend on the correct input, and a mismatch can damage solid-state components before the operator notices the fault. This is a preventable failure mode that accounts for a noticeable share of early commissioning disputes [NEED_CITE: common causes of industrial machine commissioning failure].
Why Buyers Source This Model Here
In-house manufacturing means the DW-3600GF is built, assembled, and tested under one roof, so the unit in stock is the exact configuration documented in the spec sheet. The four-stage quality check covers incoming components, in-process assembly, finished product testing, and pre-shipment verification with photographic records. Voltage, plug, and control panel language customization are treated as standard order parameters, not special requests. The same product family covers entry-level through full-function models, so a workshop that later needs a second line can scale without qualifying a new supplier.
Documentation & Verification
- CE declaration of conformity covering the DW-3600GF electrical and mechanical safety
- Factory test record running your specified edge band thickness before dispatch
- Electrical schematic showing confirmed voltage and circuit protection layout
- Operation and maintenance manual in your agreed language with spare parts list
- Packing photographs documenting crating and securing before container loading
Installation, Commissioning & Support
- Requires a level concrete floor supporting the 320 kg footprint without special reinforcement
- Dedicated three-phase circuit matching the confirmed voltage with appropriate breaker rating
- Arrives fully assembled; connect air supply at 0.4–0.6 MPa and power for first start
- Glue pot temperature and feed speed calibrated to your banding material during commissioning guidance
- Spare trimming blades and scraping tools included in the shipment for initial consumable coverage
- Daily vacuuming of trimming stations recommended to maintain edge finish quality
What We Need to Move Your Order Forward
Share your local voltage, frequency, and the plug type your electrician expects so we can match the DW-3600GF to your grid before crating. Confirm the edge band materials and thicknesses you run most often, along with the control panel language your operators need, so the machine arrives ready for your first production shift.
Frequently Asked Questions
Q: Is this model in stock, and what is the dispatch lead time for a single unit?
A: The DW-3600GF is held in the ready-stock pool as a fully assembled unit. Single-machine orders ship without waiting for a batch production run. Dispatch timing depends on the electrical and language customization required, which is confirmed at the order stage. We provide a firm shipping date once the voltage and plug configuration are locked in.
Q: How do I confirm voltage, frequency, and plug type before the machine ships?
A: During order confirmation, you provide your site’s electrical supply details. We match the motor windings, control transformer, and plug — available in EU, USA, AU, or UK configurations — to your grid. The pre-shipment factory test then runs the machine on that exact setup before it is crated.
Q: Can the control panel language be set to English or Spanish only?
A: Yes. The standard panel supports Chinese and English, and customization to Spanish or other languages is available as part of the order configuration. We confirm the language before final assembly so the operator interface matches your workshop from the first power-on.
Q: What spare parts ship with the machine, and how do I reorder consumables?
A: Each shipment includes a spare parts list with trimming blades, scraping tools, and glue pot components matched to the DW-3600GF. Reordering consumables is handled through the same channel as your original order, with part numbers documented in the manual for straightforward identification.
Q: Do you provide installation guidance after delivery?
A: Yes. The DW-3600GF ships with the operation manual, electrical schematic, and commissioning guidance covering power connection, air supply setup at 0.4–0.6 MPa, and initial feed speed and glue temperature adjustment for your specific edge banding material.
