Description
Verified Voltage Before Dispatch — every DW102 automatic edge banding machine ships only after your local power supply and plug type are confirmed in writing, preventing the three-week transformer wait I once saw on a misquoted order.
Technical Specifications
| Parameter | Value |
|---|---|

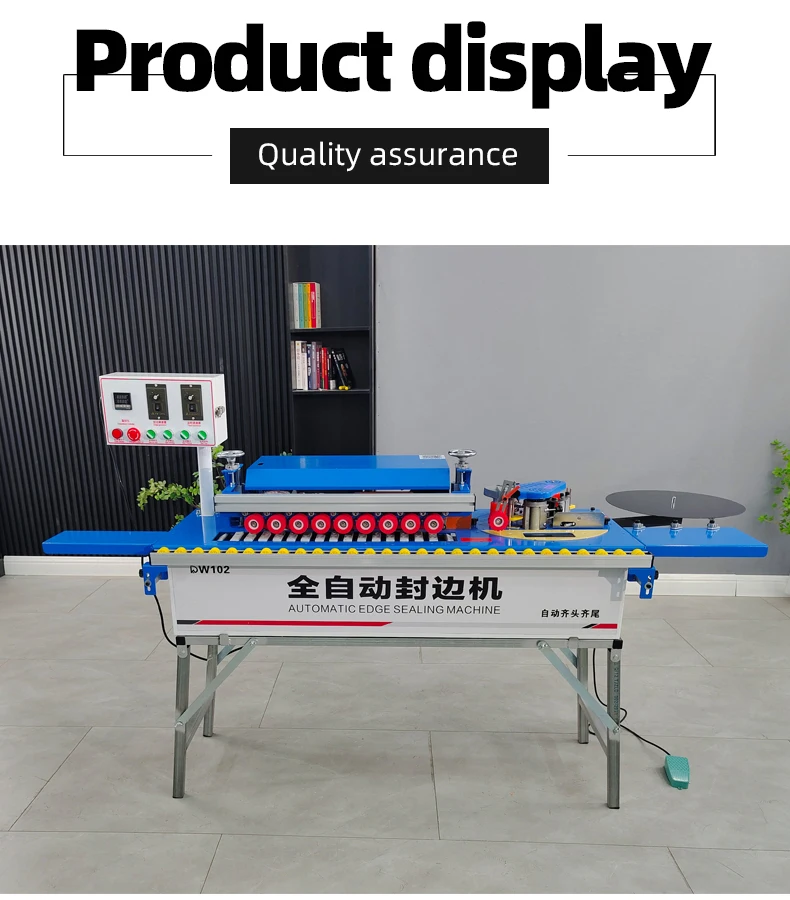

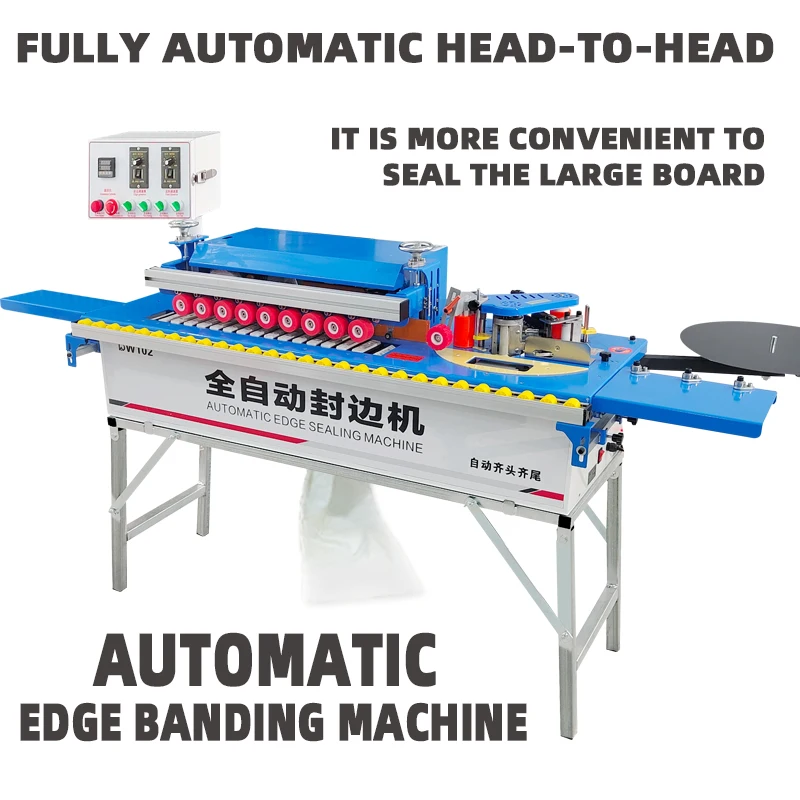

| Model | DW102 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 3800W |
| Voltage & Frequency | 220V / 380V / customization (frequency to be confirmed per destination) |
| Edge Banding Height Range | 0–50mm |
| Edge Banding Thickness Range | 0.3–3mm |
| Minimum Sheet Length | 25cm |
| Minimum Sheet Width | 5cm |
| Glue Pot Capacity | 1000ml |
| Trimming Motor Power | 650W × 2 |
| Polishing Motor Power | 180W × 2 |
| Edge Motor Power | 20W |
| Transmission Motor Power | 60W |
| Vacuum Power | 1200W |
| Air Source Pressure Requirement | 0.5–0.8 MPa |
| Overall Dimensions (L×W×H) | 128 × 47 × 69 cm |
| Net Weight | 75 kg |
| Standard Features | Curved and straight edge banding, edge trimming, polishing, automatic head and tail cutting, vacuum hold-down |
| Language Options | Chinese, English; customizable to Spanish or other languages |
| Plug Options | EU, USA, AU, UK |
| Feed Speed | (basis to be confirmed) |
| Panel Thickness Range | (basis to be confirmed) |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door and carcass edge finishing | MDF, particleboard with PVC or veneer banding |
| Custom furniture panel edge banding | Plywood, blockboard, solid wood panels |
| Small-batch curved panel trimming | Polymer doors, shaped MDF components |
| Workshop-scale joinery production | Melamine-faced boards with 0.3–3mm edge tape |
Why the Voltage Question Must Come Before the Invoice
A machine that cannot plug into your workshop floor is not a machine — it is a crate.
I handled dispatch on a compact edge bander a few years back. The paperwork said 380V, the buyer’s workshop ran 220V single-phase, and nobody caught the mismatch until the electrician showed up on delivery day. The operator stood there with a panel stack waiting to be banded while a transformer got sourced over three weeks. That automatic edge banding machine in stock fast delivery promise meant nothing when the voltage was wrong [NEED_CITE: voltage and frequency standards by export market]. With the DW102, we request a photo of your distribution board or a written voltage confirmation before the crate is closed.
Stocked Configuration, Dispatch Timeline Quoted Upfront
The DW102 sits in our ready-stock pool as a single-unit order option. Once your voltage, frequency, and plug type are locked, the unit moves through a pre-shipment electrical check and is released for dispatch. No production queue, no container consolidation wait. This is how an automatic edge banding machine in stock fast delivery actually works — confirmed configuration, tested unit, documented dispatch date.
What Ready Stock Means for a Growing Workshop
Smaller cabinet shops and joinery startups rarely need a full line on day one. They need one reliable edge bander that handles both straight and curved panels without consuming the entire workshop floor. The DW102 fits a 128 × 47 × 69 cm footprint and weighs 75 kg, so it rolls into place without a forklift. When volume grows and you add a sliding table saw or boring machine later, the bander is already producing [NEED_CITE: typical production scaling path for small furniture workshops]. Ordering from stocked inventory means your operator starts learning the machine this month, not next quarter.
Reading the Specs That Actually Matter on the Shop Floor
The 1000ml glue pot capacity means the operator can run a sustained batch of panels before stopping to refill — critical when you are banding cabinet sets in sequence. The dual 650W trimming motors handle both sides of the panel edge in one pass, so you get a clean flush trim on PVC and veneer tape from 0.3mm up to 3mm thick without swapping tooling. The vacuum hold-down at 1200W keeps lighter MDF and particleboard sheets stable during feed, which is where inconsistent edge quality usually starts on smaller machines. Air pressure between 0.5 and 0.8 MPa drives the pneumatic actuators for head and tail cutting; below that range, the cutter may not fully engage and you will see incomplete end trims.
What Happens When Configuration Gets Skipped
I have seen workshops receive edge banders where the control panel text was in a language the operator could not read. Commissioning stalled while translated stickers were printed and applied. On another order, a buyer assumed the plug would match and discovered on arrival that the machine needed a dedicated circuit their workshop did not have. These are not manufacturing defects — they are quotation gaps. The DW102 supports multilingual control panels and EU, USA, AU, or UK plug configurations, but only if someone asks the right questions before the order is confirmed [NEED_CITE: common commissioning delays in imported woodworking machinery].
Why Procurement Through This Channel Works
Single-unit orders are accepted without minimum order negotiation. Voltage is confirmed in writing per order, not assumed from a destination country stereotype. Each DW102 ships with a factory test record showing it ran your specified panel material before crating. Spare parts lists are included so you can reorder trimming cutters or polishing pads without reverse-engineering part numbers. Electrical schematics travel with the machine so your local electrician can troubleshoot without waiting for an overseas video call.
Documentation & Verification
- Electrical schematic and voltage confirmation document matched to your DW102 order
- Operation and maintenance manual in your agreed language, not generic English-only
- Factory test record on your specified panel thickness and edge material before dispatch
- Packing photographs of the crated DW102 shared prior to carrier pickup
- Spare parts list with reorder codes for trimming blades and polishing wheels
Installation, Commissioning & Support
- Requires a dedicated circuit matching the confirmed DW102 voltage (220V or 380V) with appropriate breaker rating
- Air compressor must deliver 0.5–0.8 MPa to the machine’s pneumatic inlet for reliable head and tail cutting
- Arrives fully assembled; position on level floor with clearance around the 128 × 47 × 69 cm frame for panel handling
- Glue pot preheating and feed speed calibration performed during first startup with your actual panel stock
- Trimming and polishing alignment verified on-site using sample MDF and plywood offcuts from your workshop
What We Need to Quote Your DW102 Accurately
Send us your workshop voltage and phase, the plug type on your existing outlets, the panel materials and edge banding thicknesses you run most often, and your preferred control panel language. If you have a target commissioning date, include that so we can align dispatch.
Frequently Asked Questions
Q: What voltage and plug options are available, and how do I confirm before ordering?
A: The DW102 supports 220V and 380V configurations with EU, USA, AU, and UK plug types. Before dispatch, we require written confirmation of your workshop voltage, phase, and frequency. An electrical schematic is generated for your specific unit and included with the shipment so your electrician can prepare the circuit in advance.
Q: Is the DW102 in stock — what is the dispatch lead time for a single unit?
A: The DW102 is held in ready stock for single-unit orders. Once voltage, plug type, and language are confirmed, the unit goes through a pre-shipment electrical and functional test. Dispatch lead time is quoted at the point of order confirmation based on current stock and your destination port.
Q: What panel materials and edge banding types does the DW102 handle?
A: The machine processes MDF, particleboard, plywood, blockboard, and polymer door panels. It applies PVC and veneer edge banding from 0.3mm to 3mm thickness, handling both straight and curved edges with automatic head and tail cutting, trimming, and polishing in a single pass.
Q: Can I get the control panel and manual in my language?
A: Yes. The DW102 control panel is available in Chinese and English as standard, with customization to Spanish or other languages on request. The operation and maintenance manual is supplied in your agreed language so your operator can follow setup and daily maintenance procedures without translation delays.
Q: What spare parts ship with the machine, and how do I reorder consumables?
A: Each DW102 ships with a spare parts list including part codes for trimming cutters, polishing pads, and wear items. This list lets you reorder directly without reverse-engineering specifications. We recommend stocking extra trimming blades if you run high volumes of abrasive melamine-faced board.
