Description
Ready Stock Dispatch — DW102 units are pre-assembled and tested at our Shandong facility, with voltage and language configured to your workshop specifications before crating, eliminating typical multi-week lead times for a single-unit edge banding machine order.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW102 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 3800W |
| Voltage & Frequency | 220V / 380V / Customization |
| Trimming Power | 650W × 2 |
| Polishing Power | 180W × 2 |
| Vacuum Power | 1200W |
| Transmission Power | 60W |
| Edge Power | 20W |
| Glue Pot Capacity | 1000ml |
| Edge Banding Thickness | 0.3–3mm |
| Edge Banding Height | 0–50mm |
| Minimum Sheet Length | 25cm |
| Minimum Sheet Width | 5cm |
| Air Source Pressure | 0.5–0.8 MPa |
| Product Size (L×W×H) | 128 × 47 × 69cm |
| Product Weight | 75kg |
| Language Options | Chinese and English standard; other languages customizable |
| Certifications | CE, ISO 9001 (stated in company profile) |

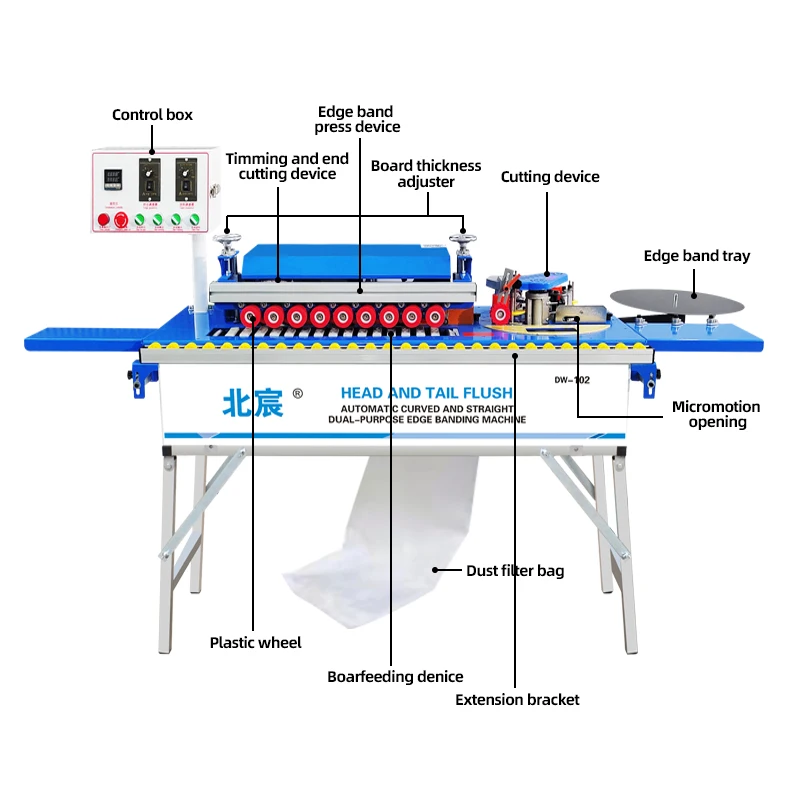

| Key Features | Curved and straight edge banding, edge trimming, polishing, automatic head and tail cutting, built-in vacuum system |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door edge sealing | MDF, particleboard with PVC or veneer edge banding |
| Custom furniture panel finishing | Plywood, blockboard with 0.3–3mm edge material |
| Small-batch curved panel work | Polymer doors and shaped wood panels |
| Workshop backup edge bander | Secondary unit for peak-order overflow in furniture factories |
| Joinery startup production | Medium to large furniture and cabinet components |
Why the Voltage Question Should Come Before the Price on Any Edge Bander
Confirm your local voltage and frequency in writing before the purchase order is signed — not after the crate arrives at your dock.
I once watched a customer in South America send a video of his brand-new edge bander, the motor humming loud but the feed chain frozen. The machine was wired for 380V/50Hz while his workshop ran on 220V/60Hz. The cost to rewind the motor on-site nearly matched the machine itself. Every DW102 edge banding machine in stock ships only after voltage, frequency, and plug type are confirmed on the electrical schematic, because a machine that cannot run is not a bargain — it is scrap metal taking up floor space [NEED_CITE: voltage and frequency standards by export market].
Stock Availability Without the Guesswork
The DW102 is held in pre-assembled inventory so that a single-unit order does not get pushed behind a container-load production run. When you need an edge banding machine in stock for immediate workshop deployment, the unit is pulled from the floor, given a pre-shipment functional test on your specified panel material, and crated with the spare parts kit already inside. No waiting for a batch to finish before your machine enters the queue.
Dispatch Timing You Can Plan Around
Fast delivery matters most when a workshop is scaling from manual edge banding and cannot afford weeks of idle capacity. The DW102 ships as a compact 75kg unit that fits standard LCL consolidation, meaning you avoid the cost and complexity of booking a full container for one machine. Once voltage and language preferences are locked, the dispatch window is measured in days, not production cycles [NEED_CITE: CE machinery directive requirements for industrial equipment].
What the Numbers Mean on the Workshop Floor
The 0.3–3mm edge banding thickness range covers PVC and veneer — the two materials that account for the vast majority of cabinet and furniture edge work. If you run ABS at the thick end of that range, the trimming motors (650W × 2) have adequate headroom for clean flush cuts on standard panel substrates. The 1000ml glue pot is sized for intermittent production rather than continuous eight-hour shifts, which matches how most small workshops actually operate: short runs of mixed panel sizes with frequent changeovers. The built-in 1200W vacuum system captures trim waste at the source, reducing the dust load on your main extraction line and keeping the polishing station clear for a clean finish. Panel handling starts at 25cm length and 5cm width, so small drawer components and narrow shelving strips can be edged without manual workaround jigs.
The Hidden Cost of Ordering Blind
When a buyer selects an edge bander from a catalog photograph without confirming edge material compatibility, the machine may glue PVC cleanly but leave visible glue lines on veneer or fail to trim ABS without chipping. The result is rework time that quietly erodes the margin the machine was supposed to protect. Language is another silent failure point: a control panel in a language the operator cannot read stalls commissioning and invites parameter errors that show up only after panels reach assembly [NEED_CITE: common edge banding defects caused by incorrect machine setup].
Why This Sourcing Path Works for Single-Unit Orders
The DW102 comes from a product family that scales from entry-level to full-function, so if your volume grows, you can add a higher-tier model from the same manufacturer without retraining operators on an unfamiliar interface. Voltage and language customization are treated as standard order steps, not special requests that add lead time. Every unit undergoes a four-stage quality check — incoming material, in-process, finished product, and pre-shipment verification — before it leaves the factory floor. An engineer reviews your panel material, edge banding type, and production volume before the quotation is issued, so configuration decisions are made before money changes hands rather than after the machine arrives. Factory visits are available for buyers who want to see the DW102 run their own sample panels before committing.
Documentation & Verification
- CE declaration of conformity matching the DW102 model designation
- Electrical schematic with your confirmed voltage and plug type before dispatch
- Factory test record run on your specified panel thickness and edge material
- Operation and maintenance manual in the agreed language, included inside the crate
- Spare parts list with part numbers for immediate reordering reference
- Packing photographs sent before the crate is sealed
Installation, Commissioning & Support
- 128 × 47 × 69cm footprint requires a level floor area with clearance on both feed and exit sides
- 220V or 380V dedicated circuit with breaker rated above the 3800W total power draw
- Ships fully assembled; connect air source at 0.5–0.8 MPa and power to begin commissioning
- Glue pot temperature and feed speed calibrated during first run on your panel stock
- Trimming and polishing alignment verified against your 0.3–3mm edge banding material
- Spare wear parts included for immediate replacement scheduling without downtime
Before You Send the Inquiry
To get a configuration that runs on day one, share your local voltage and frequency, the edge banding material you use most (PVC, veneer, or ABS), your typical panel thickness range, and whether the operator will need a control panel language beyond Chinese or English. If you are replacing an existing machine, note its current feed speed so the DW102 can slot into your line without creating a bottleneck upstream or downstream.
Frequently Asked Questions
Q: What is the dispatch lead time and is the DW102 currently in stock?
A: The DW102 is held in pre-assembled stock. Once you confirm voltage, frequency, and language preference, the unit goes through a pre-shipment functional test and is crated for dispatch. Lead time is measured in days from order confirmation, not weeks, because no production slot is needed.
Q: Can I order a single unit, and what are the shipping options?
A: Single-unit orders are standard for the DW102. At 75kg with a compact 128 × 47 × 69cm footprint, the machine ships via LCL consolidation without requiring a full container. Shipping options are quoted based on your destination port or door address at the inquiry stage.
Q: How do I confirm voltage and plug type for my country before ordering?
A: During the inquiry, you provide your workshop voltage, frequency, and plug standard. An electrical schematic is then issued showing the confirmed configuration. The machine is wired and tested to that specification before dispatch, and the schematic is included in your documentation package.
Q: What edge banding materials and thicknesses does the DW102 handle?
A: The DW102 handles edge banding from 0.3mm to 3mm thick, covering standard PVC and veneer materials used in cabinet and furniture production. If you work with ABS or specialty materials at the upper end of the range, share your exact specification so trim and polish settings can be verified before shipment.
Q: Is the operation panel available in English or other languages?
A: Chinese and English are standard on the DW102 control panel. Additional languages can be configured before dispatch as part of the standard order process. Specify your preferred language at the inquiry stage so it is loaded before the pre-shipment test.
