Description
Fast Dispatch, Factory Verified — the DW802 ships from our Shandong warehouse with voltage pre-confirmed, plug type matched, and a test record signed off before it leaves the floor.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW802 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4200W |
| Voltage Options | 220V / 380V / customization |
| Edge Banding Height Range | 0–50 mm |
| Edge Banding Thickness Range | 0.3–3 mm |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 10 cm |
| Glue Pot Capacity | 4000 ml |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Edge Feed Power | 140W |
| Transmission Power | 140W |
| Vacuum Power | 1200W |
| Air Source Pressure | 0.4–0.8 MPa |
| Machine Dimensions (L×W×H) | 130 × 60 × 95 cm |
| Net Weight | 135 kg |
| Assembly State | Fully assembled, straight-edge only |
| Control System | PLC & Motor Core Components |
| Language Options | Chinese and English standard; Spanish and others on request |
| Plug Options | EU, USA, AU, UK |
| Feed Speed | Not stated in source (basis to be confirmed) |
| Panel Thickness Range | Not stated in source (basis to be confirmed) |
| Tolerance | Not stated in source (basis to be confirmed) |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edge sealing | MDF and particleboard with PVC edge banding |
| Home decoration panel finishing | Plywood and ecological board with 0.3–3 mm veneer |
| Small-batch furniture production | Solid wood panels requiring straight-edge banding |
| Workshop-scale joinery | Particleboard shelving and carcass components |
Why the Voltage Question Must Come Before the Quotation
Every DW802 Automatic Edge Banding Machine in stock leaves our warehouse with a confirmed electrical schematic matched to your country’s grid.
I once watched a customer in Southeast Asia receive a machine that sat idle for two weeks because the local supply was 220V/60Hz and the unit had been wired for 380V/50Hz. The dealer had never asked. That kind of oversight turns a ready-stock order into a costly delay. [NEED_CITE: voltage and frequency standards by export market] When you order the DW802, the voltage, frequency, and plug type are locked in before dispatch, not discovered on arrival.
What Ready Stock Actually Means for Your Workshop

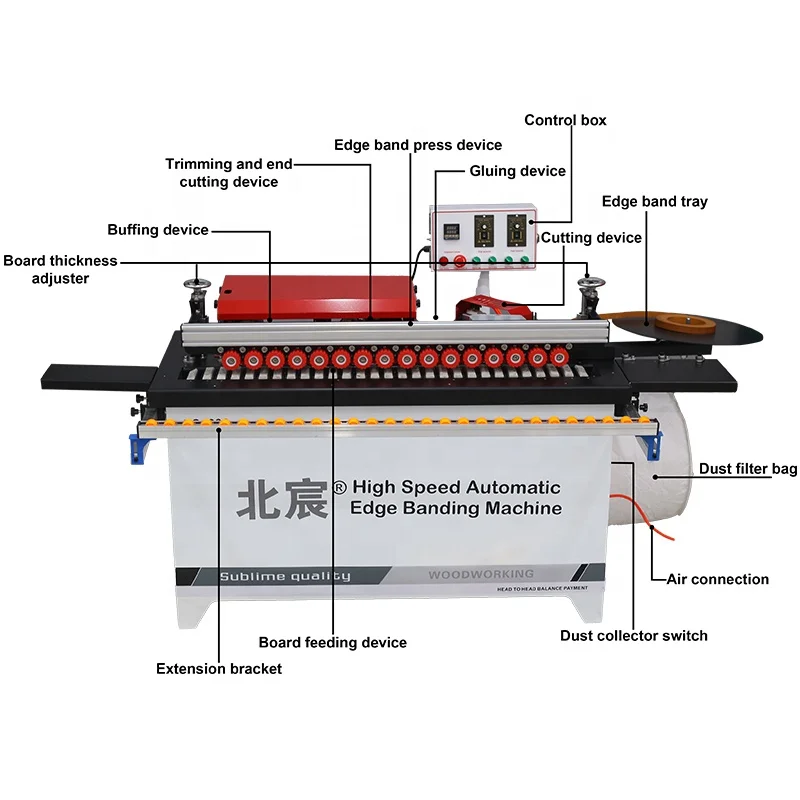

Keeping an Automatic Edge Banding Machine in stock is only useful if it ships in the configuration you need. The DW802 sits on our floor fully assembled, with the glue pot, trimming units, and polishing stations already calibrated. Once your voltage and language preferences are confirmed, the machine moves to pre-shipment testing. You receive a signed test record showing it ran cleanly on material within its specified thickness and banding range before it was crated.
Compact Footprint, Real Throughput for Small Shops
The DW802 measures 130 × 60 × 95 cm and weighs 135 kg. That footprint fits against a wall in a single-car garage or a shared workshop bay. I have scheduled dispatch for woodworking startups operating out of spaces no larger than a two-bay shed. The compact size does not mean light duty — the 4200W total power allocation across trimming, polishing, feed, and vacuum motors gives this edge bander enough headroom for daily MDF and particleboard runs without thermal cutouts. [NEED_CITE: CE machinery directive requirements for industrial equipment]
Reading the Numbers That Matter on a Small Edge Bander

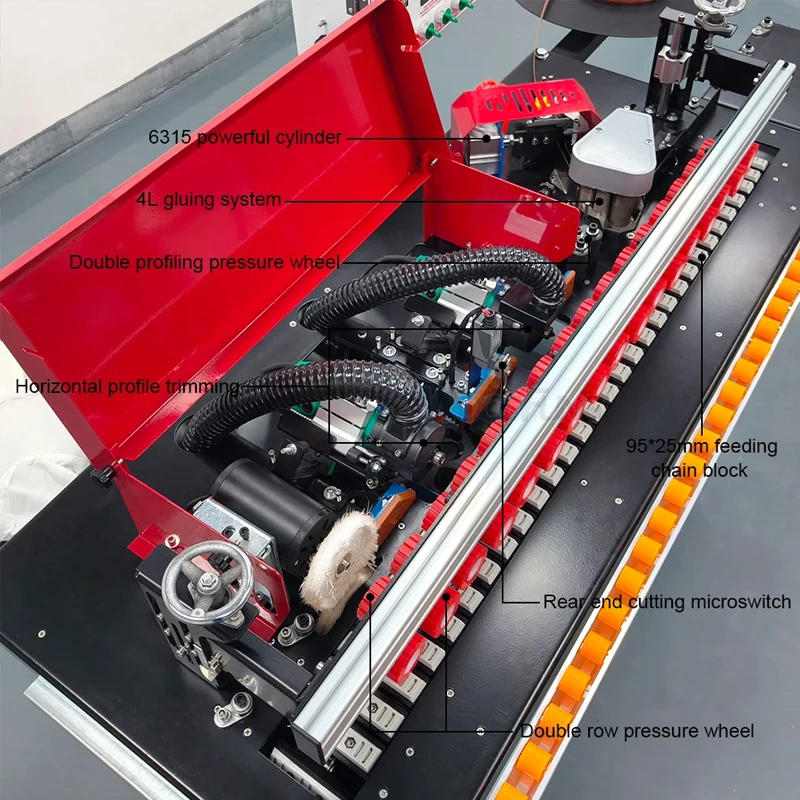

The 4000 ml glue pot capacity means an operator can run multiple panels before stopping to refill, which matters when you are sealing a batch of cabinet sides in one session. The dual 800W trimming motors provide enough torque to clean up PVC and wood veneer banding from 0.3 mm to 3 mm without stalling on denser substrates. The integrated 1200W vacuum system pulls trim waste and dust away from the polishing zone, keeping the finished edge clean and reducing post-process wiping. Air pressure between 0.4 and 0.8 MPa drives the pneumatic actuators for head-and-tail cutting and trimming engagement — most small workshop compressors cover that range, but it is worth confirming yours does before the machine arrives. The minimum sheet dimensions of 25 cm length and 10 cm width let you edge-band smaller offcuts and drawer components that larger machines cannot feed.
The Hidden Cost of Skipping Pre-Dispatch Verification
When a buyer focuses only on price and skips the voltage and dimension check, the problems surface after delivery. A machine wired for the wrong grid sits in a crate while an electrician rewires it at the buyer’s expense. A unit that barely fits through the workshop door may need the frame disassembled, voiding alignment calibration. [NEED_CITE: common causes of commissioning delays in imported woodworking machinery] I now confirm door clearance, ceiling height, and compressor capacity with every buyer before the DW802 leaves our loading bay — because fixing those issues remotely costs far more than a ten-minute conversation up front.
Why Buyers Source This Model Through Our Warehouse
The DW802 is one model in a broader family of edge banding machines we manufacture, which means spare parts share commonality across the range and are not orphaned if your production grows. Our four-stage quality check runs on every unit before it is marked as ready stock — incoming material inspection, in-process assembly check, finished product test, and pre-shipment verification. Voltage customization is not an afterthought; it is part of the standard order workflow, along with plug type and control panel language. You can request a sample processing test on your own material before the machine ships, so edge quality is confirmed against your actual board stock. The engineer who configures your DW802 is the same person available for after-sales questions, not a separate support desk reading from a script.
Documentation & Verification
- CE declaration of conformity covering the DW802 automatic edge banding machine
- Electrical schematic and voltage confirmation matched to your local grid standard
- Factory test record showing edge banding run on specified material thickness
- Operation and maintenance manual in your agreed language with illustrated diagrams
- Spare parts list packed inside the crate for immediate reordering reference
Installation, Commissioning & Support
- Confirm workshop doorway and ceiling clearance against the 130 × 60 × 95 cm machine dimensions before delivery
- Provide a dedicated circuit matching the confirmed voltage and 4200W total power draw
- Machine ships fully assembled; connect power, air supply at 0.4–0.8 MPa, and run first test panel

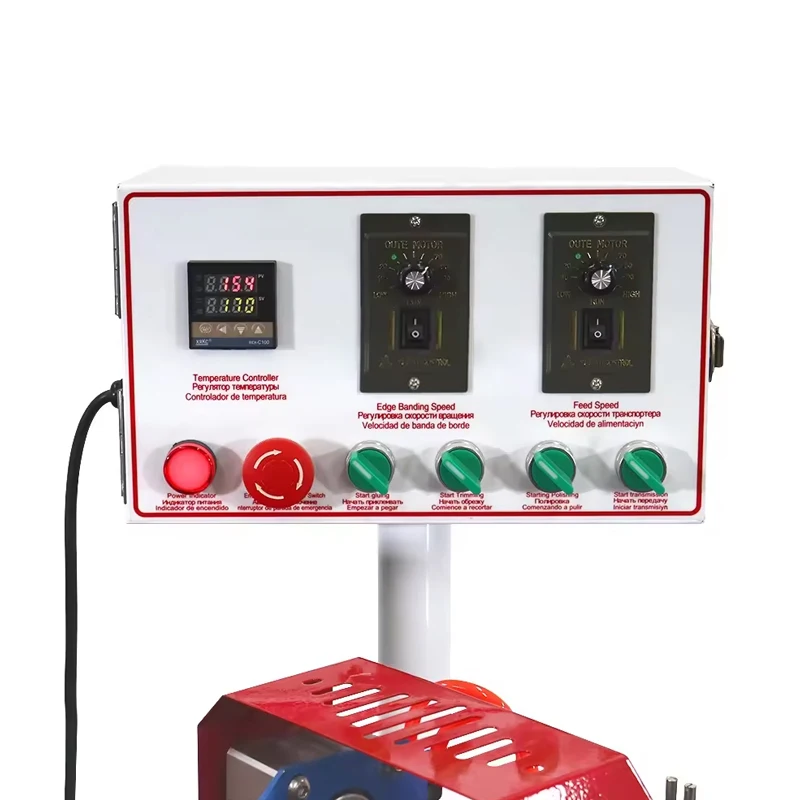

- PLC control panel set to your chosen language for immediate operator familiarization
- Trimming and polishing calibration verified during pre-shipment test and documented in included record
What We Need to Move Your Order Forward
To dispatch a DW802 that arrives ready to run, share your local voltage and frequency, the plug type your workshop uses, and the edge banding material and thickness you work with most often. If your space is tight, send doorway width and ceiling height so we confirm fit before crating. Let us know your preferred control panel language — English and Spanish are standard, and other languages are available on request.
Frequently Asked Questions
Q: What voltage and plug options are available, and is my country’s standard supported in stock?
A: The DW802 supports 220V, 380V, or custom voltage configurations, with EU, USA, AU, and UK plug options available. Before dispatch, we confirm your local voltage and frequency and provide an electrical schematic. If your country uses a standard outside these four plug types, we configure the correct one during the pre-shipment preparation stage.
Q: How quickly can the DW802 be dispatched after order confirmation?
A: Since the DW802 is held as ready stock, dispatch follows once voltage, plug type, and language are confirmed and the pre-shipment test is completed. This preparation typically takes a short period before the machine is crated and handed to the freight forwarder. Exact timing depends on the shipping route and your port of entry.
Q: Can I order a single unit, or is there a minimum order quantity?
A: The DW802 is available as a single-unit order. There is no minimum quantity requirement, which suits workshops adding their first automatic edge bander or replacing a manual process. Each unit goes through the same four-stage quality check regardless of order size.
Q: What edge banding materials and thicknesses does the DW802 handle out of the box?
A: The machine handles PVC and wood veneer edge banding from 0.3 mm to 3 mm thickness, with a banding height range of 0 to 50 mm. It works on MDF, particleboard, plywood, solid wood board, and ecological board. The dual 800W trimming motors manage the full thickness range without requiring tooling changes between common materials.
Q: Is installation guidance provided, and what after-sales support is available once the machine arrives?
A: The DW802 ships fully assembled with an operation manual in your chosen language, a spare parts list, and a factory test record. Installation guidance covers power connection, air supply setup, and first-run calibration. After delivery, the same engineer who configured your machine handles technical questions and spare parts requests.
