Description
Fast Dispatch From Stock — DW1800 units leave our Shandong warehouse only after your local voltage, frequency, and plug type are confirmed in writing, avoiding the two-week transformer delay I once watched a Southeast Asian cabinet shop endure.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW1800 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4.9 kW |
| Voltage Options | 380V / 220V / 415V (confirm frequency 50/60 Hz before dispatch) |
| Feed Speed | 0–14 m/min |
| Edge Banding Height Range | 0–50 mm |
| Edge Banding Thickness Range | 0.3–3 mm |
| Minimum Sheet Length | 200 mm |
| Minimum Sheet Width | 100 mm |
| Trimming Motor Power | 800 W × 2 at 24,000 r/min |

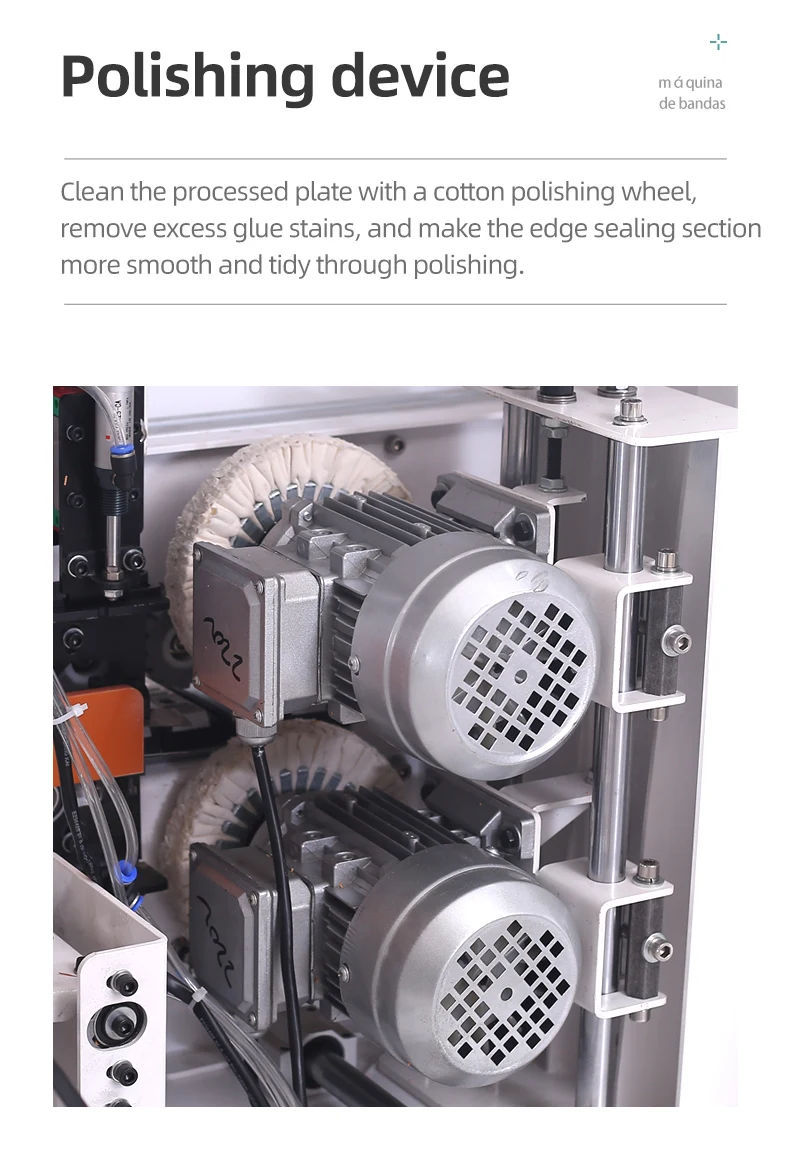

| Polishing Motor Power | 380 W × 2 |
| Vacuum Power | 550 W |
| Glue Pot Capacity | 4,000 ml |
| Air Source Pressure | 0.4–0.6 MPa |
| Overall Dimensions (L×W×H) | 2,200 × 650 × 1,250 mm |
| Net Weight | 320 kg |

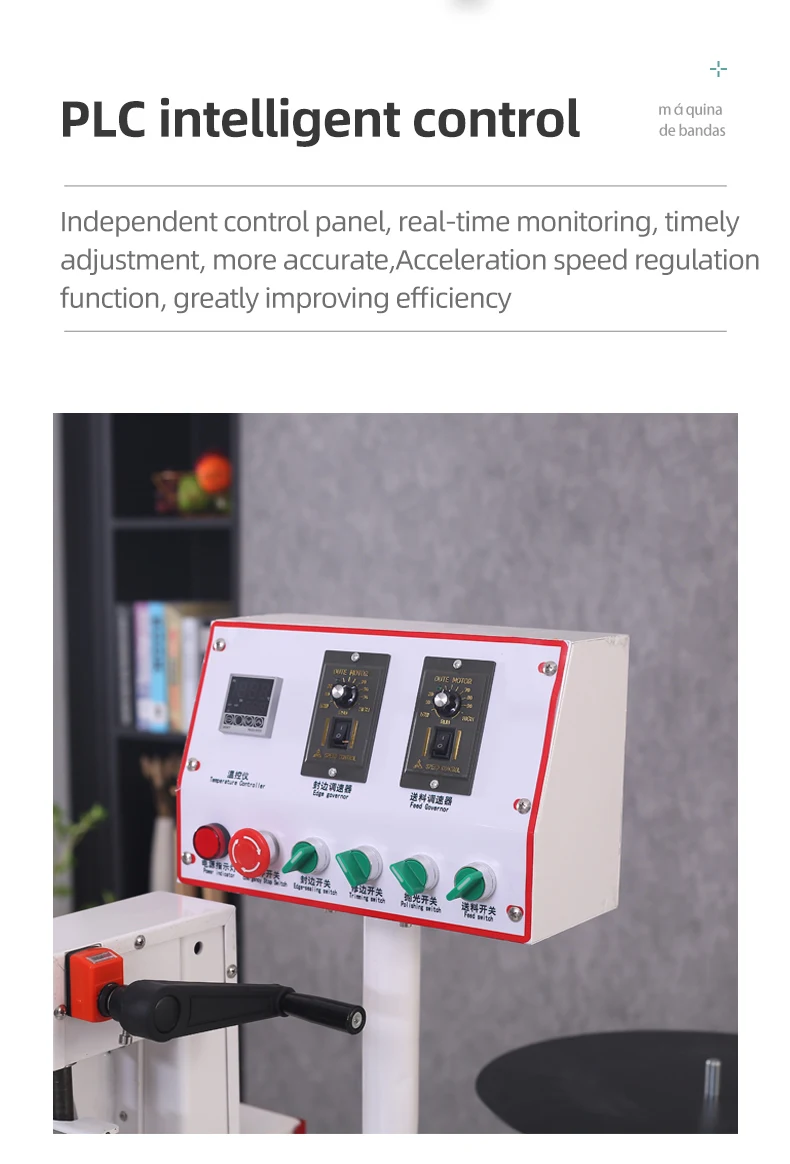

| Control Panel Language | Chinese / English (customizable to Spanish and others) |
| Plug Options | EU / USA / AU / UK |

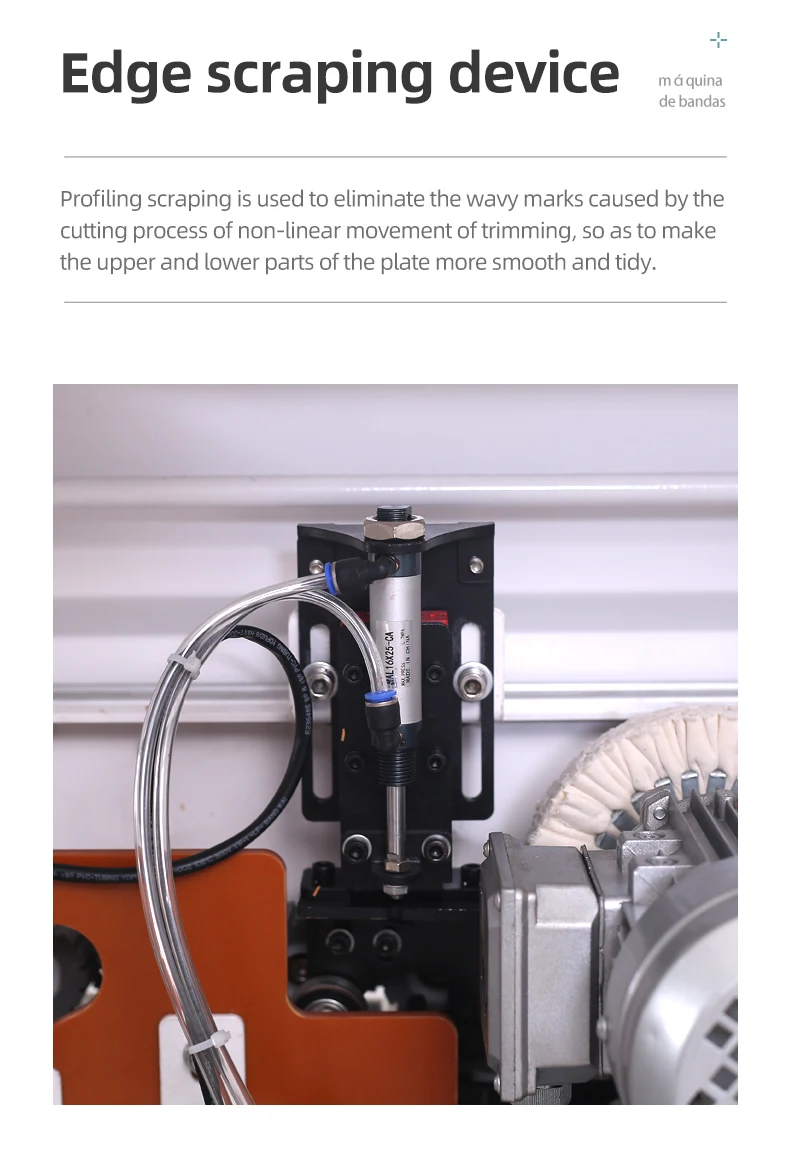

| Key Features | Double-sided gluing, top and bottom trimming, top and bottom polishing, front and rear alignment, flexible edge scraping, dust extraction port |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edging | MDF, particleboard, plywood with PVC or veneer banding |
| Cabinet door and carcass production | Melamine-faced chipboard, ABB boards |
| Small-batch joinery components | Solid wood panels up to 50 mm edge height |
| Decorative panel finishing | Organic glass plates, PVC panels |
| Workshop upgrading from manual banding | Single-machine automated edge finishing for mixed sheet stock |
Why the Voltage Question Should Come Before the Price on Any Automatic Edge Banding Machine in Stock
Confirming your workshop’s voltage and frequency before a stock machine ships is the single most important step in avoiding a dead-on-arrival unit.
I learned this the hard way. Last year a Southeast Asian buyer needed an edge bander urgently, so I released a stock unit immediately. The machine arrived, they powered it on, and the breaker tripped instantly — their shop ran 220V/60Hz three-phase, and the unit had been configured for a different standard. The shop floor sat idle for nearly two weeks while a transformer was sourced locally. Since then, every stock order I handle starts with a written voltage and frequency confirmation, even if it costs an extra day before dispatch [NEED_CITE: voltage and frequency standards by export market]. An automatic edge banding machine in stock is only useful if it actually runs when you plug it in.
How Stock Configuration Works Before Dispatch
The DW1800 sits in our warehouse fully assembled and tested, but configuration is not finished until your electrical standard is locked in. Voltage selection across 380V, 220V, and 415V is matched to your local supply, and the correct plug — EU, USA, AU, or UK — is fitted before crating. This means the machine you receive is wired for your facility from day one, eliminating the need for local electricians to rework the panel before commissioning.
What Fast Dispatch Actually Means for Your Workshop
When we say ready stock, we mean the DW1800 is built, tested, and waiting — not that it is mid-assembly on a line. Once your voltage, language, and plug type are confirmed, the unit goes through a pre-shipment test run on actual panel stock. You receive test photographs and a verification record before the wooden crate is sealed. The goal is to compress the gap between order and installation, not to skip the checks that keep the machine reliable once it arrives [NEED_CITE: CE machinery directive requirements for industrial equipment].
Reading the Specs That Matter on the Shop Floor
Feed speed on the DW1800 ranges from 0 to 14 m/min, which gives operators flexibility when switching between thick PVC banding on cabinet carcasses and thin veneer on decorative panels. The trimming motors run at 24,000 r/min with 800 W each, providing clean cuts on both top and bottom edges without tearing the banding material. A 4,000 ml glue pot holds enough adhesive for continuous runs through a standard production batch without stopping for refills, and the double-sided gluing system ensures adhesion on both the panel edge and the banding strip. The minimum sheet dimensions — 200 mm length and 100 mm width — mean small offcuts and drawer components can be edged without manual feeding workarounds.
The Hidden Cost of Skipping Configuration Checks
Ordering a stock machine without verifying electrical compatibility is the fastest way to turn a quick delivery into a long delay. A mismatched voltage does not just trip a breaker — it can damage the trimming motors, burn out the glue pot heater, or fry the control board, turning a simple configuration fix into a component replacement wait. Beyond hardware damage, operators who receive a control panel in a language they cannot read will stall at every parameter adjustment, losing production time on basic setup tasks [NEED_CITE: common causes of commissioning delays in imported machinery]. The cost is never just the transformer.
Why Buyers Source This Machine Through Our Stock Channel
Every DW1800 leaving our facility carries a pre-shipment test record specific to that unit, not a generic batch certificate. Voltage, plug type, and control language are confirmed in writing before dispatch, so there is no guesswork at the receiving dock. The machine ships fully assembled in a wooden crate, which means your team can uncrate and position it without a specialist rigging crew. We stock the full product family from entry-level to full-function models, so if your volume grows past what the DW1800 handles, the next machine up comes from the same supplier with the same documentation standards. Our four-stage quality process covers incoming materials through final pre-shipment verification, and that discipline applies equally to stock units and custom builds.
Documentation & Verification
- Factory test record on your specified panel thickness and banding material before dispatch
- Electrical schematic confirming your exact voltage, frequency, and plug configuration
- Operation and maintenance manual printed in your agreed language
- Spare parts list with part numbers matching the as-shipped configuration
- Packing photographs of your specific unit before the crate is sealed
Installation, Commissioning & Support
- The 4.9 kW total power draw requires a dedicated circuit rated for your confirmed voltage and phase
- Overall footprint of 2,200 × 650 mm fits standard workshop bays with clearance for sheet infeed
- Machine ships fully assembled — position, level, connect air supply at 0.4–0.6 MPa, and power on
- First-run parameter setup covers glue temperature, feed speed, and trimming depth for your material
- Control panel language set before dispatch so operators can navigate menus from the first shift
- Spare trimming blades and polishing wheels included per the packed spare parts list
What We Need to Move Your Order Forward
Tell us your local voltage, phase, and frequency so we can confirm compatibility before anything else. Share the primary sheet materials and edge banding types you run — MDF with PVC, particleboard with veneer, or a mix — so we can set the glue pot and feed parameters correctly during the pre-shipment test. If your operators need a specific control panel language beyond Chinese or English, let us know early so the interface is ready when the machine arrives.
Frequently Asked Questions
Q: What is the dispatch lead time for the DW1800 from stock?
A: Once your voltage, frequency, and plug type are confirmed in writing, the unit goes through a pre-shipment test on your specified material. After you approve the test photographs and verification record, the machine is crated and handed to the freight forwarder. The exact number of days depends on how quickly the configuration details are finalized on your end.
Q: Can I select my local voltage, frequency, and plug type before ordering?
A: Yes. This is actually the first step in our stock order process. We confirm your workshop’s electrical standard — voltage, phase, and frequency — in writing before the machine is configured. Plug options include EU, USA, AU, and UK types, and the correct one is fitted before crating so no local rewiring is needed.
Q: What languages are available for the control panel on stock units?
A: The standard options are Chinese and English, and the panel can be customized to Spanish and other languages before dispatch. We set the language during the pre-shipment configuration so your operators can read every menu and parameter label from the moment the machine is powered on.
Q: Do you offer sample processing tests before I place my order?
A: We run a pre-shipment test on panel material matching your actual production stock. You receive photographs and a test record showing edge quality, trimming accuracy, and gluing consistency before the machine is crated. If you need a specific banding material tested, send us the specs and we will include it in the run.
Q: What after-sales support is available once the machine arrives?
A: Each DW1800 ships with an operation and maintenance manual in your agreed language, a spare parts list with matching part numbers, and electrical schematics for your exact configuration. Our engineering team provides remote installation guidance, and we remain available for troubleshooting and parameter adjustment questions after the machine is running on your floor.
