Description
Voltage-Verified Stock Dispatch — every XZF450 leaves the warehouse only after its 380V/415V wiring and frequency setting are cross-checked against the buyer’s facility supply, preventing the on-site commissioning stalls that idle entire production floors.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | XZF450 |

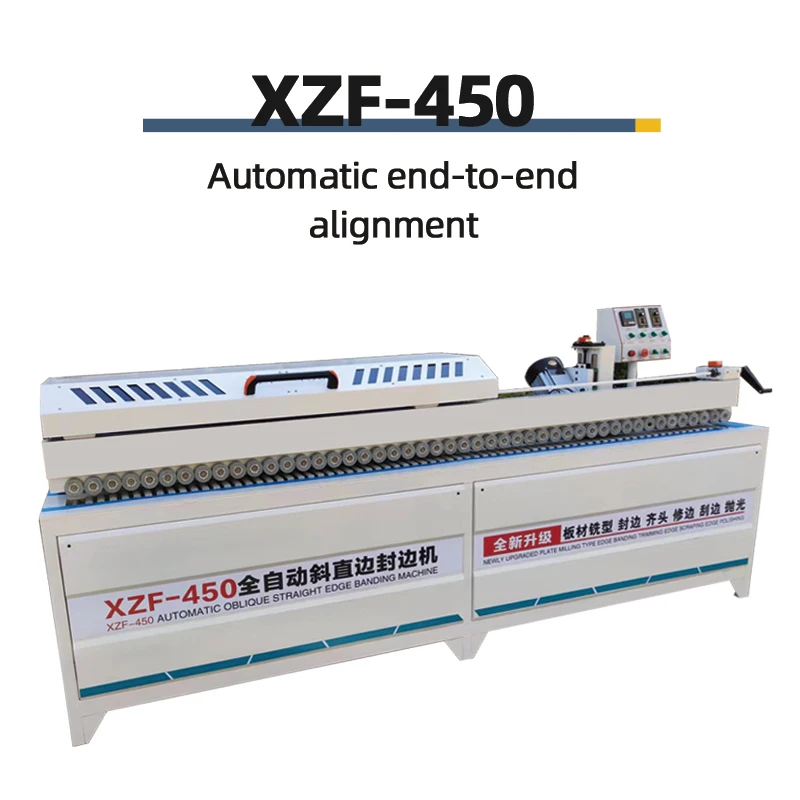

| Product Type | Automatic Edge Banding Machine |
| Total Installed Power | 9.5 kW |
| Voltage Options | 380V / 415V |
| Frequency | 50 Hz or 60 Hz (basis to be confirmed) |
| Feed Speed Range | 0–12 m/min |
| Pre-milling Motor | 4 kW |
| Trimming Motors | 2.2 kW × 2 |
| Polishing Motors | 0.4 kW × 2 |

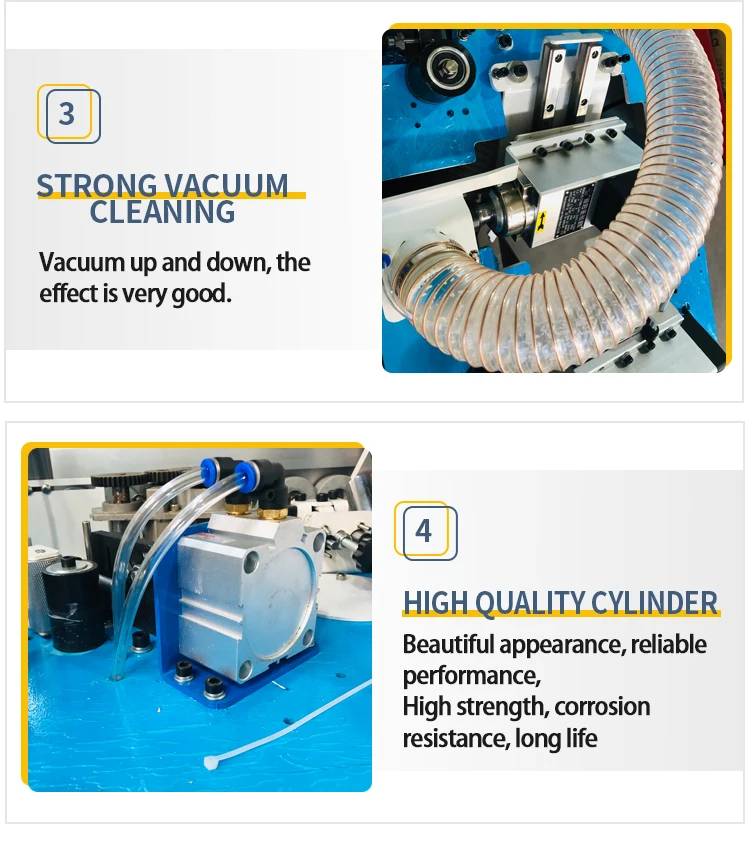

| Vacuum Extraction | 550 W |
| Transmission Drive | 180 W |
| Glue Pot Capacity | 4000 ml |
| Edge Banding Thickness | 0.3–3 mm |
| Edge Banding Height | 0–50 mm |
| Minimum Sheet Length | 30 cm |
| Minimum Sheet Width | 15 cm |
| Air Source Pressure | 0.5–0.7 MPa |
| Overall Dimensions (L×W×H) | 300 × 65 × 135 cm |
| Net Weight | 430 kg |
| Control Panel Languages | Chinese, English (customizable to Spanish or other languages) |
| Assembly State | Fully assembled, ready for connection |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door edge finishing | MDF and melamine-faced particleboard, 0.3–3 mm PVC or ABS edge band |
| Custom furniture panel processing | Plywood and blockboard with veneer or melamine edge banding |
| Joinery workshop production runs | Solid wood panels requiring pre-milling before banding |
| Polymer door manufacturing | Polymer composite substrates with matching polymer edge strips |
| Medium-volume batch edge banding | Panels from 30 cm minimum length at adjustable feed speeds up to 12 m/min |
Why the Voltage Question Must Come Before the Order
Confirming local supply voltage and frequency before dispatch eliminates the most common cause of on-site commissioning failure for exported woodworking machinery.
I spent years dispatching edge banding machines from stock and watching them sit idle on arrival. A unit wired for 440V arriving at a 415V facility does not simply underperform — the inverter trips on overvoltage protection and the entire line stops. Workshops in Southeast Asia, South America, and parts of Africa frequently operate on supply standards that differ from Chinese domestic defaults. The cost is never just the transformer; it is the weeks of lost production while the electrical system is reconfigured. [NEED_CITE: voltage and frequency standards by export market]
Dispatch Without the Electrical Surprise
When a furniture factory needs an edge banding machine in stock to fill an urgent capacity gap, speed matters — but not at the expense of electrical compatibility. The XZF450 ships with its voltage and plug type confirmed against the buyer’s facility specification before it leaves the warehouse. This means the 9.5 kW total power draw is matched to the correct supply, whether that is a 380V three-phase line in Europe or a 415V system common in Commonwealth countries.
Stock availability means little if the machine requires on-site rewiring before it can run a single panel. Every XZF450 is tested under the target voltage configuration, and the electrical schematic is provided with the shipment so local electricians can verify the connection without guesswork.
What Fast Dispatch Actually Means on the Floor

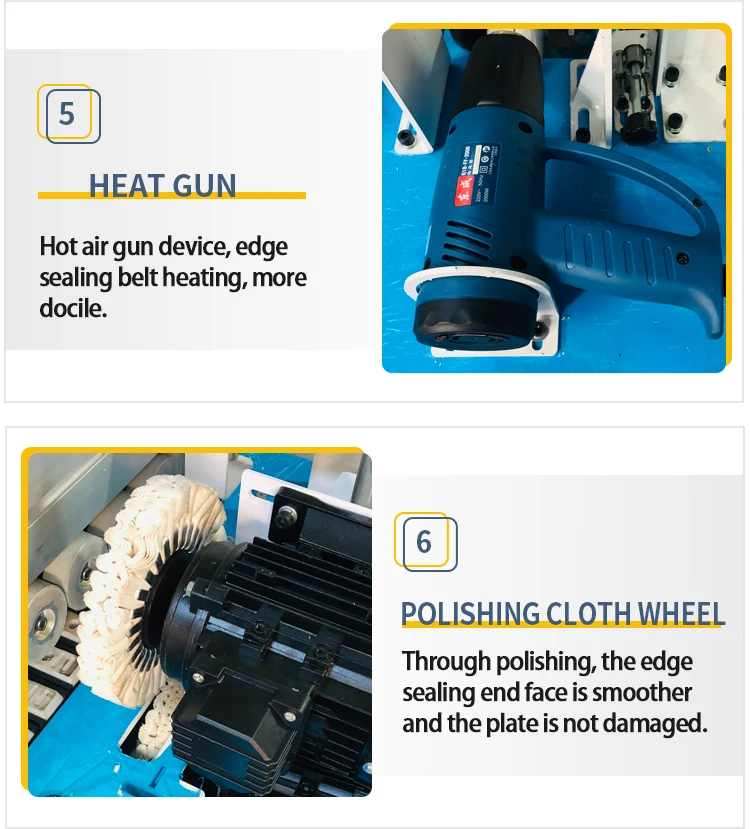

The term "ready stock" covers machines that are fully assembled and mechanically complete, not partially built units waiting on components. The XZF450 arrives with all seven stations — pre-milling, gluing and banding, end trimming, fine trimming, scraping, polishing, and dust extraction — installed and aligned. Commissioning is limited to connecting power, air supply at 0.5–0.7 MPa, and running test panels.
For a cabinet factory that just lost a machine to a breakdown or landed a large order with a tight deadline, this distinction between "in stock" and "in production" determines whether the new equipment runs within days or weeks of arrival. [NEED_CITE: typical commissioning timelines for exported woodworking machinery]
Reading the Spec Sheet Against Your Production Reality

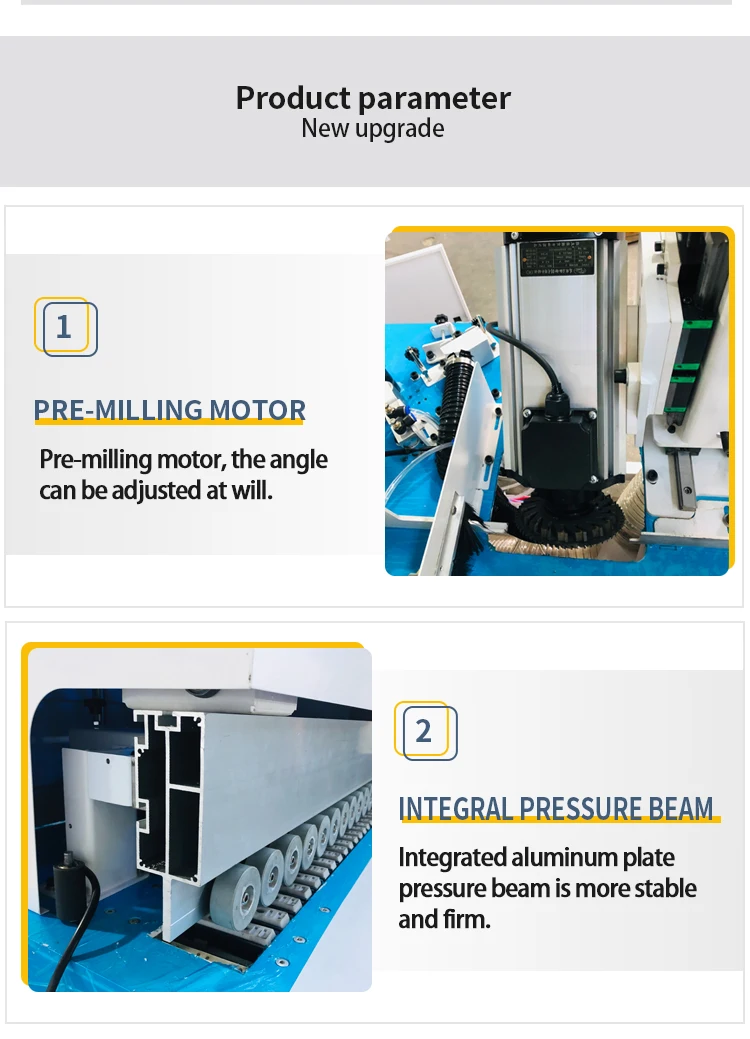

The 4 kW pre-milling motor is sized to remove saw marks and minor surface defects from panel edges before the glue station applies the band. This matters because particleboard and MDF from different suppliers vary in edge density, and an underpowered pre-mill leaves ridges that show through thin 0.3 mm PVC banding. At the other end, the dual 2.2 kW trimming motors handle flush and radius trimming in sequence, which determines whether the finished edge requires manual touch-up or goes straight to assembly.
The 0–12 m/min feed speed range covers both careful single-panel runs on expensive veneered boards and steady batch throughput on standard melamine cabinet components. Setting the speed correctly for the material — slower for thick 3 mm solid wood banding, faster for thin PVC — affects glue adhesion and trim quality more than any other single variable. The 4000 ml glue pot provides enough capacity for sustained runs without frequent refills, reducing thermal cycling that degrades adhesive consistency.
The Hidden Cost of Skipping Configuration Checks
Buying an edge bander on price alone, without confirming voltage, air pressure requirements, or control panel language, creates problems that surface only after the machine is on the floor. An operator who cannot read the control interface makes setup errors that damage both the machine and the workpiece. Insufficient air pressure at the trimming and scraping stations causes incomplete cuts, leaving edge band overhang that requires manual removal and slows the entire downstream assembly process.
These are not warranty issues — they are configuration oversights that shift the cost and delay onto the buyer. [NEED_CITE: common causes of edge banding machine commissioning delays in export markets]
Why This Stock Channel Exists
The XZF450 is held in fully assembled inventory specifically for buyers who cannot wait through a build-to-order cycle. Voltage, plug type, and control language are confirmed per order before dispatch, not left as defaults. The machine carries the Beichen brand and sits within a broader product family, meaning a workshop that later needs a higher-throughput line can scale without changing suppliers.
Pre-shipment testing covers all seven stations under load, not just a dry run. Factory test records, electrical schematics matching the confirmed voltage, and operation manuals in the buyer’s language ship with every unit. The four-stage quality process — incoming material inspection, in-process checks, finished product verification, and pre-shipment confirmation — applies to stock machines exactly as it does to custom orders.
Documentation & Verification
- CE declaration of conformity matching the XZF450 model and configuration
- Electrical schematic reflecting the confirmed voltage and frequency for your facility
- Factory test record showing all seven stations run on your specified panel thickness range
- Operation and maintenance manual in the agreed language, not a generic template
- Spare parts list with part numbers for trimming blades, scraping tools, and glue pot components
- Packing photographs documenting machine condition before crating and dispatch
Installation, Commissioning & Support
- The 300 × 65 × 135 cm footprint requires a level concrete floor with clearance for panel infeed and outfeed on both sides
- Dedicated three-phase circuit rated for the 9.5 kW total draw, with the confirmed voltage at the isolator
- Machine ships fully assembled — no mechanical reassembly required, only electrical and pneumatic connection
- First-run calibration covers glue temperature, feed speed, and trimming depth for your specific panel material
- Operator training on control panel navigation in the configured language, including error code responses
- Wear parts inventory starts with trimming blades and scraper inserts matched to your banding thickness range
Before You Request a Quote
To match the right XZF450 from stock to your production line, provide your local supply voltage and frequency, the primary panel materials and edge banding thicknesses you run, and your preferred control panel language. If your workshop uses specific upstream saws or downstream boring machines, noting their throughput helps confirm whether the 0–12 m/min feed speed range aligns with your existing material flow.
Frequently Asked Questions
Q: Which XZF450 units are currently in stock and how quickly can they ship?
A: Fully assembled XZF450 machines are held in inventory for dispatch. Before any unit ships, the voltage, plug configuration, and control panel language are confirmed and set to match the buyer’s facility. Dispatch lead time depends on the configuration work required and the shipping destination, but the machine itself does not require a build cycle.
Q: Can the voltage, plug type, and control language be set before the machine ships?
A: Yes. The XZF450 supports 380V and 415V configurations, and the control panel is available in Chinese and English with customization to Spanish or other languages on request. Voltage and frequency are verified against your facility specification, and the matching electrical schematic ships with the machine.
Q: What panel materials and edge band thicknesses does this machine handle?
A: The XZF450 processes MDF, melamine board, blockboard, solid wood, particleboard, and plywood with edge banding from 0.3 mm to 3 mm thickness and up to 50 mm height. The 4 kW pre-milling station prepares the panel edge before gluing, which is important for consistent adhesion on particleboard and MDF substrates.
Q: What documentation is included with the shipment?
A: Every XZF450 ships with an operation and maintenance manual in the agreed language, an electrical schematic matching the confirmed voltage, a factory test record from pre-shipment verification, a spare parts list, packing photographs, and customs documentation support for the destination country.
Q: How is the machine packed and what are the shipping options?
A: The XZF450 ships fully assembled at 430 kg net weight within its 300 × 65 × 135 cm frame. Packing photographs are taken before crating to document condition. Shipping options from stock depend on destination and are quoted at the time of order confirmation along with estimated transit times.
