Description
Ready to Ship — Every ZDS280D leaves the warehouse only after a live power-on test matched to your facility’s electrical standard.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDS280D |
| Product Type | Automatic Edge Banding Machine |
| Main Functions | Gluing, End Trimming, Fine Trimming, Scraping, Buffing |
| Working Pressure | 0.6–0.8 MPa |
| Panel Thickness Range | 10–55 mm |
| Edge Thickness Range | 0.4–3 mm |
| Conveyor Belt Speed (Feed Speed) | 15 m/min |
| Min. Panel Width | 60 mm |
| Min. Panel Length | 150 mm |
| Voltage | 380V / 3-Phase |
| Rated Power | 7.5 kW |
| Net Weight | 700 kg |
| Overall Dimensions (L×W×H) | 3100 × 700 × 1400 mm |
| Fuselage Material | 14 mm national standard high-strength steel plate, frame-type structure, high-temperature quenched |
| Conveyor Guide Rail Material | HT260 |
| Conveying Motor | Customized Taiwan brand with thermal protection system |
| Head Guide Rail | Taiwan brand |
| Pneumatic System | German Festo or Taiwan AirTAC cylinder and safety valve, AirTAC magnetic switch |
| Electrical Components | Delixi/Chint air switches and contactors, Japanese Omron travel switches |
| Assembly State | Fully assembled |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge banding | MDF, particleboard, plywood with PVC edge banding |
| Cabinet door and carcass production | Particleboard and MDF with 0.4–3 mm PVC or veneer strips |
| Small-batch joinery and shelving | Solid wood panels with veneer edge material |
| Workshop replacing manual trimming | Straight-edge panels from 10 mm to 55 mm thickness |
Why the Voltage Question Must Come Before the Crate Is Sealed
We confirm your exact supply standard and lock it on the electrical schematic before the ZDS280D ships — not after it arrives at your port.
An Automatic Edge Banding Machine in stock means little if it cannot be powered on the day it is uncrated. I once watched a 380V edge bander sit idle for three weeks at a customer site in West Africa because the local grid ran 415V and nobody had checked beforehand. The machine was fine; the assumption was expensive. That lesson reshaped how every dispatch is handled here: your voltage, frequency, and phase are verified against the motor nameplate and control wiring diagram before the shipping crate is closed [NEED_CITE: voltage and frequency standards by export market].
Stock, Confirmed, and Commissioning-Ready
The ZDS280D Automatic Edge Banding Machine is built, tested, and held in the warehouse for buyers who need a single unit without a multi-week production wait. Dispatch timing depends on destination port and any pre-shipment voltage adjustment, but the machine itself is not sitting on a production backlog. You order, we confirm your electrical and language requirements, run a final power-on test, and release it to freight.

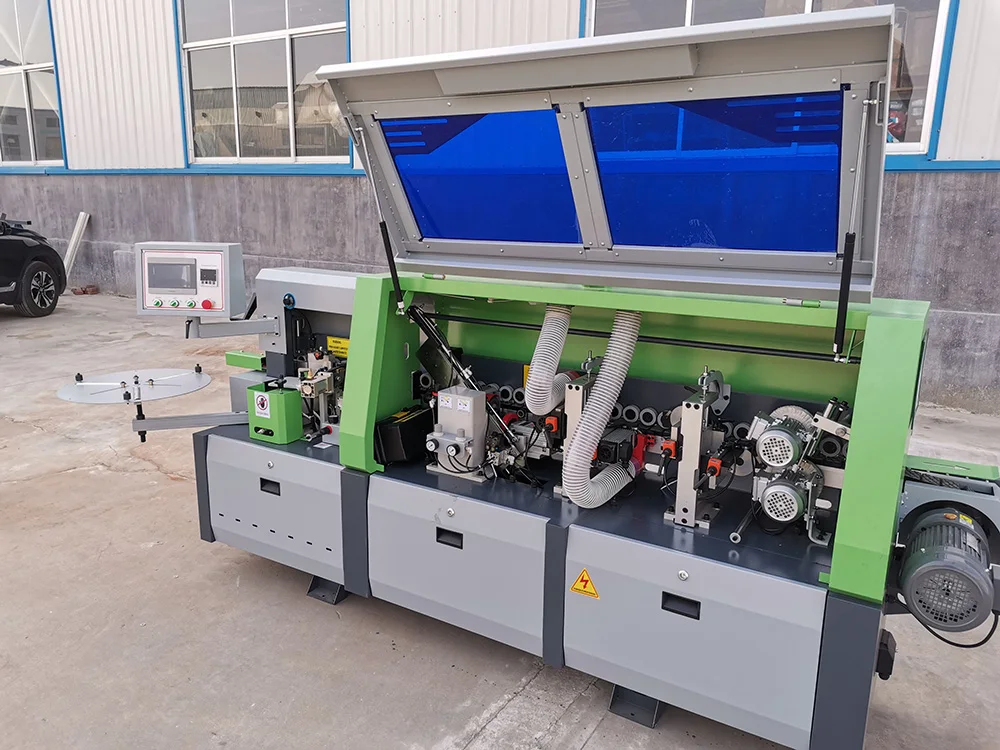

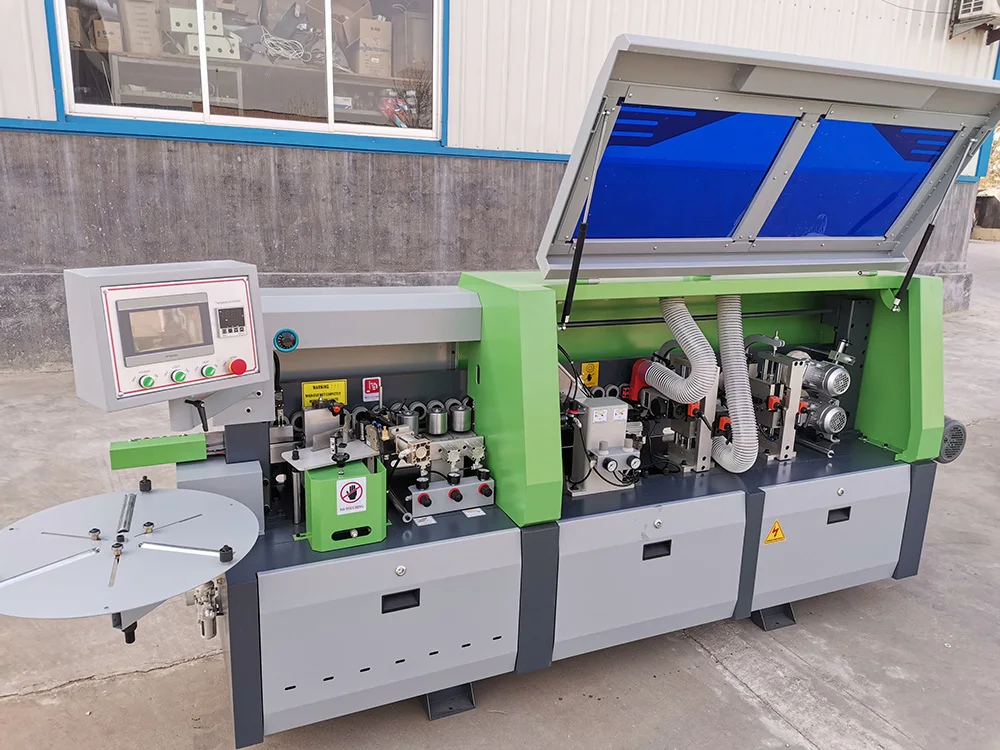

One Compact Footprint, Five Working Stations

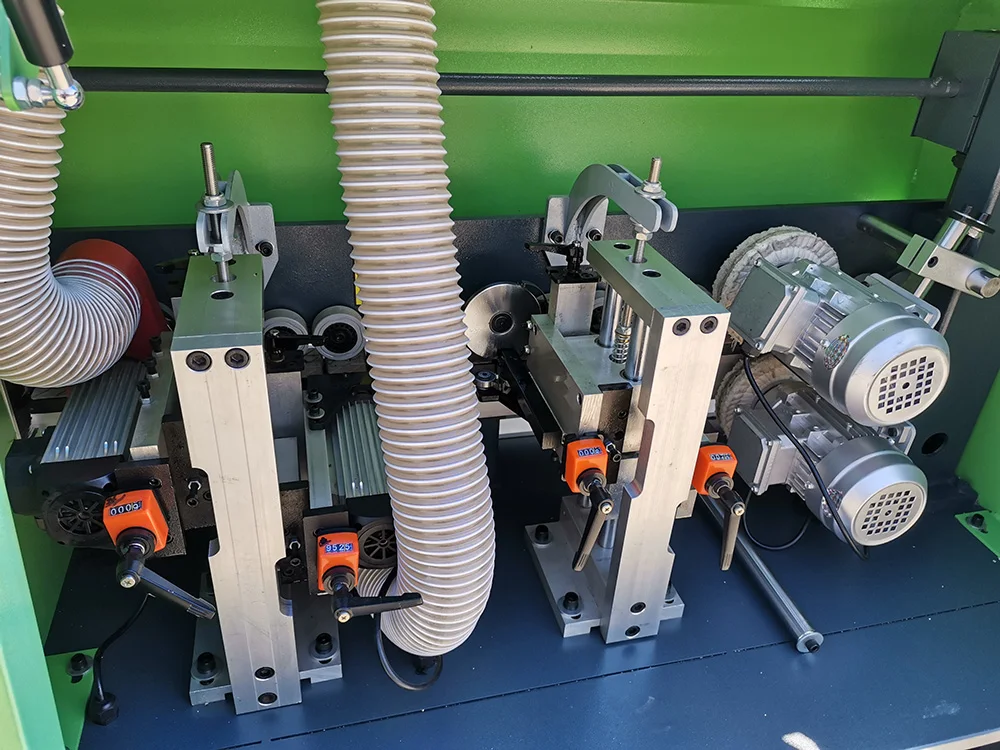

Despite a 3.1-meter overall length, this machine packs gluing, end trimming, fine trimming, scraping, and buffing into a single continuous pass. For a workshop adding its first automatic edge bander, that means one operator feeds panels at one end and receives finished edges at the other — no intermediate handling, no secondary trimming station needed. The frame-type fuselage built from 14 mm high-strength steel keeps all five stations aligned even under continuous daily runs [NEED_CITE: structural rigidity requirements for multi-station edge banders].
What the Spec Sheet Actually Means on the Shop Floor

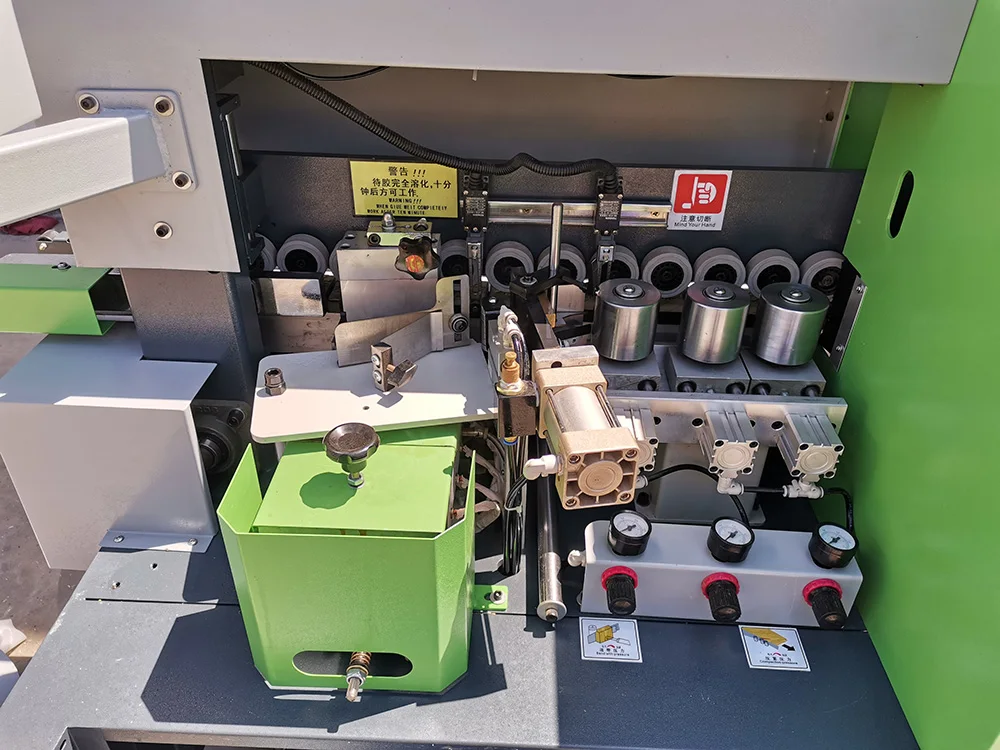

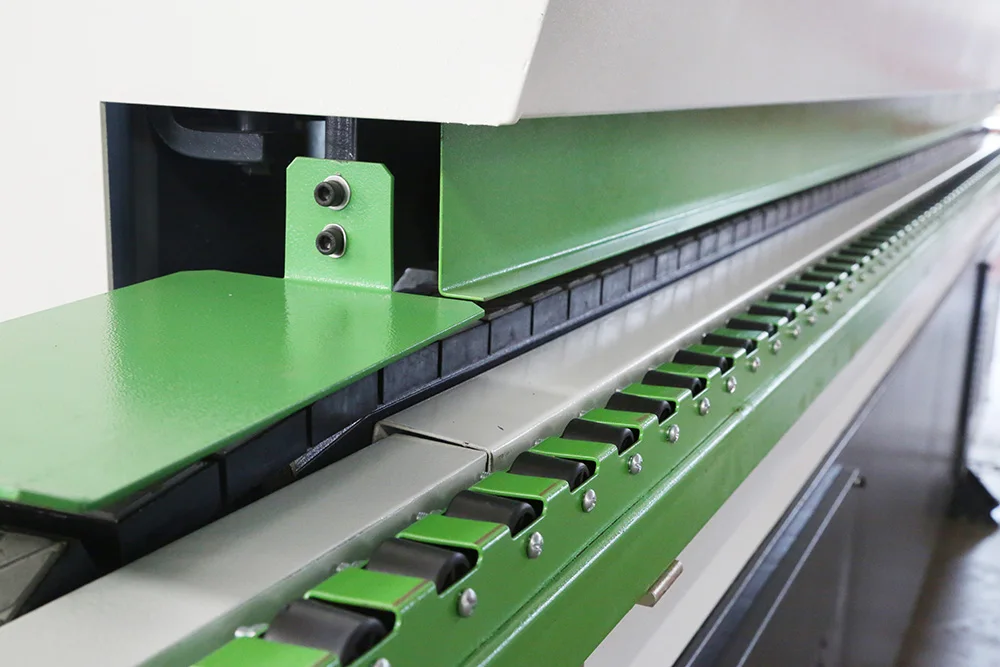

The 15 m/min feed speed is driven by a Taiwan-brand conveying motor with thermal protection, so the belt maintains consistent pull even when processing heavy 55 mm particleboard panels all morning. The HT260 guide rail resists wear far longer than mild steel alternatives, which matters when you run thousands of linear meters of MDF per week and cannot afford rail scoring that shifts panel alignment. Panel width down to 60 mm and length down to 150 mm let you edge-band narrow drawer sides and small shelf brackets — parts that larger machines simply cannot grip. On the pneumatic side, the Festo or AirTAC cylinder and safety valve combination gives you responsive end-trim actuation and a clear fault indicator through the magnetic switch, so a stuck cylinder is diagnosed in seconds rather than hours.
The Hidden Cost of Skipping Pre-Shipment Electrical Verification
When a machine arrives with a control panel in a language the operator cannot read, commissioning stalls before it starts. When the voltage is wrong, the motor either will not turn or will overheat within the first hour. Both scenarios turn a fast-dispatch order into a slow, expensive problem. I have seen workshops lose entire production schedules because the machine sat under tarp while a transformer was sourced locally or a new control screen was ordered from overseas [NEED_CITE: CE machinery directive requirements for industrial equipment]. Every ZDS280D ships with a language-confirmed control panel and an electrical schematic stamped with your verified supply specification.
Why Source This Automatic Edge Banding Machine Here
In-house manufacturing means the ZDS280D is not relabeled from a third party — the fuselage, guide rails, and pneumatic assemblies are built and inspected under one roof. A four-stage quality check covers incoming material, in-process assembly, finished-product function, and a final pre-shipment run with your specified panel stock. Voltage and language customization are treated as standard order steps, not special requests. Engineers review your workshop’s production scope and recommend configuration within 24 hours, so you are not guessing which model fits your throughput. Factory visits are welcomed before or during production for buyers who want to see the machine running in person.
Documentation & Verification
- Factory test record on your panel thickness range before dispatch
- Electrical schematic confirming your 380V or local voltage and phase
- Operation and maintenance manual in your operator’s language
- Packing photographs documenting crate condition at warehouse exit
- CE declaration of conformity and ISO 9001 certificate included
- Customs documentation support for destination-country clearance
Installation, Commissioning & Support
- 3100 × 700 mm footprint requires a level concrete floor with 1400 mm overhead clearance
- Dedicated 380V three-phase circuit with appropriate breaker for the 7.5 kW rated load
- Machine ships fully assembled — position, connect power and air, and run calibration panels
- First-run parameter tuning covers glue temperature, feed speed, and trimming depth for your material
- Spare parts list identifies consumables including trimming blades and buffing wheels for reorder
What We Need to Move Your Order Forward
Send us your local voltage and frequency, the panel substrates and edge materials you run most often, and the language your operators read. If your workshop has upstream saws or downstream boring machines, tell us the models so we can confirm the ZDS280D fits your existing feed height and workflow. We will respond with a configuration proposal and dispatch timeline.
Frequently Asked Questions
Q: Is the ZDS280D currently in stock, and how fast can it ship?
A: The ZDS280D is held in ready stock for single-unit orders. Dispatch timing depends on pre-shipment voltage confirmation and any language customization you require. Once those details are locked, the machine is released to freight without waiting for a production slot. Port transit time varies by destination and shipping line schedule.
Q: How do you confirm the 380V three-phase supply matches my country’s grid?
A: Before shipping, we verify your facility’s voltage and frequency against the motor and control specifications. An electrical schematic is prepared showing the confirmed configuration, and a live power-on test is conducted at the factory. If your local supply differs from 380V, adjustments are made and retested before the crate is sealed.
Q: What edge materials and panel substrates has this machine been tested with?
A: The ZDS280D handles PVC and veneer edge banding in the 0.4–3 mm thickness range on MDF, particleboard, plywood, and solid wood panels from 10 mm to 55 mm thick. A pre-shipment test is run using your specified material combination so you receive a machine already tuned to your production stock.
Q: Can you ship a single unit and arrange door-to-door delivery?
A: Single-unit orders are standard for this model. Door-to-door delivery availability depends on your location and local freight partners. We provide packing photographs, customs documentation support, and coordinate with your nominated forwarder or arrange shipping options on request.
Q: What spare parts come with the machine, and how do I reorder consumables?
A: A spare parts list is included with every shipment identifying wear items such as trimming blades, buffing wheels, and pneumatic seals. Consumables can be reordered through the same channel you used for the machine purchase, and the parts list cross-references component specifications so local suppliers can also source compatible items.
