Description

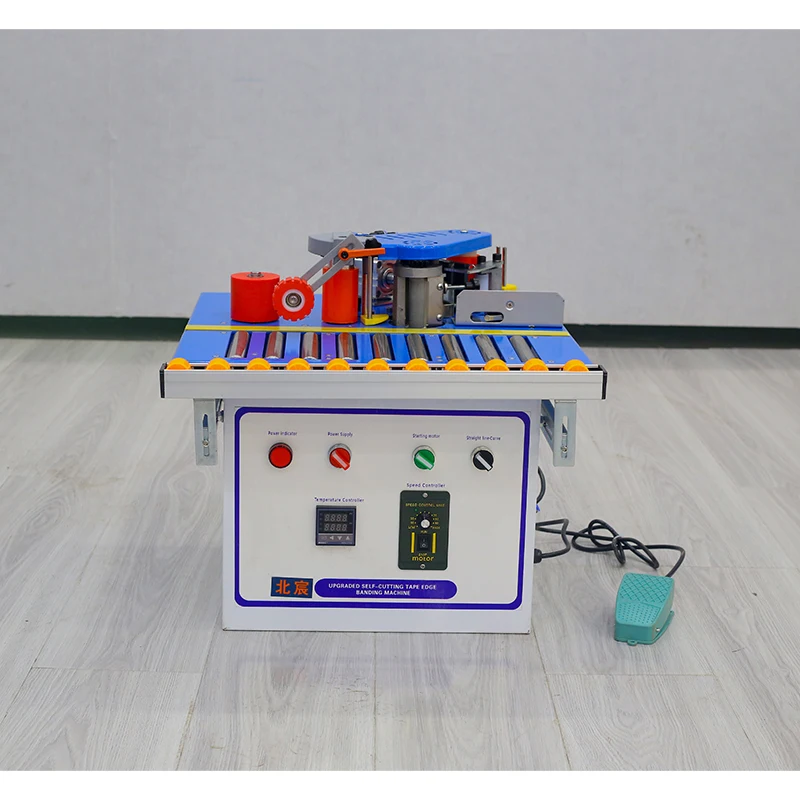

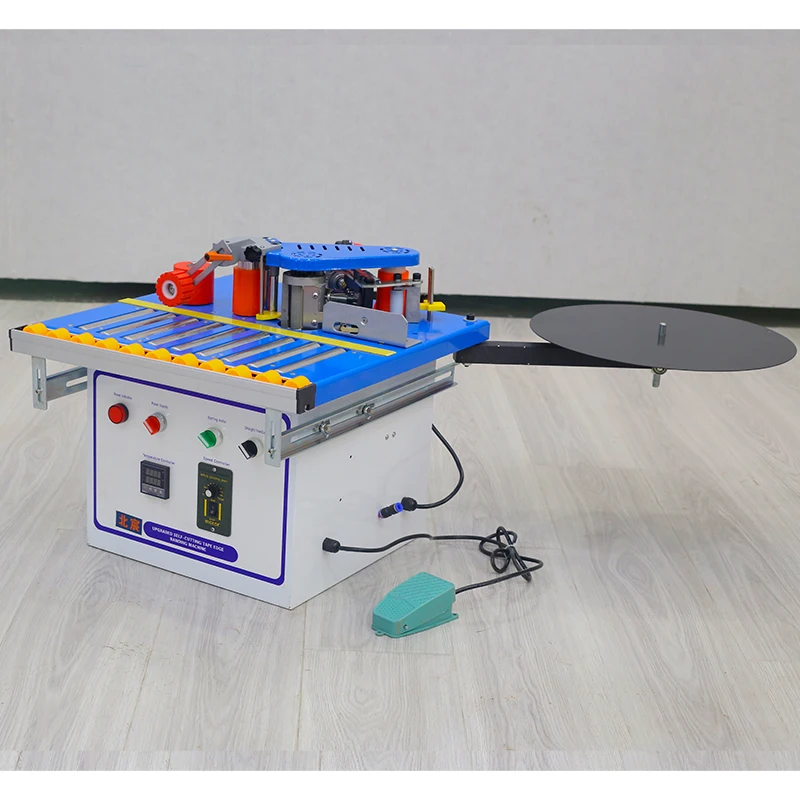

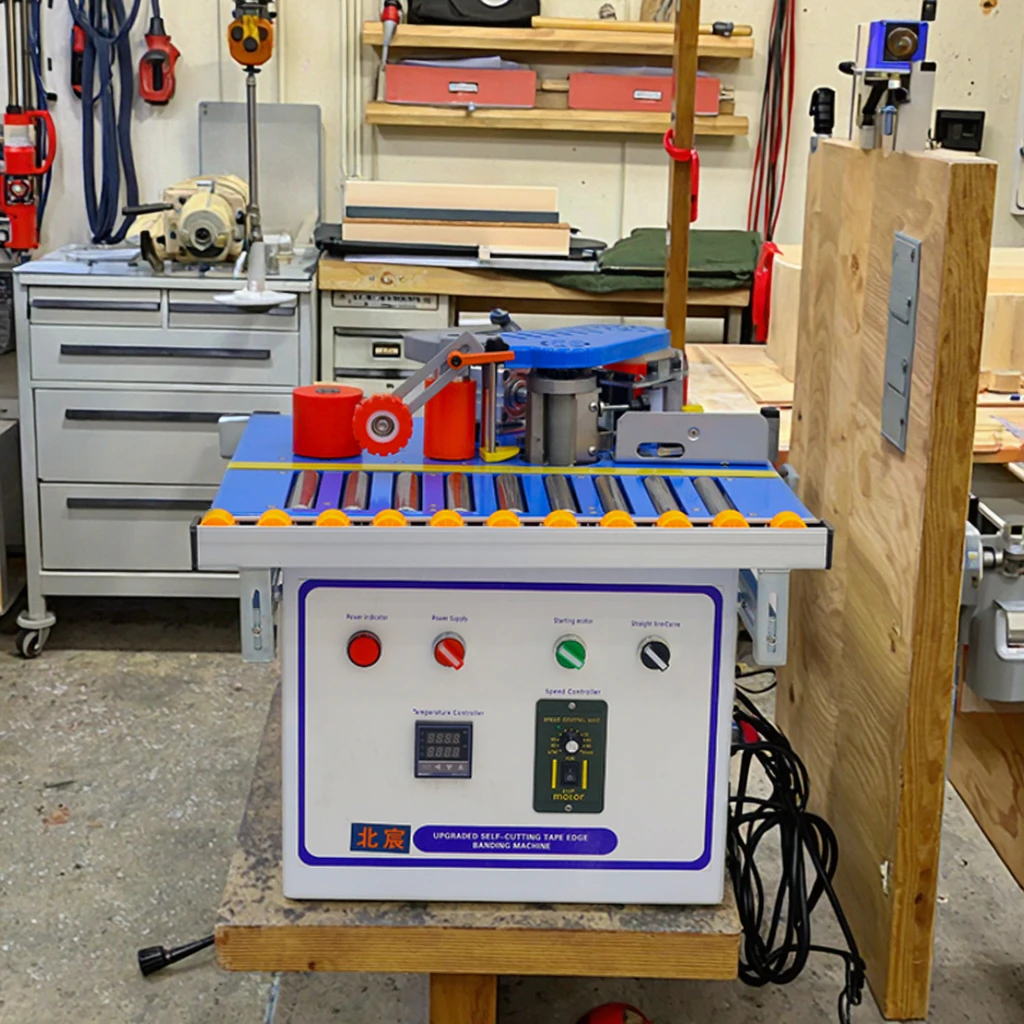

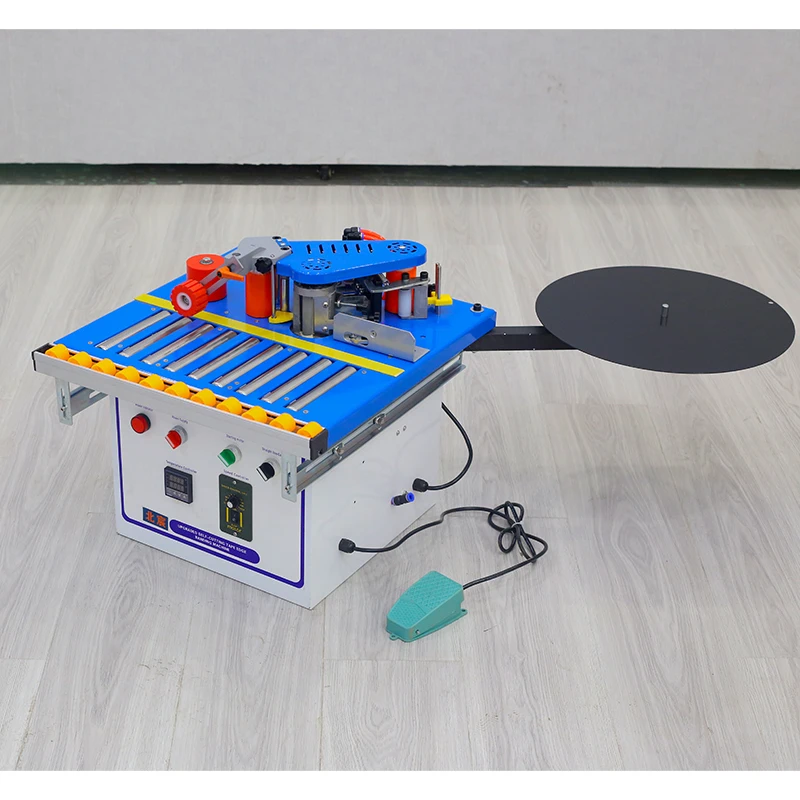

Ready From Stock — The ST70 portable edge bander ships within days, not weeks, with voltage and plug configured to your facility before dispatch.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ST-70 |
| Product Type | Portable Edge Banding Machine |
| Rated Power | 1000W total |
| Edge Feed Motor Power | 20W |
| Voltage & Frequency | 220V/380V/customization (frequency to be confirmed at order) |
| Control System | PLC |
| Edge Banding Mode | Curved and straight |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 3 cm |
| Edge Banding Height Range | 0–50 mm |
| Edge Banding Thickness Range | 0.3–3 mm |
| Air Source Pressure | 0.5–0.8 MPa |
| Glue Pot Capacity | 1000 ml |
| Overall Dimensions | 50 × 50 × 47 cm |
| Net Weight | 23 kg |
| Plug Options | EU, USA, AU, UK |
| Language Options | Chinese, English; custom language available (Spanish, French, etc.) |
| Standards | CE, ISO 9001 |
Application Suitability
| Application | Material or Output |
|---|---|
| On-site furniture edge repair | MDF, particleboard, plywood with PVC or veneer banding |
| Small workshop panel edge sealing | Ecological board and solid wood board up to 50 mm height |
| Curved contour finishing for custom cabinets | Plywood and MDF shaped panels with 0.3–3 mm banding |
| Home decoration installation touch-ups | Pre-cut boards requiring portable straight or curved edge work |
Why the Voltage Question Must Come Before the Crate
A portable edge bander that cannot plug into your workshop outlet is 23 kg of dead weight until an electrician rewires the shop.
I once watched a jobsite crew in North America uncrate an edge bander only to discover the unit was wired for 380V/50Hz while the building ran 480V/60Hz. Three weeks of downtime followed while a transformer was sourced and installed. That Portable Edge Bander in Stock sat idle longer than the shipping transit. The ST-70 is available in multiple voltage and plug configurations, but confirmation must happen at the order stage, not the uncrating stage. [NEED_CITE: voltage and frequency standards by export market]
Dispatch Timing That Matches Job-Site Urgency
When a cabinet installer needs to finish a curved edge on a plywood panel tomorrow, lead time is the first question. This Portable Edge Bander in Stock is held in ready inventory so that once voltage, plug type, and language are confirmed, the unit moves to packing and dispatch without a production queue. Small workshops and on-site crews typically place single-unit orders, and the stocking model is built around that reality.
Language and Plug Matching Across Markets
A control panel in a language the operator cannot read stalls commissioning just as surely as the wrong plug. The ST70 supports English and Chinese as standard, with Spanish, French, and other languages available on request. Combined with EU, USA, AU, and UK plug options, the machine leaves the warehouse matched to the destination market rather than relying on field adapters that introduce connection risk over time. [NEED_CITE: CE machinery directive requirements for industrial equipment]
Reading the Specs That Matter on a Portable Unit
The 0.3–3 mm banding thickness range covers the PVC and veneer tapes most commonly used in small-shop and on-site furniture work. Glue pot capacity at 1000 ml is sized for intermittent use; running continuous production would require frequent refills and temperature recovery pauses. The 0.5–0.8 MPa air pressure requirement means a small compressor is needed — something easily overlooked when buyers focus on electrical specs alone. Curved and straight banding in one unit removes the need for two separate setups, which matters when floor space is 50 × 50 cm. Feed speed is not published in the current listing and should be confirmed with the engineering team before the order is finalized to ensure it matches your throughput expectation.
What Happens When Configuration Is Skipped
A buyer who orders a portable unit without confirming local frequency may find the edge feed motor runs at the wrong speed, producing uneven glue distribution and visible banding lines. Panels come back from the customer with peeling edges, and the fault is traced to the machine rather than the operator. Language mismatches on the PLC panel add another layer of delay — an installer guessing at menu labels will set incorrect glue temperature or feed parameters. [NEED_CITE: common commissioning failures in imported woodworking machinery]
Why Source This Unit Through a Stocking Channel
Engineers review every order to confirm voltage, frequency, and plug compatibility before the ST70 leaves the warehouse. A formal configuration check replaces the assumption that a default setting will work. Pre-shipment testing produces a documented record covering banding adhesion and motor function on your specified panel material. The four-stage quality process — incoming material, in-process, finished product, and pre-shipment — means the Portable Edge Bander in Stock you receive has been verified under load, not just powered on. Single-unit orders are standard practice here, with no minimum quantity required for dispatch. OEM branding and custom specifications remain available even on stock orders when lead time permits.
Documentation & Verification
- CE declaration of conformity covering portable edge banding equipment
- Factory test record on your specified banding thickness and panel material
- Electrical schematic confirming voltage, frequency, and plug type shipped
- Operation manual in the agreed language with PLC menu reference
- Spare parts list covering glue pot, feed motor, and wear components
- Pre-shipment packing photographs for condition verification at arrival
Installation, Commissioning & Support
- Requires a dedicated circuit matching the confirmed voltage and the 1000W total power draw
- Air compressor must deliver 0.5–0.8 MPa at a stable flow for consistent glue feed
- Compact 50 × 50 × 47 cm footprint fits a standard workbench without floor anchoring
- First run should verify glue pot temperature recovery against the banding material in use
- Operator training covers PLC menu navigation in the confirmed language setting
- Spare glue pot seals and feed rollers included for early-stage maintenance
Before You Request a Quote
Share your workshop voltage and frequency, the plug type used on-site, and the preferred control panel language. Specify the panel materials you work with — MDF, plywood, particleboard, or solid wood — along with typical banding thickness and whether your panels include curved edges. If the ST70 will supplement a larger line, note your existing equipment and any feed height constraints so the configuration can be checked against your setup.
Frequently Asked Questions
Q: Is the ST70 in stock and how fast can it ship?
A: The ST70 is held in ready inventory for dispatch once voltage, plug type, and language are confirmed. Single-unit orders ship without a production queue. Actual transit time depends on destination and shipping method selected at checkout.
Q: Can I choose the voltage, plug type, and language for my country?
A: Yes. The unit supports 220V or 380V with customization available, and plug options include EU, USA, AU, and UK standards. The PLC interface is available in English and Chinese as standard, with Spanish, French, and other languages on request.
Q: What edge banding materials does this machine handle?
A: The ST70 works with PVC and veneer banding in the 0.3–3 mm thickness range. It processes MDF, particleboard, plywood, solid wood board, and ecological board, performing both curved and straight edge banding within a single setup.
Q: How is the machine packed and what documentation ships with it?
A: Each unit ships with pre-shipment packing photographs, a factory test record, electrical schematic, operation manual in the agreed language, spare parts list, and CE documentation. Customs paperwork support is included for international orders.
Q: Can I order a single unit or do I need a minimum quantity?
A: Single-unit orders are the standard stocking model for the ST70. There is no minimum quantity requirement. Larger orders for workshop expansion or distribution are also accommodated with the same configuration and verification process.
