Description
Voltage-Verified Dispatch — every Wfs 190 unit is tested and confirmed against your local grid frequency before crating, preventing the three-week transformer delays I once watched a Middle East buyer endure.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Automatic Curved and Straight Edge Banding Machine |

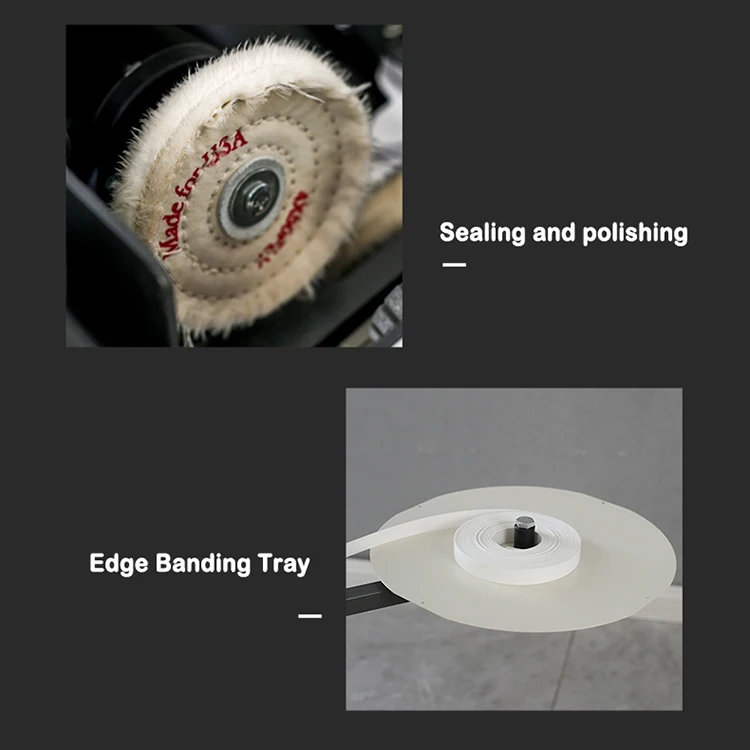

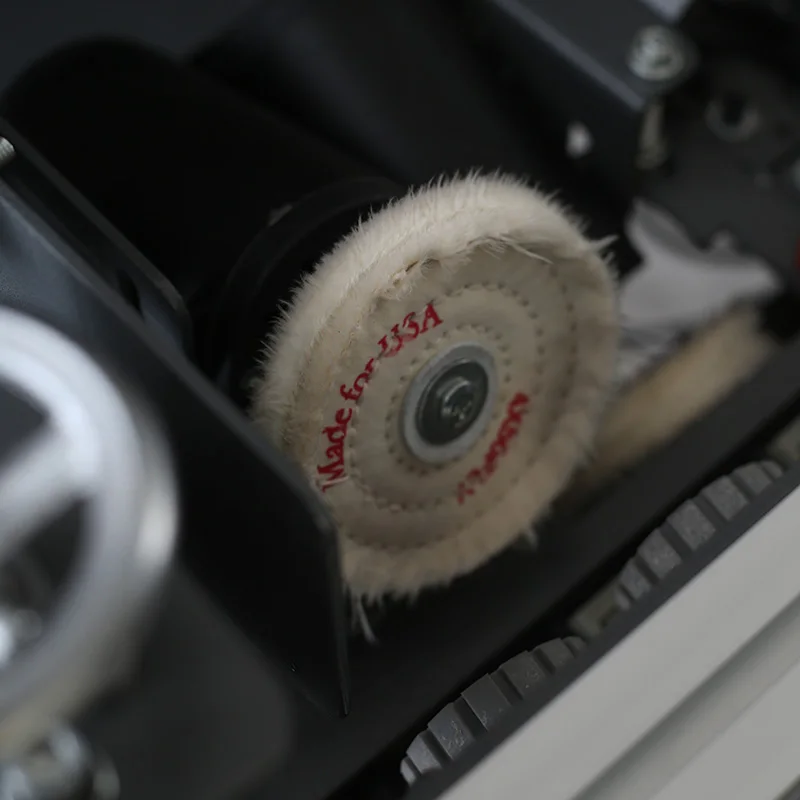

| Function | Automatic plate feeding, belt breaking, double-sided gluing, upper/lower trimming, polishing, curved/straight edge banding |
| Edge Type | Both curved and straight lines |
| Voltage & Frequency | 220V 50Hz (basis not stated in source — confirm if other voltages available for target market) |
| Rated Power | 4 kW |
| Feed Speed | 0–14 m/min |
| Panel Thickness Range | 10–50 mm |
| Strip Thickness Range | 0.5–2.5 mm |
| Glue Pot Capacity | 1000 ml |
| Trimming Cutter | 4-blade alloy arc knife |
| Pressure Beam | Adjustable aluminum alloy |

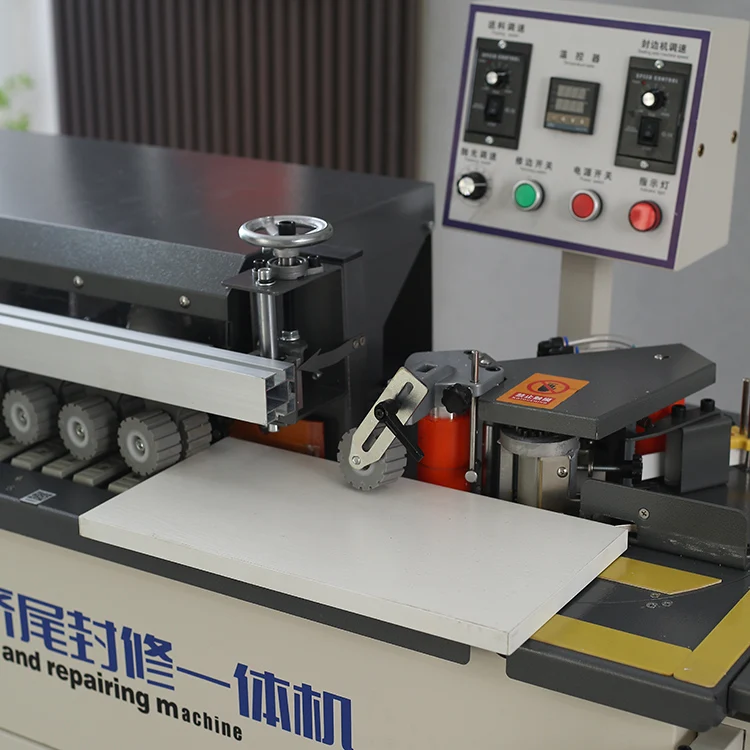

| Feed Mechanism | Double-row rubber pressure wheels, steel rod slide rail conveyor |
| Rated Air Pressure | 0.4–0.6 MPa |
| Overall Dimensions (L×W×H) | 1900 × 560 × 1300 mm |
| Net Weight | 120 kg |

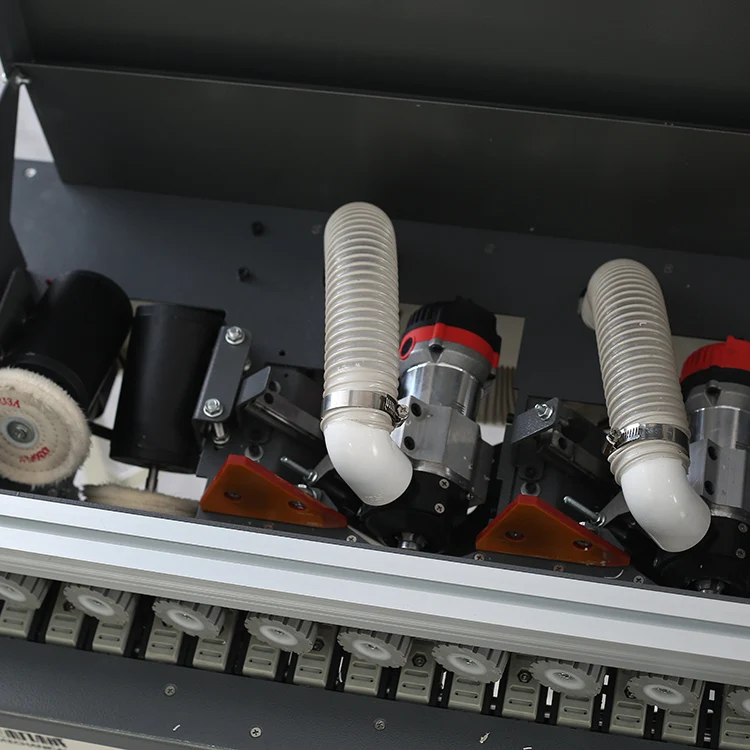

| Dust Collection | 2 large-diameter vacuum collectors |
| Assembly State | Requires on-site assembly (manual and video provided) |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door edge banding | MDF and particleboard with PVC strip |
| Curved decorative furniture profiles | Plywood and shaped solid wood panels |
| Drawer front finishing | Melamine-faced board with veneer edging |
| Shelving straight-edge sealing | Particleboard and MDF up to 50 mm thickness |
| Small-batch mixed production | Switching between curved and straight workpieces on one machine |
Why the Voltage Question Should Come Before the Price on an Automatic Edge Banding Machine in Stock
Confirm your local voltage and frequency in writing before the crate is sealed.
I once scheduled shipment of a double-sided edge bander to a Gulf-state workshop. The order was placed fast, the price was agreed, and the machine sailed within days. When it arrived, the local three-phase grid ran at a frequency the motor was never wound for. The buyer waited three weeks for a step-down transformer while the machine sat idle on the shop floor [NEED_CITE: voltage and frequency standards by export market]. That delay cost more than any price negotiation could save. With this ZDSF190 model listed at 220V/50Hz, confirming compatibility with your regional supply is the first step I insist on before any unit leaves the warehouse.
Ready-to-Ship Means Verified Before It Leaves
Stock availability shortens the wait, but a machine is only ready when its electrical configuration matches your site. Each unit is checked against the agreed voltage specification before dispatch. This automatic edge banding machine in stock configuration ships with the control panel and motor winding aligned to your confirmed supply, so commissioning starts the day the crate is opened rather than weeks later.
Compact Footprint, Dual Capability
Workshops that cannot floor-space two separate machines benefit from the 180° rotation mechanism that switches between straight-edge and curved profiling. The 1900 × 560 mm footprint fits against a wall in smaller joinery shops, and the single-phase 4 kW draw avoids the need for a dedicated three-phase supply drop. This keeps installation simple when you need capability now rather than after a custom build cycle [NEED_CITE: single-phase vs three-phase supply requirements for small workshops].
Reading the Numbers That Matter
The 0–14 m/min feed speed range lets operators dial in slower feeds for curved profiles where the strip must follow a tight radius without lifting, then open up for long straight carcass edges. Panel thickness coverage from 10 to 50 mm spans most cabinet and furniture board stock. The 4-blade alloy arc trimming cutters work through a square slide rail mechanism, producing a consistent arc finish on both curved and straight workpieces without a separate trimming pass. Rated air pressure at 0.4–0.6 MPa drives the pneumatic strip-breaking cylinder, so a standard workshop compressor is usually sufficient without an auxiliary receiver tank.
The Hidden Cost of Skipping Configuration Checks
Machines ordered without matching feed height to upstream saws arrive to find panels jamming at the infeed. Control panels labeled in a language the operator cannot read stall commissioning until replacement overlays are shipped internationally. Edge banding quality that looks acceptable on melamine can show visible glue lines on raw MDF if the glue roller pressure was never adjusted for that substrate [NEED_CITE: edge banding adhesion variables across panel substrates]. These are not warranty failures — they are configuration oversights that cost weeks of downtime.
Why Buyers Source This Model Here
In-house manufacturing means the cutting mechanism patents and tolerance specifications are controlled under one roof, not assembled from traded components. Voltage and control panel language customization is treated as standard procedure, not a special request. A four-stage quality check covers incoming material, in-process assembly, finished product testing, and pre-shipment verification with photographs. Single-unit orders ship without minimum-quantity hurdles. Engineer-led configuration proposals are typically returned within one working day, matching the speed buyers expect from a ready-stock channel.
Documentation & Verification
- Electrical schematic confirming your exact voltage and frequency before dispatch
- Factory test record run on your specified panel thickness range
- Operation manual printed in the language your operator reads
- Pre-shipment crate photographs showing serial number and packing condition
- Spare parts list matched to the ZDSF190 configuration you receive
Installation, Commissioning & Support
- Requires on-site assembly; plan a half-day with two people for the 120 kg unit
- 4 kW rated draw needs a dedicated 220V circuit with appropriate breaker rating

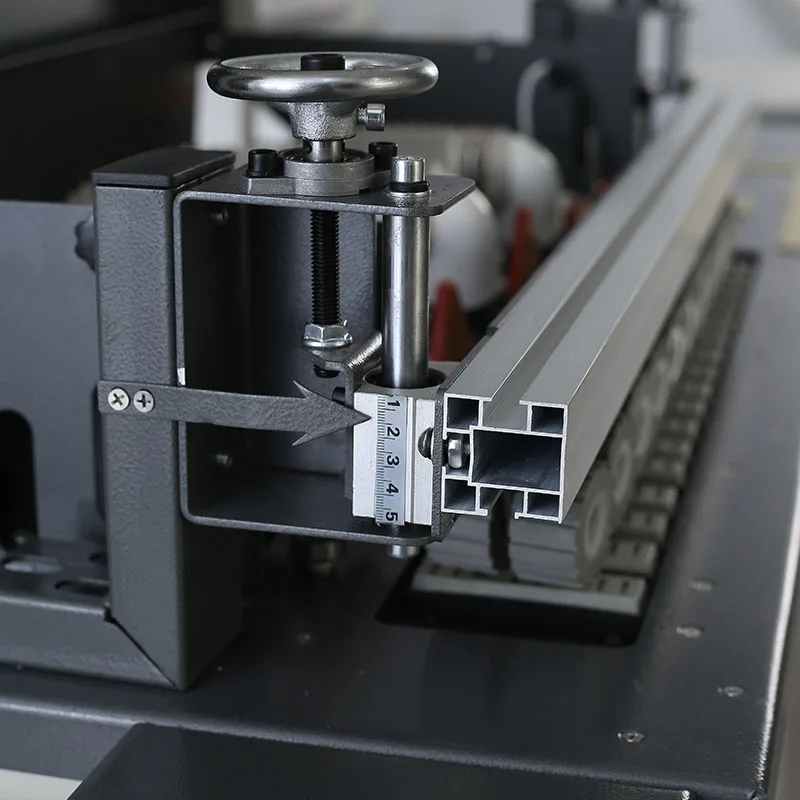

- Adjustable aluminum alloy pressure beam must be calibrated to your thinnest panel stock
- Double-row rubber pressure wheels need alignment check after transport vibration
- 1000 ml glue pot should run a test batch with your chosen PVC or veneer strip before production starts
- Two vacuum collectors connect to your existing dust extraction or a standalone 1200W unit
What to Include with Your Inquiry
To match the right configuration, share your local supply voltage and frequency, the panel materials and thickness range you process most often, and whether your operators need a specific control panel language. If you plan to run both curved and straight profiles, note the minimum curve radius so feed speed can be recommended accordingly.
Frequently Asked Questions
Q: Is this machine truly in stock and how fast can it ship?
A: Stock status is confirmed at the time of inquiry. Once your voltage and language requirements are locked in and the pre-shipment test is completed, dispatch follows within a short lead window. Units already configured for common voltage standards may ship faster than those requiring motor rewinding or control panel relabeling.
Q: Can the voltage be changed for my country before shipping?
A: Yes. The standard listing shows 220V/50Hz, but motor and control transformer configurations can be adjusted to match your local grid. Written voltage confirmation is issued before crating so there is no ambiguity on arrival.
Q: What assembly is required when the crate arrives?
A: The unit ships in knocked-down packing to reduce freight volume. On-site assembly involves mounting the pressure beam, connecting pneumatic lines, wiring the dust collectors, and calibrating the feed mechanism. A video guide and printed manual walk through each step.
Q: How do I order replacement trimming cutters and glue rollers?
A: A spare parts list specific to your configuration is included in the crate. Replacement 4-blade alloy arc knives, glue rollers, and pressure wheels can be reordered directly. Shipping options for small parts packages keep downtime short.
Q: What warranty coverage applies after installation?
A: The machine carries a one-year warranty covering manufacturing defects. Remote troubleshooting is available to diagnose faults before parts are shipped, reducing the chance of incorrect replacement components being sent internationally.
