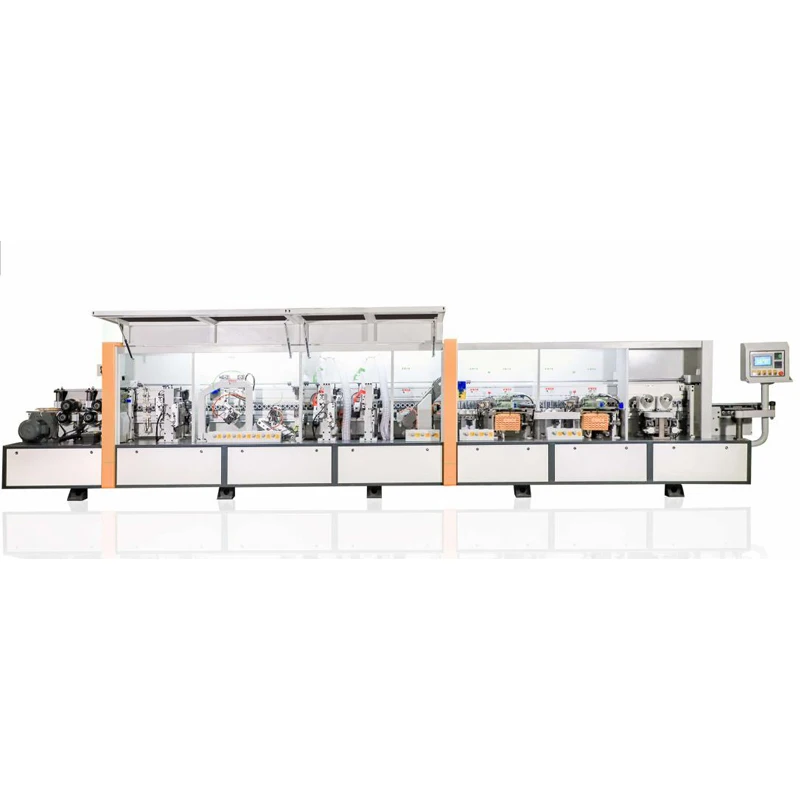

Full Automatic Linear Pur Double Trimming Abs Edge Banding Machine Gluing Pvc Mdf Kdt With Premiling

This product is currently out of stock and unavailable. SKU: Full Automatic Linear Pur Double Trimming -36310020 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Table of ContentsDescriptionTwo GluepotsPressing rollerFlexible edge scrapingNarrow plate auxiliary deviceSlotting deviceQuick Sol UnitAbout Optional FeaturesAdditional informationRelated productsDW102 Bander Straight With Pre-milling Mini Edge Acrylic Banding Machine AutomaticDW102 Taiwan […]

20yrs

Experience

100+

Countries

OEM

Customizable

CE & ISO9001 certified -- meets global import standards
Full OEM/ODM: custom logo, voltage (110V-440V), multilingual panels
Factory-direct pricing with stable supply chain
Professional after-sales: remote support, warranty & spare parts
Suitable for small workshops to large industrial factories

Request a Free Quote WhatsApp Now

Direct Contact

woodmachinebc@aliyun.com +86 156 6441 3539

Specification

item	value
Place of Origin	China
Condition	New
Type	edge banding machine
Brand Name	ZDS
Voltage	3-HP-380 v
Dimension(LWH)	800100160 cm
Power (kW)	18.5kw
Weight (KG)	2400kg
Applicable Industries	Home Use. Other. Factory product plywood
Warranty	1 year
Key Selling Points	Automatic double buffing
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Bearing. Motor. Pump. Gear. PLC. Other. Gearbox. Pressure vessel. Engine
Usage	MDF Production
Name	Automatic Edge Sealing Machine
Working pressure	0.6Mpa
Processed panel thickness	10-60 mm
Edge band thickness	0.4-3 mm
Min.panel	30060mm 150150mm

Products Disply

Product Parameters

Model	ZDS-468JJ
The main function	Pre-milling. Gluing 1. Gluing 2. End trimming. Rough trimming. Fine trimming. Corner rounding. Scraping. Buffing 1. Buffing 2
Working pressure	0.6Mpa
Panel thickness	10-60mm
Edge thickness	0.4-3mm
Min. panel	30060mm 150150mm
Voltage	380V-3HP
Power	18.5kw
Weight	2300kg
Dimensions	80009001600mm

Details Images

PLC control system

Excellent integrated control system. clear at a glance. easy to operate. and easy to learn

Pre-milling

Premilling unit with diamond cutters. 12000 rpm. 2×2.2 kW (3 HP). max. depth of cut 2 mm. max. workpiece height 60 mm. premilling cutters with diamond cutters width 65mm; ensures right angled and chip free workpiece edges.

Two Gluepots

Double glue pot. which can use different colors of glue to facilitate edge sealing operations of different colors

Optional PUR device

Pressing roller

6 sets of pressing roller wheels to tightly bond the edge banding strip and the plate

End trimming unit with two high frequency motors
0.37 kW .12000 rpm

Rough trimming system2 high frequency motors for upper and lower edge with 0.75 kW (1 HP); 12000 rpm. With 2pcs 6 teeth flat cutters.Edge belt thickness change by manual

Fine trimming system2 high frequency motor for upper and lower edge with 0.75 kW (1 HP); 12000 rpm. With 2pcs 6 teeth R2 cutters.Edge belt thickness change by manual.

Corner rounding
Four-motor profiling. tracking and trimming ·High-precision profiling. to ensure the perfect tactile and visual effects of work
piece processing ·Can achieve 4 different profiling effects. as well as diamond corners

Edge scrapingEdge scraping mechanism ·Remove knife marks left by trimming and finish R rounded corners ·Electro-pneumatically controlled blowing

Double Buffing unit
Upper and lower buffing unit ensures a perfect finish on the edge radius and removes any colour irregularities.

Flexible edge scraping

scrape the wave marks on the edge banding tape. more steadily

Narrow plate auxiliary device

Narrow plate edge sealing is more stable and won't deviate

Optional features

Slotting device

Grooves are made on the finished edge banding plate as needed. forming in one step to improve efficiency

Quick Sol Unit

With the upper melt system and the dual pre-melt system. the replacement is simple and convenient. The glue box is close to the pre-melt and the glue quantity control is more accurate.

About Optional Features

Edge banding machines can have different functional combinations (Pre-milling. Gluing. End trimming. Rough trimming. Fine trimming. Profiling unit . Scraping . Buffing . Grooving. Drilling). According to your needs. in addition to the basic functions. we have multiple models with combined functions. If you need other features or want to remove some features. you can contact us and we can recommend the appropriate model to you.
