Description
Stocked and Verified — Every ZDSF120 unit ships only after voltage, frequency, and functional tests are confirmed against your local power supply, eliminating dead-on-arrival surprises.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF120 Edge Banding Machine |
| Product Type | Automatic Edge Banding Machine |
| Voltage | 220V |
| Rated Power | 2.8 kW |
| Glue Capacity | 1000 ml |
| Heating Time | 5–8 min |
| Panel Thickness Range | 10–60 mm |
| Edge Thickness Range | 0.5–3 mm |
| Overall Dimensions | 105 × 50 × 45 cm |
| Gluing Method | Double-sided gluing |
| Trimming | Automatic trimming and polishing |
| Head Cutting | Pneumatic flush head cutting |
| Operation Mode | Straight and bend dual use |
| Assembly State | KD packing, requires on-site assembly |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door edge finishing | MDF and particleboard with PVC edge banding (0.5–3 mm strip) |
| Small-batch custom furniture | Plywood panels from 10 mm to 60 mm thickness |
| Joinery workshop upgrade | Transition from hand-held manual banding to semi-automatic table-top operation |
| Prototype and sample room work | Quick edge finishing on test panels before full production commitment |
Why Voltage Confirmation Must Happen Before the Crate Is Sealed
An Automatic Edge Bander in stock fast delivery is only useful if it actually runs when it arrives. I have watched a workshop lose three weeks of production because a machine wired for one voltage standard was plugged into a different grid without anyone checking the nameplate first.
The ZDSF120 is configured for 220V operation. If your facility runs on a different supply — whether 110V single-phase, 380V three-phase, or 415V — the motor and heating elements will not function correctly, and in some cases will fail immediately. Frequency matters just as much: a 50 Hz motor running on a 60 Hz supply spins faster than designed, which changes feed behavior and can damage the glue pot heater over time [NEED_CITE: voltage and frequency standards by export market]. Before we seal any crate, the voltage confirmation sheet and electrical schematic are checked against your declared site power. This step is non-negotiable, even on urgent dispatch.
Dispatch Readiness Without Cutting Corners
The appeal of an Automatic Edge Bander in stock fast delivery is obvious when a customer order is overdue or a machine on the floor has gone down. Stock availability shortens the gap between decision and production restart. What matters is whether the stocking process includes the same verification steps as a built-to-order unit. Each ZDSF120 held in inventory undergoes a pre-shipment test cycle: the glue pot is brought to operating temperature, the pneumatic head cutter is cycled, and the double-sided gluing mechanism is run with test material to confirm alignment and trim accuracy.
What Compact Footprint Means for Your Floor Plan

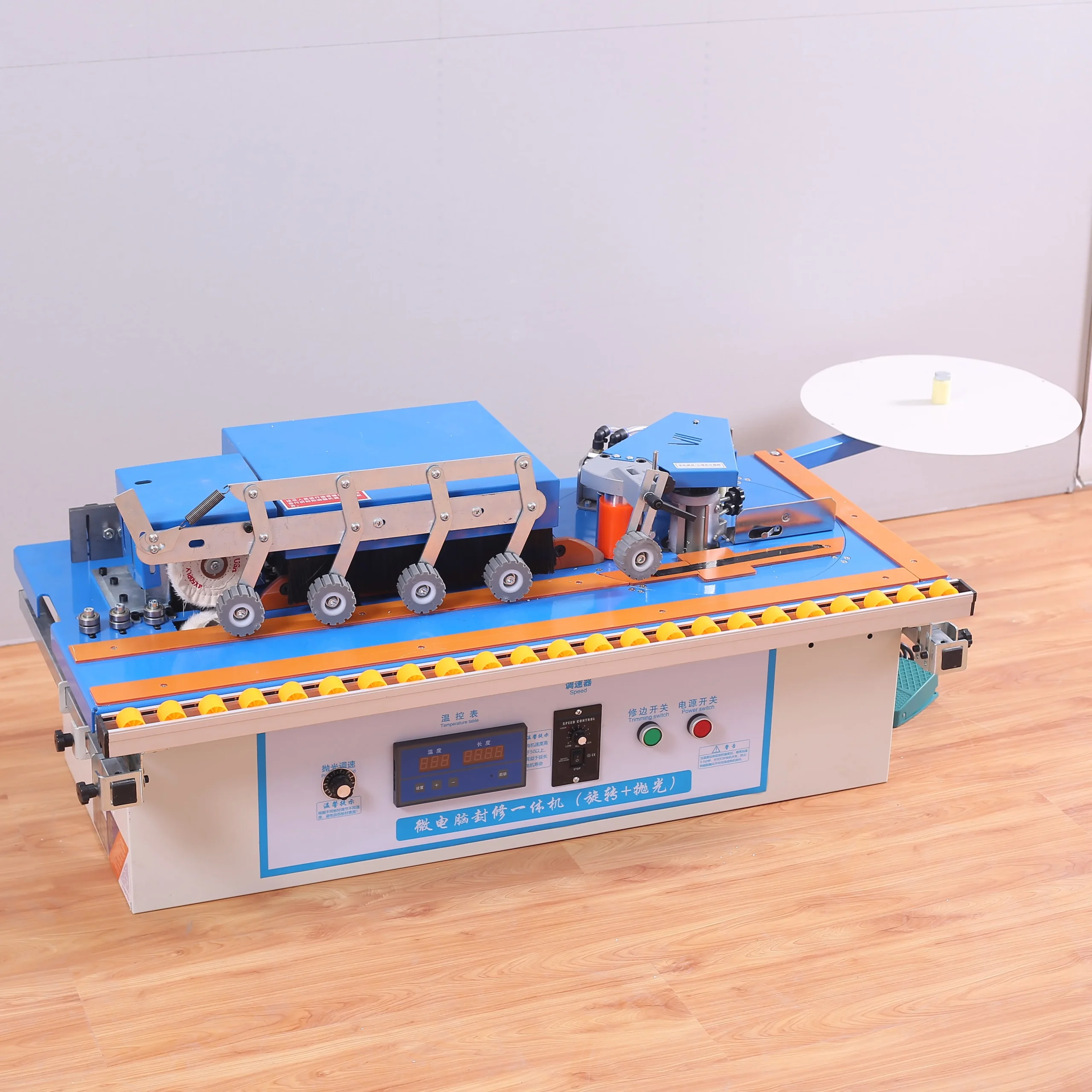

At 105 × 50 × 45 cm, the ZDSF120 fits into workshops where a full-size industrial edge bander would consume too much floor space. The KD packing format means the machine arrives in components that require assembly on site. For a small joinery shop or a cabinet maker adding edge banding capability for the first time, this footprint allows placement against a wall or between existing stations without rearranging the entire production layout. The 2.8 kW power draw is within the capacity of a standard single-phase workshop circuit, so no dedicated high-amperage line is typically needed.
Reading the Specs That Matter Most
The 10–60 mm panel thickness range covers the majority of materials a furniture or cabinet shop encounters — from thin 10 mm MDF shelving stock to 60 mm solid-core worktops. Operating outside this range risks incomplete glue transfer on thin panels or insufficient pressure on thick ones. The double-sided gluing method applies adhesive to both the panel edge and the banding strip simultaneously, which improves bond consistency compared to single-side systems, particularly on porous substrates like particleboard [NEED_CITE: adhesive bonding principles for wood-based panel edge banding].

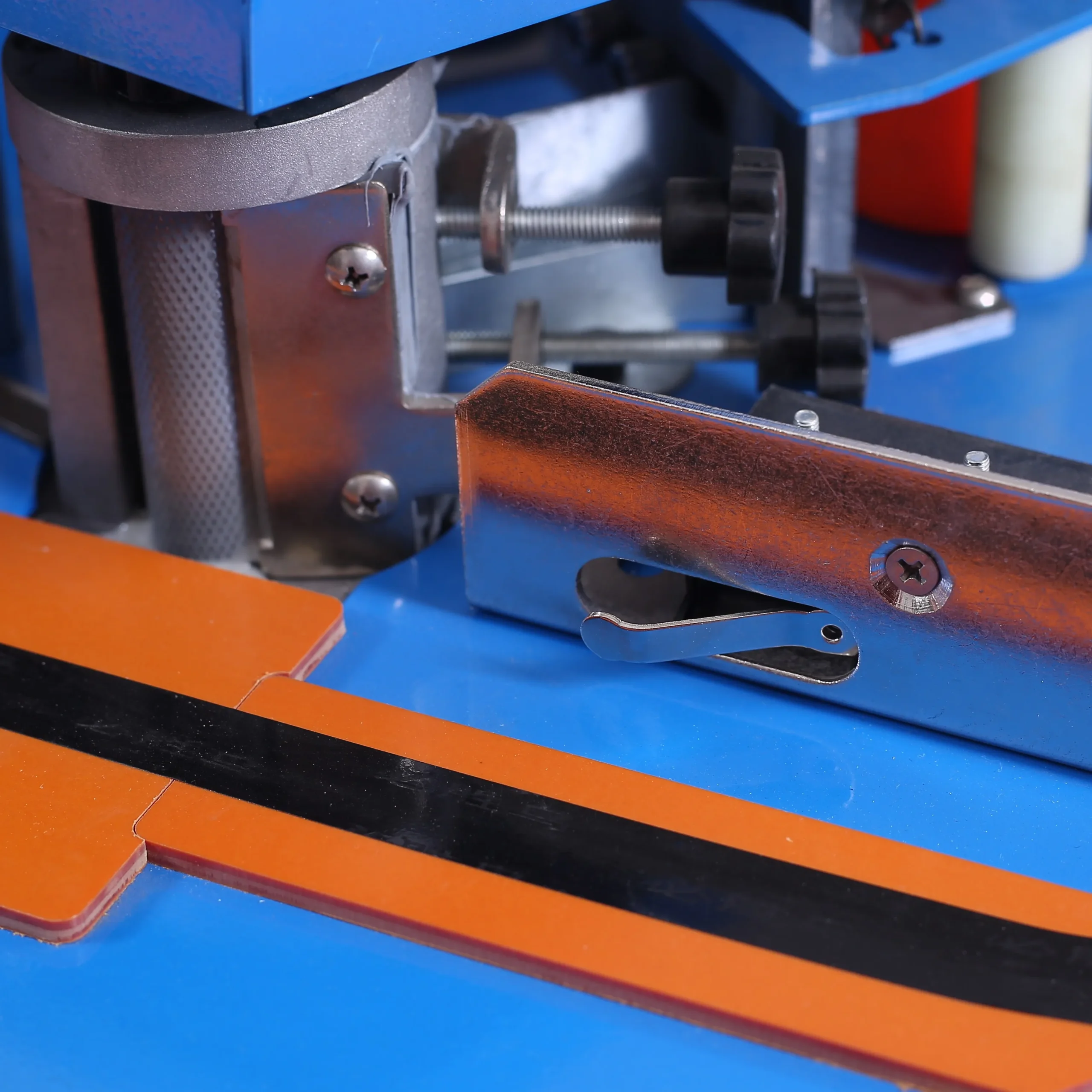

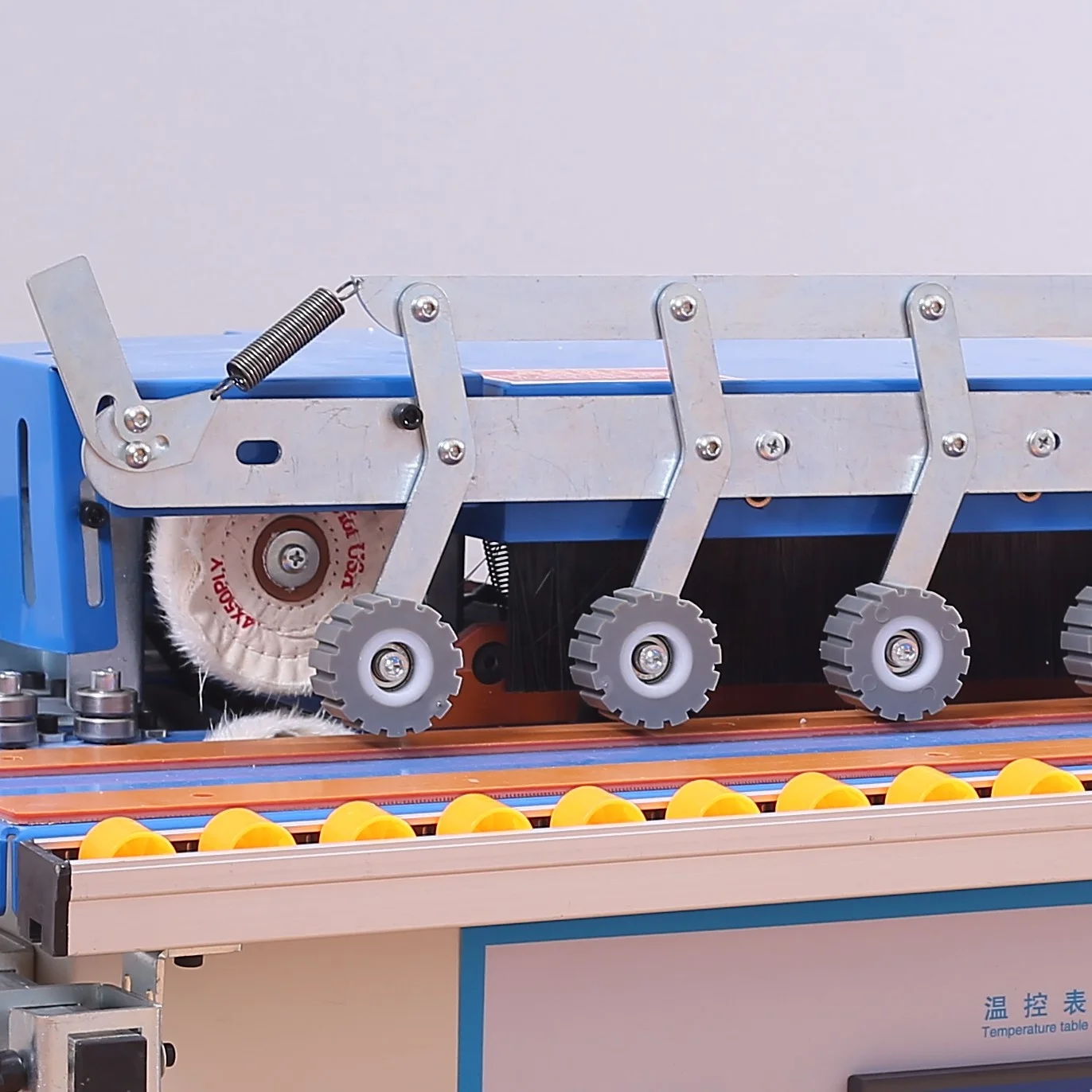

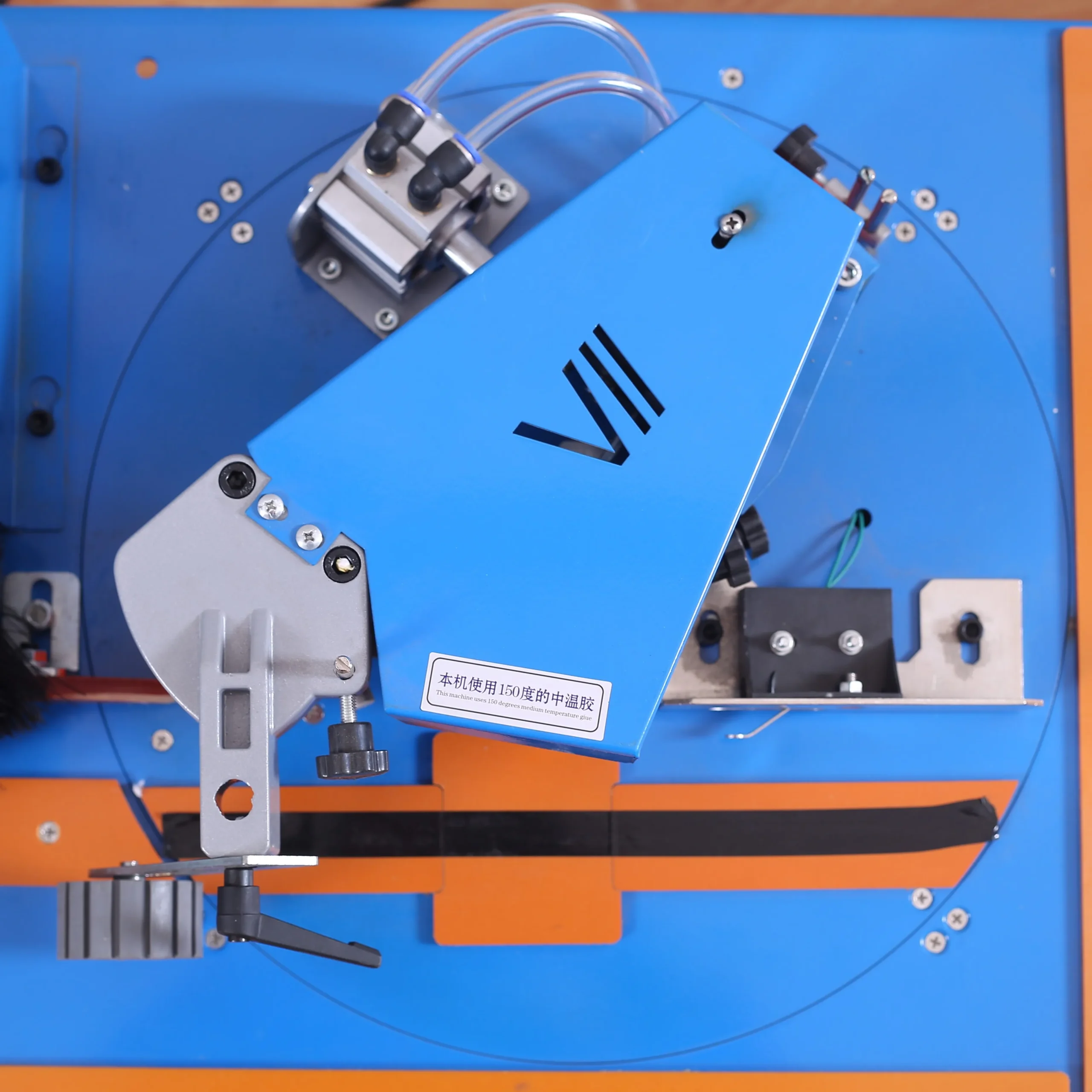

The 1000 ml glue pot with a 5–8 minute heating cycle means the machine is ready for short runs without the long warm-up waits associated with larger industrial glue tanks. For a shop doing five or ten panels between other tasks, this reduces idle time. The automatic trimming and polishing stations produce a finished edge directly off the machine, so operators do not need to hand-trim PVC banding after each pass. The pneumatic flush head cutting handles end-trimming on both straight and curved panels, which is where many entry-level machines leave rough or overhanging edges that require secondary cleanup.
What Happens When You Skip the Compatibility Check
Buying a single edge bander without mapping it to your actual workflow creates downstream friction. A machine rated for straight edges only will stall production the first time a curved cabinet component comes through. An undersized glue pot forces mid-job refills on longer runs, introducing cold joints where the temperature drops during the pause. And a machine shipped without confirming the operator’s language on the control interface leaves your team guessing at setup parameters during commissioning [NEED_CITE: operator interface language requirements for industrial machinery exports]. These are not warranty claims — they are configuration oversights that no amount of troubleshooting on the floor will resolve.
Why Buyers Source This Machine Through Our Stock Channel
Every ZDSF120 unit in our stock inventory carries the same documentation package as a custom production run: you receive the electrical schematic, voltage confirmation record, and factory test results with your shipment. Single-unit orders are not treated as an afterthought — the pre-shipment verification cycle runs identically whether the order is one machine or twenty. The engineering team reviews your declared site power and panel specifications before confirming dispatch, so the machine that leaves the warehouse matches your actual workshop conditions. Multilingual operation and maintenance manuals are prepared in your operator’s language on request, and a spare parts list ships inside the crate so consumable planning starts on day one.
Documentation & Verification
- Factory test record confirming glue pot temperature stability and trim accuracy on your specified panel thickness
- Electrical schematic with voltage and frequency matched to your declared site power supply
- Operation and maintenance manual prepared in your operator’s preferred language
- Pre-shipment photograph set showing machine condition and packing configuration before crate sealing
- Spare parts list with part numbers for consumable items specific to the ZDSF120
Installation, Commissioning & Support
- Requires a stable 220V single-phase circuit capable of sustaining the 2.8 kW rated load without voltage drop
- KD packing means on-site assembly; allocate floor space of at least 105 × 50 cm with rear access for maintenance

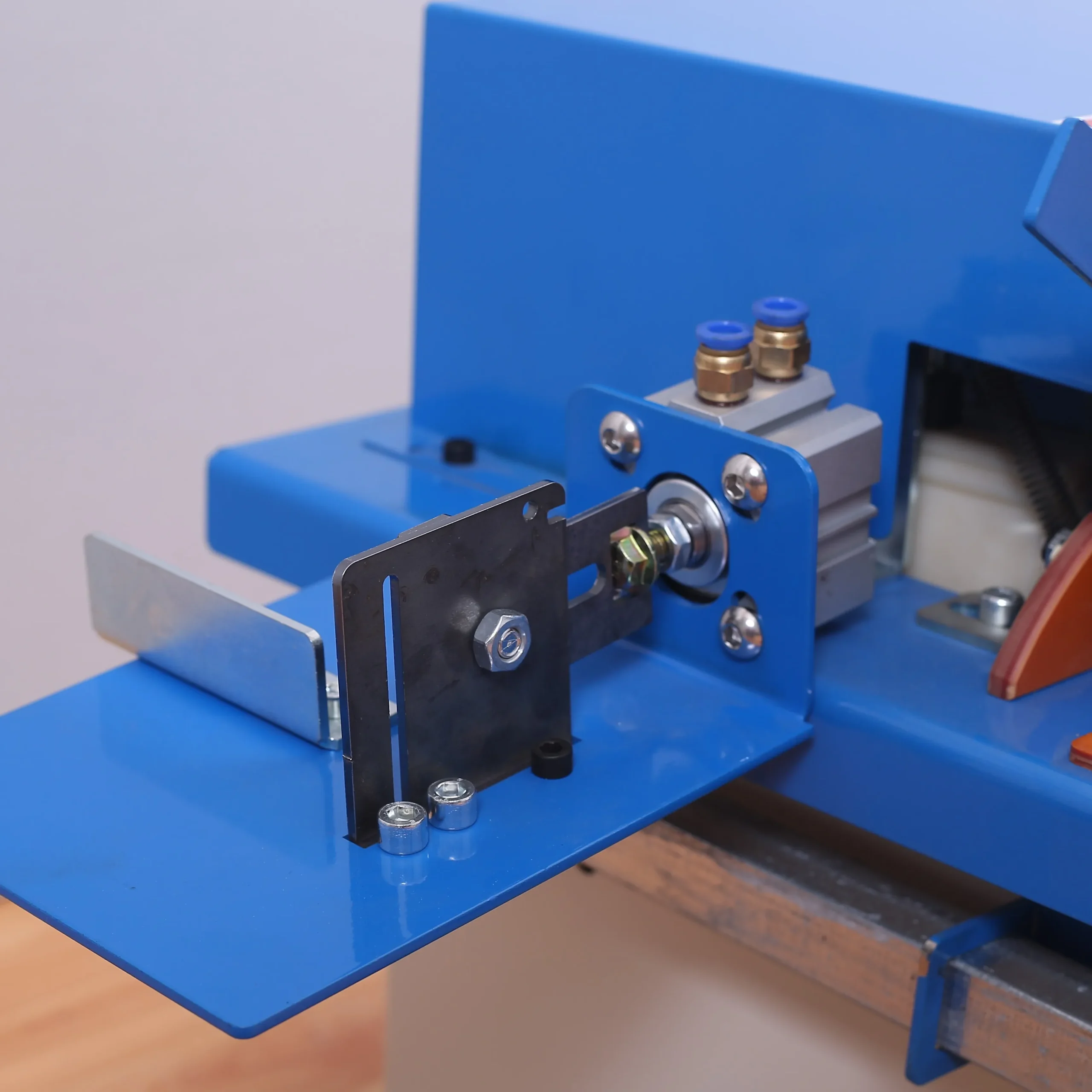

- Pneumatic head cutting requires connection to a compressed air supply at the pressure stated in the manual
- First-run commissioning includes glue pot heating cycle verification and trim station alignment on your actual panel stock
- Operator training covers double-sided gluing setup, edge thickness adjustment for the 0.5–3 mm range, and bend-mode operation
- Spare wear items including trimming blades and glue pot seals listed in the shipped parts document for reorder planning
What We Need From You Before Dispatch
To ensure the ZDSF120 you receive is configured for your workshop, provide your local voltage and frequency, the panel materials and thickness range you work with most often, and the edge banding material type and strip thickness you intend to use. If your operators require documentation in a specific language, confirm this at the time of order so the manual is prepared before the machine ships. Let us know whether you need guidance on compressed air supply requirements for the pneumatic head cutter.
Frequently Asked Questions
Q: Is this edge bander currently in stock and what is the dispatch lead time for a single unit?
A: The ZDSF120 is held in ready stock for single-unit orders. Dispatch timing depends on completing the pre-shipment verification cycle, which includes a voltage match confirmation against your site power and a functional test run. Once verification is complete, the machine is crated and handed to the freight forwarder. We provide a confirmed dispatch date after your power specifications are validated.
Q: What voltage and frequency does the ZDSF120 support, and can it be configured for my country?
A: The standard configuration is 220V. Before dispatch, we verify that this matches your facility’s actual supply, including frequency. If your site operates on a different voltage standard, we review whether the machine can be reconfigured or recommend a suitable alternative from the product range. Never assume compatibility without written confirmation.
Q: What shipping options are available, and can you arrange delivery with customs documentation?
A: We support multiple freight options depending on your destination and timeline. Customs documentation is prepared as part of the standard shipment package, including the commercial invoice, packing list, and certificate of origin where applicable. Door-to-door delivery can be quoted based on your facility address once the machine is ready for dispatch.
Q: What is included for assembly, and is there a setup guide available?
A: The ZDSF120 ships in KD packing format with all hardware needed for on-site assembly. An operation and maintenance manual is included, prepared in your requested language. The manual covers assembly steps, glue pot commissioning, trim station adjustment, and bend-mode setup. Video guidance for assembly is available on request.
Q: What spare parts and consumables should I order with the machine?
A: The shipped documentation includes a spare parts list specific to the ZDSF120. We recommend ordering an initial set of trimming blades, glue pot seals, and any consumable items matched to your edge banding material at the time of purchase, so you have replacements on hand before wear items need changing.
