Description
Voltage verified before dispatch — every stocked edge bander ships only after we match its electrical configuration to your workshop’s local grid, eliminating the dead-on-arrival failures that stall production for weeks.
Technical Specifications
| Parameter | Value |
|---|---|

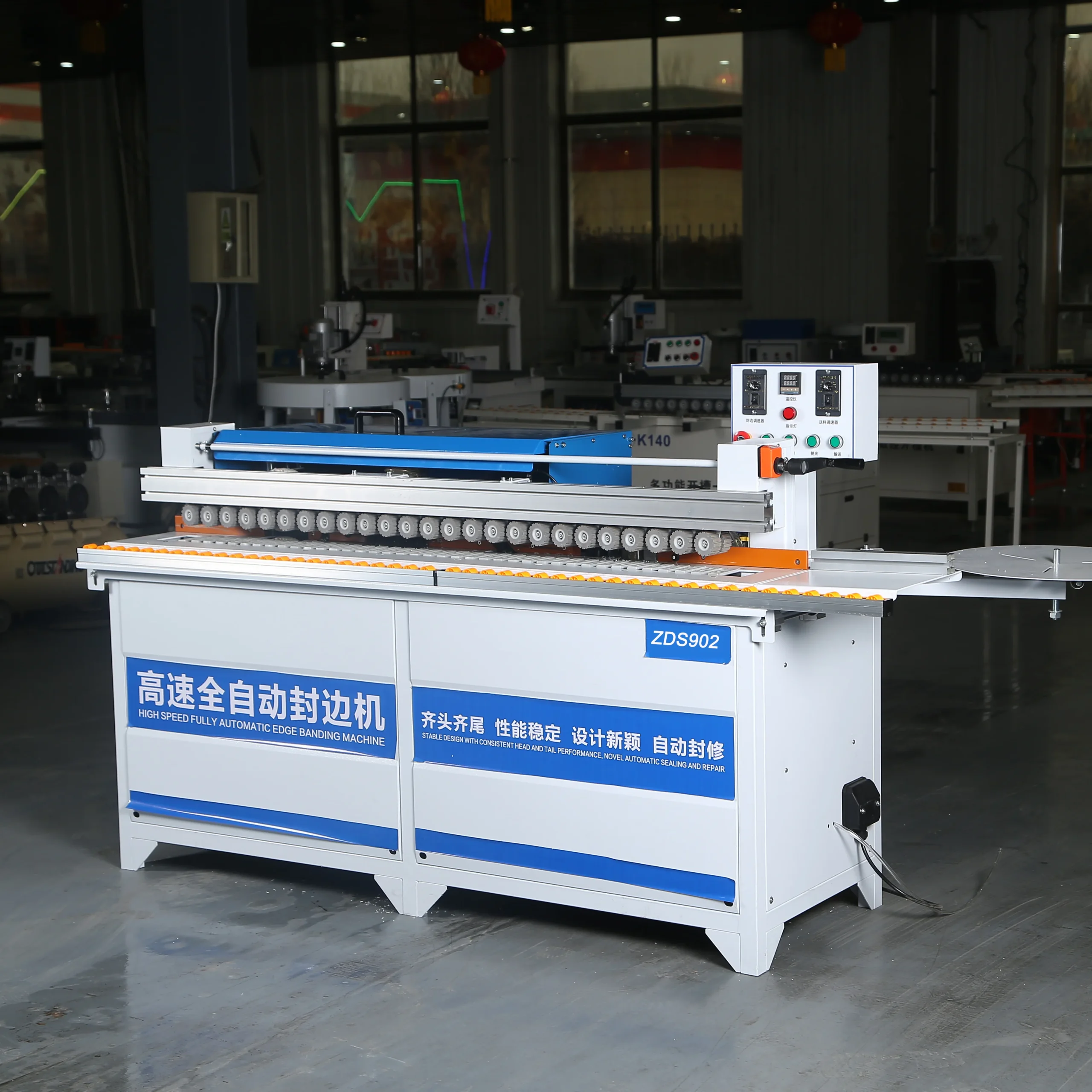

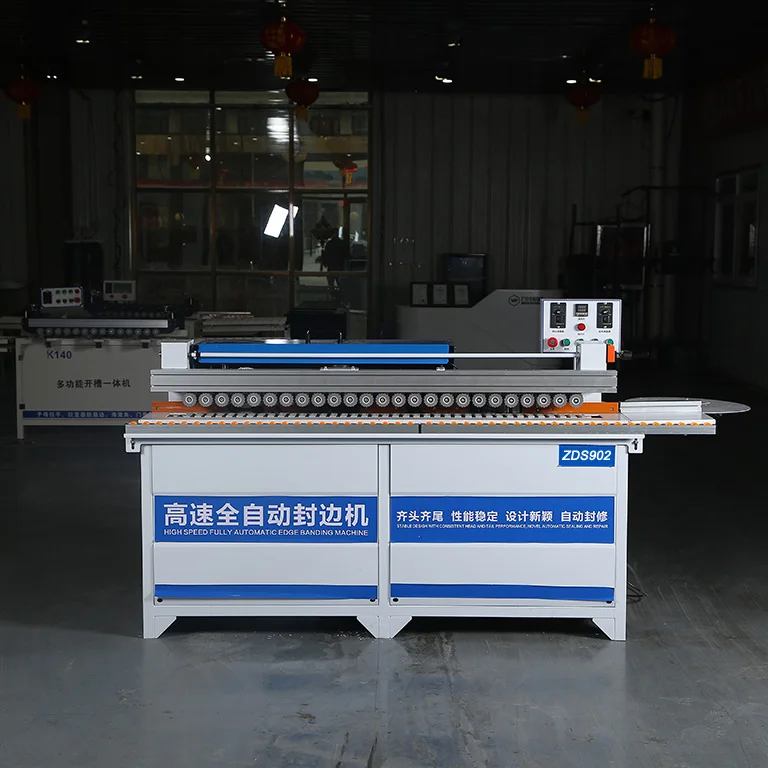

| Product Type | Automatic Edge Banding Machine |
| Voltage | 220V (frequency to be confirmed per region) |
| Total Power | 4200W |
| Overall Dimensions (L×W×H) | 207×60×122 cm |
| Net Weight | 245 kg |
| Edge Band Height Range | 0–35 mm |
| Edge Band Thickness Range | 0.6–2.0 mm |
| Glue Pot Capacity | 4000 ml |

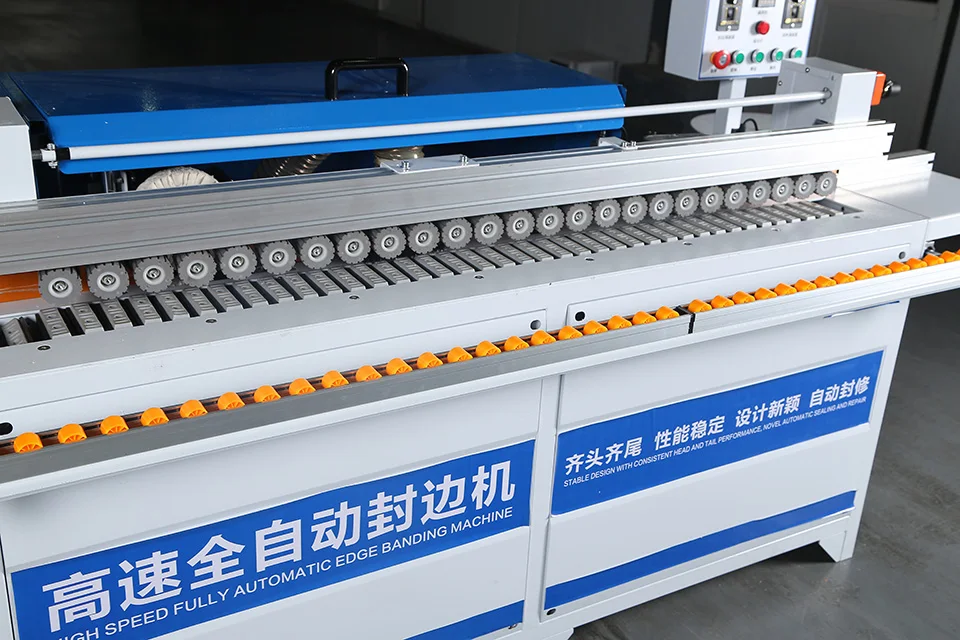

| Pressure System | Integrated pressure beam with double rows of pressure wheels |
| Conveyor | Silicone material conveyor belt |
| Edge Strip Cutting | Pneumatically controlled cutting device |

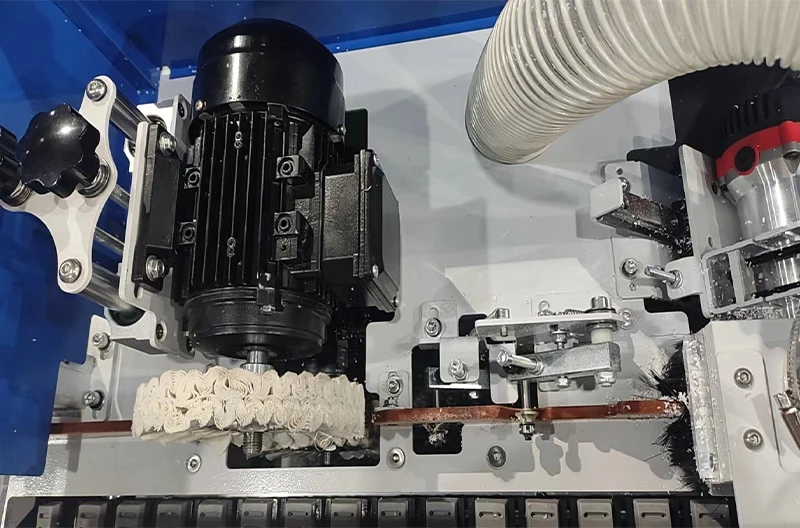

| Polishing | Up and down dual polishing motors |

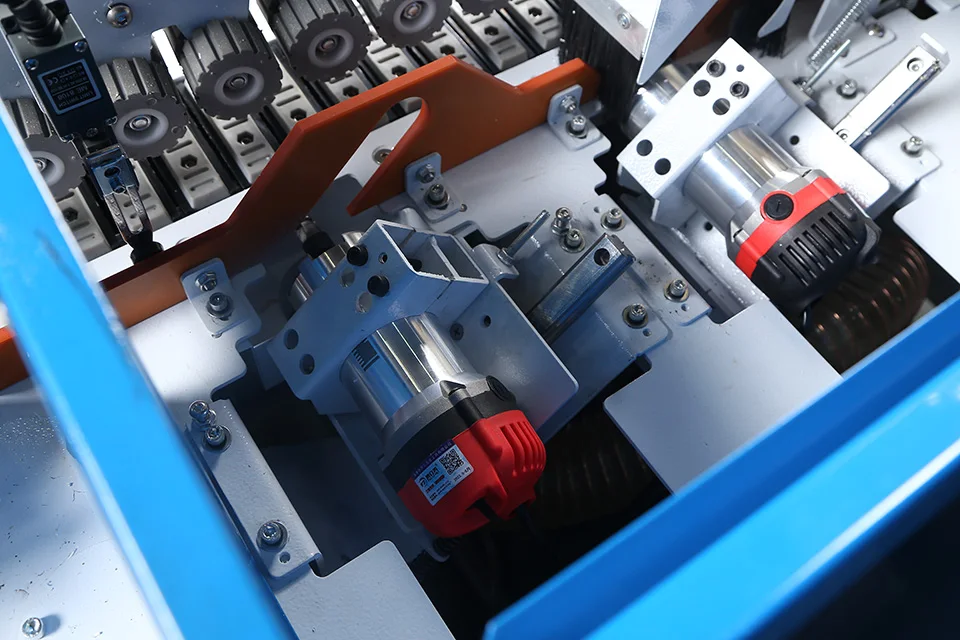

| Trimming | Double high-speed trimming motors, up and down |

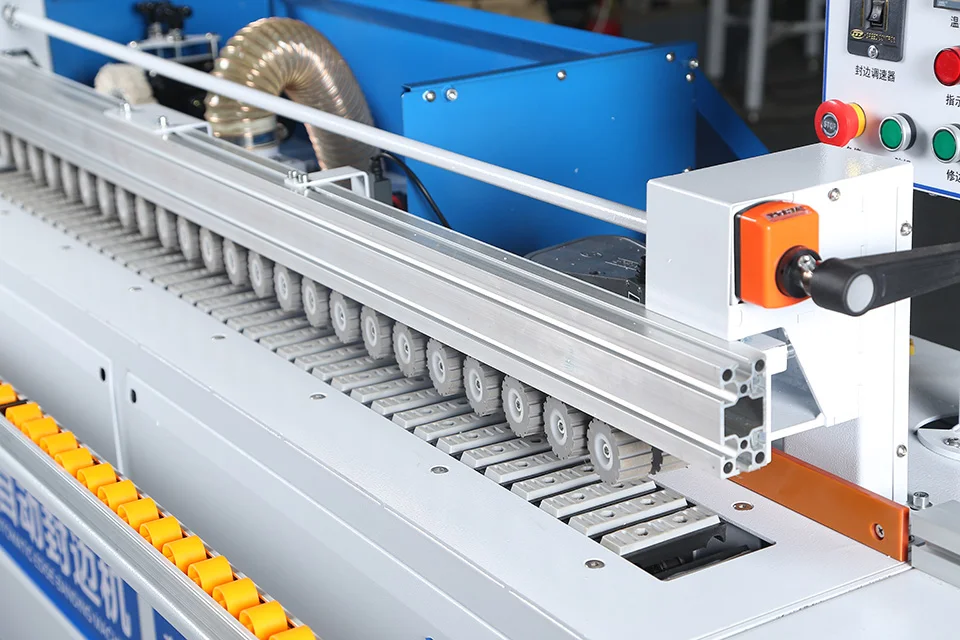

| Pressure Beam Adjustment | Manual handle for arbitrary board height |
| Key Features | Double-sided gluing, intelligent temperature control, independent operating platform |
| Assembly State | Requires on-site assembly, user manual and video teaching provided |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edge banding | MDF, plywood, particleboard with PVC or melamine edge banding |
| Cabinet door and carcass production | Veneer edge banding on solid wood panels and plywood substrates |
| Small-to-medium workshop automation | PVC, veneer, and melamine strips on board thicknesses within the machine’s clamping range |
| Joinery workshop upgrade path | Transition from manual edge banding to consistent machine-applied adhesive and trimming |
Why the Voltage Question Should Come Before the Price
An automatic edge banding machine in stock is useless if the local grid cannot run it.
I have watched a container arrive at a Middle Eastern port, the customer clear customs in two days, then sit idle for three weeks because the 220V unit was wired for 50Hz and the workshop ran on 60Hz. The motor overheated on the first shift. We scrambled to source a step-down transformer locally, and the customer lost an entire production cycle before the first panel was edged. That automatic edge banding machine in stock should have been verified against regional voltage and frequency standards before the order was confirmed [NEED_CITE: voltage and frequency standards by export market].
Dispatch Lead Times You Can Build a Schedule Around
Stocked models move differently from built-to-order machines. When you need an automatic edge banding machine in stock for immediate dispatch, the conversation shifts from production scheduling to shipping logistics. We confirm the unit is physically in the warehouse, run a power-on test, and provide packing photographs before the crate is sealed. Single-unit orders go out on the next available freight window rather than waiting for a container to fill.
Matching the Machine to Your Current Throughput
A 4000 ml glue pot means fewer mid-shift refills, which matters when you are running batches of cabinet sides through a single pass. The pneumatically controlled cutting device handles edge strip trimming without operator fatigue across long runs. The double rows of pressure wheels on the integrated pressure beam keep panels stable against the silicone conveyor belt, reducing the edge drift that causes visible glue lines on lighter substrates [NEED_CITE: edge banding adhesion factors on porous substrates].
What the Specification Sheet Actually Tells You
The 4200W total power draw reflects the combined load of dual high-speed trimming motors, dual polishing motors, the glue pot heater, and the conveyor drive. Workshops running multiple machines on a single circuit need to account for this draw to avoid breaker trips mid-cycle. The 0–35 mm edge band height range covers standard panel thicknesses used in cabinet and furniture work, while the 0.6–2.0 mm thickness range accommodates both thin PVC strips and thicker veneer banding. The manual handle for pressure beam adjustment means operators set the clamping height per board rather than relying on fixed stops, which reduces crushing on thinner MDF panels. Intelligent temperature control on the glue pot maintains consistent adhesive viscosity across varying ambient workshop temperatures, preventing the cold-glue stringing that shows up as visible lines on light-colored melamine.
The Hidden Cost of Skipping Configuration Checks
Machines quoted without confirming local electrical standards arrive as expensive dead weight. A workshop that ordered a unit rated for a different frequency watched the main drive motor burn out within the first week, voiding the warranty and adding weeks of downtime while a replacement motor shipped overseas. Similarly, operators facing a control panel in an unfamiliar language stall at commissioning, misinterpreting temperature settings and feed parameters until someone translates the interface. The edge banding quality suffers silently — glue applied too cold leaves visible seams, while excessive heat degrades PVC strips before they bond [NEED_CITE: common commissioning failures in imported woodworking machinery].
Why Procurement Here Reduces Arrival Risk
Voltage and frequency are confirmed against your local grid before the unit leaves the warehouse, not after it arrives at your dock. Every stocked edge bander ships with a factory test record run on panel stock within your specified thickness range, so you see actual edge quality before the crate is sealed. The four-stage quality control process covers incoming material inspection, in-process assembly checks, finished product verification, and pre-shipment testing with photographic documentation. Operation and maintenance manuals are supplied in the language you specify, reducing the commissioning gap that stalls first production. Single-unit orders receive the same documentation package as full-line shipments, including electrical schematics and a spare parts list matched to the exact configuration dispatched.
Documentation & Verification
- CE declaration of conformity for this edge banding model class
- Factory test record run on your specified panel thickness before crating
- Electrical schematic confirming voltage and frequency match your local grid
- Operation and maintenance manual in your operator’s working language
- Pre-shipment packing photographs showing the unit secured for freight
- Spare parts list cross-referenced to this specific machine configuration
Installation, Commissioning & Support
- Requires on-site assembly; allocate clear floor space beyond the 207×60 cm footprint for maneuvering
- Dedicated 220V circuit rated for the 4200W total draw with appropriate breaker protection
- User manual and video teaching materials provided for assembly and first-run calibration
- Manual pressure beam handle allows operators to set clamping height per board during commissioning
- Glue pot initial fill requires up to 4000 ml of adhesive; confirm compatible glue type for your edge banding material
- Dual polishing and trimming motors need alignment verification after transit before first production run
What to Share When Requesting a Quote
Send us your panel material types, the edge banding strip specifications you run most often, and your local voltage and frequency so we can confirm the stocked unit matches before it ships. If your workshop has existing upstream saws or downstream boring stations, note their feed heights so we verify the edge bander integrates without throughput bottlenecks.
Frequently Asked Questions
Q: What stock models are available now, and what is the dispatch lead time for single-unit orders?
A: Stocked automatic edge banding machines in our warehouse are available for single-unit orders with dispatch typically within days of order confirmation. We run a pre-shipment test on your specified panel material, provide packing photographs, and ship on the next available freight window. Lead times depend on your destination port and chosen shipping method.
Q: Can I confirm voltage and frequency compatibility before placing the order?
A: Yes. We verify the 220V configuration and confirm whether the unit matches your local 50Hz or 60Hz grid before the order is finalized. This prevents the motor overheating and control system failures that occur when frequency mismatches go undetected until the machine arrives at your workshop.
Q: What shipping options are available, and can door-to-door delivery be arranged?
A: We quote shipping options upfront, including port-to-port sea freight and door-to-door delivery where available. The 245 kg net weight and 207×60×122 cm dimensions determine the freight class. We coordinate with your preferred forwarder or arrange logistics on your behalf.
Q: Does the machine arrive fully assembled, or is assembly required on site?
A: The machine requires on-site assembly. We provide a user manual and video teaching materials covering the assembly process. The integrated pressure beam, conveyor belt, and pneumatic cutting device are pre-aligned at the factory and need final adjustment after reassembly in your workshop.
Q: How do I order spare parts or consumables after delivery?
A: Every shipment includes a spare parts list cross-referenced to your specific machine configuration. Replacement trimming blades, polishing wheels, and pneumatic components can be ordered directly. We confirm availability and dispatch lead times for consumable parts matched to your edge banding machine model.
