Description
Fast Dispatch Commitment — every portable automatic edge banding machine ships only after voltage and frequency are confirmed in writing, matching your workshop’s power grid before it leaves our floor.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | WF-2000 / WF-2000H |
| Product Type | Portable Automatic Edge Banding Machine |
| Overall Dimensions (L×W×H) | WF-2000: 2100×600×630mm; WF-2000H: 2100×600×1100mm |
| Net Weight | WF-2000: 137kg; WF-2000H: 149kg |
| Panel Thickness Range | 18–25mm |
| Edge Strip Thickness | up to 1.2mm |
| Rated Voltage | 220V (configurable 110V–440V on request) |
| Rated Power | 6.17kW |
| Air Supply Requirement | 0.4–0.6 MPa |
| Feed Speed | 0–14 m/min |
| Gluing Method | Hot air heating throughout the process |
| Trimming Stations | Elastic profiling trimming |
| Pressing System | 8 pressing rollers |
| Auxiliary | Self-contained vacuum device |
| Assembly State | Portable / standalone unit |
| Warranty | 1 year |
Application Suitability
| Application | Material or Output |
|---|---|
| Straight edge banding on cabinet panels | MDF, particleboard, plywood with PVC or veneer strips |
| 45-degree oblique edge sealing | Wood-based panels for custom furniture fit-outs |
| Small workshop production runs | Low-to-medium daily panel volumes with quick changeover |
| On-site installation sealing | Portable operation at job sites without external dust collection |
Why the Voltage Question Should Come Before the Price on a portable automatic edge banding machine in stock
A machine that cannot match your local grid is a heavy paperweight until an electrician rewires your shop.
I learned this the hard way when a customer received a 45-degree edge bander, plugged it in, and heard nothing. The voltage was wrong, and the transformer retrofit cost them three weeks of production time while their own customer orders piled up [NEED_CITE: voltage and frequency standards by export market]. A stocked unit is only useful if it can run the moment it is uncrated, which is why voltage and frequency confirmation happens before the crate is nailed shut.
Dispatch Readiness and Lead Time
Ordering a portable automatic edge banding machine in stock should not mean waiting for a production slot. The WF-2000 and WF-2000H are built for rapid deployment, with pre-shipment testing completed before the machine leaves the assembly floor. Once specifications are locked in, the unit is prepared for crating and freight handoff.
Straight and Oblique Banding Without a Second Machine

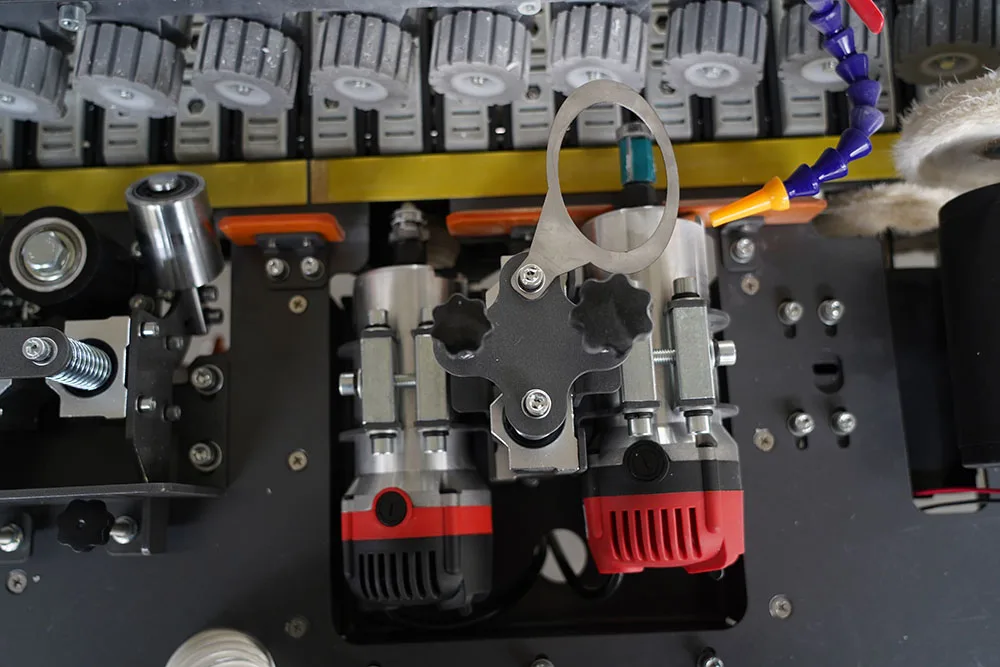

The hot air heating system bonds edge strips across MDF, particleboard, and plywood substrates, while the elastic profiling trimming station follows the panel contour to prevent surface scoring. Whether you run straight edges for cabinet carcasses or 45-degree oblique edges for decorative panels, the same machine handles both without retooling.
How Feed Speed and Pressing Rollers Affect Edge Quality

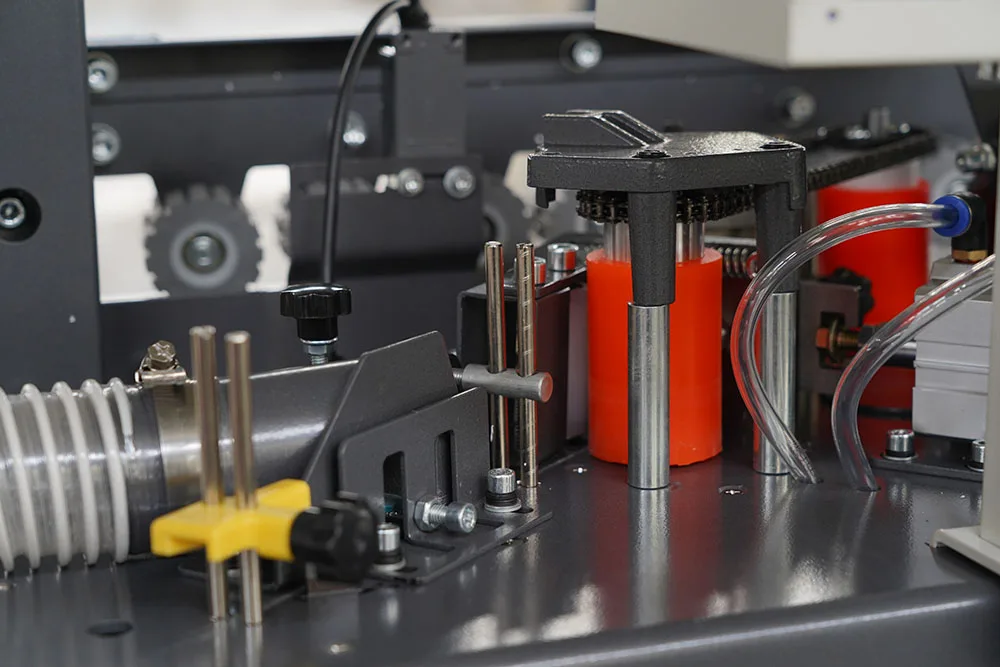

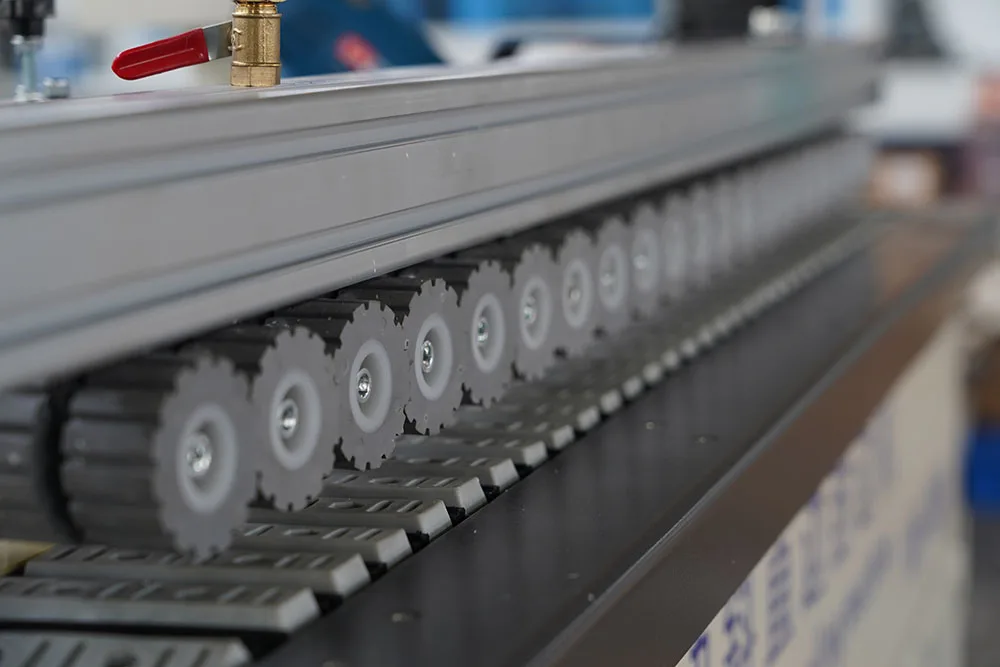

The 0–14 m/min feed speed range lets operators match throughput to the edge strip material being applied, while the 8 pressing rollers maintain consistent contact pressure along the entire panel length. Thinner PVC strips at higher feed rates need firm roller engagement to prevent lifting at the trailing edge. The self-contained vacuum device pulls trim waste away immediately, keeping the pressing zone clear without relying on an external dust collection system [NEED_CITE: dust extraction requirements for woodworking machinery].
What Happens When Voltage and Air Supply Are Overlooked
A portable edge bander that arrives with the wrong voltage rating sits idle while you source a step-up or step-down transformer. Likewise, if the workshop compressor cannot sustain 0.4–0.6 MPa, the pressing rollers lose clamping force mid-cycle, and edge strips start peeling at the corners. Both problems are entirely preventable with a brief pre-order checklist [NEED_CITE: compressed air requirements for pneumatic woodworking tools].
Why Stock Buyers Choose This Floor
Voltage and frequency are written into every order before dispatch, not assumed from a default setting. Each WF-2000 or WF-2000H undergoes a pre-shipment test on actual panel stock, with the test record included in the documentation packet. The hot air gluing system, elastic profiling trimming station, and self-contained vacuum are all verified under load before crating. Configuration recommendations come from engineers who have assembled these machines on the production floor, not from a catalog algorithm. Single-unit orders are standard, and shipping options are quoted upfront so you know the landed timeline.
Documentation & Verification
- Factory test record run on panel thickness within your 18–25mm range before dispatch
- Electrical schematic with confirmed voltage and frequency matching your local grid
- Operation manual translated into the language your operators will read on site
- Spare parts list with reorder codes for pressing rollers and trimming blades
- Packing photographs taken before crate closure for receiving inspection
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated for at least 6.17kW continuous draw
- Air compressor must sustain 0.4–0.6 MPa at the machine inlet during operation
- WF-2000 at 137kg can be moved by two people; WF-2000H at 149kg needs a pallet jack
- First run includes feed speed calibration and hot air temperature adjustment for your strip material
- Elastic profiling trimming blades require periodic inspection based on daily panel volume
What We Need From You to Move Forward
Share the exact voltage and frequency at your workshop so we can configure the machine before it ships. Let us know which panel substrates and edge strip materials you run most often, along with your typical daily volume, so we can confirm the WF-2000 or WF-2000H fits your throughput without undersizing.
Frequently Asked Questions
Q: Is this portable automatic edge banding machine in stock and what is the dispatch lead time?
A: The WF-2000 and WF-2000H are held as ready stock for fast dispatch. Once voltage, frequency, and language preferences are confirmed in writing, pre-shipment testing is completed and the machine is prepared for freight. Typical lead times from order confirmation to port handoff are measured in days rather than weeks.
Q: How do I confirm the machine voltage matches my workshop power supply?
A: We require your local voltage and frequency in writing before any machine leaves the floor. The rated voltage is 220V, but the unit can be configured from 110V to 440V. An electrical schematic with the confirmed rating is included in your documentation packet so your electrician can verify the circuit before uncrating.
Q: What edge strip materials and thicknesses does the WF-2000 / WF-2000H handle?
A: Both models accept edge strips up to 1.2mm thick, covering PVC and veneer materials commonly used on MDF, particleboard, and plywood. The hot air heating system provides consistent adhesion across these substrates, and the elastic profiling trimming station adjusts to strip contour without damaging the panel face.
Q: Can I order a single unit, and what shipping options are available?
A: Single-unit orders are standard for both the WF-2000 and WF-2000H. Shipping options are quoted upfront based on your destination port, with packing photographs and customs documentation provided so receiving and clearance proceed without delays.
