Description
Ready From Stock — Dispatch-ready ZDSF190 units tested against your exact panel material sample before crating, eliminating the voltage and substrate mismatches that stall commissioning.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZDSF190 |
| Product Type | Portable Curved and Straight Edge Banding Machine |
| Function | Automatic plate feeding, automatic belt breaking, double-sided gluing, upper and lower trimming and polishing |
| Edge Type | Curved and straight lines |
| Voltage & Frequency | 220V 50Hz |
| Rated Power | 4 kW |
| Heating Power | 800 W |
| Trimming Power | 800 W × 2 |
| Polishing Power | 180 W × 2 |
| Suction Power | 1200 W |
| Conveyer Belt Speed | 0–14 m/min |
| Feed Speed | 0–14 m/min |
| Sheet Thickness Range | 10–50 mm |
| Strip Thickness Range | 0.5–2.5 mm |
| Glue Pot Capacity | 1000 ml |
| Trimming Cutter | 4-blade alloy arc knife |

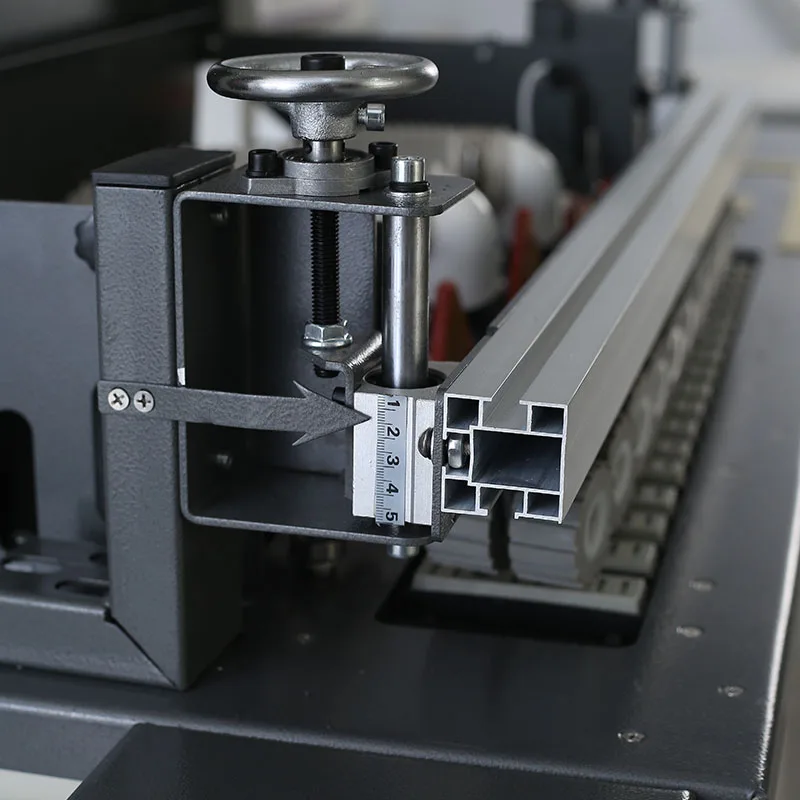

| Pressure Beam | Adjustable aluminum alloy |
| Feed Mechanism | Double-row rubber pressure wheels with steel rod slide rails |

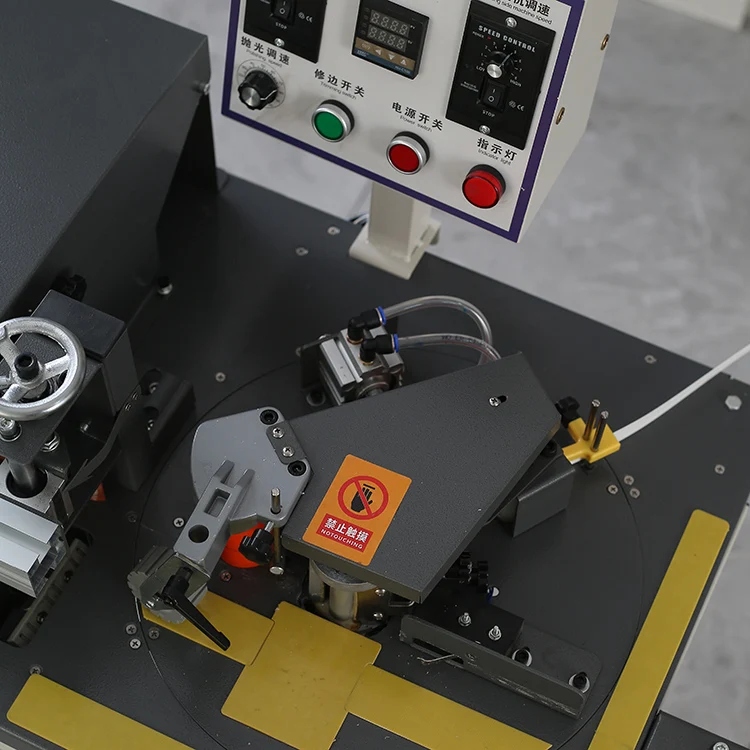

| Edge Strip Cutting | Pneumatically controlled |
| Rated Air Pressure | 0.4–0.6 MPa |

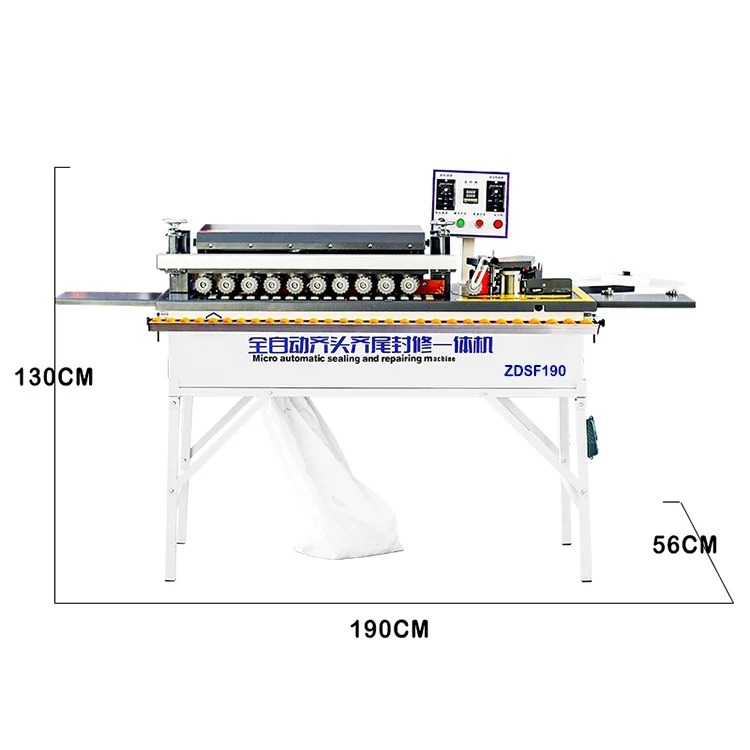

| Overall Dimensions (L×W×H) | 1900 × 560 × 1300 mm |
| Net Weight | 120 kg |
Application Suitability
| Application | Material or Output |
|---|---|
| Small custom furniture workshops | MDF and particleboard panels with PVC edge strips 0.5–2.5 mm |
| Curved cabinet components | Plywood and MDF shaped panels requiring 180° surrounding edge coverage |
| On-site joinery and field touch-ups | Pre-cut boards needing portable straight and curved edge finishing |
| Compact cabinet maker operations | Veneer and PVC banding on boards 10–50 mm thick |
Why the Voltage Question Must Come Before the Order
A Portable Edge Banding Machine in Stock at the wrong voltage is a 120 kg paperweight sitting on your shop floor.
I have watched crated machines arrive at workshops in Southeast Asia and South America only to sit unopened for weeks because the local supply was 60 Hz while the motor was wound for 50 Hz. The ZDSF190 ships configured at 220V 50Hz, and voltage confirmation is documented in the electrical schematic before dispatch — not discovered when the heating element trips the breaker on first run [NEED_CITE: voltage and frequency standards by export market].
Stock Availability and Dispatch Timing
The primary reason buyers come to this channel is lead time. The ZDSF190 Portable Edge Banding Machine in Stock is assembled, glue-pot tested, and crated — meaning your unit ships within days rather than the typical multi-week production cycle. Each stocked unit has already passed a factory run with standard MDF and PVC strip, so the baseline mechanical alignment and glue flow are verified before your order is even packed.
What Gets Checked Before Your Unit Leaves the Floor
Every stocked unit goes through a final verification cycle that goes beyond the standard assembly bench test. We run the exact strip thickness and panel material you specify — whether that is 0.5 mm veneer on 18 mm plywood or 2.5 mm PVC on recycled MDF. Last year a customer ordered a curved edge bander for PVC work and ran it on standard MDF during the sample test, but his actual production board was recycled stock with uneven density. The glue penetration settings had to be completely reworked on-site, and three batches of panels showed strip lift before the parameters were dialed in. Now every unit leaves only after the buyer’s actual material sample has been processed and signed off [NEED_CITE: substrate density variation in recycled MDF and particleboard].
How the Spec Sheet Translates to Panel Output

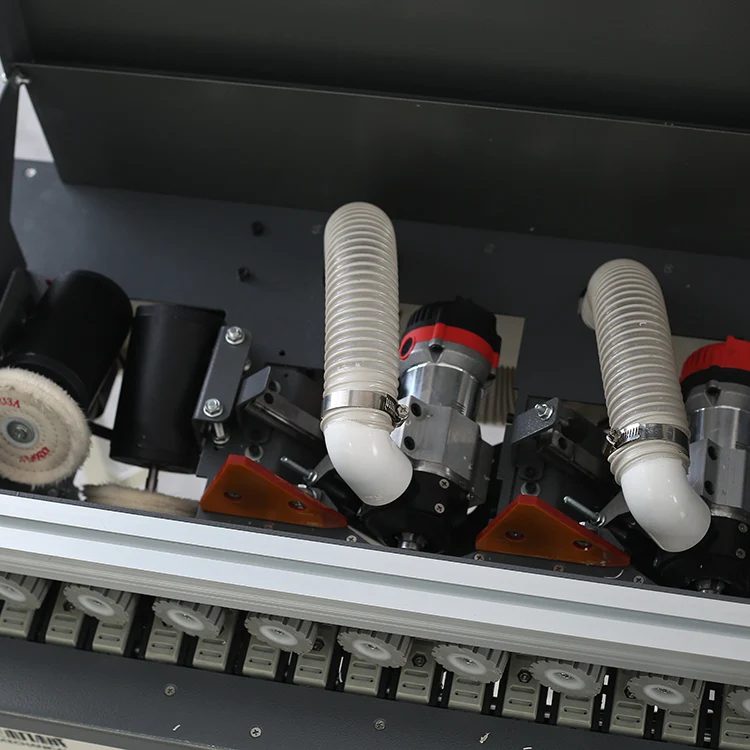

The 10–50 mm sheet thickness range covers the full spectrum of furniture-grade panel work, from thin 10 mm drawer sides to 50 mm solid-core worktops. The double-row rubber pressure wheels on steel rod slide rails maintain consistent feed pressure across that entire range, which matters when you switch between 18 mm cabinet carcasses and thicker benchtop stock in the same shift. The 800 W × 2 trimming motors paired with 4-blade alloy arc knives produce a clean flush cut on both the top and bottom edge in a single pass — eliminating the secondary hand-trim step that slows smaller shops down. At 0–14 m/min feed speed, the conveyor belt gives the operator fine control around curved sections where pushing too fast causes the strip to bridge rather than follow the contour. The 1000 ml glue pot holds enough adhesive for sustained production runs without constant refills, and the 800 W heating element maintains stable melt temperature across varying ambient conditions in the workshop.
The Cost of Skipping the Material Sample Step
Buying a stocked machine without sending your panel and strip samples first is the single most common cause of commissioning delays in this equipment class. The glue temperature, feed pressure, and trimming depth all interact with your specific substrate density and strip flexibility. When those parameters are set on generic test board, the first production run on your actual material often reveals visible glue lines, strip lifting at curved sections, or uneven trimming on softer MDF cores. Three days of on-site parameter adjustment could have been avoided with a two-day sample test before dispatch [NEED_CITE: edge banding adhesion failure modes on composite panels].
Why Source This Machine Through This Channel
Stocked inventory means the ZDSF190 is physically assembled and ready — not a listing for a machine that still needs to be built. Voltage and frequency are confirmed in writing with an electrical schematic matched to your local supply before the crate is sealed. Each unit ships with an operation manual in your operator’s language, so the first day on the floor is spent running panels, not deciphering control labels. The four-stage quality check covers incoming components through pre-shipment verification, and the factory test record travels with the machine in the documentation package.
Documentation & Verification
- Factory test record showing processed output on your specified panel thickness and strip material
- Electrical schematic confirming 220V 50Hz or your requested voltage and frequency configuration
- Operation and maintenance manual printed in the language your floor operators read
- Spare parts list with part numbers matching the components inside your shipped unit
- Packing photographs documenting crate contents for customs clearance at destination
Installation, Commissioning & Support
- 4 kW rated power requires a dedicated 220V single-phase circuit with appropriate breaker rating
- 1900 × 560 mm footprint fits standard workshop aisles with clearance for panel infeed and outfeed
- 0.4–0.6 MPa air supply needed for pneumatically controlled edge strip cutting mechanism
- 1200 W dual vacuum collectors require connection to dust extraction ducting or standalone units
- Glue pot and heating element first-run calibration performed with operator present during setup guidance
What to Include With Your Inquiry
Send your panel material type and thickness, the edge strip material and width you plan to run, and your local voltage and frequency so we can confirm electrical compatibility before quoting dispatch timing. If you are replacing a manual edge banding process, let us know your daily panel count so we can confirm whether the 0–14 m/min feed speed aligns with your throughput requirement or if a higher-capacity line is a better fit.
Frequently Asked Questions
Q: Is this machine currently in stock and how fast can it ship?
A: The ZDSF190 is assembled and held in stock for fast dispatch. Once your panel material sample and voltage requirements are confirmed, the unit goes through a final pre-shipment test on your specified substrate and is crated for shipment. Typical dispatch follows within days of sample sign-off rather than a production build cycle.
Q: Can the voltage be changed for markets that do not use 220V 50Hz?
A: Voltage configuration is confirmed before dispatch and documented in the electrical schematic. If your local supply differs from the standard 220V 50Hz, specify your exact voltage and frequency at inquiry so the correct motor winding and heating element can be verified against available stock or configured for your order.
Q: What edge banding materials work with this model?

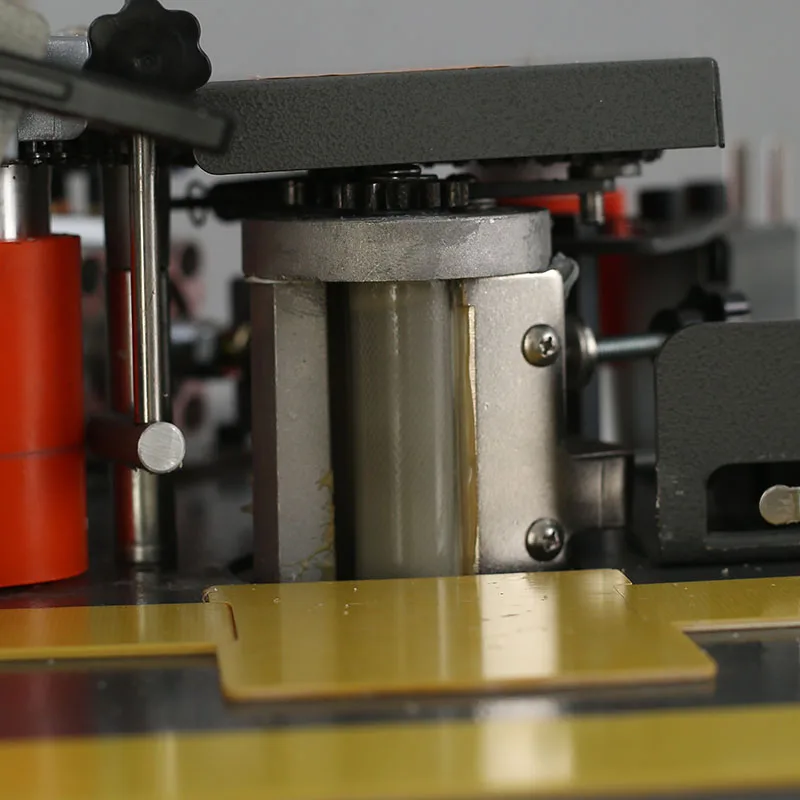

A: The ZDSF190 handles PVC and veneer strips in the 0.5–2.5 mm thickness range on MDF, particleboard, and plywood panels. The double-sided gluing system and adjustable pressure beam accommodate both rigid PVC and flexible veneer, though glue temperature and feed speed settings differ between material types and should be tested before production runs.
Q: Does the machine arrive fully assembled or need on-site setup?
A: The unit ships fully assembled in a single crate at 1900 × 560 × 1300 mm. On-site work is limited to connecting the 220V power supply, attaching the 0.4–0.6 MPa air line for the pneumatic strip cutter, and linking the dual vacuum collectors to your dust extraction system. First-run calibration is covered in the installation guidance.
Q: What spare parts are included and how do I get replacements?
A: A spare parts list ships with every unit, identifying wear items specific to the ZDSF190 including trimming cutters, pressure wheel assemblies, and glue pot components. Replacement parts are sourced directly from the factory with part numbers matching your machine’s build record, and packing photographs document exactly what is in your crate for reference.
