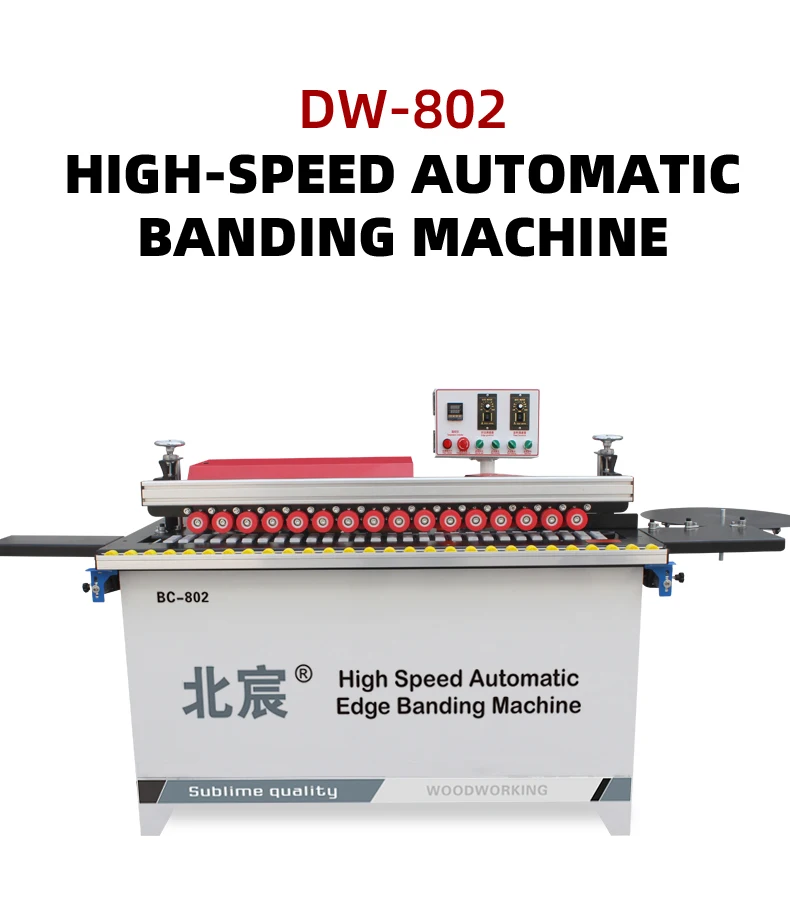

MDF Panel DW802 Automatic Edge Banding Machine – In Stock

Description

Ready Stock Dispatch — DW802 units ship with your specified voltage and plug type confirmed before crating, avoiding the three-week transformer delays that stall production lines.

Technical Specifications

Application Suitability

Why the Voltage Question Should Come Before the Price

Ordering an automatic edge banding machine in stock without confirming local voltage and frequency is one of the most common reasons imported woodworking equipment arrives unusable on site.

Voltage and plug type must be locked in writing before the machine leaves the factory floor.

I once saw a fully assembled edge bander shipped to Southeast Asia with the wrong internal transformer tap. The customer plugged it in, the main control board burned out on the first cycle, and that cabinet line sat idle for three weeks waiting for a step-down transformer. The machine was rated for 380V, but the workshop ran on a local 220V three-phase supply that nobody had verified before dispatch. That kind of oversight does not show up in a product brochure — it shows up as a silent production line and missed delivery deadlines [NEED_CITE: voltage and frequency standards by export market].

Stock Availability and Single-Unit Ordering

Many woodworking machinery suppliers require minimum order quantities or batch production runs before they will process an export order. The DW802 is held as an automatic edge banding machine in stock, which means a custom cabinet maker or a small joinery shop can order a single unit and have it dispatched without waiting for a container to fill. For a workshop that needs one edge bander to replace a manual process or to add capacity at a single station, this removes the pressure of committing to multiple machines before seeing the first one run.

Dispatch Lead Time and Pre-Shipment Verification

Once voltage, frequency, and plug type are confirmed, the DW802 moves to pre-shipment testing. A sample panel is run through all stations — gluing, trimming, polishing, and automatic head-and-tail cutting — and photographs of the finished edge are sent for approval. Wooden crate packing photographs follow before the unit is handed to the freight forwarder. This sequence means you see the machine working on your chosen substrate before it is sealed in the crate, rather than discovering a glue-line issue after it arrives at your dock [NEED_CITE: pre-shipment inspection standards for exported machinery].

Reading the Specs That Actually Matter

The 4000 ml glue pot capacity means the operator can run continuous edge sealing cycles without stopping to refill, which matters when you are banding a batch of cabinet sides back to back. Smaller glue pots on entry-level machines require frequent top-ups that introduce temperature fluctuation and inconsistent glue flow. The dual 800W trimming motors provide enough spindle speed to cleanly shear PVC and melamine edging at the 0.3–3 mm thickness range without leaving tear-out on the substrate surface. The 1200W vacuum system holds the panel flat against the feed bed through every station, preventing the lateral drift that causes uneven trimming on narrow workpieces down to the 10 cm minimum width.

The Hidden Cost of a Wrong Configuration Choice

Choosing a machine without verifying the air supply requirement is another frequent source of post-delivery friction. The DW802 requires 0.4–0.8 MPa compressed air to actuate the trimming and polishing stations. If your workshop compressor cannot sustain that pressure range under continuous draw, the pneumatic cylinders will stutter mid-cycle, producing inconsistent end cuts and visible witness marks on the panel edge. The same applies to the control panel language — if your operators read Spanish but the machine arrives with a Chinese-only interface, commissioning stalls until the software is reloaded or replaced, adding days of idle time to an already tight schedule [NEED_CITE: common causes of commissioning delays in imported machinery].

Why Source This Unit Through This Channel

Single-unit orders are processed the same way as production runs — every DW802 goes through incoming material inspection, in-process assembly checks, finished product testing, and pre-shipment verification before crating. Voltage and frequency are set to your written specification at the assembly bench, not adjusted with an external transformer after the fact. The plug type is matched to your country standard — EU, USA, AU, or UK — and fitted before the machine is packed. Operation and maintenance manuals are prepared in your chosen language so that the operator can begin commissioning the day the crate is opened, not weeks later after a translation is arranged.

Documentation & Verification

• Factory test record showing edge quality on your specified panel material and thickness
• Electrical schematic with confirmed voltage, frequency, and plug type annotated
• Operation and maintenance manual in agreed language with illustrated spare parts diagrams
• Pre-shipment packing photographs showing crate construction and machine securing method
• CE declaration of conformity included in the shipping document set

Installation, Commissioning & Support

• Requires a level concrete floor with clearance around the 130 × 60 cm footprint for panel infeed and outfeed
• Dedicated circuit matching confirmed voltage — 220V or 380V — with appropriate breaker rating for 4200W total draw
• Arrives fully assembled; connect power, compressed air at 0.4–0.8 MPa, and run calibration panels
• First-run parameter setting for glue temperature and feed rate guided by included manual
• Spare trimming blades and polishing wheels ship in the parts kit for initial consumable coverage
• Routine glue pot cleaning and vacuum filter inspection schedule documented in the maintenance manual

Before You Place the Order

To make sure the DW802 arrives configured for your workshop, we need your local voltage and frequency confirmed in writing, along with the plug type required at your facility. Tell us the primary panel materials you will be edge banding — MDF, particleboard, plywood, or solid wood — and the edge banding material and thickness you typically use, so we can set the glue pot temperature and station pressures before dispatch.

Frequently Asked Questions

Q: Can I order a single DW802 unit, and what is the dispatch lead time?
A: Yes, single-unit orders are accepted with no minimum quantity requirement. Once voltage, frequency, and plug type are confirmed in writing, the machine goes through pre-shipment testing and is dispatched in wooden crate packaging. Lead time depends on current stock status and the customization required for your electrical configuration.

Q: How do I confirm the correct voltage, frequency, and plug type for my country?
A: Provide your workshop’s supply voltage and frequency — for example 220V 60Hz or 380V 50Hz — and the plug standard used at your facility. The machine is configured at the factory to match, and the electrical schematic is annotated with your confirmed values before shipment so there is no ambiguity on arrival.

Q: What edge banding materials and thicknesses does the DW802 handle?
A: The machine handles PVC, melamine, veneer, and ABS edge banding in the 0.3–3 mm thickness range. The 4000 ml glue pot maintains stable temperature across continuous runs, and the dual trimming motors are set up to cleanly shear each material type within that thickness band.

Q: Does the machine arrive fully assembled, or is on-site installation support available?
A: The DW802 ships fully assembled in a wooden crate. On arrival, you connect power and compressed air, then run calibration panels following the included manual. Remote guidance is available if your team encounters setup questions during the first commissioning cycle.

Q: What spare parts ship with the machine, and how do I reorder consumables?
A: A spare parts kit with trimming blades, polishing wheels, and wear items ships inside the crate. The included parts list with part numbers lets you reorder directly. Consumable reorders are processed individually and shipped separately from the machine order.
