Description
Fast Dispatch Ready — Stocked units undergo full pre-shipment voltage verification so your ZDSF910H arrives wired correctly for your local grid, avoiding the three-week rewiring delays I have witnessed on unchecked shipments.
Technical Specifications
| Parameter | Value |
|---|---|

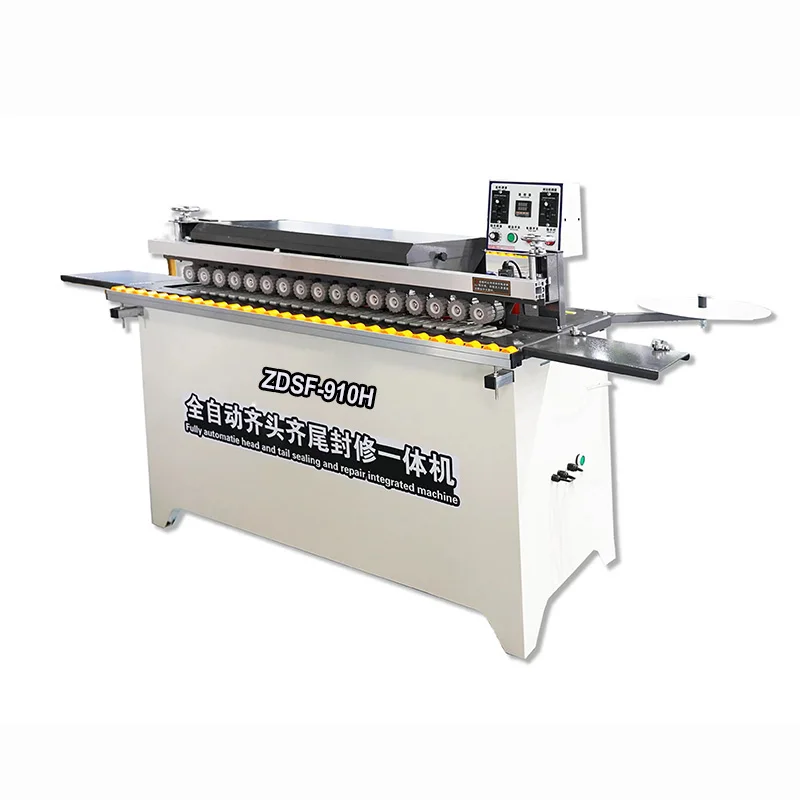

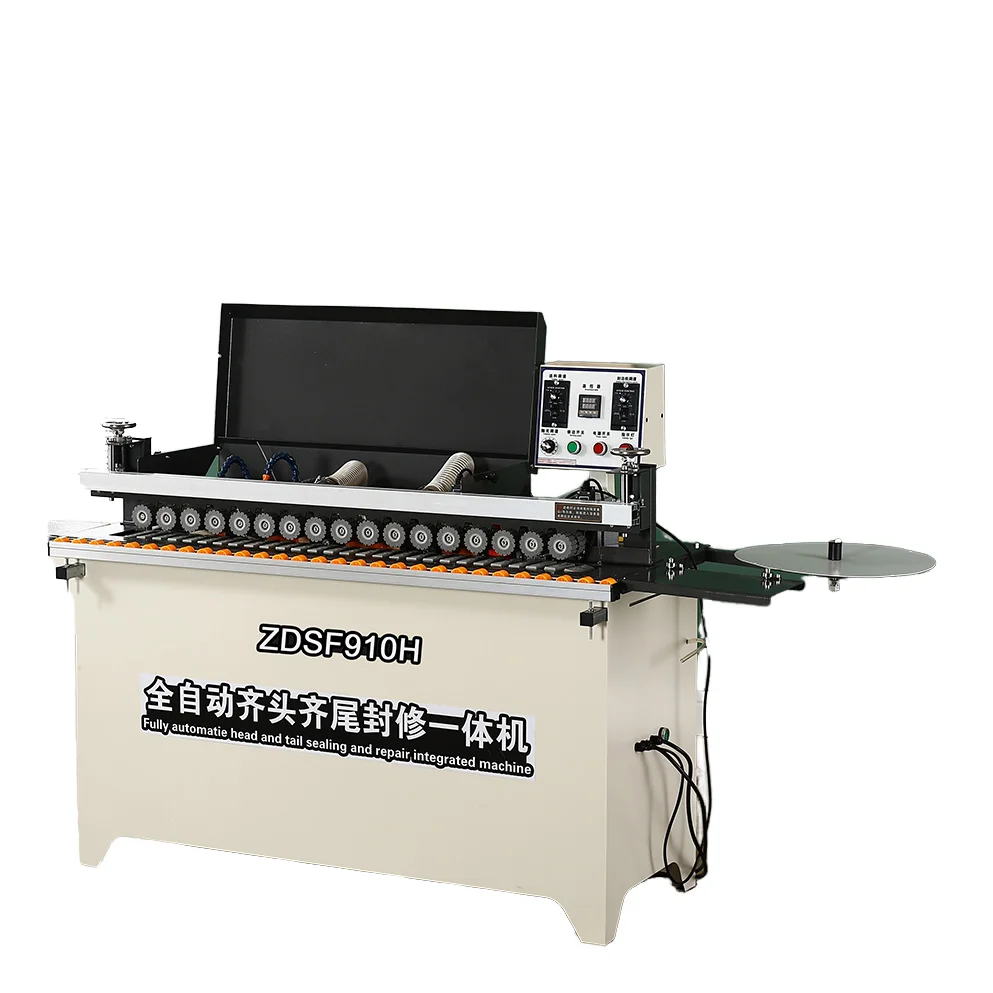

| Model | ZDSF910H |
| Product Type | Fully Automatic Edge Banding Machine |
| Function Sequence | Automatic plate feeding, Double-sided gluing, End cutting, Upper and lower polishing, Automatic head and tail trimming |
| Voltage & Frequency | 220V 50Hz |
| Rated Power | 4kW |
| Heating Power | 800W |
| Polishing Power | 180W × 2 |
| Trimming Power | 800W × 2 |
| Suction Power | 1200W |
| Belt Power | 25W |
| Transmission Power | 120W |
| Rated Air Pressure | 0.4–0.6MPa |
| Sheet Thickness Range | 10–50mm |
| Strip Thickness Range | 0.5–2.5mm |
| Minimum Board Width for Edge Sealing | 2.5cm |
| Glue Capacity | 1000ml |
| Feed Mechanism | Steel rod slide rails with double-row rubber pressure wheels |

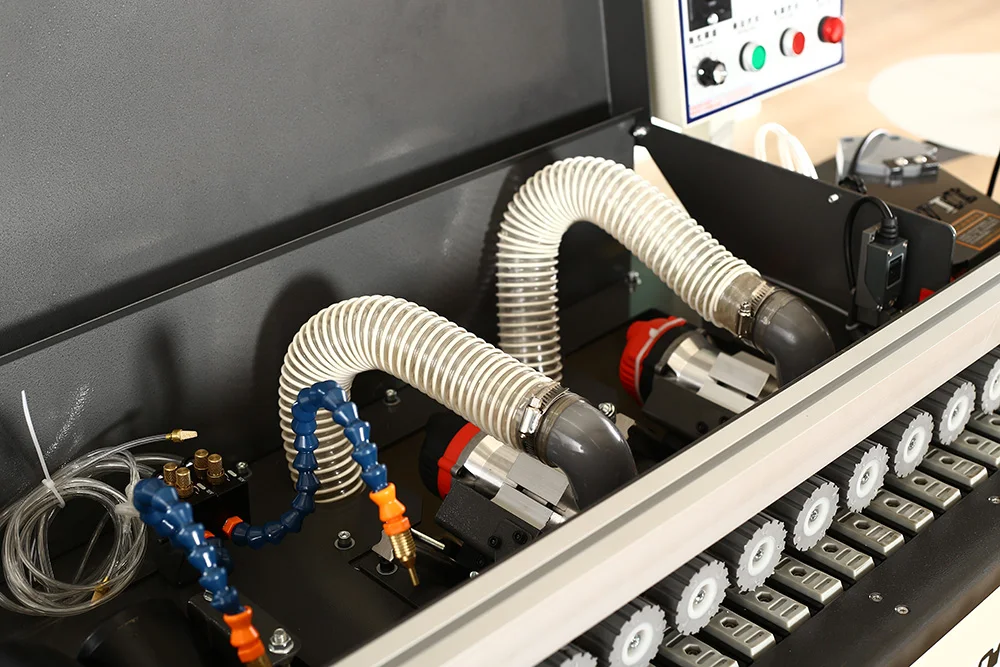

| Trimming System | 2 high-speed trimming motors with imported 4-blade alloy arc knife |
| Pressure Beam | Adjustable aluminum alloy |
| Edge Strip Cutting | Pneumatically controlled |
| Dust Collection Efficiency | 99% |
| Overall Dimensions (L×W×H) | 1300 × 560 × 1090mm |
| Net Weight | 185kg |

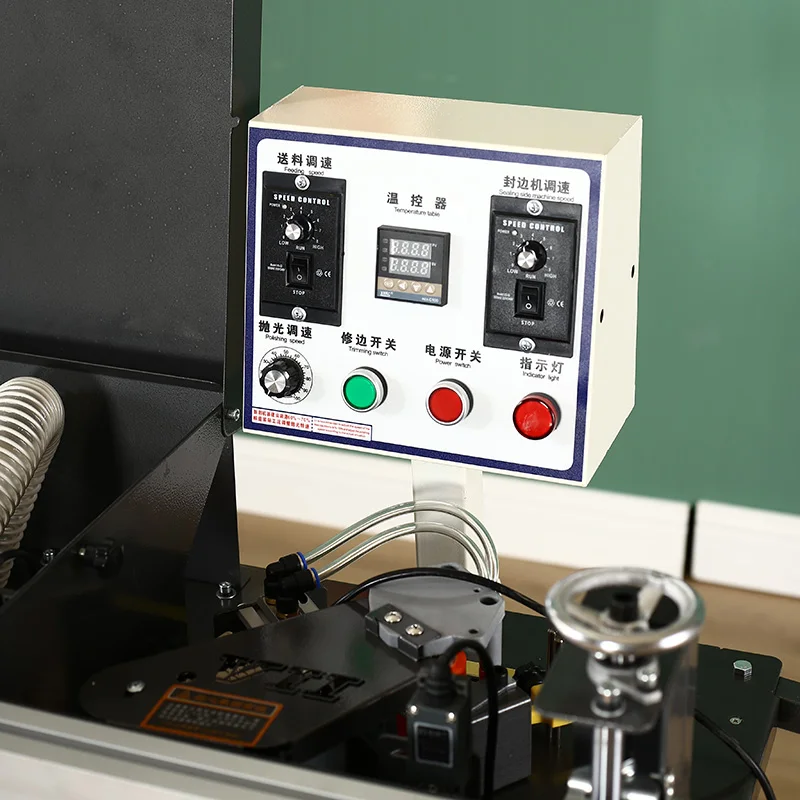

| Control Panel | Multi-function button operation |
| Cleaning Function | Glue line cleaning included |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door and carcass edge sealing | MDF and particleboard panels with PVC or ABS strips |
| Small-batch plywood furniture production | Plywood panels with veneer or PVC edge banding |
| Joinery workshop upgrade from manual banding | Solid wood panels up to 50mm thickness |
| Compact workshop with limited floor space | Panels requiring minimum 2.5cm board width |
Why the Voltage Question Should Come Before the Price
A Fully Automatic Edge Banding Machine in stock means little if it arrives wired for the wrong grid. Confirming local voltage and frequency before dispatch is non-negotiable for avoiding weeks of on-site electrical rework.
Early in my purchasing career at a furniture factory, I signed off on an edge bander without cross-checking the electrical spec sheet against our facility supply. The machine sat idle for three weeks while an electrician sourced a compatible transformer and rewired the control cabinet. Production schedules slipped, and the cost of the delay far exceeded the machine savings [NEED_CITE: voltage and frequency standards by export market]. That experience is why every ZDSF910H I now prepare for shipment leaves with a verified electrical schematic matching the buyer’s confirmed grid. When you are evaluating a Fully Automatic Edge Banding Machine in stock, the first question should always be whether the voltage matches your workshop supply, not how fast it can ship.
Dispatch Speed Without Configuration Guesswork
Ordering a Fully Automatic Edge Banding Machine in stock should not mean compromising on electrical compatibility. This ZDSF910H ships at 220V/50Hz as standard, and if your workshop runs on a different supply, the voltage confirmation step happens before the crate is sealed. The multi-function button control panel is configured to the agreed language so operators can begin commissioning on day one rather than waiting for a translated manual.
What Fits Through Your Workshop Door
At 1300 × 560 × 1090mm overall, this unit rolls into workshops where larger six-function banders simply cannot go. The 185kg net weight means two people with a pallet jack can position it without hiring rigging equipment. For a small joinery shop moving from handheld edge trimming to automated processing, this footprint leaves room for your sliding table saw and drilling station on the same floor [NEED_CITE: typical small workshop floor plans for furniture production].
Reading the Spec Sheet Against Your Panel Range

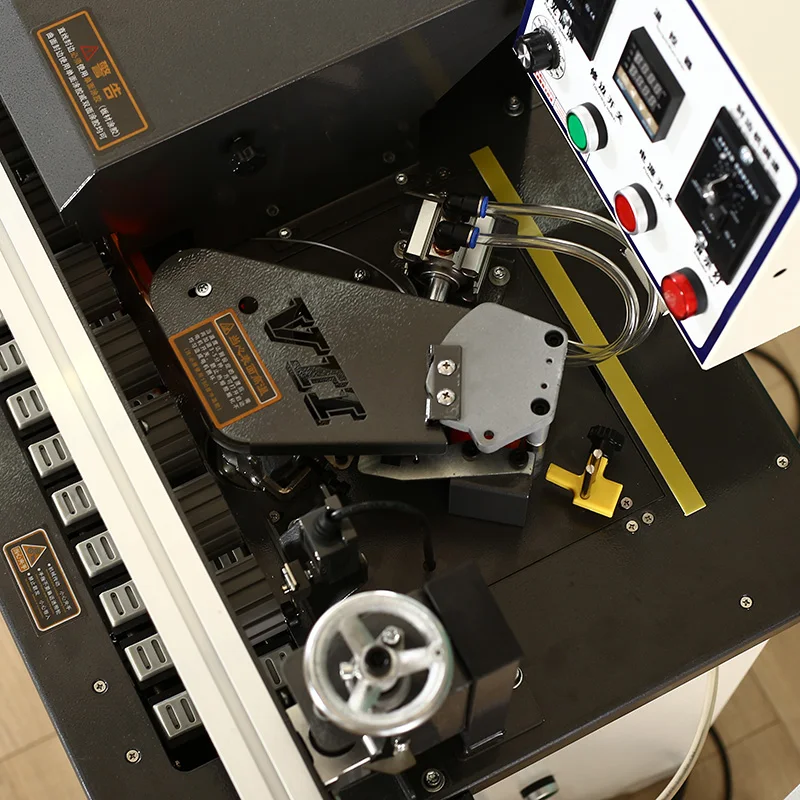

The 10–50mm sheet thickness range covers standard 18mm MDF cabinet panels up through thicker solid wood worktops. Strip thickness from 0.5 to 2.5mm handles both thin PVC for carcass edges and thicker ABS for visible door profiles. The pneumatically controlled strip cutting shears the banding cleanly at each board end, while the two 800W trimming motors with four-blade alloy arc knives remove top and bottom overhang in one pass. The adjustable aluminum alloy pressure beam clamps boards firmly without marring laminated surfaces. The 1000ml glue pot holds enough adhesive for sustained production runs before refilling, and the double-sided gluing system coats both the panel edge and the strip for consistent adhesion. Dust collection at 99% efficiency through the 1200W suction unit keeps fine MDF particles from settling on freshly glued surfaces, which is critical for clean edge lines on light-colored PVC banding.
The Cost of Overlooking Feed Stability
Steel rod slide rails with double-row rubber pressure wheels keep the board flat against the fence throughout the gluing, trimming, and polishing sequence. When feed mechanisms rely on single-row wheels or worn belt drives, panels can drift mid-pass, producing uneven glue lines and chipped trim edges. I have seen workshops blame the adhesive or the banding material for defects that actually originated from unstable board feeding [NEED_CITE: common causes of edge banding adhesion failure in small workshops]. Checking the feed mechanism specification before ordering prevents costly material waste on your first production runs.
What Makes This Unit Ready to Ship
Pre-shipment testing on actual panel stock confirms the 0.4–0.6MPa air pressure requirement and all pneumatic functions before crating. Electrical schematics and voltage confirmation documents travel with the machine, so your electrician can verify the connection without guesswork. The four-stage QC process covers incoming components, in-process assembly, finished unit function, and final dispatch verification. An operation and maintenance manual in your operators’ language is included alongside a spare parts list covering wear items like the alloy arc knives and rubber pressure wheels. Voltage customization from 110V to 440V is available with confirmed lead times, so if your market does not run on 220V/50Hz, the adjustment is documented before the unit ships.
Documentation & Verification
- Electrical schematic confirming your local voltage and frequency before dispatch
- Factory test record run on your specified panel thickness and strip material
- Operation manual translated to the agreed operator language
- Pre-shipment packing photographs showing crated condition
- Spare parts list with part numbers for trimming knives and pressure wheels
- CE declaration of conformity with machinery directive compliance
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated for 4kW continuous draw
- 1300 × 560mm footprint fits standard workshop doorways without disassembly
- Pneumatic connection needs 0.4–0.6MPa supply with standard industrial fitting
- 1200W dust collector ducts to your existing central extraction or standalone bag
- First-run parameter setting covers glue temperature, feed speed, and trim depth
- Replacement alloy arc knives and rubber wheels ship with initial spare kit
What to Include in Your Inquiry
Specify the panel materials and thicknesses you will process most often, along with your workshop’s confirmed voltage and frequency. Let me know if your operators need the control panel and manual in a language other than English, and whether you require a sample test run on your own board stock before the unit ships.
Frequently Asked Questions
Q: Is this model currently in stock, and what is the dispatch lead time?
A: The ZDSF910H is held in ready stock for prompt dispatch. Standard units at 220V/50Hz ship after pre-shipment testing and documentation preparation, typically within a short window. If your order requires voltage adjustment or language-specific manuals, allow additional time for configuration and verification before the unit leaves the factory.
Q: Can voltage be customized for 110V or 380V markets, and how does that affect delivery time?
A: Voltage is configurable from 110V to 440V to match your local grid. Custom electrical configurations require component sourcing and additional testing before dispatch, which extends the preparation period beyond standard stock units. The exact timeline is confirmed once your voltage and frequency requirements are locked in.
Q: What shipping options are available, and can door-to-door delivery be arranged?
A: Standard export crating with pallet base is included. Ocean freight to your nearest port is the default for single-unit orders, though door-to-door delivery can be quoted based on your facility address. Packing photographs are provided before the crate is sealed so you can verify condition at origin.
Q: What spare parts ship with the machine, and how are replacements ordered?
A: Each unit includes an initial spare kit covering high-wear items such as alloy arc knives and rubber pressure wheels. The spare parts list with part numbers is included in the documentation package. Replacement parts are ordered directly using those part numbers for accurate fulfillment.
Q: What assembly is required on arrival, and is installation guidance provided?
A: The machine ships fully assembled on its pallet base. On arrival, you connect power, compressed air, and dust extraction, then run the first test panel. Installation guidance covers the connection sequence, parameter adjustment for your panel thickness, and initial trimming calibration to dial in clean edges.
