Description
In-Stock Compact Edge Bander — Ready for dispatch with voltage, plug, and control language confirmed to your market before it leaves the factory floor.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW-3600GF |
| Product Type | Full Automatic Compact Edge Banding Machine |
| Rated Power | 4.9 kW |
| Voltage & Frequency | 380V Three-Phase Four-Wire |
| Overall Dimensions (L×W×H) | 2200×650×1250 mm |
| Net Weight | 320 kg |
| Feed Speed | 0–14 m/min |
| Edge Banding Type | Straight Edge Banding |
| Edge Band Height Range | 0–50 mm |
| Edge Band Thickness Range | 0.3–3 mm |
| Minimum Plate Length | 200 mm |
| Trimming Motor Power | 800W × 2, 24000 r/min |
| Polishing Motor Power | 400W × 2 |
| Edge Banding Motor Power | 160W |
| Transmission Motor Power | 180W |
| Air Pressure Requirement | 0.4–0.6 MPa |
| Standard Functions | Gluing, Trimming, Front and Rear Trimming, Scraping, Polishing, Vacuuming |
| Language Options | Chinese and English standard; other languages configurable |
| Plug Options | EU, USA, AU, UK |
| Assembly State | Fully assembled |
| Certification | CE |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door edging | MDF and particleboard with PVC edge banding |
| Small-batch wardrobe panel finishing | Plywood panels with veneer or PVC strips |
| Startup joinery workshop production | Solid wood panels up to 50 mm edge height |
| Replacement edge bander for furniture makers | Straight-edge MDF, particleboard, and plywood components |
Why the Voltage Question Must Come Before the Container
Every DW3600 ships with confirmed voltage, frequency, and plug type matched to your local supply — verified before dispatch, not discovered on arrival.
I have stood in a workshop in Johor watching a brand-new edge bander sit silent on the floor because the factory wired it for 220V three-phase while the local supply runs 415V. The operator had no idea. The importer had not asked. That machine waited eleven days for a step-down transformer that cost nearly as much as the shipping. When you order a full automatic edge banding machine in stock from a supplier who skips the voltage conversation, you are not saving time — you are borrowing it at high interest [NEED_CITE: voltage and frequency standards by export market].
The DW3600 is configured for 380V three-phase four-wire as standard, and alternative voltage setups are confirmed at the quotation stage. Plug options — EU, USA, AU, UK — are selected before crating, so the machine you unplug from the container is the machine you plug into your workshop panel.
Dispatch Speed Without the Configuration Guesswork
Stock availability only matters if the machine in the warehouse actually matches what your workshop needs. A full automatic edge banding machine in stock is useless when the control panel speaks a language your operator cannot read or the plug does not fit your socket. The DW3600 leaves the warehouse with its HMI language set — Chinese and English as standard, with additional languages configurable before the crate closes.
This is the difference between a machine that runs on day one and one that sits while you source a translator and an electrician.
What "Ready Stock" Actually Covers for This Model
The DW3600 is held as a fully assembled unit, not a flat-pack kit requiring on-site mechanical alignment. Gluing, trimming, front and rear trimming, scraping, polishing, and vacuuming stations are all installed and tested at the factory. When it arrives at your dock, the machine is rolled into position, connected to a 380V supply and a compressed air line at 0.4–0.6 MPa, and it is ready to edge [NEED_CITE: CE machinery directive requirements for industrial equipment].
That level of completeness matters most when you are replacing a machine that failed mid-production and cannot absorb weeks of downtime waiting for assembly technicians.
How the Specifications Translate on the Workshop Floor

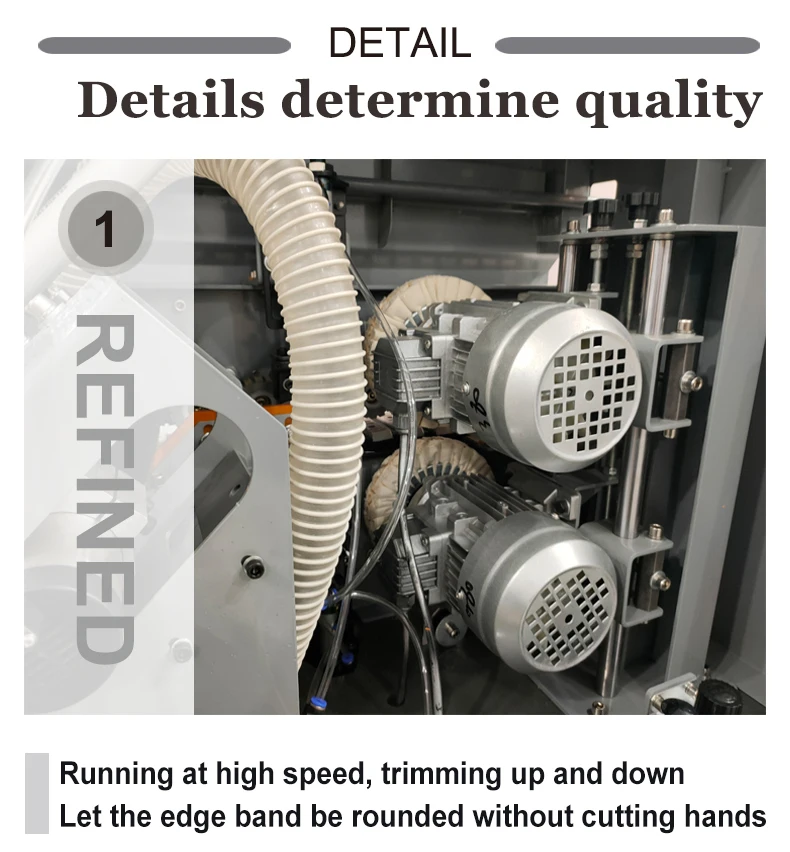

The 0–14 m/min feed speed range gives operators room to slow down for delicate veneer banding or push faster through high-volume PVC runs on particleboard shelving. The trimming motors run at 24000 r/min with 800W each — enough spindle speed to produce a clean shear cut on 3 mm PVC without chipping the substrate edge.
The 0.3–3 mm edge band thickness range covers the two materials most small-to-medium furniture shops handle daily: thin veneer for visible cabinet faces and thicker PVC for carcass panels and shelving. At a minimum plate length of 200 mm, the DW3600 handles small drawer components and narrow filler strips that larger edge banders simply cannot grip.
The 0.4–0.6 MPa air pressure requirement is significant because it sits squarely within the output range of a standard workshop piston compressor — no dedicated high-pressure line needed.
The Cost of Skipping the Pre-Dispatch Checklist
Buyers who rush a stock order without confirming specifications tend to discover problems in sequence: first the plug does not match, then the HMI language is wrong, then the edge band thickness range does not cover their primary material. Each discovery costs days. An operator staring at Chinese characters on a touchscreen cannot set trimming offsets. A 2 mm veneer band fed through a machine configured only for 3 mm PVC will either fail to adhere or get crushed at the pressure roller [NEED_CITE: edge banding material compatibility and feed pressure settings].
These are not defects. They are configuration mismatches that a ten-minute conversation before dispatch would have prevented.
What This Stock Channel Provides
Voltage, plug type, and HMI language are confirmed at the order stage, not left as defaults. The DW3600 ships fully assembled and factory-tested, so on-site commissioning is a matter of utility connection rather than mechanical build. Pre-shipment test records and packing photographs are supplied for every unit so you can verify condition before the container seals.
Single-unit orders are standard here — no minimum order quantity forcing you to buy three machines when you need one. CE declaration of conformity ships in the crate, supporting customs clearance and local regulatory compliance in markets that require it.
Documentation & Verification
- CE declaration of conformity included in the shipping crate
- Factory test record covering your specified panel thickness and edge band material
- Electrical schematic with confirmed voltage and plug type for your local electrician
- Operation and maintenance manual in the agreed language before dispatch
- Pre-shipment inspection photographs showing the exact unit being crated
Installation, Commissioning & Support
- Requires a dedicated 380V three-phase circuit rated for at least 4.9 kW continuous draw
- Compressed air supply at 0.4–0.6 MPa from a standard workshop compressor is sufficient
- Machine arrives fully assembled at 2200×650×1250 mm — roll into position and connect utilities
- 320 kg net weight allows positioning with a standard pallet jack on a level concrete floor
- First-run parameter setting covers glue temperature, feed speed, and trimming offsets for your material
- Spare trimming cutters and polishing wheels included for initial consumable coverage
What We Need to Process Your Order
Send your panel material type, the edge band material and thickness you run most often, and your local voltage and frequency. Confirm the plug type your workshop uses and the language your operator needs on the control panel. If you have an existing compressor, share its pressure rating so we can confirm compatibility with the 0.4–0.6 MPa requirement before dispatch.
Frequently Asked Questions
Q: Is this model in stock, and what is the dispatch lead time?
A: The DW3600 is held as a fully assembled unit ready for dispatch. Lead time depends on the configuration you require — standard voltage and language setups ship fastest, while custom HMI languages or alternative plug types add a short preparation window before crating. Confirm your specifications early to lock the shortest timeline.
Q: Which voltage and plug configurations can be shipped immediately?
A: The standard configuration is 380V three-phase four-wire with EU, USA, AU, or UK plug options. These common configurations are typically available from stock. If your market runs a different voltage or frequency, confirm this at the inquiry stage so the unit can be prepared before dispatch rather than modified on arrival.
Q: What panel materials and edge band thicknesses does the DW3600 handle?
A: The machine processes MDF, particleboard, plywood, and solid wood panels with straight-edge banding. Edge band thickness covers 0.3 mm to 3 mm, handling both thin veneer for cabinet faces and thicker PVC for carcass work. Edge band height runs from 0 to 50 mm with a minimum plate length of 200 mm.
Q: Can I order a single unit, and what are the shipping options?
A: Single-unit orders are the standard for this stock channel — there is no minimum order quantity. The DW3600 ships fully assembled in a crate sized for container loading. Shipping method and transit time depend on your destination port and whether you need door-to-door or port-to-port delivery.
Q: What spare parts and consumables ship with the machine?
A: Each DW3600 ships with a spare parts list and an initial set of consumables relevant to the trimming, scraping, and polishing stations. The exact spare package depends on your configuration. Confirming your primary edge band material at the order stage ensures the right consumables are included in the crate.
