Description
Voltage-Verified Dispatch — every DW102 unit leaves the warehouse with plug type and frequency matched to your grid, so it powers up the day it arrives.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DW102 |
| Product Type | Mini Automatic Edge Banding Machine |
| Total Power | 3800 W |
| Voltage Options | 220 V / 380 V / customization |
| Plug Options | EU, USA, AU, UK |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 5 cm |
| Trimming Power | 650 W × 2 |
| Polishing Power | 180 W × 2 |
| Vacuum Power | 1200 W |
| Edge Power | 20 W |
| Transmission Power | 60 W |
| Air Source Pressure | 0.5–0.8 MPa |
| Glue Pot Capacity | 1000 ml |
| Product Size | 128 × 47 × 69 cm |
| Product Weight | 75 kg |
| Control Panel Language | Chinese and English (other languages customizable) |
| Key Features | Curved and straight edge banding, edge trimming, polishing, automatic head and tail cutting, vacuum hold-down |
| Standards | CE, ISO 9001 |

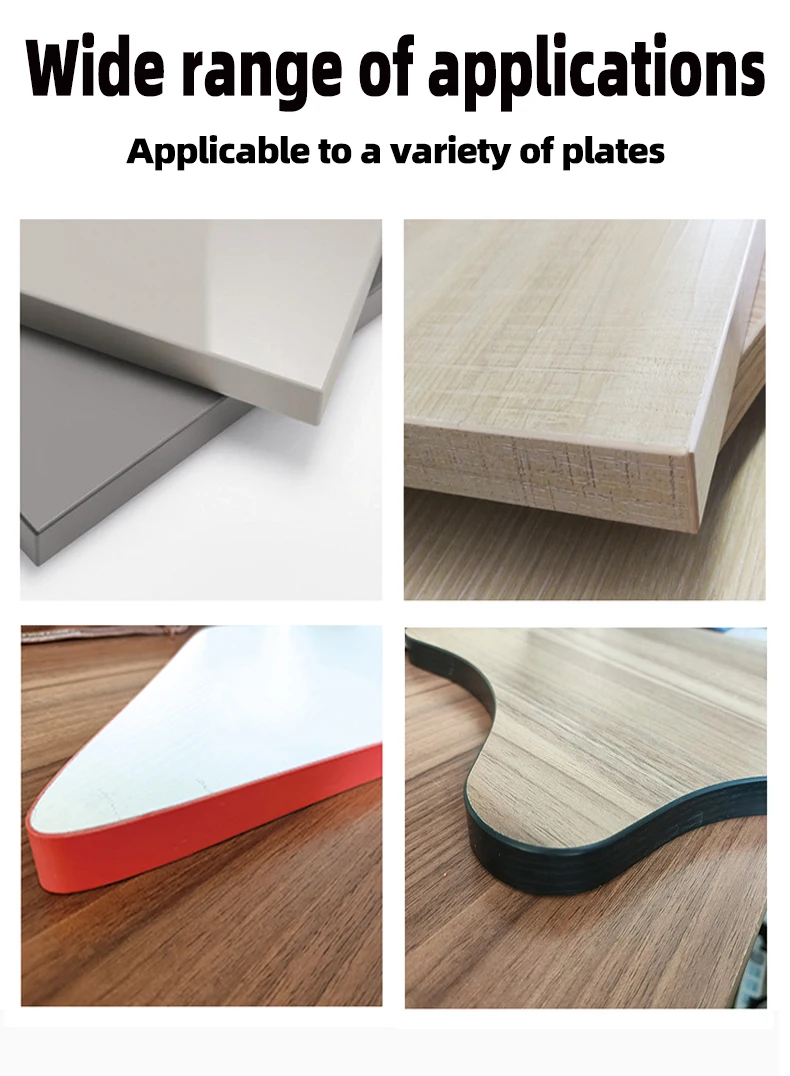

Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door edge finishing | MDF and particleboard with PVC edge banding |
| Small-batch curved panel edging | Plywood and blockboard with veneer strips |
| Custom furniture prototyping | Solid wood panels up to 50 mm edge height |
| Secondary edge banding for quick rework | Polymer door blanks and melamine-faced boards |
| Joinery workshop scale-up | Medium density fiberboard and plywood shelving components |
Why Voltage Confirmation Must Happen Before Dispatch
A Mini Edge Banding Machine in stock is only useful if it matches your workshop’s electrical grid.
I once watched a crated edge bander sit idle on a dock in Southeast Asia for three weeks because the unit shipped at 380 V / 50 Hz while the customer’s facility ran on 220 V / 60 Hz. The transformer they rigged on site overheated within hours, burning out the feed motor contactor. That delay cost the buyer more than any price difference between suppliers. Since then I have made it a rule: before any DW102 is strapped to a pallet, the voltage, frequency, and plug type are written into the dispatch checklist and verified against the buyer’s confirmed grid standard [NEED_CITE: voltage and frequency standards by export market].
Stock Availability Without the Guesswork
Keeping a Mini Edge Banding Machine in stock means more than having a unit on the shelf. The DW102 in our warehouse is pre-configured with the most requested voltage and plug combinations — EU Schuko, US NEMA, AU AS/NZS, and UK BS 1363 — so a single-unit order can ship without waiting for a custom electrical build. When your production schedule cannot absorb a multi-week build cycle, this ready-to-dispatch approach keeps your cabinet or joinery line moving.
Fast Ordering With Verified Electrical Matching
Each order goes through a checklist that pairs the buyer’s stated electrical grid with the machine’s wiring diagram before packing. The control panel label, motor nameplate, and heater element rating are all cross-referenced. This process catches mismatches that a simple "220 V" note on a purchase order would miss, such as 50 Hz versus 60 Hz frequency differences that affect polishing motor speed and glue pot heating cycles [NEED_CITE: effects of frequency mismatch on induction motor performance].
How the Core Specs Translate to Workshop Output
The 650 W × 2 trimming motors give the DW102 enough torque to cleanly shear 3 mm PVC banding in a single pass, which matters when you are running particleboard that tends to chip at the cut line. The 1000 ml glue pot holds enough adhesive for continuous runs on small-to-medium panels without frequent refills, reducing idle time between sheets. A minimum sheet width of 5 cm and length of 25 cm means narrow drawer sides and small shelf brackets can be edged without manual clamping. The 0.5–0.8 MPa air requirement is within the range of a standard 2.2 kW workshop compressor, so most small joinery shops will not need to invest in a separate air supply. Vacuum hold-down at 1200 W keeps curved workpieces stable through the trimming station, which is where most manual setups struggle with registration drift.
What Happens When the Air Supply Is Undersized
One of the more common field complaints with compact edge banders is inconsistent trimming pressure, and it almost always traces back to the compressor. If the air source delivers less than 0.5 MPa at the machine inlet, the pneumatic cylinders that advance the trimming and polishing heads cannot maintain full contact force against the panel edge. The result is a ragged trim line that requires hand-sanding — exactly the labor the machine was supposed to eliminate. I have seen workshops blame the edge bander when the real issue was a 1.5 kW compressor trying to feed three machines on a shared line [NEED_CITE: pneumatic system sizing for woodworking machinery].
Why Buyers Choose This Channel for Ready Stock
Voltage and plug confirmation is documented in writing before dispatch, so there is no ambiguity at the receiving dock. Every DW102 undergoes a pre-shipment test run on actual panel stock, and the test record ships with the crate. The four-stage quality check — incoming material, in-process assembly, finished product, and pre-shipment verification — is applied to stock units the same way it is applied to custom orders. Custom control panel languages beyond English and Chinese can be arranged even on stock units before they leave the warehouse. Single-unit orders are accepted without minimum order quantity pressure, which suits workshops adding their first automated edge bander.
Documentation & Verification
- CE declaration of conformity covering the DW102 electrical and mechanical safety scope
- Factory test record on your specified panel thickness and edge banding material before dispatch
- Electrical schematic confirming voltage, frequency, and plug type as built
- Operation and maintenance manual in your agreed language with illustrated spare parts list
- Packing photographs showing crate condition and accessory kit contents prior to loading
Installation, Commissioning & Support
- Requires a dedicated 16 A circuit at the confirmed voltage, separate from welders or large compressors
- Footprint of 128 × 47 cm fits standard workshop aisles; no special foundation needed beyond level concrete
- Glue pot must be filled with appropriate-temperature EVA before first run; factory can recommend grade
- Pneumatic inlet uses a standard 8 mm push fitting; verify compressor delivers 0.5 MPa minimum at this point
- English-language control panel standard; translated labels available for operator-facing functions
- Spare wearing parts list included — trimming blades and polishing wheels are the first consumables to stock
What to Share When Requesting a Quote
To move from inquiry to dispatch quickly, provide your workshop voltage and frequency, the plug type used locally, the primary panel materials and edge banding type you run, and whether your compressor meets the 0.5–0.8 MPa requirement. If you need the control panel in a language other than English or Chinese, mention it up front so the label set can be swapped before packing.
Frequently Asked Questions
Q: Is the DW102 in stock and how fast can a single unit ship?
A: Stock units are held in the warehouse and can typically be prepared for dispatch within days once voltage, plug type, and control panel language are confirmed. Pre-shipment testing and crating add a short additional window, but the lead time is significantly shorter than a custom-build order.
Q: How do I confirm the correct voltage and plug for my country?
A: State your country, local voltage, and frequency in the inquiry. The dispatch team cross-references this against the machine’s wiring diagram and sends written confirmation before packing, including a photo of the installed plug and motor nameplate.
Q: What edge banding materials and panel thicknesses does the DW102 handle?
A: The machine runs PVC and veneer edge banding from 0.3 to 3 mm thick, with edge heights up to 50 mm. It is suited to MDF, particleboard, plywood, blockboard, and polymer door panels commonly found in cabinet and custom furniture production.
Q: What compressor capacity is needed for the 0.5–0.8 MPa air requirement?
A: A workshop compressor rated for at least 0.8 MPa output with adequate tank volume to sustain continuous feed will meet the requirement. If multiple pneumatic tools share the same line, verify that simultaneous draw does not drop inlet pressure below 0.5 MPa at the machine.
Q: Can the control panel be provided in a language other than English?
A: English and Chinese are standard. Other languages can be configured before dispatch on request, ensuring operators can read function labels and error codes from the first day of production.
