Description
Stocked and Verified — every XZF450 unit ships with voltage, plug standard, and control language matched to your facility, eliminating the arrival-day power failure I once saw stall a cabinet shop for three weeks.

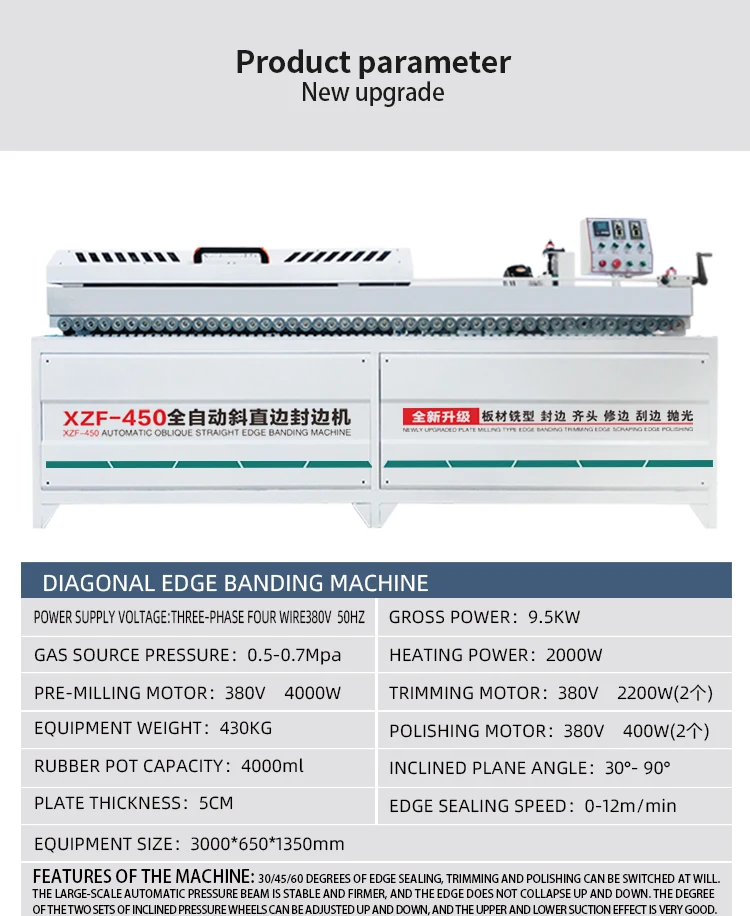

Technical Specifications
| Parameter | Value |
|---|---|
| Model | XZF-450 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 9.5 kW |
| Voltage | 380V / 415V |
| Pre-milling Motor | 4 kW |
| Feed Speed | 0–12 m/min |
| Edge Banding Power | 0.16 kW |
| Transmission Power | 180 W |
| Trimming Motor | 2.2 kW × 2 |
| Polishing Motor | 0.4 kW × 2 |
| Vacuum Power | 550 W |
| Glue Pot Capacity | 4000 ml |
| Edge Banding Thickness | 0.3–3 mm |
| Edge Banding Height | 0–50 mm |
| Minimum Sheet Length | 30 cm |
| Minimum Sheet Width | 15 cm |
| Air Source Pressure | 0.5–0.7 MPa |
| Product Size | 300 × 65 × 135 cm |
| Product Weight | 430 kg |
| Key Features | Pre-milling, 30°/45°/60° edge banding, end trimming, fine trimming, scraping, polishing, high-power vacuum extraction |
| Language Options | Chinese, English (customizable to Spanish or other languages) |
| Plug Options | EU, USA, AU, UK |
| Assembly State | Fully assembled |
| Standards | CE, ISO 9001 |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door edge banding | MDF and melamine-faced particleboard |
| Custom furniture panel finishing | Plywood and blockboard up to 50 mm edge height |
| Polymer door production | PVC and polymer substrates with 0.3–3 mm banding |
| Angled edge profiles | 45° and 60° bevel cuts on solid wood and composite panels |
| Small-batch joinery components | Panels as compact as 30 × 15 cm |
Why the Voltage Question Must Come Before the Price Tag
An automatic edge banding machine in stock means nothing if it cannot power on the day it arrives.
I remember a shipment I configured years ago — an MDF edge bander sent to a workshop whose facility ran on a different frequency standard than what we assumed. The machine sat idle on the dock for three weeks while an electrician rewired the incoming supply. The customer lost production time they could not recover, and the trust it cost was harder to rebuild than the wiring. [NEED_CITE: voltage and frequency standards by export market]
That experience is the reason every stocked XZF450 leaves the factory only after the voltage, frequency, and plug type have been confirmed against the buyer’s actual panel board — not a generic country lookup. When you are ordering a ready-to-ship unit, speed is the whole point; a preventable electrical mismatch defeats the purpose entirely.
Dispatch Speed Without the Guesswork
The XZF450 automatic edge banding machine in stock configuration carries seven integrated workstations in a single fully assembled frame. Because the machine ships complete — pre-milling through polishing already aligned and tested — there is no on-site reassembly of critical station geometry. You receive a unit that has run test panels under factory power, with a verified electrical match to your destination before it enters the crate.
Language and Controls Set Before It Leaves
A control panel in a language your operator cannot read delays commissioning just as effectively as a wrong voltage. The XZF450 ships with the interface configured to your chosen language, whether that is English, Spanish, or another agreed option. The goal is straightforward: when the machine is uncrated and powered up, the first shift can begin learning the interface without waiting for a translator to arrive.
Reading the Numbers That Matter for Your Panels

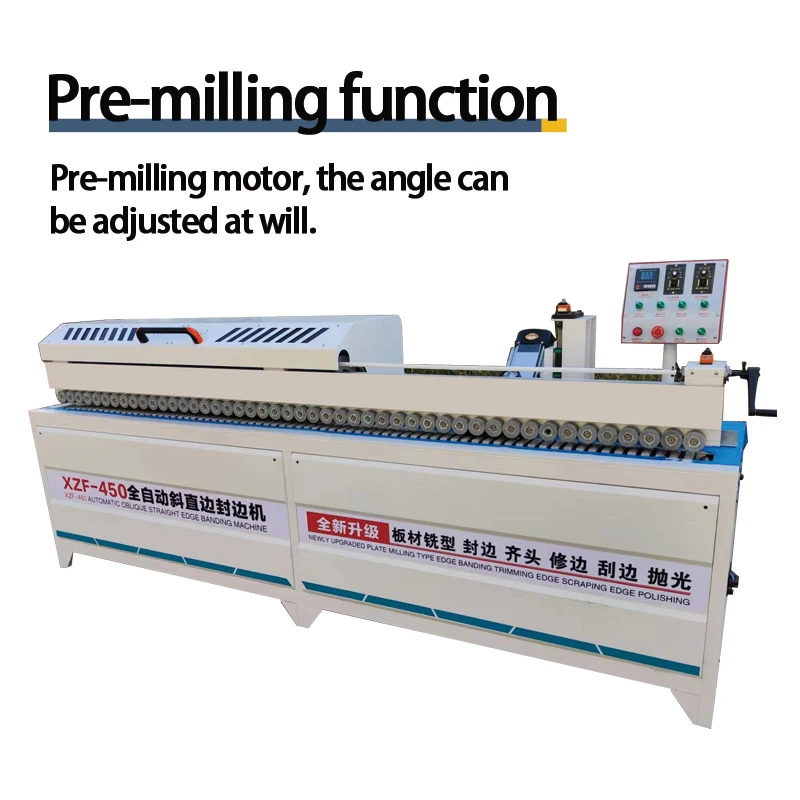

The 4 kW pre-milling motor prepares the substrate edge before glue application, removing saw marks and surface irregularities that would otherwise telegraph through thin PVC or veneer banding. This matters most on particleboard and MDF, where the cut edge is inherently porous. Feed speed is variable from 0 to 12 m/min, letting the operator slow down for thick 3 mm banding on angled profiles and speed up for straight-run 0.3 mm melamine edges. The dual 2.2 kW trimming motors handle both end trimming and fine trimming in sequence, which is what keeps the corner joints on cabinet carcases clean enough for assembly without hand sanding. The 550 W vacuum extraction port connects to your shop dust collection at the point where trimming and scraping produce the most debris, keeping the polishing wheels free of residue that causes streaks on light-coloured banding. [NEED_CITE: edge banding quality standards for cabinet assembly tolerance]
The Cost of Overlooking Configuration Before Order
When a machine arrives with the wrong plug standard, the fix is not simply buying an adapter — industrial equipment at 9.5 kW requires a proper circuit termination, and a makeshift connection risks breaker trips mid-cycle that leave half-banded panels in the feed. When the control language is wrong, operators bypass safety interlocks they cannot read, introducing fault conditions the machine was never designed to handle. These are not theoretical risks; they are the recurring reasons buyers contact support within the first week. [NEED_CITE: CE machinery directive requirements for industrial equipment]
Why Buyers Source This Model Here
In-house manufacturing means the XZF450 is built, tested, and dispatched from the same facility — there is no third-party trading layer adding transit days between the factory floor and the shipping crate. Voltage and plug customization is treated as standard order procedure, not a special request, so a 415V unit for a Southeast Asian workshop or a 380V unit with an EU plug is confirmed at quotation stage. Four-stage quality control covers incoming components, in-process assembly, finished-product testing, and pre-shipment verification with documented records. An engineer reviews your production requirements and panel specifications before confirming which stocked configuration suits your line, and a formal quotation follows within 24 hours.
Documentation & Verification
- Factory test record run on your specified panel thickness and edge banding material before dispatch
- Electrical schematic confirming voltage, frequency, and plug standard matched to your facility
- Operation and maintenance manual in your agreed language with illustrated troubleshooting section
- Spare parts list with part numbers for trimming cutters, scraper blades, and polishing wheels
- Pre-shipment packing photographs documenting crating condition and accessory placement
Installation, Commissioning & Support
- Requires a dedicated 380V or 415V three-phase circuit rated for at least 9.5 kW continuous draw
- Compressed air supply at 0.5–0.7 MPa needed for pneumatic clamping and edge pressure rollers
- Arrives fully assembled — position on level floor, connect power and air, and the machine is ready for test panels
- Glue pot preheat cycle and feed speed calibration verified against your banding thickness during commissioning guidance
- Trimming and scraping tool setup demonstrated for your chosen 0.3–3 mm edge banding range
- Recommended maintenance schedule covers glue pot cleaning, polishing wheel replacement, and vacuum filter checks
Before You Request a Quote
To match the right stocked configuration to your shop, share the panel materials you run most often, the edge banding thickness and angle profiles you need, and the voltage and frequency at your facility. Let us know your preferred control panel language and whether you need a specific plug standard. If your production includes unusual substrates or narrow components below standard minimums, mention those so we can confirm feed suitability before you commit.
Frequently Asked Questions
Q: Is this model currently in stock and what is the dispatch lead time?
A: The XZF450 is held in ready-to-ship inventory. Once your voltage, plug type, and control panel language are confirmed, the unit undergoes a pre-shipment test cycle and is crated for dispatch. Lead time from order to shipment is typically measured in days rather than weeks, depending on the customization scope and your port of destination.
Q: Can you confirm voltage, frequency, and plug type for my country before I order?
A: Yes. Before any order is finalized, we confirm the exact voltage, frequency, and plug standard required at your facility. The machine is then wired and tested under those parameters before crating. This prevents the situation where equipment arrives and cannot be powered without a costly electrical rework.
Q: What control panel language options are available and is it set before shipment?
A: The standard options include Chinese and English, with customization available for Spanish and other languages. The interface is configured and verified in your chosen language before the machine leaves the factory, so your operators can begin training immediately on arrival without a language barrier delaying commissioning.
Q: What is the minimum order quantity — can I buy a single unit?
A: Single-unit orders are standard for this model. The XZF450 is designed for workshops that need one reliable edge bander rather than a full production line purchase. Each unit ships with its own documentation set, spare parts kit, and pre-shipment test record.
Q: What shipping options are available and how is the machine packed for transit?
A: The machine ships fully assembled in a crate built around its 300 × 65 × 135 cm footprint and 430 kg weight. Shipping options are quoted based on your destination port. Pre-shipment packing photographs are provided so you can verify crating condition before the container is sealed.
