Description
Voltage-Verified Before Dispatch — every unit undergoes electrical schematic and frequency cross-check matching your local supply before it leaves the factory floor.
Technical Specifications
| Parameter | Value |
|---|---|

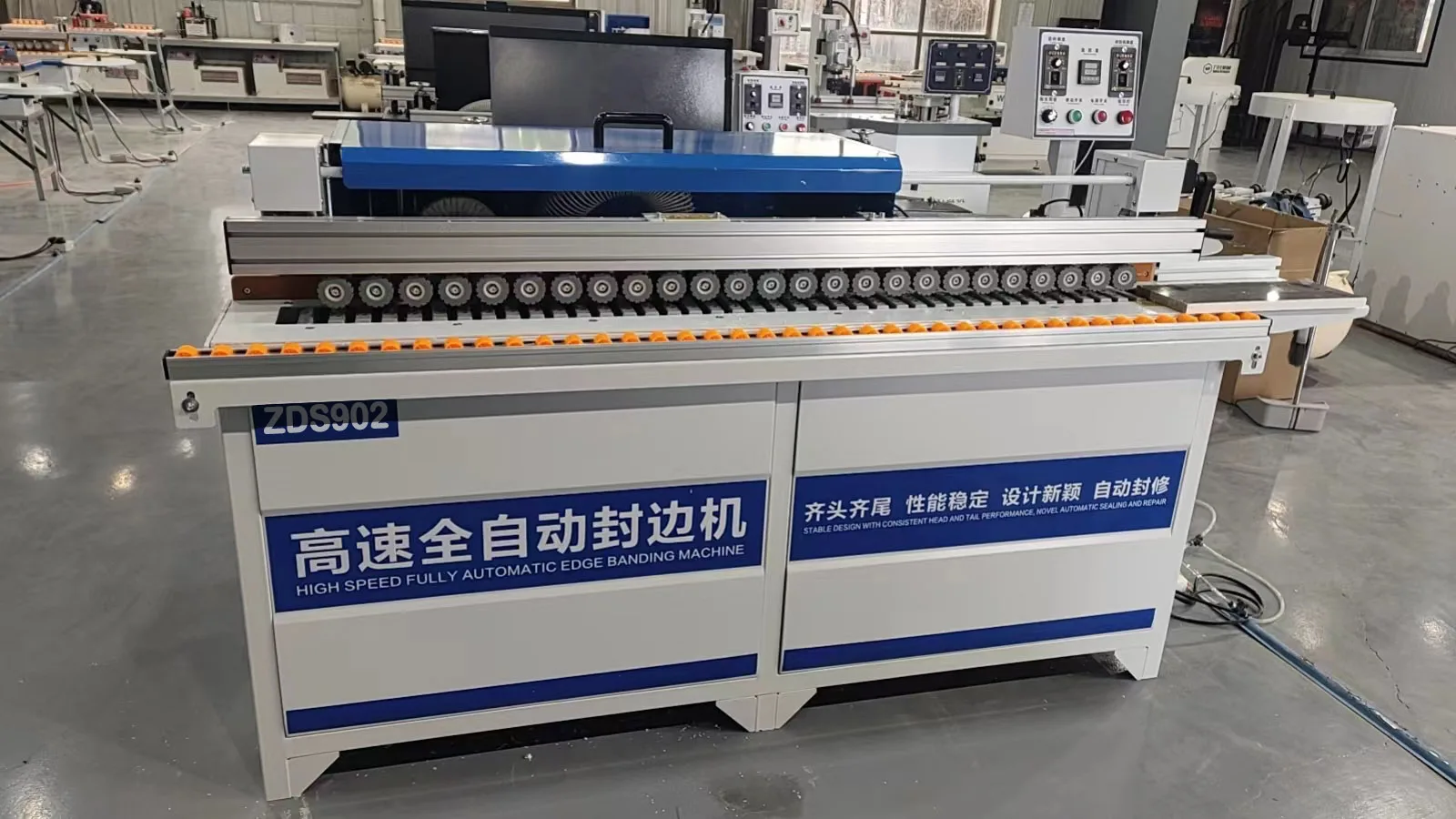

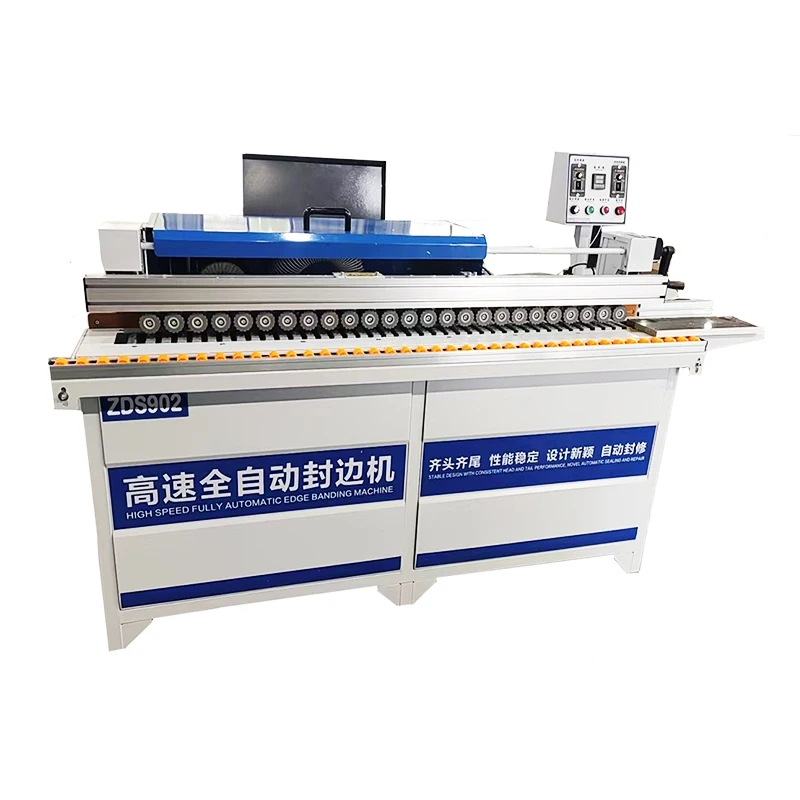

| Product Type | Automatic Edge Banding Machine |
| Voltage | 220V (verify frequency and phase against local supply) |
| Equipment Size | 207 × 60 × 122 cm |
| Total Power | 4200W |
| Weight | 245 kg |
| Edge Band Height Range | 0 – 35 mm |
| Edge Band Thickness Range | 0.5 – 2.5 mm |
| Glue Pot Capacity | 4000 ml |
| Pressure Beam | Integrated double-row pressure wheels with adjustable handle |
| Conveyor Belt | Silicone material |
| Edge Strip Cutting | Pneumatically controlled |

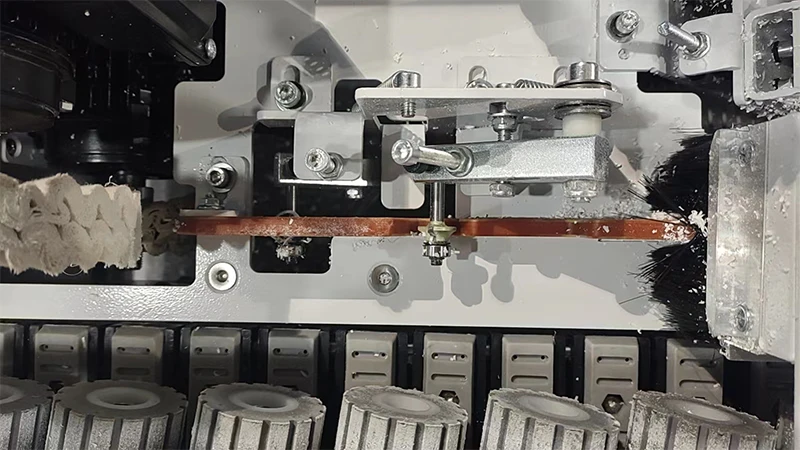

| Polishing | Dual up-and-down polishing motors |

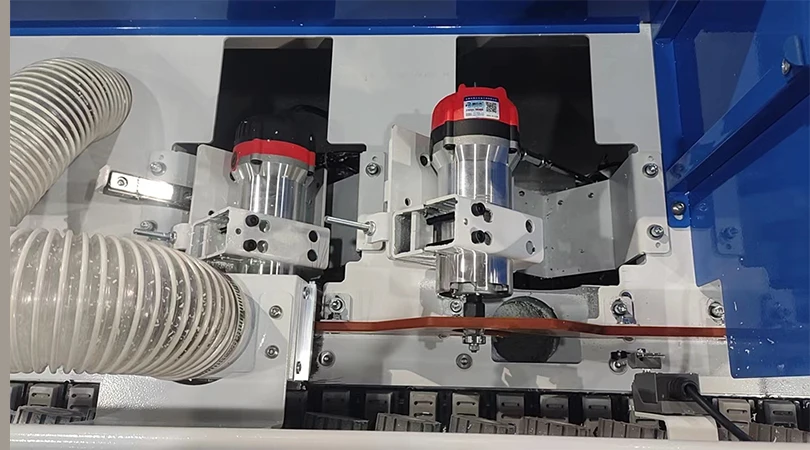

| Trimming | Double high-speed trimming motors (up and down) |
| Gluing Method | Double-sided gluing |
| Key Features | Intelligent temperature control, independent operating platform |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom furniture panel edging | MDF with PVC or ABS edge banding |
| Cabinet door and carcass finishing | Particleboard with 0.5–2.5 mm PVC strips |
| Linear edge processing for small workshops | Plywood panels with melamine or ABS bands |
| Joinery startup production | Straight-edge MDF and particleboard components |
Why Voltage Confirmation Must Come Before the Price Tag
A machine that does not match your workshop’s electrical supply is a crate of expensive steel until an electrician rebuilds the cabinet.
I once watched an Automatic Edge Banding Machine in stock fast delivery sit idle on a factory floor in Southeast Asia for three weeks because the quoted voltage did not match the local grid. The buyer had focused on feed speed and glue pot size, never asking whether the incoming supply was single-phase or three-phase, 50 Hz or 60 Hz. [NEED_CITE: voltage and frequency standards by export market] By the time the electrical cabinet was reconfigured, the production schedule had slipped and the customer lost confidence in the entire line. That is the reason I now cross-check the buyer’s on-site electrical panel photo against the machine schematic before authorizing dispatch.
Stocked Units Ready for Immediate Dispatch
This model sits in the ready-to-ship pool, meaning the lead time is measured in days rather than the multi-week production cycles typical of configured machinery. Single-unit orders are accepted without minimum-quantity pressure, which suits workshops placing a first machine or replacing an ageing unit mid-season. The Automatic Edge Banding Machine in stock fast delivery is pre-tested at the factory and crated with the conveyor belt and pressure beam already aligned.
Compact Footprint for Tight Workshop Floors
At just over two metres in length and 60 cm wide, the machine fits into narrow bays beside an existing panel saw or drilling station. The 245 kg weight keeps it stable during trimming passes yet allows repositioning with a standard pallet jack when you reorganize the floor layout. Silicone conveyor material grips laminated surfaces without marking, so finished cabinet sides move directly to the assembly bench without a secondary cleaning step.
How the Specification Choices Translate on the Shop Floor
The 4000 ml glue pot capacity means operators running standard 18 mm MDF boards can work through extended batches before stopping to refill molten adhesive, reducing idle gaps in a continuous run. Intelligent temperature control holds the pot within a narrow band, preventing the glue from degrading when the machine runs long shifts or when ambient temperature swings between seasons. Pneumatically controlled edge strip cutting delivers a clean end-trim without the ragged break common on manual-feed units, especially noticeable on thicker 2.5 mm ABS bands. Double high-speed trimming motors working up and down produce a flush edge on both faces of the panel in a single pass, eliminating the need for a separate hand-router touch-up that slows throughput and introduces inconsistency. [NEED_CITE: CE machinery directive requirements for industrial equipment]
The Hidden Cost of Skipping Configuration Checks
Buyers who select a machine based solely on price or a headline feed speed often discover downstream mismatches only after installation. A conveyor that cannot handle the panel thickness range you actually run causes edge band lift on thicker boards and crushing on thinner stock. An undersized glue pot forces frequent stops that break the production rhythm and cool the adhesive below bonding temperature, creating visible glue lines on finished panels. These issues are not warranty claims because the machine itself is functioning as built; they are configuration errors that could have been caught during the inquiry stage with a straightforward conversation about board formats and daily volumes. [NEED_CITE: common causes of edge banding adhesion failure in panel processing]
Reasons Buyers Source This Unit Through Our Store
Stock availability means you receive a confirmed dispatch date at the point of order rather than an estimated production slot weeks away. Every unit ships with an electrical schematic and voltage confirmation document matched to your declared supply, eliminating the on-site rewiring delays that stall commissioning. The four-stage quality control process covers incoming material inspection through pre-shipment verification, so the machine you receive matches the test record in the documentation pack. Single-unit orders are fulfilled through the same channel as multi-machine shipments, meaning a small joinery startup gets the same dispatch priority as a distributor ordering a container load. Multilingual operation manuals and control-panel overlays are confirmed before packing so the operator reading the screen on day one understands every function label.
Documentation & Verification
- CE declaration of conformity covering the edge banding machine safety requirements
- Electrical schematic with voltage and frequency matched to your declared supply
- Factory test record on your specified panel thickness and edge band material
- Operation and maintenance manual in your agreed language with illustrated spare parts list
- Packing photographs showing crate condition and accessory completeness before dispatch
Installation, Commissioning & Support
- Requires a dedicated 220V circuit rated for at least 4200W continuous draw with proper earthing
- Allow a minimum 3 × 1.5 m clear zone around the 207 cm frame for panel loading and offcut collection
- Conveyor belt arrives pre-tensioned; verify tracking alignment after the first two hours of running
- Pneumatic cutting device needs a clean, dry compressed air supply at the specified pressure range
- Glue pot first heat-up cycle takes approximately 30 minutes before adhesive reaches bonding temperature
- Spare trimming blades and polishing wheels listed in the documentation pack for initial reordering
Request a Dispatch Confirmation
Share your panel material, typical board thickness, and edge band specification so we can confirm the machine handles your format range. Provide your workshop voltage, phase, and frequency along with a photo of the incoming supply panel to lock in the electrical configuration. Let us know your preferred control-panel language and any existing upstream or downstream equipment the edge bander needs to feed into.
Frequently Asked Questions
Q: What voltage options are available and is the machine tested for my local frequency?
A: The unit is configurable across common industrial voltages. Before dispatch we verify your declared voltage, phase, and frequency against the electrical schematic and run a powered test. A confirmation document is included in the shipping pack so your electrician can connect the machine without guesswork on arrival.
Q: Is this model in stock and what is the dispatch lead time for a single unit?
A: Yes, this configuration is held in ready-to-ship inventory. Single-unit orders are accepted and dispatched on the same schedule as larger batches. Once your voltage and language requirements are confirmed, crating and handover to the freight forwarder typically take only a few working days.
Q: Which edge band materials does this machine handle?
A: The machine processes PVC, ABS, and melamine edge banding in the 0.5 to 2.5 mm thickness range, with edge band heights up to 35 mm. The intelligent temperature control adjusts glue viscosity to suit each material type, supporting clean adhesion across common panel substrates including MDF and particleboard.
Q: What assembly is required on arrival and is guidance provided?
A: The machine ships largely pre-assembled with the pressure beam and conveyor belt aligned. You will need to connect the power supply, attach the compressed air line, and fill the glue pot. The included manual covers each step, and video guidance is available for first-time setup of the pneumatic cutting device and trimming motors.
Q: How are spare parts and consumables supplied after delivery?
A: A spare parts list with part numbers is included in the documentation pack. Trimming blades, polishing wheels, and glue pot components can be reordered through the same ordering channel used for the initial purchase, with individual shipments arranged to keep your machine running without extended downtime.
