Description
In-stock dispatch — DW802 automatic edge banding machines are configured for your local voltage and plug standard before leaving the factory, eliminating on-site electrical surprises.
Technical Specifications
| Parameter | Value |
|---|---|

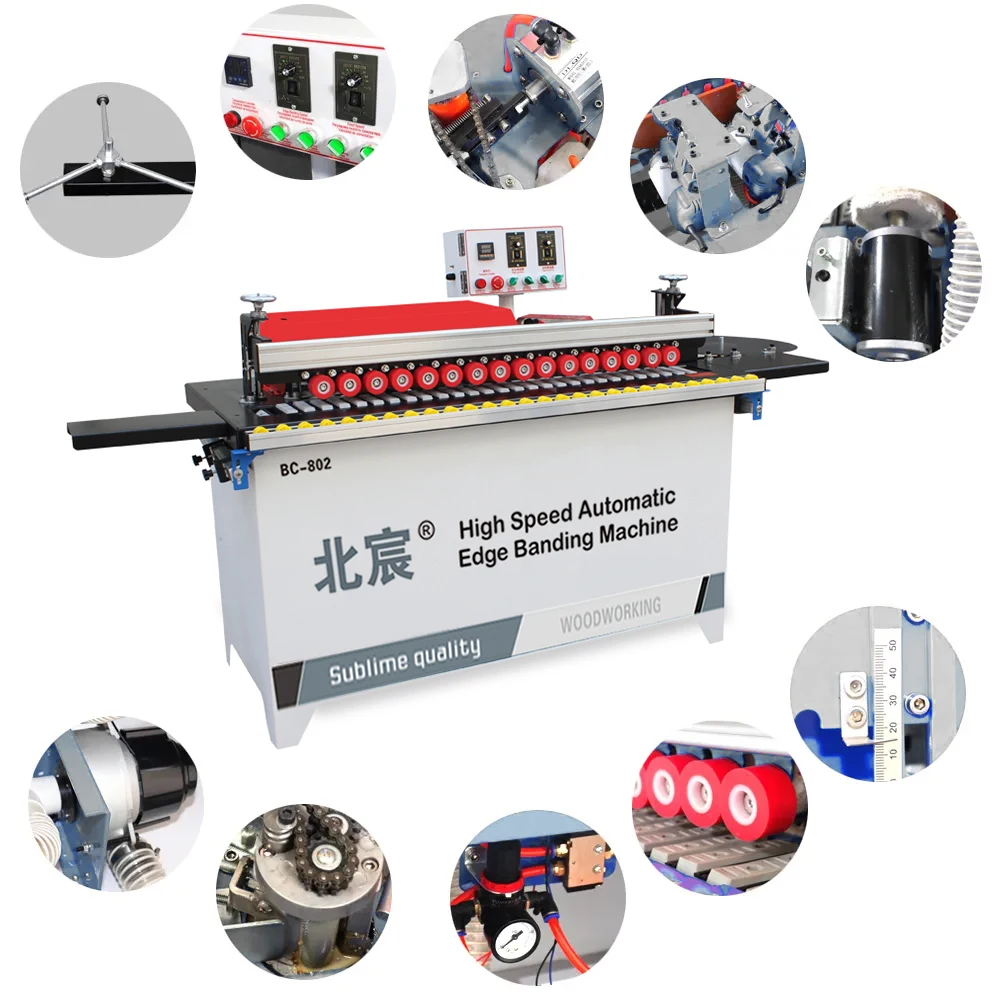

| Model | DW802 |
| Product Type | Automatic Edge Banding Machine |
| Total Power | 4200W |
| Voltage & Frequency | 220V / 380V / Custom |
| Control System | Button / Switch Panel |
| Overall Dimensions (L×W×H) | 130 × 60 × 95 cm |
| Net Weight | 135 kg |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 10 cm |
| Edge Banding Height Range | 0–50 mm |
| Edge Banding Thickness Range | 0.3–3 mm |
| Edge Feed Motor Power | 140W |
| Transmission Motor Power | 140W |
| Trimming Motor Power | 800W × 2 |
| Polishing Motor Power | 180W × 2 |
| Vacuum Motor Power | 1200W |
| Glue Pot Capacity | 4000 ml |
| Air Supply Pressure | 0.4–0.8 MPa |
| Assembly State | Fully Assembled, Floor-standing |
| Trimming Stations | Straight Trimming (Head & Tail Auto-cut) |
| Language Options | Chinese, English (others on request) |
| Plug Options | EU, USA, AU, UK |

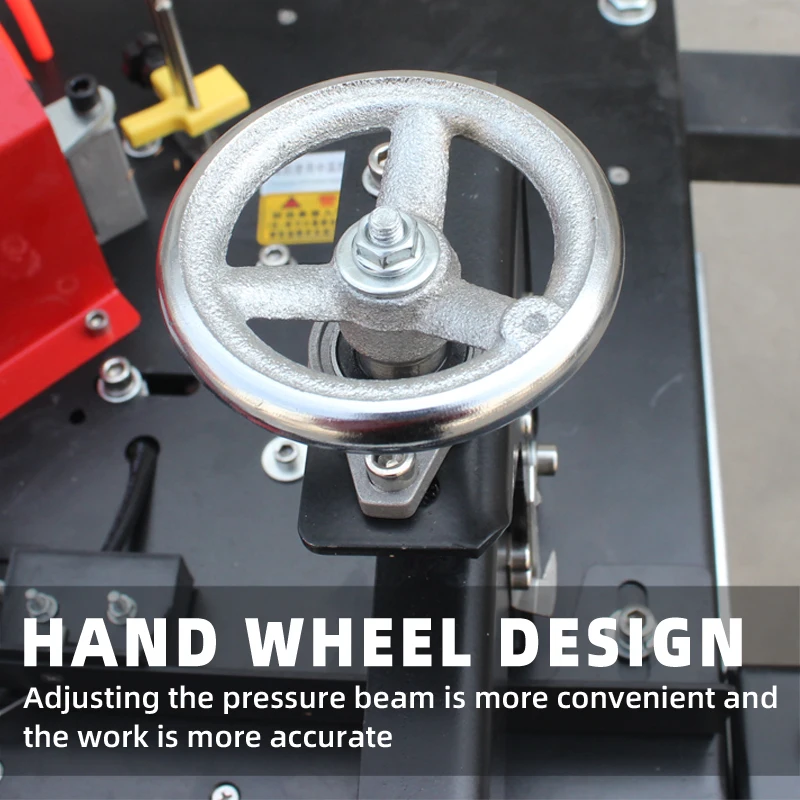

| Key Features | Integrated pressure beam, silica gel conveyor belt, vacuum hold-down |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet and small furniture production | MDF, particleboard, plywood edge sealing |
| Home decoration joinery | Solid wood board and ecological board processing |
| Startup workshop automation | PVC edge banding on standard panel sizes |
| Semi-automated transition lines | Batch panel runs with consistent edge finishing |
Why the Voltage Question Should Come Before the Price
A machine wired for the wrong frequency is dead weight on your shop floor.
In my years sourcing equipment across the Middle East, the most expensive mistake is rarely the sticker price — it is the three-week wait for a frequency converter while your production line sits idle and your crew draws wages for nothing. The DW802 automatic edge banding machine in stock ships only after your local voltage, frequency, and plug type are confirmed in writing. This eliminates the scenario where a 380V/50Hz motor arrives at a 415V/60Hz facility and immediately trips its thermal protection. [NEED_CITE: voltage and frequency standards by export market]
Stock Availability and Configuration Before Dispatch
Ordering a single automatic edge banding machine from ready inventory should not mean accepting a factory-default configuration that does not match your workshop. The DW802 is held in stock as a base unit, but voltage winding, plug termination, and control panel language are finalized only after your specification sheet is signed off. This approach keeps dispatch lead times short while ensuring the machine powers on correctly the day it is unloaded.
Compact Footprint Without Reinforced Flooring
A 135 kg machine at 130 × 60 × 95 cm does not demand a concrete pad upgrade or a forklift-rated floor. Small joinery workshops and garage-started cabinet makers can position the DW802 against an existing wall, connect a standard compressed air line at 0.4–0.8 MPa, and begin edging panels within hours of unpacking. [NEED_CITE: typical workshop floor load requirements for light machinery]
How Glue Pot Capacity and Trimming Power Affect Daily Output

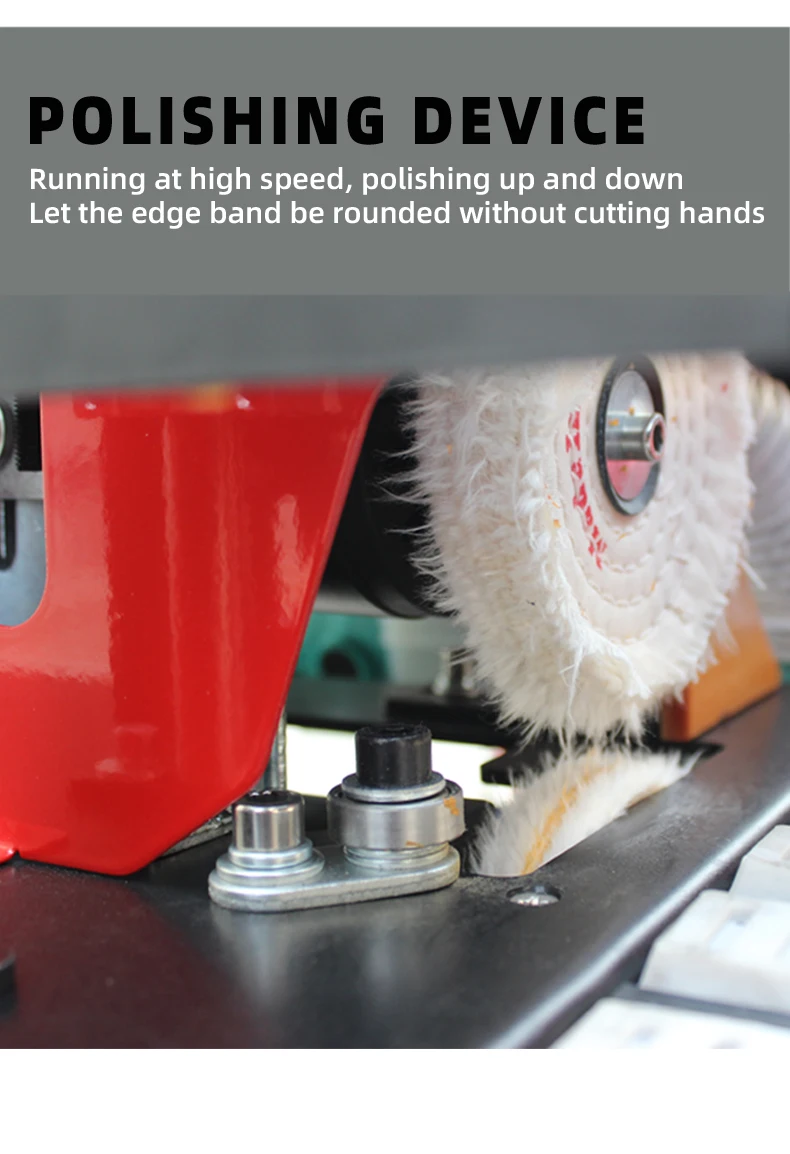

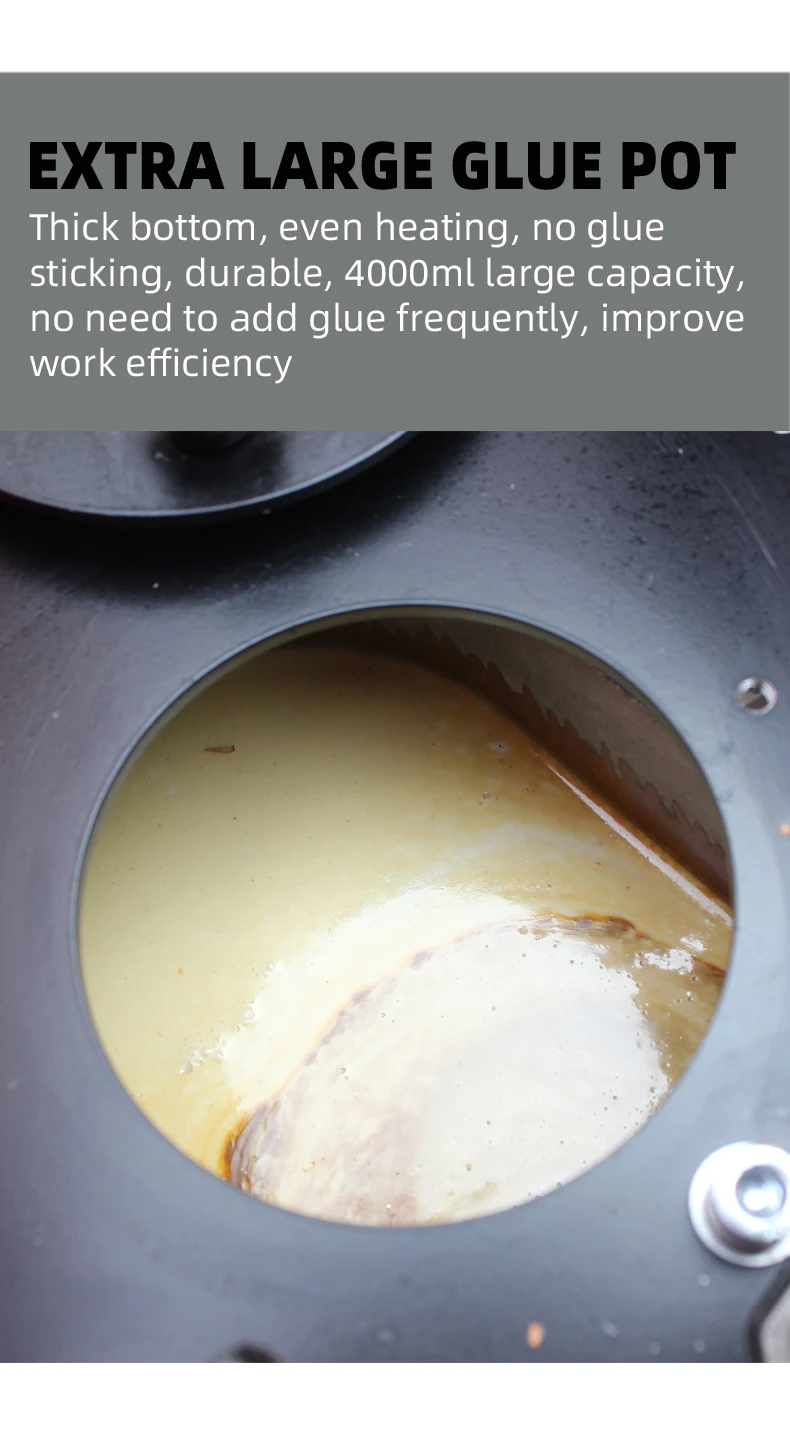

The 4000 ml glue pot runs extended batches without mid-job refills, which matters when you are edging a full kitchen run of cabinet doors back-to-back. Two 800W trimming motors handle head-and-tail auto-cut on PVC banding up to 3 mm thick, leaving a clean perpendicular edge rather than a torn lip that shows up under lacquer. The 180W × 2 polishing motors then remove residual adhesive smear before the panel reaches your assembly bench.
Matching Feed Speed to Panel Thickness
Feed speed, panel thickness range, and glue temperature together determine edge adhesion quality. Running 18 mm particleboard too fast through insufficiently heated adhesive produces a hollow-sounding bond that fails during hinge mounting. The DW802’s button-panel control lets the operator dial in feed rate manually, which is appropriate for workshops processing mixed batch sizes rather than continuous single-thickness production. Confirm your typical panel thickness range with the engineering team before dispatch so the glue pot temperature calibration matches your most common substrate.
The Cost of Skipping Pre-Shipment Verification
When a machine arrives without a test record processed on your actual panel material, the first real production run becomes the commissioning test. Glue line visibility, trimming accuracy, and edge-to-surface alignment are then adjusted under delivery pressure, often with your customer waiting on the other end. The DW802 pre-shipment protocol includes a sample run on the panel thickness and banding thickness you specify, photographed and documented before the crate is closed. [NEED_CITE: CE machinery directive requirements for pre-shipment testing documentation]
What You Receive Beyond the Machine Itself
Configuration is locked to your written specification before production begins — voltage, frequency, plug, and language are not left to assumption. A four-stage quality check covers incoming components, in-process assembly, finished function, and final pre-shipment verification. Single-unit orders are standard practice, not an exception requiring negotiation. Engineer-led configuration recommendations are provided within one working day of receiving your panel dimensions and production volume. Factory visits are welcomed at any stage before the crate leaves Ningjin.
Documentation & Verification
- CE declaration of conformity covering the DW802 model series
- ISO 9001 certificate for the manufacturing facility
- Electrical schematic with confirmed voltage and frequency for your site
- Factory test record on your specified panel thickness and banding material
- Operation and maintenance manual in your agreed language
- Spare parts list with glue pot consumable specifications
Installation, Commissioning & Support
- Floor-standing assembly at 135 kg requires no foundation work — level concrete is sufficient
- Dedicated circuit matching confirmed voltage (220V or 380V) with appropriate breaker rating for 4200W total draw
- Arrives fully assembled; connect compressed air at 0.4–0.8 MPa and power to begin
- Glue pot temperature calibration verified against your most common panel substrate before dispatch
- Spare trimming cutters and polishing pads included for initial production runs
Before You Request a Quote
Share your standard panel thickness range, the PVC banding thickness you run most often, your local voltage and frequency, and your preferred control panel language. If you are replacing a manual edging process, let us know your current daily panel count so the engineer can confirm whether the DW802 automatic edge banding machine matches your throughput expectation or if a higher-tier model in the same product family serves you better long-term.
Frequently Asked Questions
Q: Is the DW802 currently in stock and what is the dispatch lead time?
A: Base units are held in ready inventory for single-unit orders. Dispatch timing depends on the configuration scope — standard voltage and plug combinations ship fastest, while custom frequency or language requirements add time for winding and panel programming. Submit your specification sheet to receive a confirmed dispatch date.
Q: Can you match my country’s voltage, frequency, and plug type before shipping?
A: Yes. Voltage is configurable across 220V and 380V, with custom frequency accommodated. Plug options include EU, USA, AU, and UK standards. Your electrical specification is confirmed in writing before the machine leaves the factory, so no on-site adapter or converter is needed.
Q: Is there a minimum order quantity for a single DW802 unit?
A: Single-unit orders are standard. The purchasing process is the same whether you order one automatic edge banding machine or a mixed-model container load. Each unit receives individual pre-shipment testing against your panel specification.
Q: What panel materials and edge banding types does this machine handle?
A: The DW802 processes MDF, particleboard, solid wood board, ecological board, and plywood. Compatible edge banding material is PVC in thicknesses from 0.3 mm to 3 mm, with edge height coverage from 0 to 50 mm.
Q: What support is included after the machine arrives at my workshop?
A: Installation guidance covers positioning, electrical connection, compressed air setup, and first-run parameter adjustment. An operation and maintenance manual in your agreed language is included, along with a spare parts list identifying consumables and their replacement intervals.
