Description

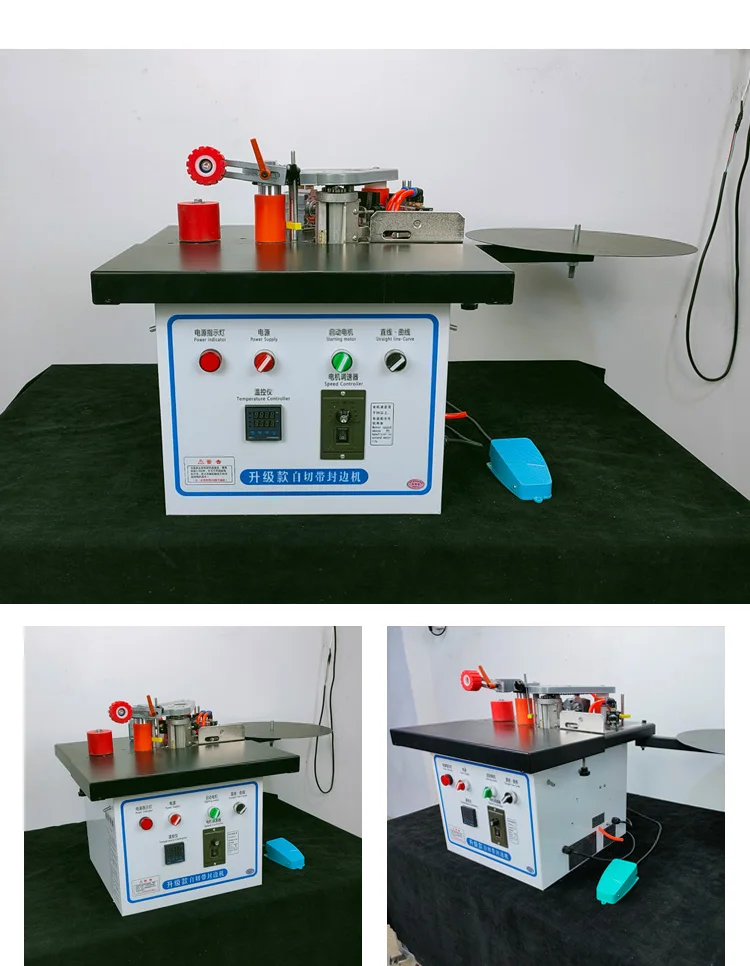

In-stock readiness verified — every ST-50 semi-automatic edge bander leaves our Ningjin facility with voltage, plug type, and control language confirmed against your local grid before the crate is sealed.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ST-50 |
| Product Type | Semi-Automatic Edge Bander |
| Total Power | 1000W |
| Voltage | 220V/380V/customization |
| Feed Mechanism | Manual/semi-automatic (hand-fed) |
| Edge Banding Height | 0-50mm |
| Edge Banding Thickness | 0.3-3mm |
| Minimum Sheet Length | 250mm |
| Minimum Sheet Width | 30mm |
| Edge Motor Power | 20W |
| Air Source Pressure | 0.5-0.8MPa |
| Glue Pot Capacity | 1000ml |
| Machine Dimensions (L×W×H) | 500×500×470mm |
| Net Weight | 22kg |
| Control Panel Language | Chinese, English, Spanish or other languages customizable |
| Plug Options | EU, USA, AU, UK |
| Assembly State | Fully assembled, ready to operate |
| Key Features | Curved and straight edge banding |

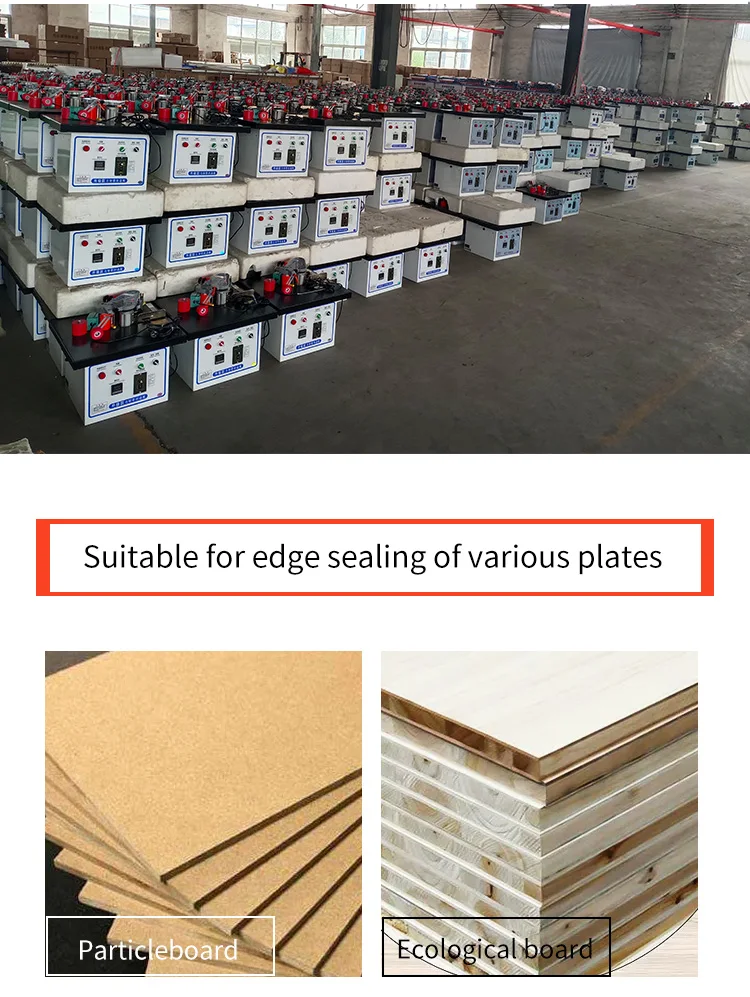

Application Suitability
| Application | Material or Output |
|---|---|
| Small workshop furniture production | MDF, particleboard, ecological board |
| Home decoration and on-site modification | Plywood, solid wood board |
| Furniture edge repair and rework | PVC, melamine, wood veneer banding |
| Prototype panel edge finishing | Narrow stock down to 30mm width |
Why the Voltage Question Should Come Before the Price
A machine that cannot plug into your workshop grid is dead weight on the floor.
I once configured a semi-automatic edge bander for an overseas buyer and shipped it without triple-checking the three-phase supply at their site. The machine arrived, the electrician opened the panel, and the voltage was wrong. The unit sat idle for weeks while the facility rewired a dedicated circuit. That delay cost the buyer more in lost production time than the machine itself. When sourcing a semi-automatic edge bander in stock, confirming the exact voltage, frequency, and plug standard before dispatch is the single most important step in the entire order process [NEED_CITE: voltage and frequency standards by export market].
Stocked and Configured for Immediate Dispatch
Most workshops ordering their first edge sealing machine do not have months to wait for a production slot. The ST-50 is maintained as a semi-automatic edge bander in stock specifically for buyers who need a unit within days rather than weeks. Each machine is held in ready-to-ship condition, and the only pre-dispatch configuration required is matching the electrical standard and control language to your facility.

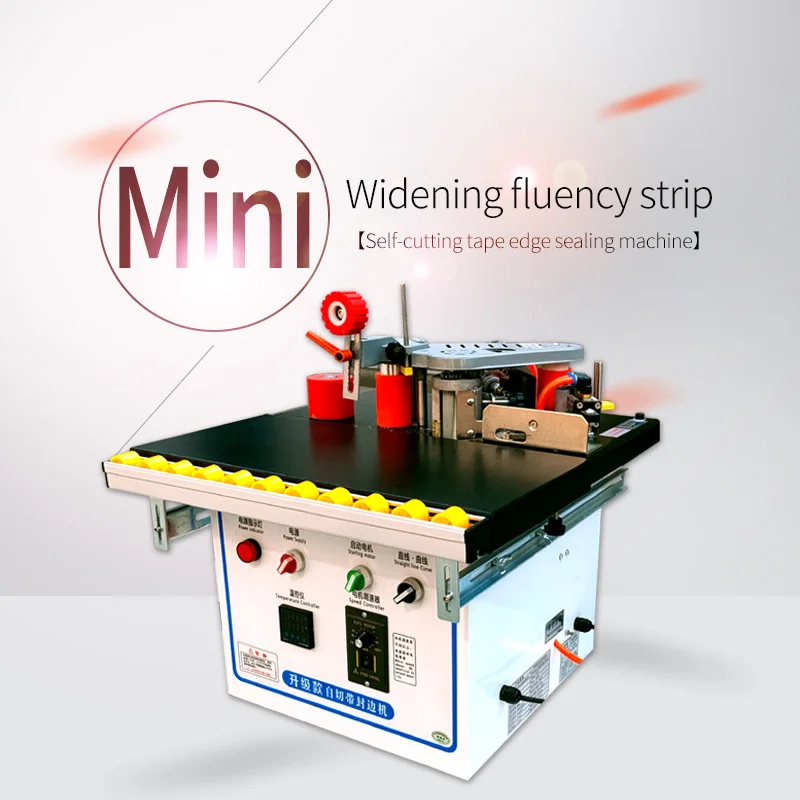

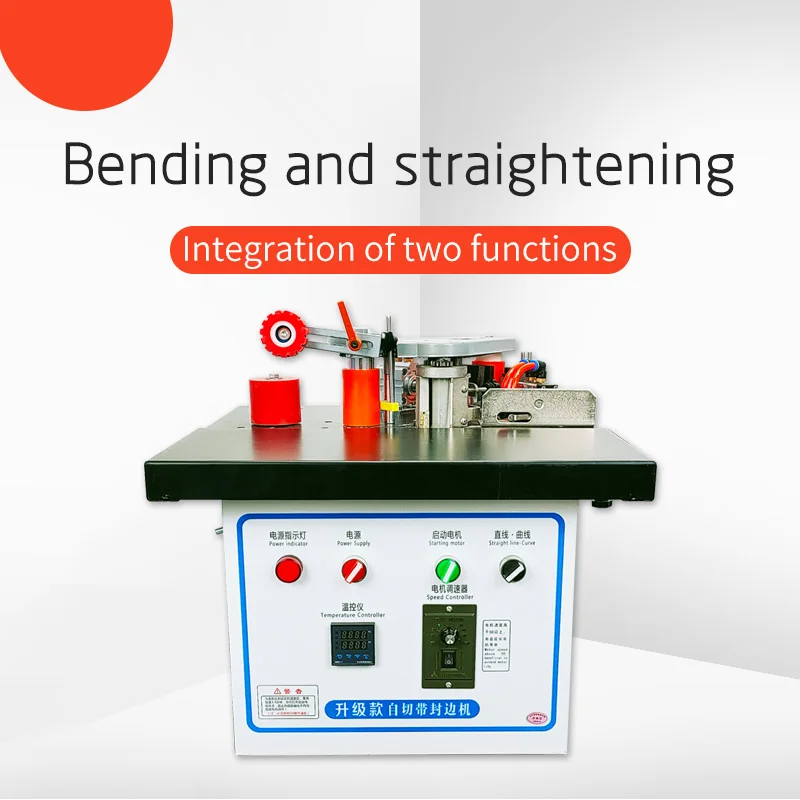

Curved and Straight Edges on One Compact Unit
The ability to handle both curved and straight profiles on a single machine matters enormously for small workshops where floor space limits the number of stations you can run. The ST-50 covers edge banding heights from zero to fifty millimetres and accepts banding thickness from 0.3 to 3mm, which includes PVC, melamine, and thin wood veneer [NEED_CITE: common edge banding material thickness ranges for furniture]. A 1000ml glue pot means the operator can run extended sessions without stopping to refill, which matters when you are edging a batch of cabinet doors in one sitting.
Reading the Numbers That Actually Affect Your Panels

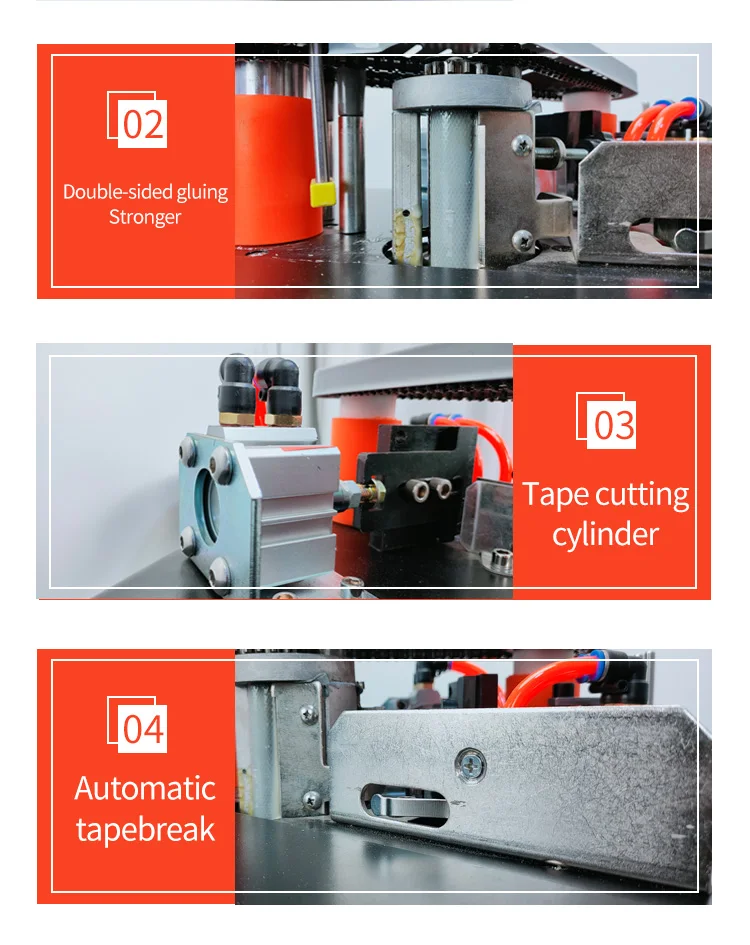

The 0.3–3mm banding thickness range covers the majority of materials a small workshop encounters: thin PVC for carcass panels, thicker melamine for visible cabinet fronts, and veneer for higher-end custom pieces. Feed mechanism is manual, meaning the operator controls the pace — this is deliberate for a machine in this class, because hand-feeding gives the worker direct feel for how the banding is bonding to curves and odd-shaped cuts where an automatic feed belt would lose grip. The 250mm minimum sheet length and 30mm minimum width let you edge small offcuts and drawer components that larger automatic banders simply cannot grip. Air source pressure of 0.5–0.8MPa drives the pressure rollers; below that range the bond weakens on thicker banding, and above it the rollers can crush softer PVC profiles.
What Happens When Configuration Is Skipped
A semi-automatic edge bander is a small investment compared to a full CNC line, which is exactly why buyers sometimes rush the order without specifying electrical details or language preference. The consequence is not a dramatic failure — it is a slow, frustrating stall. The machine sits in its crate while an electrician sources a transformer. The operator stares at a Chinese-only control panel and guesses at temperature settings, which leads to glue that is either too cool to bond or too hot to hold the banding flat. These are not defects in the machine; they are gaps in the pre-dispatch conversation that could have been closed in a single email [NEED_CITE: CE machinery directive requirements for industrial equipment].
Why Source This Unit Here
In-house manufacturing in Ningjin means the ST-50 is not a rebranded trading-company product — the team that builds it also handles the pre-shipment testing and configuration. Voltage customization from 220V to 380V with matched plug standards is treated as a routine step, not a special request. The unit ships fully assembled, so there is no on-site mechanical build requiring alignment tools or specialist rigging. A four-stage quality check covers incoming material inspection through to pre-shipment verification with photographic and video records sent before the crate is closed. Multilingual control panels are configured before dispatch so the operator reads instructions in English, Spanish, or another agreed language from the first hour of use.
Documentation & Verification
- Electrical schematic with confirmed voltage and plug type for your facility
- Operation and maintenance manual in the agreed control-panel language
- Factory test record showing edge banding on your specified panel material
- Pre-shipment photographs and video of the machine under load
- Spare parts list covering glue pot seals, trimming blades, and pressure rollers
Installation, Commissioning & Support
- 500×500mm footprint requires a flat, stable bench — no floor anchoring needed
- 1000W total power draws from a standard single-phase circuit in most markets
- Fully assembled state means uncrating, plugging in, and loading glue
- First-run guidance covers glue pot temperature settings for your banding material
- 0.5–0.8MPa air supply connection via standard quick-fit coupling
- Spare trimming blades and pressure roller set included for initial operation
Before You Request a Quote
To configure the ST-50 correctly for your workshop, share your local voltage and frequency, preferred plug standard, and the control panel language your operator reads. If you work with specific banding materials — PVC thickness, veneer type, or melamine profile — note those so the glue pot temperature range can be verified against them. Mention whether this is your first edge bander or a backup unit, as that affects which spare parts we recommend including in the shipment.
Frequently Asked Questions
Q: What voltage and plug standard do I need to specify before ordering?
A: Confirm the voltage available at your workshop — typically 220V single-phase or 380V three-phase — along with the frequency in hertz and the plug type used in your country. The ST-50 is configurable across EU, USA, AU, and UK plug standards. We verify these details in writing before the machine is dispatched to avoid any on-site electrical mismatch.
Q: Can this machine ship as a single unit, and what is the dispatch lead time?
A: The ST-50 is stocked as a semi-automatic edge bander in stock and ships as a single unit without minimum-order requirements. Once voltage, plug standard, and control language are confirmed, the machine is tested and packed for dispatch. Lead time is typically a matter of days rather than weeks, depending on the configuration steps needed.
Q: Which edge banding materials and thicknesses are compatible with the ST-50?
A: The machine handles banding from 0.3mm to 3mm, covering PVC, melamine, and wood veneer commonly used in furniture and cabinet production. Curved and straight profiles are both supported. Edge banding height ranges up to 50mm, which accommodates standard panel thicknesses found in workshop furniture.
Q: Is the control panel available in English or my local language?
A: The ST-50 control panel is configurable in Chinese, English, Spanish, or other languages on request. We confirm the language during the pre-dispatch process so the operator can read temperature and operational settings clearly from the first use. The printed manual is supplied in the same agreed language.
Q: What spare parts should I order together with the machine?
A: We recommend including a set of replacement trimming blades, spare pressure rollers, and glue pot seals with the initial shipment. These are the most commonly consumed wear items during normal operation. Ordering them together avoids waiting for a separate parts shipment once production is underway.
