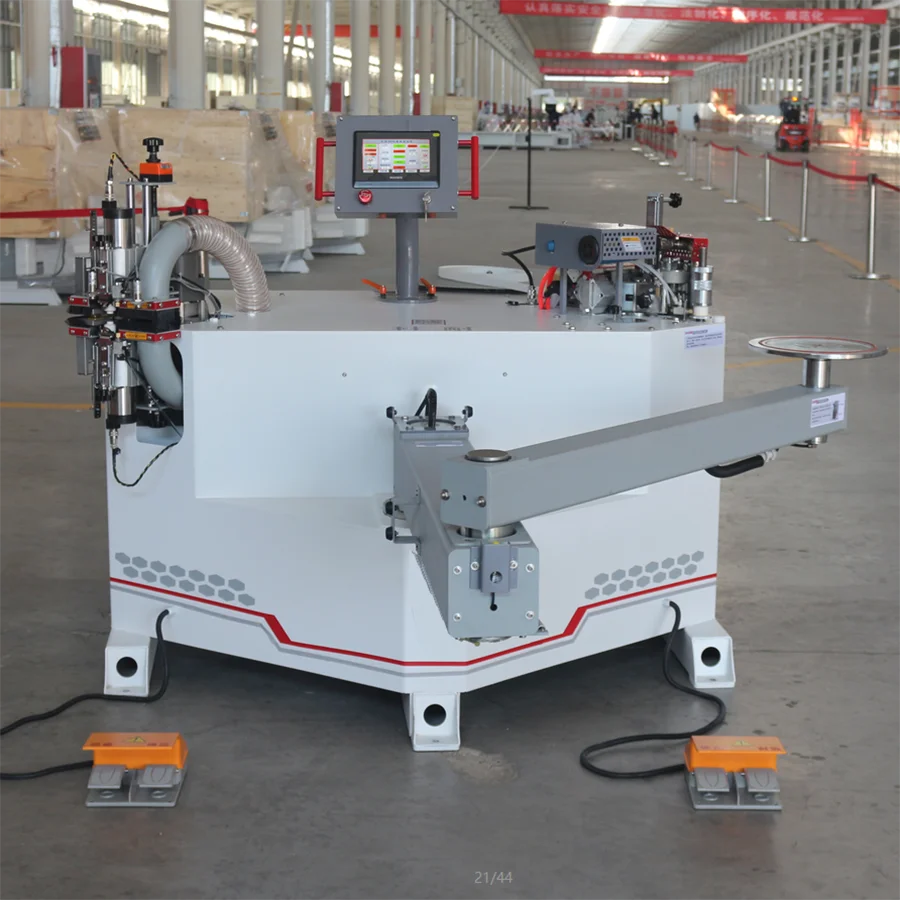

Special-Shaped Woodworking Machinery Manual Curve Round Edge Banding Machine MDF PVC Edge Banding Machine
CE Certified ISO9001
Wood Based Panels Machinery

Special-Shaped Woodworking Machinery Manual Curve Round Edge Banding Machine MDF PVC Edge Banding Machine

This product is currently out of stock and unavailable. SKU: Special-Shaped Woodworking Machinery Manua-36310923 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Products Disply Features of automatic curved edge banding and trimming machine:1. Curve plate automatic feeding2. Laser distance measurement. precise docking (docking error ±0.3mm). high precision. no need for manual cutting.3. […]

20yrs
Experience
100+
Countries
OEM
Customizable
  • CE & ISO9001 certified -- meets global import standards
  • Full OEM/ODM: custom logo, voltage (110V-440V), multilingual panels
  • Factory-direct pricing with stable supply chain
  • Professional after-sales: remote support, warranty & spare parts
  • Suitable for small workshops to large industrial factories
Request a Free Quote WhatsApp Now

Direct Contact

woodmachinebc@aliyun.com +86 156 6441 3539

Products Disply
Features of automatic curved edge banding and trimming machine:1. Curve plate automatic feeding2. Laser distance measurement. precise docking (docking error ±0.3mm). high precision. no need for manual cutting.3. Both PUR and EVA.4. Servo motor. fast action response. low noise.5. The feeding speed is 0-30cm/s. and the working efficiency is high.6. The machine has 4 cleaning devices. which spray cleaning liquid automatically.7. The capacity of the glue pot is increased to 2600ml. and the glue pot has a heat preservation function.8. The touch screen can store 20 kinds of form data. greatly improving work efficiency.9. The 2L pressure accumulator gas storage tank is used to ensure the normal operation of all pneumatic components of the whole machine.10. 1 heating device makes the combination of strip and plate more firm.
Product Parameters
Name
automatic curved edge banding and trimming machine
Model
ZDS-700
voltage
380V/50HZ
power
6KW
Air pressure
0.6-0.8Mpa
Operating temperature of glue pot
110??210??/DIV>
Volume of air storage tank
2L
touch screen
industry IT7000
PLC
HIU-XP
frequency transformer
MD200 2.2KW
Laser displacement sensor
1030
edge banding motor
220V 400W servo motor
Trimming profiling motor
220V 60W Single-phase motor
Trimming high-speed motor
220V 400Hz 24000rpm
Thickness of strips
0.5-3mm
Width of strips
14-70mm
Length of stacking arm
2270mm
Edge banding speed
0-22m/min
Overall dimensions
1550*1440*1350mm
weight
451kg
Product details
Edge banding device
1 U-shaped groove limit
2 Adjustment switch
3 length counter
4 laser sensor
5 Glue Roller
6 Lamination pressure roller
7 Larger and thicker glue pot
8 Hot air device
9 Cutting knife assembly
Edge trimming device
1 Plate Thickness Adjustment
2 Trimming Adjustment
3 Trimming start-stop device
4 Edge scraper
5 Dust collection device
6 Curved Line Sensing Device
7 Glue removal device
High-quality LCD screen. can be rotated 50 degrees left and right. easy to operate.
Laser sensor. precise docking. fast speed. and strong anti-interference ability.
One-time molding. thickened glue pot. not easy to leak glue. and reduce the number of glue additions.
Vertical cutting knife. cutting neatly and powerfully. and the blade has a long service life.
Servo motor. small size. fast response. low noise. high efficiency.
The air pump is used for dust removal. and it can be set to clean regularly to prevent clogging.
The dust suction port is upgraded and enlarged. which can absorb dust quickly. save energy and protect the environment.
The air storage tank increases the service life of the air pump and maintains the normal air pressure required for work.
Package And Shipping
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Technical Specifications

Certification
CE, ISO9001
Voltage Options
110V / 220V / 380V / 440V (customizable)
Origin
Shandong, China
OEM/ODM
Supported
Warranty
1 Year
After-Sales Service
Remote support & spare parts supply
Export Markets
100+ countries worldwide
Lead Time
Contact us for current lead time

* Detailed technical parameters (dimensions, motor power, processing speed, etc.) vary by model. Please contact us for the full spec sheet.

Shipping & Packaging

  • Professional export-grade wooden crate packaging
  • Stable supply chain -- on-time delivery guaranteed
  • Sea freight (FCL/LCL), air freight & express options
  • Customs clearance documentation provided
  • Exporting to 100+ countries: Europe, Americas, SEA, Africa, Latin America

After-Sales Support

  • 1-year warranty on all machines
  • Remote technical support via video call
  • English & Spanish-speaking support teams
  • Spare parts supply with fast international shipping
  • Operation manuals in multiple languages

Full OEM / ODM Customization

We support complete OEM/ODM services for global distributors, regional agents and brand owners. Customize any aspect of the machine to fit your market requirements.

Custom Logo & Branding
Your brand name, logo and color scheme on all visible surfaces
Voltage Customization
110V, 220V, 380V, 440V -- any frequency for any market
Multilingual Control Panels
English, Spanish, French, Arabic and more
Custom Packaging
Branded packaging, user manuals and accessory kits
Specification Adjustments
Motor power, processing dimensions and feature configurations
Certification Support
Assistance with CE, FCC, RoHS and other regional certifications
