Description
Fast Dispatch Guarantee — the ST-30 portable edge banding machine ships from ready stock with your country’s voltage, plug type, and control panel language confirmed before it leaves the factory floor.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ST-30 |

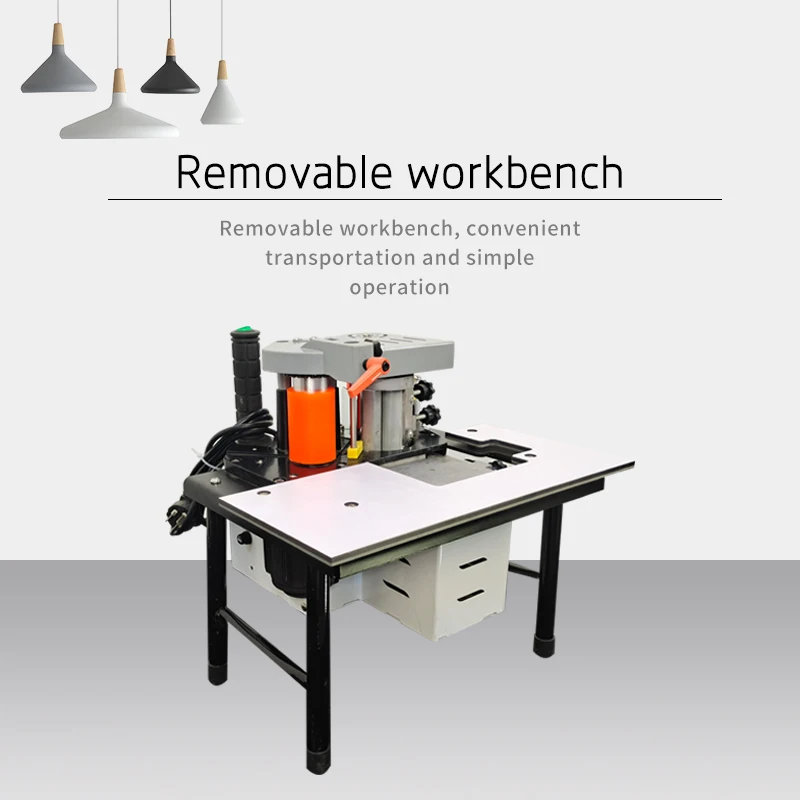

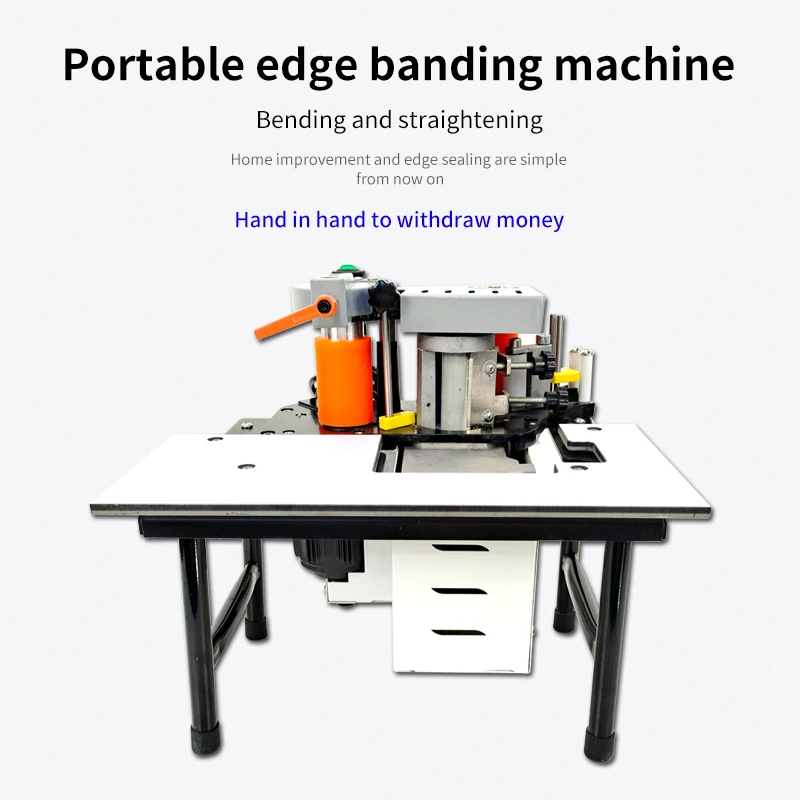

| Product Type | Portable Edge Banding Machine |
| Total Power | 1000W |
| Voltage & Frequency | 220V / 380V / customization available |
| Edge Banding Height | 0–50 mm |
| Edge Banding Thickness | 0.3–3 mm |
| Edge Power | 20W |
| Glue Pot Capacity | 1000 ml |
| Air Source Pressure | 0.5–0.8 MPa |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 3 cm |
| Suitable Edge Banding Tape | ABS, PVC, Melamine, Veneer |
| Edge Type | Straight and curved |
| Plug Options | EU, USA, AU, UK |
| Language Options | Chinese and English standard; other languages customizable |
| Product Size | 38 × 35 × 35 cm |
| Product Weight | 12 kg |
| Assembly State | Portable |
| Certification | CE |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door and drawer front edging | MDF and particleboard with PVC or ABS tape |
| On-site interior fit-out and joinery work | Plywood panels with melamine or veneer tape on curved profiles |
| Small workshop supplementary edge banding | Solid wood panels requiring both straight and curved edge treatment |
| Repair and rework of pre-assembled furniture | Narrow components down to 3 cm width with 0.3–3 mm tape |
Why the Voltage Question Should Come Before the Price
Ordering a portable edge banding machine in stock only to discover it does not match your workshop’s power supply is a costly mistake we see far too often. Voltage and plug confirmation must happen before the crate is sealed, not after it arrives on your dock.
I remember a shipment heading to Southeast Asia where the local supply was 415V three-phase, but the machine left configured for 380V. The customer sat idle for three weeks while the electrical cabinet was reworked on-site. That kind of delay erases any time advantage of buying from ready stock. Since then, every unit I schedule for dispatch gets its electrical drawing and nameplate checked against the destination country’s grid standard before it moves to packing [NEED_CITE: voltage and frequency standards by export market]. The ST-30 is available in 220V and 380V configurations, and we also build to custom voltage when the standard options do not match your facility.
Dispatch Speed Without the Electrical Guesswork
Stock availability means little if the portable edge banding machine in stock you receive cannot run on your shop floor. Our process locks in your voltage, frequency, and plug type — EU, USA, AU, or UK — at the quotation stage so that the unit you unplug from the crate is the unit you plug into your wall. The ST-30 weighs 12 kg and measures 38 × 35 × 35 cm, meaning one person can move it to any workstation and have it running within minutes of unpacking. No electrician call-out, no transformer rental, no three-week wait.
Language and Controls That Match Your Operators
A control panel written in a language your operator cannot read turns commissioning into a guessing game. The ST-30 ships with Chinese and English panels as standard, and we configure alternative languages before dispatch so that glue temperature, feed direction, and banding thickness settings are immediately legible to the person running the machine. This is part of what makes buying a portable edge banding machine in stock from our inventory genuinely plug-and-play rather than a commissioning project [NEED_CITE: CE machinery directive requirements for industrial equipment].
How the Specification Sheet Translates to Daily Output

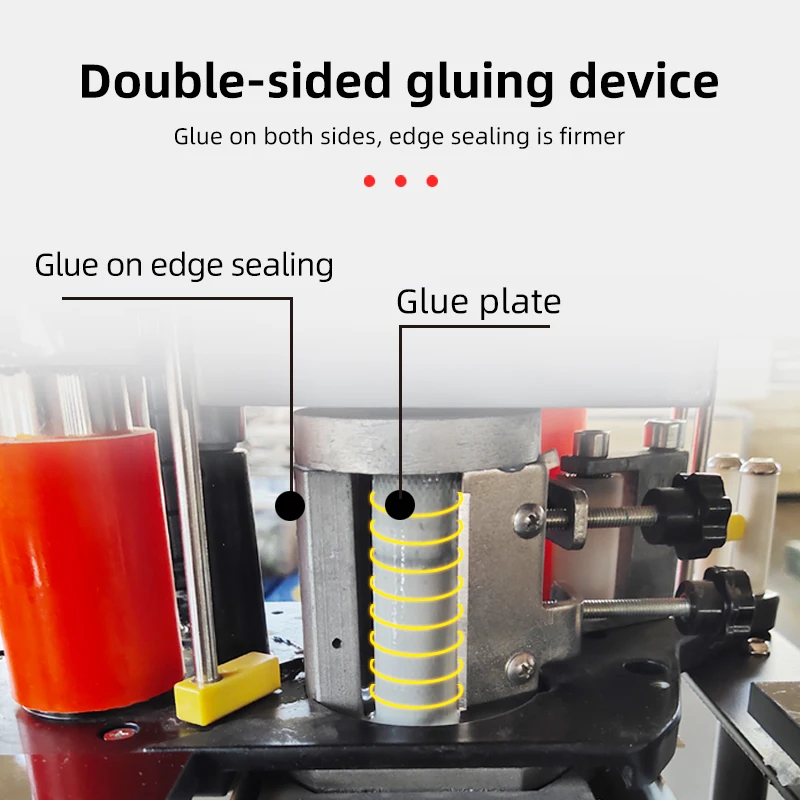

The 0.3–3 mm edge banding thickness range covers the PVC, ABS, melamine, and veneer tapes most small-to-medium furniture workshops use on MDF, particleboard, plywood, and solid wood. When you run 3 mm PVC on a curved cabinet radius, the ST-30’s edge power of 20W maintains consistent adhesive contact across the profile. The 1000 ml glue pot capacity supports sustained operation through a batch of panels without stopping for refills — a practical advantage when you are edging dozens of drawer fronts in sequence. The minimum sheet dimensions of 25 cm length and 3 cm width mean narrow rails, small shelf brackets, and offcut pieces that larger automatic banders cannot grip are handled cleanly on this unit. Air source pressure of 0.5–0.8 MPa is standard for most small compressor setups already present in joinery workshops.
The Hidden Cost of Skipping Configuration Verification
Machines quoted without confirming local voltage and frequency arrive unusable. A single-unit order that seems inexpensive becomes a liability when the motor hums at the wrong frequency, the glue pot fails to reach working temperature, or the control board trips an over-voltage fault on first power-up. I have seen portable edge banders of this class sit in customs clearance while the buyer scrambles to source a step-down transformer. Plug type mismatches compound the problem — an EU plug in a workshop wired for UK sockets means the machine is physically present but electrically stranded [NEED_CITE: international plug and socket compatibility standards]. These are not manufacturing defects. They are ordering-process failures, and they are entirely avoidable when voltage and plug confirmation is treated as a prerequisite rather than an afterthought.
Why Buyers Source This Unit From Our Ready Stock
Every ST-30 leaving our inventory has passed a four-stage quality check covering incoming material, in-process assembly, finished product function, and pre-shipment verification — the same protocol applied to our full-size automatic banding lines. Voltage, plug, and control language are confirmed per order, not assumed from a default build. Our engineer-led configuration process delivers a formal quotation within 24 hours that spells out exactly what ships, so there is no ambiguity when the crate arrives. Factory test records accompany each unit, documenting that the machine successfully banded both straight and curved edges before packing. We welcome factory visits for buyers who want to see the ST-30 run on their own panel stock before committing to an order.
Documentation & Verification
- CE declaration of conformity covering the ST-30 portable unit
- Factory test record verifying straight and curved edge banding before dispatch
- Electrical schematic confirming your specified voltage and plug configuration
- Operation and maintenance manual in your agreed language
- Spare parts list packed with the shipment for quick consumable replacement
Installation, Commissioning & Support
- Place the 12 kg unit on any stable workbench — no floor anchoring or dedicated foundation required
- Connect to a dedicated circuit matching your confirmed 220V or 380V supply with appropriate breaker rating
- Attach air supply at 0.5–0.8 MPa from an existing workshop compressor using standard fittings
- Load your chosen ABS, PVC, melamine, or veneer tape into the feed channel and fill the 1000 ml glue pot
- Run a test piece on both straight and curved profiles to verify glue temperature and feed alignment
- Replaceable glue pot and edge trim blades available as spare parts for ongoing maintenance
Before You Request a Quote
To move quickly from inquiry to dispatch, let us know your workshop’s voltage and frequency, the plug type your sockets accept, and the primary edge banding tape material and thickness you plan to run. If you work with curved profiles, share the minimum radius so we can confirm suitability. Tell us the control panel language your operators need and whether you require the unit as a standalone bander or as a supplement to an existing production line.
Frequently Asked Questions
Q: Is this portable edge bander in stock and what is the dispatch lead time?
A: The ST-30 is held in ready stock for fast dispatch. Once your voltage, plug type, and control panel language are confirmed, the unit moves to pre-shipment testing and packing. Typical dispatch happens within a matter of days after configuration confirmation, not weeks. We provide the shipping timeline in your formal quotation.
Q: How do I confirm the correct voltage, frequency, and plug type for my country?
A: Share your country and workshop location at the inquiry stage. We cross-reference your local grid standard — whether 220V or 380V — and assign the matching plug from our EU, USA, AU, or UK options. Custom voltage builds are also available. The electrical schematic is confirmed with you before the machine leaves the factory.
Q: What edge banding tape materials and thicknesses does the ST-30 handle?
A: The ST-30 accepts ABS, PVC, melamine, and veneer tapes in thicknesses from 0.3 to 3 mm. Edge banding height covers 0 to 50 mm, accommodating most standard cabinet and furniture panel profiles on both straight and curved edges.
Q: Can the control panel be customized to my operator’s language?
A: Yes. Chinese and English are standard. We configure the control panel to your required language before dispatch so that all operating parameters — glue temperature, feed direction, banding thickness — are readable by your team from the first power-up.
Q: What spare parts and consumables should I order with the machine?
A: Each shipment includes a spare parts list specific to the ST-30. Common consumable items include replacement glue pot elements and edge trim blades. Ordering a starter set of spares with your machine avoids downtime waiting for international shipping on small components.
